Product Overview

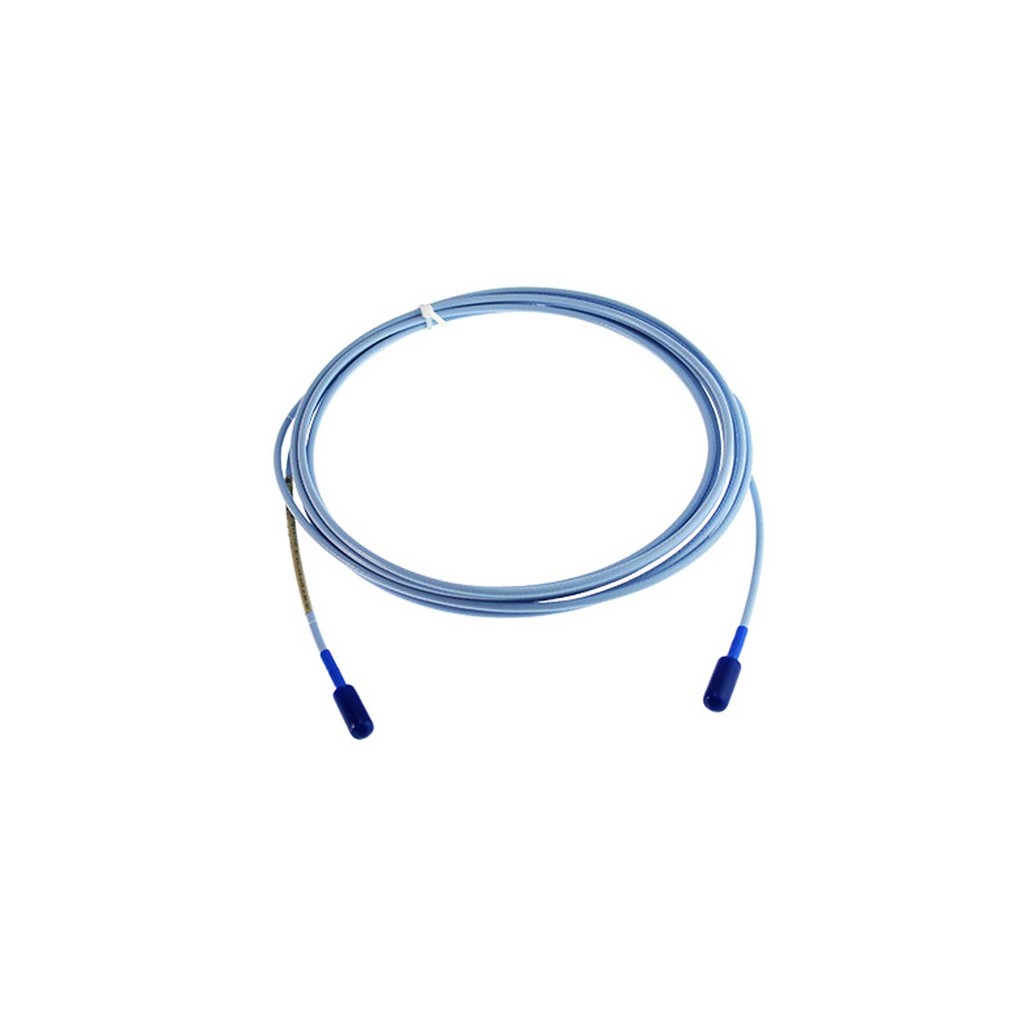

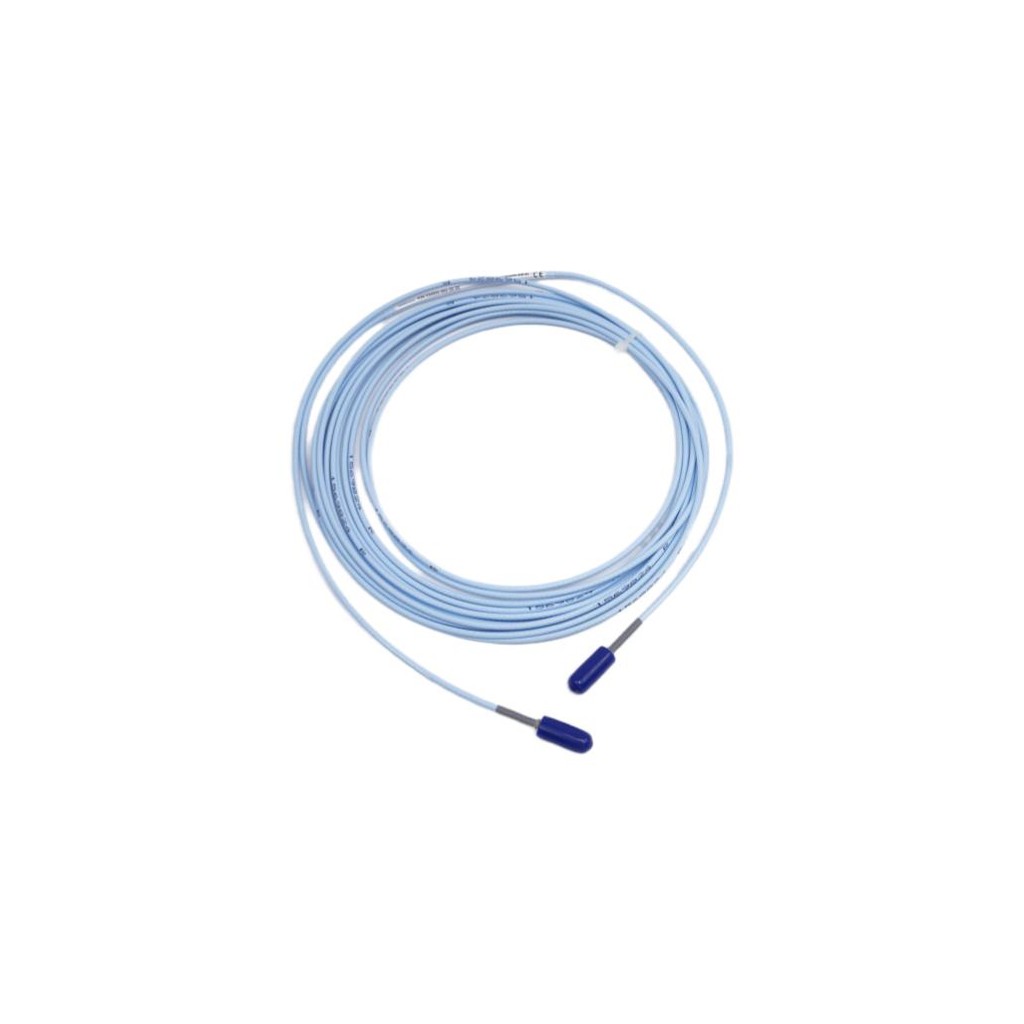

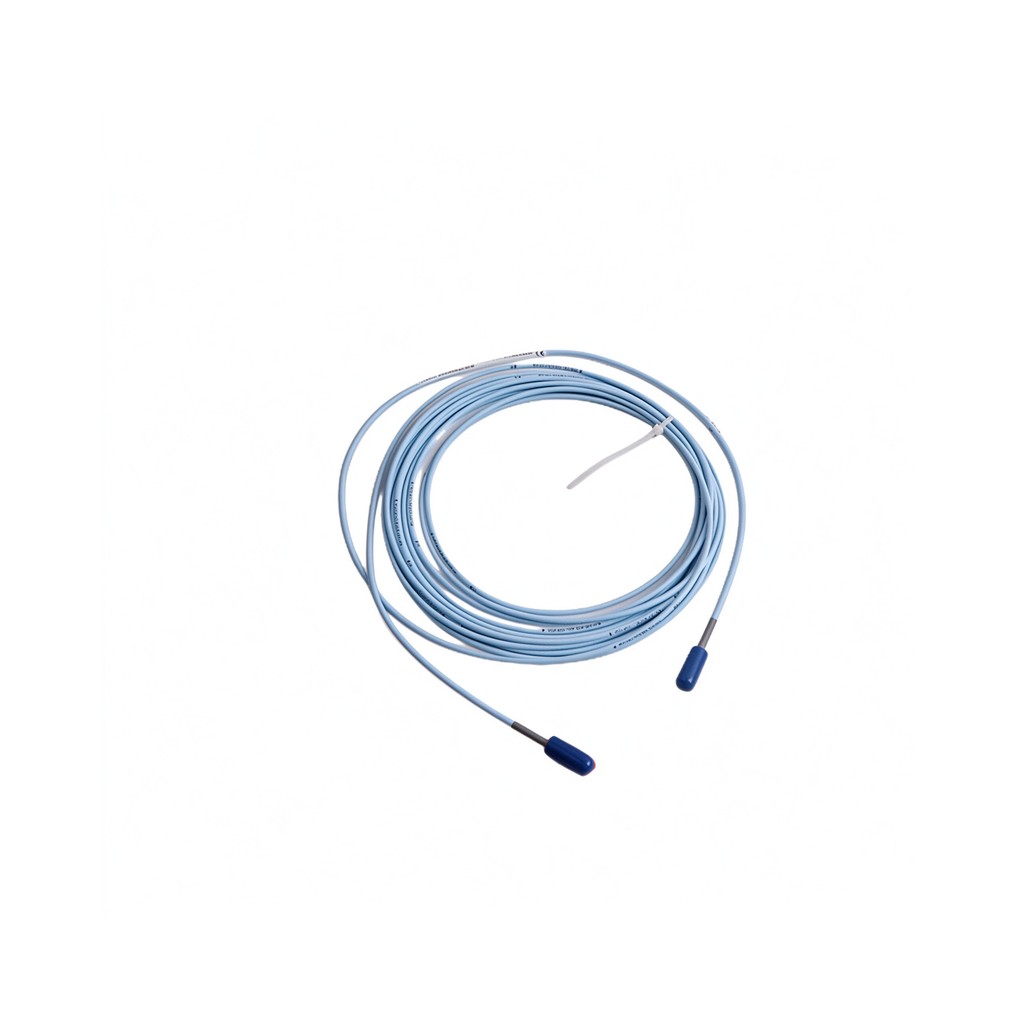

The Bently Nevada 83387-100 is a hardline cable for accelerometer interface modules. This cable connects accelerometers to monitoring systems in extreme environments. The Bently Nevada 83387-100 features mineral insulation with stainless steel overbraid. It withstands temperatures up to 1200°F for high-heat applications. Users trust this cable for reliable signal transmission in turbines and compressors.

Technical Specifications

The 83387-100 delivers high-temperature performance with robust construction. Below are the complete technical details.

General Specifications

• Manufacturer: Bently Nevada for industrial monitoring reliability.

• Product Type: Hardline Cable for accelerometer interface.

• Part Number: 83387-100 for precise identification.

• Length Option: 100 = 100 inches total cable length.

• Condition: New and original in factory packing.

Accelerometer Mating Connector

• Connector Type: Mates to MS 3100R-10SL-4P receptacle.

• Insert Material: Viton for chemical and heat resistance.

• Temperature Rating: -65°F to +800°F (-54°C to +427°C).

• Connector Protection: Rear of connector is potted for durability.

Disconnect Interface Mating Connector

• Connector Type: Mates to MS 3106-10SL-4S.

• Temperature Rating: -65°F to +800°F (-54°C to +427°C).

• Connection Security: Reliable mating for harsh environments.

Cable Construction

• Conductor Type: Twisted shielded pair for noise reduction.

• Insulation Material: Mineral insulation for high temperature tolerance.

• Protective Layer: Stainless steel overbraid for mechanical protection.

• Low Noise Construction: Minimizes signal interference.

• Overall Protection: Convoluted teflon tubing (noted for softline, hardline uses mineral/steel).

Hardline Cable Temperature Ratings

• Cable Operating Range: -65°F to +1200°F (-54°C to +649°C).

• Accelerometer Connector Range: -65°F to +800°F (-54°C to +427°C).

• Disconnect Connector Range: -65°F to +800°F (-54°C to +427°C).

• Application Suitability: Ideal for high-temperature monitoring points.

Softline Cable Reference (For Comparison)

• Softline Cable Protection: Convoluted teflon tubing overall.

• Softline Connector (Interface Module): Mates to MS 3112-8-3P.

• Softline Cable Temperature: -65°F to +400°F (-54°C to +204°C).

• Softline Accelerometer Connector: -65°F to +392°F (-54°C to +200°C).

• Softline Interface Connector: -50°F to +200°F (-45°C to +93°C).

• Note: This is the 83387-100 hardline cable, not softline.

Installation Guide

Follow these steps to install the Bently Nevada 83387-100 correctly.

1. Inspect the Cable: Check for any damage to the stainless steel overbraid.

2. Identify Connectors: Locate the MS 3100R-10SL-4P (accelerometer end) and MS 3106-10SL-4S (interface end).

3. Connect to Accelerometer: Mate the MS 3100R-10SL-4P connector to the accelerometer receptacle.

4. Secure the Connection: Ensure the Viton insert provides proper sealing.

5. Route the Cable: Guide the 100-inch cable along protected pathways.

6. Avoid Sharp Bends: The stainless steel overbraid resists damage but needs care.

7. Connect to Interface Module: Mate the MS 3106-10SL-4S connector to the disconnect interface.

8. Verify Temperature Exposure: Ensure ambient temperatures stay within rated limits.

9. Secure the Cable: Use appropriate clamps to prevent vibration damage.

10. Test Signal Integrity: Verify accelerometer signal passes through the cable.

Installation Notes

• Do not exceed 1200°F at the cable body.

• The accelerometer connector maximum is 800°F.

• Mineral insulation provides superior high-temperature performance.

• This is hardline construction, not softline with teflon tubing.

• The Viton insert provides chemical resistance.

Packaging List

This unit ships as a new and original product.

• Bently Nevada 83387-100 Hardline Cable (100 inches)

• MS 3100R-10SL-4P connector (accelerometer end, pre-installed)

• MS 3106-10SL-4S connector (interface end, pre-installed)

• Factory packaging with anti-static protection

Frequently Asked Questions (FAQ)

1. What is the maximum temperature rating for the 83387-100 hardline cable?
The Bently Nevada 83387-100 cable withstands -65°F to +1200°F (-54°C to +649°C). The connectors are rated to 800°F maximum.

2. What is the difference between hardline and softline cables?
Hardline cables like Bently Nevada 83387-100 use mineral insulation and stainless steel overbraid. Softline cables use teflon tubing. Hardline handles much higher temperatures (1200°F vs 400°F).

3. What connectors does this hardline cable use?
The accelerometer end uses MS 3100R-10SL-4P with a Viton insert. The interface end uses MS 3106-10SL-4S.

4. What is the length of the 83387-100 cable?
The Bently Nevada 83387-100 has a length of 100 inches. The -100 suffix in the part number indicates this length.

5. Is this cable compatible with all Bently Nevada accelerometers?
The 83387-100 mates to accelerometers with MS 3100R-10SL-4P receptacle. Check your accelerometer connector type before ordering.
