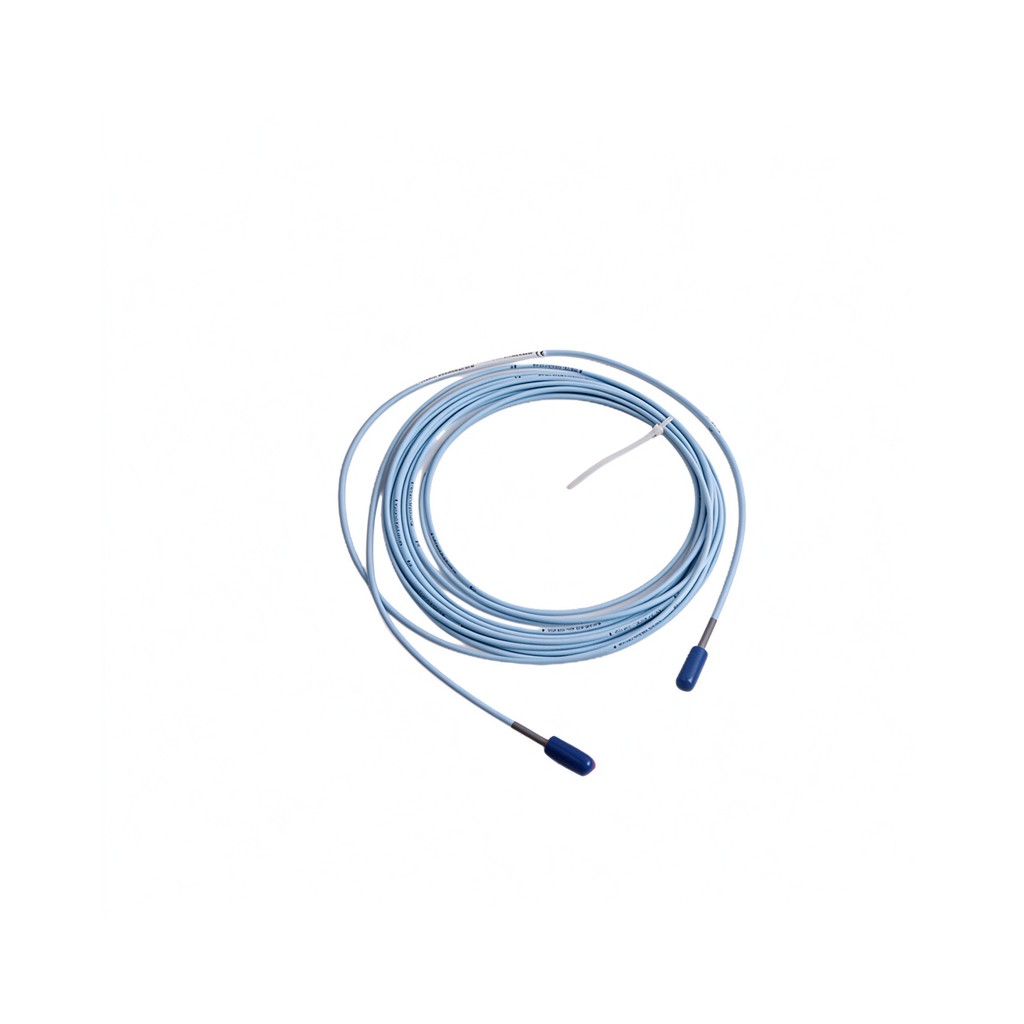

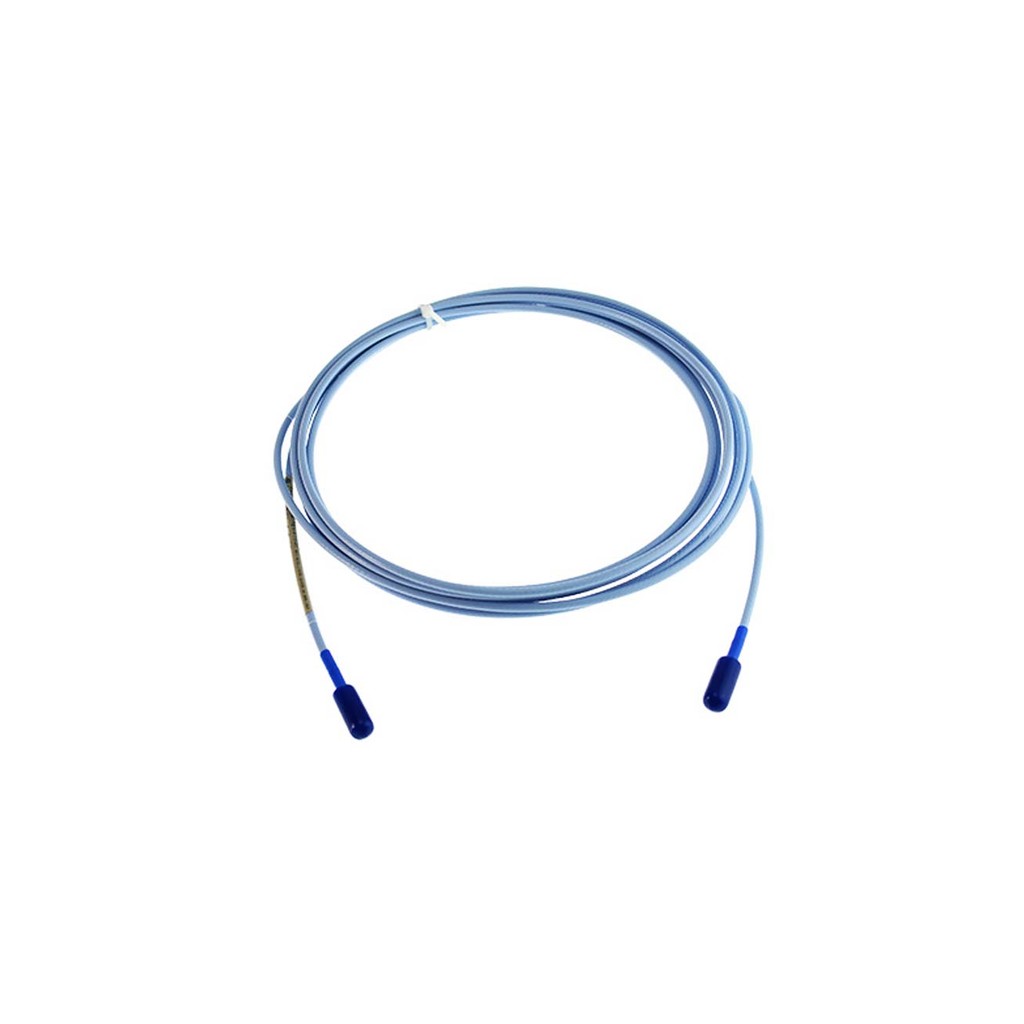

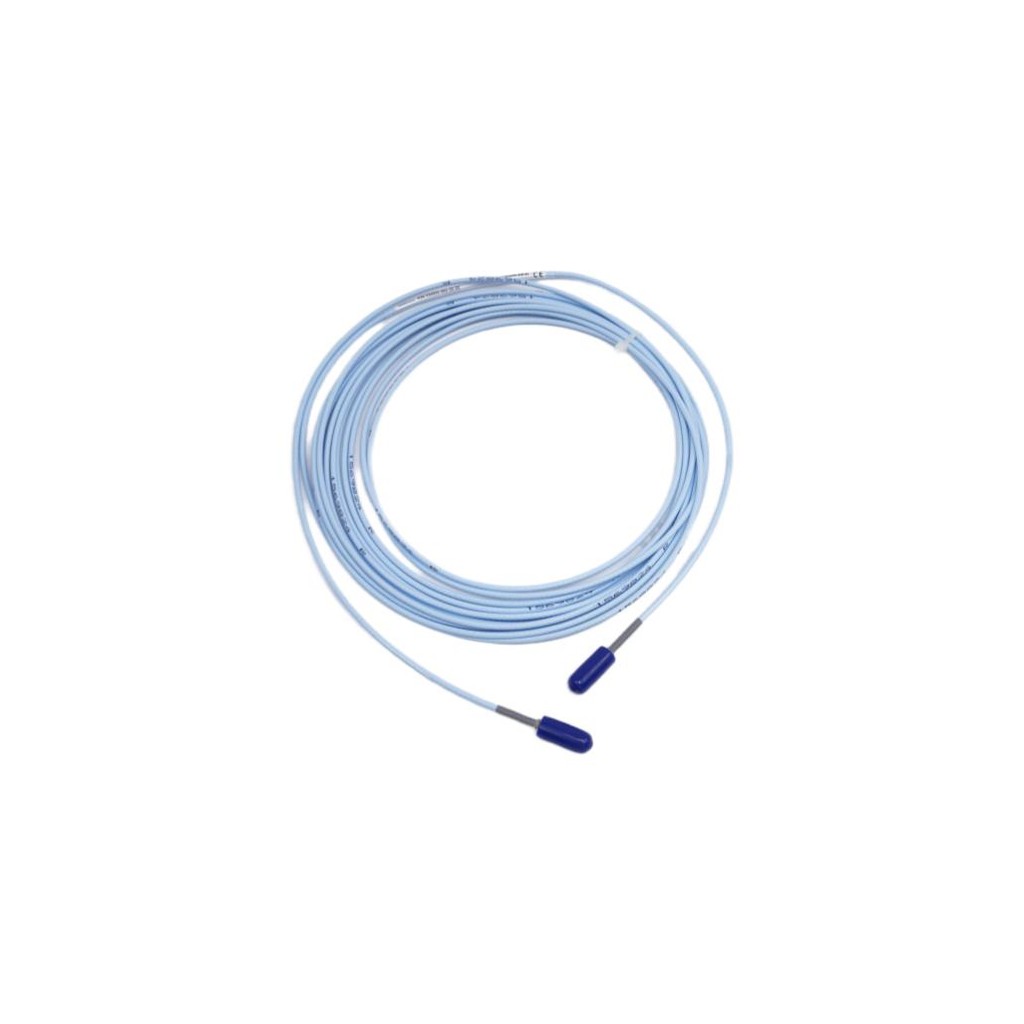

Bently Nevada 83387-132 – Hardline Cable for Accelerometer Interface Module

The Bently Nevada 83387-132 is a hardline cable. Specifically, this cable is designed for accelerometer interface modules. It measures 132 inches in total length. Furthermore, this cable features mineral insulation with stainless steel overbraid protection. Consequently, it withstands extreme temperatures and harsh industrial environments.

Ordering Configuration and Identification

• Part Number: 83387-132.

• Model: Hardline Cable.

• Manufacturer: Bently Nevada.

• Length: 132 inches.

• Application: Accelerometer interface module connection.

• Condition: New and original in factory packing.

• Made In: U.S.A.

• Therefore, the Bently Nevada 83387-132 provides reliable sensor connectivity.

Hardline Cable Construction Features

• Cable Type: Hardline cable (rigid construction).

• Insulation: Mineral insulation for high temperature resistance.

• Protection: Stainless steel overbraid overall.

• Wire Type: Twisted shielded pair with low noise characteristics.

• Connector Potting: Rear of connectors are potted for environmental sealing.

• Durability: Designed for extreme industrial applications.

• Thus, the 83387-132 delivers superior mechanical and thermal protection.

Accelerometer Mating Connector (Hardline)

• Connector Type: Mates to MS 3100R-10SL-4P receptacle.

• Insert Material: Viton insert for chemical resistance.

• Operating Temperature Range: -65°F to +800°F.

• Temperature (Celsius): -54°C to +427°C.

• Application: Connects directly to accelerometer sensor.

• Consequently, the Bently Nevada 83387-132 withstands very high temperatures at the sensor end.

Disconnect Interface Mating Connector (Hardline)

• Connector Type: Mates to MS 3106-10SL-4S.

• Purpose: Disconnect interface connection.

• Operating Temperature Range: -65°F to +800°F.

• Temperature (Celsius): -54°C to +427°C.

• Application: Connects to accelerometer interface module.

• Therefore, both connector ends tolerate extreme heat up to 427°C.

Cable Temperature Rating (Hardline)

• Cable Operating Temperature (F): -65°F to +1200°F.

• Cable Operating Temperature (C): -54°C to +649°C.

• Insulation Type: Mineral insulation for high temperature tolerance.

• Protection: Stainless steel overbraid throughout.

• Application: Suitable for turbine and high-heat monitoring.

• Moreover, the Bently Nevada 83387-132 survives where standard cables fail.

Comparison with Softline Cable (For Reference)

• Softline Cable Temp (Cable): -54°C to +204°C.

• Softline Protection: Convoluted Teflon tubing (not stainless steel).

• Softline Accelerometer Connector: -54°C to +200°C.

• Softline Interface Connector: -45°C to +93°C.

• Hardline Advantage: Significantly higher temperature tolerance.

• Therefore, select hardline for extreme high-temperature applications.

Installation Guide

First, verify that the accelerometer has an MS 3100R-10SL-4P receptacle. Then, connect the Bently Nevada 83387-132 to the accelerometer sensor. Mate the connector firmly until fully seated. The Viton insert ensures a chemical-resistant seal. After that, route the cable away from sharp edges and moving parts. The stainless steel overbraid protects against abrasion and heat. Then, connect the other end to the disconnect interface using MS 3106-10SL-4S. Subsequently, connect the interface module to your monitoring system. Ensure the cable is not bent beyond its minimum radius. Finally, secure the cable using appropriate clamps or ties. As a result, the Bently Nevada 83387-132 will transmit accelerometer signals reliably.

Packaging List

• One Bently Nevada 83387-132 hardline cable (132 inches)

• One MS 3100R-10SL-4P compatible connector (accelerometer end, installed)

• One MS 3106-10SL-4S compatible connector (interface end, installed)

• One protective shipping coil

• One installation and temperature specification sheet

Common FAQs

Q1: What is the length of the Bently Nevada 83387-132 hardline cable?
A: This cable measures 132 inches in total length. Specifically, the 132 suffix indicates the length in inches. Other lengths are available with different part number suffixes.

Q2: What is the maximum temperature rating for this hardline cable?
A: The cable itself withstands up to +1200°F (+649°C). The accelerometer mating connector handles up to +800°F (+427°C). Therefore, this cable suits extreme high-temperature monitoring applications.

Q3: What type of protection does the 83387-132 provide?
A: This hardline cable features stainless steel overbraid protection. The twisted shielded pair has mineral insulation. Consequently, it resists high heat, abrasion, and mechanical damage.

Q4: What connectors are on the Bently Nevada 83387-132?
A: The accelerometer end mates to MS 3100R-10SL-4P receptacles. The interface end mates to MS 3106-10SL-4S connectors. Both ends feature potted rear seals for environmental protection.

Q5: Can I use this hardline cable with softline connectors?
A: No, hardline and softline cables use different interface connectors. Specifically, hardline uses MS 3106-10SL-4S for disconnect. Softline uses MS 3112-8-3P for the interface module. Always verify compatibility before ordering.
