Introduction to the VersaMax IC200ALG230

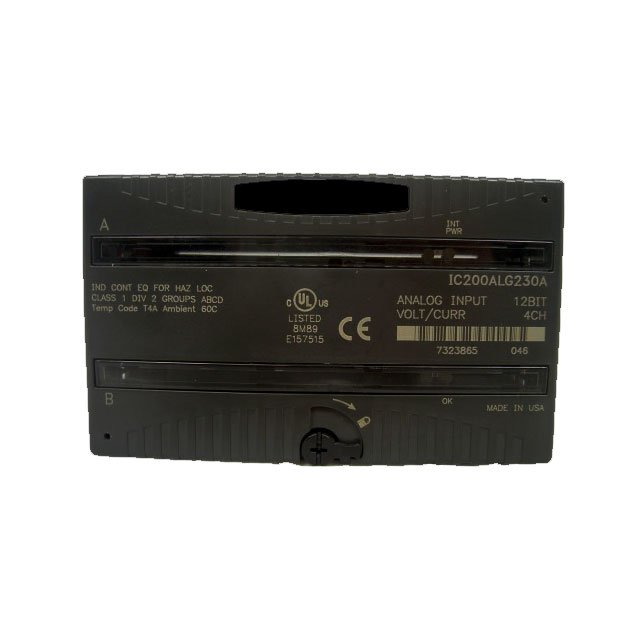

The IC200ALG230 stands as a cornerstone of the VersaMax I/O and control family. Originally developed by GE Fanuc and now supported by Emerson Automation, this analog input module offers a compact and efficient solution for interfacing field sensors with a central controller. It provides four highly configurable channels that accept either voltage or current signals, making it an essential component for diverse industrial automation environments.

The VersaMax platform is famous for its modularity and space-saving design. The IC200ALG230 continues this tradition by offering high-density analog monitoring without the need for an external power supply. It draws all necessary operational power directly from the PLC backplane, simplifying cabinet wiring and reducing potential points of failure.

Technical Specifications

The following table details the critical performance parameters for the IC200ALG230:

Versatile Input Configuration

The IC200ALG230 provides exceptional flexibility through its hardware configuration. Unlike modules that require complex software setups, this unit utilizes two physical jumpers located on the carrier terminal.

1. Mode Selection: The first jumper allows users to toggle between voltage and current modes. In current mode, the module accurately tracks 4-20 mA signals.
2. Range Selection: The second jumper defines the voltage characteristics. Users can select either a unipolar range (0 to +10 VDC) or a bipolar range (-10 to +10 VDC).

This hardware-based configuration ensures that the module retains its settings even after a total power loss or system reset, providing an extra layer of operational stability.

High-Precision Signal Processing

Precision is vital in analog data acquisition. The IC200ALG230 features a built-in Analog-to-Digital (A/D) converter with 12-bit resolution. When the module operates in current mode, it resolves signals down to 4µA (equivalent to 8 counts). In voltage mode, the resolution reaches 2.5mV per 8 counts.

With a rapid update rate of 0.4 ms and a filter response of 5.0 ms, the module ensures that the PLC receives real-time data from the field. This speed allows for highly responsive control loops in applications such as pressure regulation, temperature monitoring, and flow control.

Installation and Hardware Compatibility

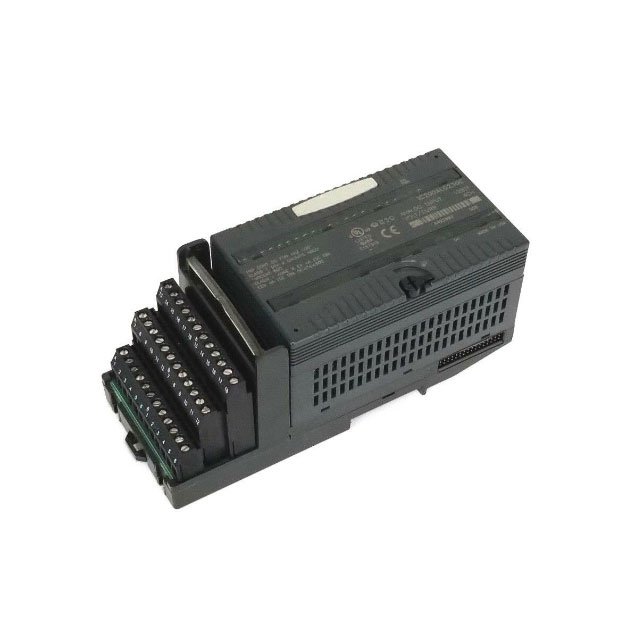

The IC200ALG230 integrates into the VersaMax system via various I/O carriers. This modular approach allows for “hot-swapping” in certain configurations and simplifies maintenance. Compatible hardware includes:

• Terminal Blocks: IC200TBM001, IC200TBM002, or IC200TBM005.
• I/O Carriers: Standard styles (IC200CHS001, 002, 005), Compact styles (IC200CHS022, 025), and Connector styles (IC200CHS003).

For optimal performance, GE recommends using shielded cables. Technicians should ground the cable shield at the source device or the I/O module to prevent electromagnetic interference from degrading the 12-bit signal integrity.

Diagnostics and Safety

The front panel features two essential LED indicators. The OK LED illuminates when the backplane provides steady power to the module. The INT PWR LED confirms that the module is correctly generating its internal field power. In the event of a module error, users can configure the system to either “Hold Last State” or “Go to a Pre-defined Value,” ensuring the process fails safely.
