Introduction to the QuickPanel IC754CSL06CTD

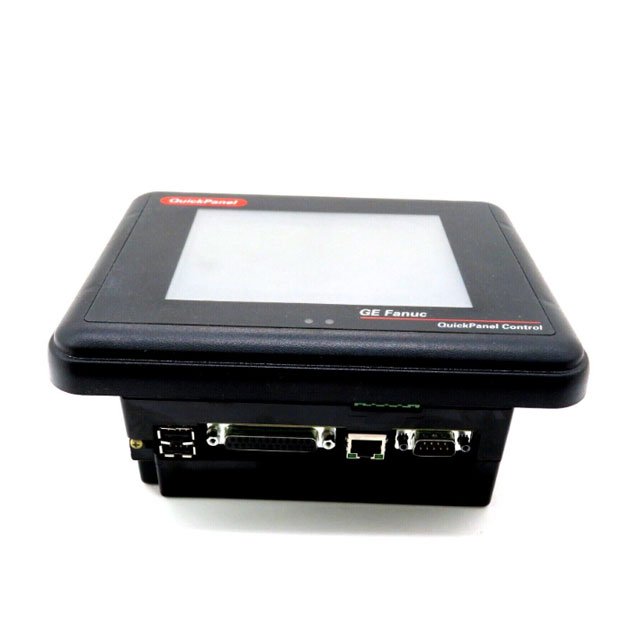

The IC754CSL06CTD belongs to the renowned GE Fanuc QuickPanel family, now supported by Emerson Automation. This Human Machine Interface (HMI) serves as a sophisticated bridge between operators and the factory floor. By integrating real-time data from Programmable Logic Controllers (PLCs), the IC754CSL06CTD transforms complex industrial variables into intuitive, color-coded graphical representations.

Despite its status as a discontinued legacy product, this 6-inch operator panel remains a staple in many manufacturing environments. Its robust hardware architecture and flexible communication options make it a reliable choice for maintaining existing automation lines without requiring expensive system migrations.

Technical Specifications

The following table summarizes the core hardware and performance data for the IC754CSL06CTD:

High-Performance Hardware and Memory

The IC754CSL06CTD utilizes an Intel XScale PXA255 processor running at 300 MHz. This powerful CPU ensures smooth screen transitions and rapid data processing even when handling complex graphical animations. The memory architecture provides a multi-tier approach to data management:

• 32 MB Flash Memory: Stores the runtime application and system software.
• 32 MB DRAM: Handles active process tasks and temporary data.
• 512 KB SRAM: Retains critical data during power-off states for the duration of the battery life.
• 512 KB ROM: Functions as a dedicated boot loader to ensure system stability during startup.

Vibrant Visualization and Interaction

The 6-inch color TFT screen offers a significant advantage over monochrome displays. Operators can identify machine statuses instantly through standard color codes—such as red for alarms and green for normal operation. The resistive touchscreen allows for direct interaction with on-screen objects, enabling precise control of valves, motors, and setpoints. This intuitive interface reduces the learning curve for new operators and minimizes the risk of input errors during high-pressure situations.

Comprehensive Connectivity Options

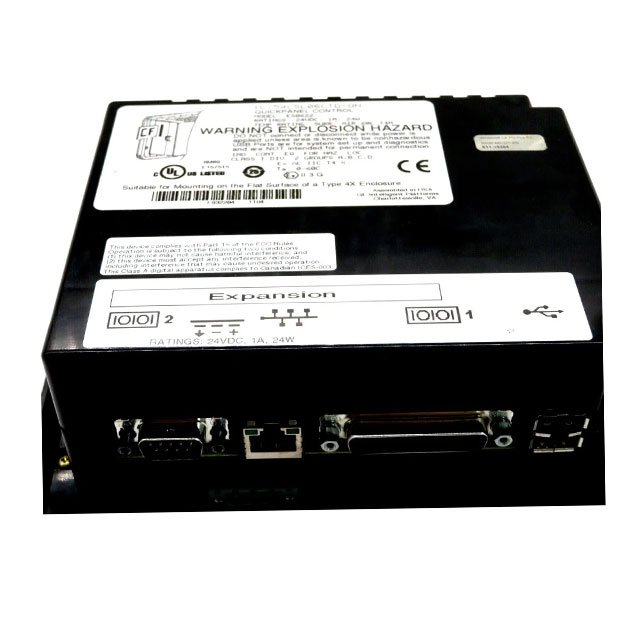

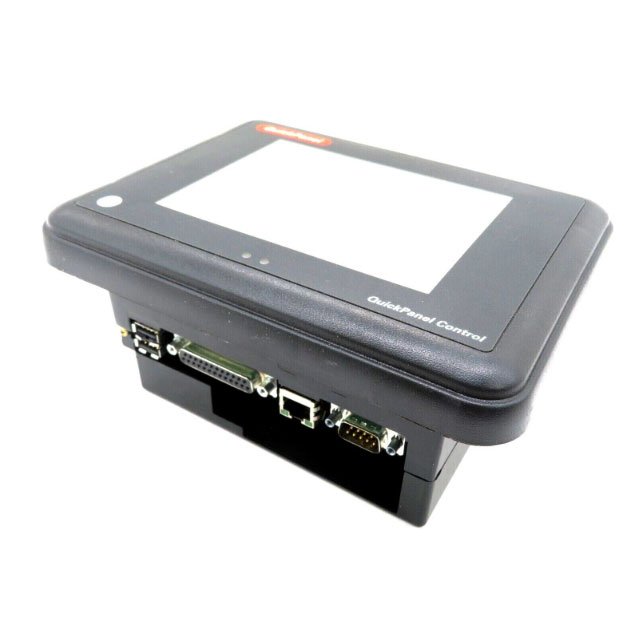

Connectivity defines the versatility of the IC754CSL06CTD. It supports a wide range of networking topologies, from simple peer-to-peer links to complex Ethernet networks. The built-in ports include:

• One (1) Ethernet Port: Facilitates high-speed communication with modern PLCs and enterprise-level systems.
• One (1) Serial Combo Port (EIA232C/EIA485): Utilizes a DB25S connector to interface with legacy serial devices.
• One (1) Dedicated RS232 Port: Provides an additional channel for point-to-point serial communication.
• Two (2) USB Interfaces: Allow for easy connection of peripheral devices such as keyboards, mice, or external storage drives.

Windows CE Operating System

The pre-installed Windows CE operating system provides a familiar environment for device management. Beyond simple HMI tasks, the OS supports advanced features like FTP connections for file transfers and Pocket Internet Explorer for remote browsing. Additionally, built-in Microsoft File Viewers and PDF Viewers allow maintenance personnel to view technical manuals and schematics directly on the HMI screen, significantly improving troubleshooting efficiency on the plant floor.

Installation and Power Requirements

The IC754CSL06CTD operates on a wide DC voltage range (12 to 30 VDC), making it compatible with most industrial power supplies. It uses a reliable Phoenix Contact connector (Part No. 1777992) for secure power termination. Weighing approximately 6.63 lbs (3.01 kg), the unit requires a sturdy panel cutout for mounting. The rugged design ensures the HMI survives the electrical noise and physical vibrations common in industrial settings.
