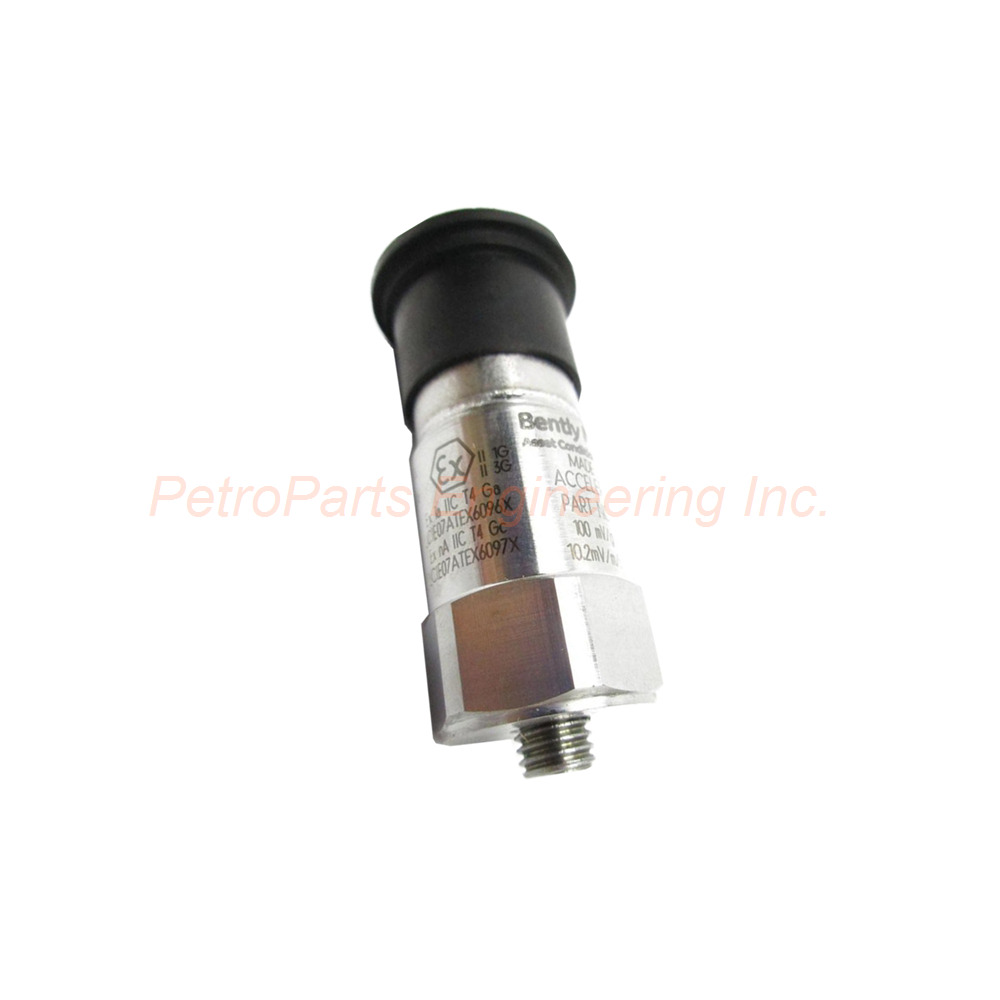

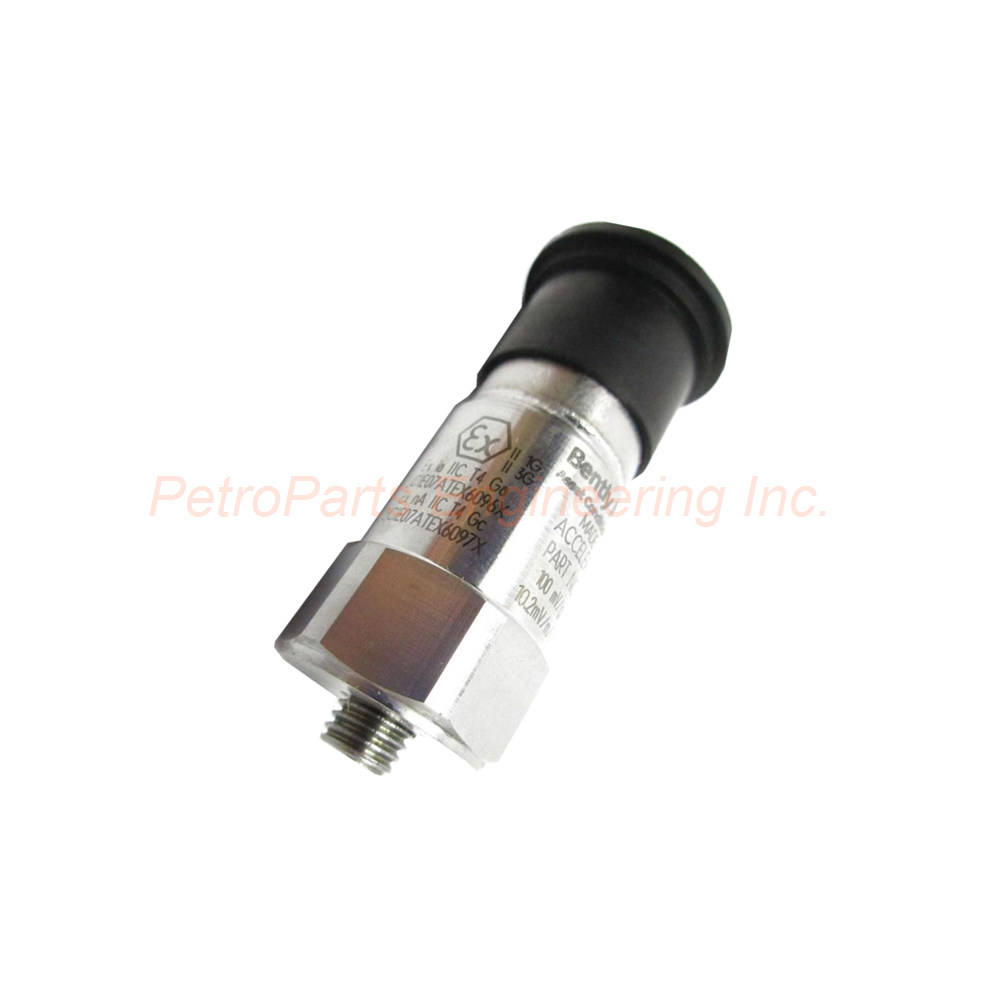

Bently Nevada 200350-01-00-00 100 mV/g Accelerometer
Introduction:
The 200350-01-00-00 is a 100 mV/g accelerometer from Bently Nevada. It features a 1/4-28 to M6x1 stainless steel stud mount, ±50g range, and IP68 environmental protection.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The Bently Nevada 200350-01-00-00 is a high-performance accelerometer. This sensor belongs to the 200350 series of vibration monitoring devices. It provides reliable case-mounted vibration measurements for rotating machinery.
The sensor features a shear-type ceramic sensing element. Furthermore, it is housed in a welded hermetic stainless steel enclosure. Therefore, it withstands harsh industrial environments. The 2-pin Mil-C-5015 connector ensures secure electrical connection.
Ordering Information Breakdown
The 200350-01-00-00 follows a specific ordering code structure. Understanding this code helps verify correct configuration.
200350: 200350 Accelerometer base model.
01: 1/4-28 to M6 x 1.00 Stainless Steel mounting stud.
00: 100 mV/g ±20% tolerance.
00: No agency approvals.
General Specifications
The 200350-01-00-00 offers robust vibration sensing capabilities. Below are the core technical details.
Manufacturer: Bently Nevada.
Product Type: Accelerometer.
Country of Origin: Made in U.S.A.
Physical Specifications:
Hex Size: 11/16 inch (1.8 cm).
Height: 1.65 inches (4.24 cm).
Weight: 0.051 kg.
Housing Material: Stainless Steel.
Sealing: Welded Hermetic.
Sensing Element: Ceramic.
Sensing Geometry: Shear.
Mounting:
Mounting Thread: 1/4-28 Female.
Mounting Stud: 1/4-28 to M6 x 1.00 Stainless Steel.
Mounting Torque (Maximum): 2 to 5 ft-lb (2.7 to 6.8 N-m).
Electrical Specifications
The 200350-01-00-00 meets precise electrical requirements for reliable vibration measurement.
| Parameter | Value |
|---|---|
| Sensitivity | 100 mV/g ±20% (10.2 mV/m/s² ±20%) |
| Measurement Range | ±50g |
| Frequency Range (±3 dB) | 30-600,000 cpm (0.5-10,000 Hz) |
| Transverse Sensitivity | ≤7% |
| Amplitude Linearity | ±1% |
| Mounted Resonant Frequency | 1500 kcpm (25 kHz) |
| Broadband Electrical Noise (1-10kHz) | 350 μg (3,434 μm/s²) |
| Output Bias Voltage | 8 to 12 VDC |
| Excitation Voltage | 18 to 28 VDC |
| Constant Current Excitation | 2 to 20 mA |
| Settling Time (within 1% of bias) | 2.0 seconds |
| Output Impedance | <150 ohms |
| Discharge Time Constant | ≥0.3 seconds |
| Electrical Isolation (Case) | >10⁸ ohms |
Environmental Specifications
The 200350-01-00-00 withstands extreme conditions in industrial environments.
Operating Temperature Range: -54°C to +121°C (-65°F to +250°F).
Shock Survivability: 5,000 g peak.
Relative Humidity: 100% relative, condensing, non-submerged.
Enclosure Rating: IP68.
Connector Specifications
The 200350-01-00-00 uses a robust military-grade connector for reliable field connections.
Electrical Connector: 2-Pin Mil-C-5015.
Electrical Connection Position: Top.
Key Features
The 200350-01-00-00 offers several advantages for vibration monitoring applications.
Wide Frequency Range:
The sensor measures from 30 to 600,000 cpm (0.5 to 10,000 Hz). Consequently, it captures both low and high frequency vibrations effectively.
High Sensitivity:
With 100 mV/g ±20% output, it detects small vibration changes. Therefore, it suits predictive maintenance programs.
IP68 Environmental Rating:
The welded hermetic sealing provides IP68 protection. As a result, the sensor operates reliably in wet and condensing environments.
Shear Sensing Geometry:
The ceramic shear element offers excellent temperature stability. Moreover, it reduces base strain sensitivity for more accurate measurements.
High Shock Survivability:
The sensor withstands 5,000 g peak shock. Hence, it survives harsh machine start-up and fault conditions without damage.
Electrical Isolation:
Case isolation exceeds 10⁸ ohms. Therefore, ground loops are prevented in monitoring systems.
Stainless Steel Mounting Stud:
The -01 option includes a 1/4-28 to M6 x 1.00 stainless steel stud. Thus, it adapts to both imperial and metric mounting holes.
Typical Applications
The 200350-01-00-00 suits various vibration monitoring applications.
Case-mounted vibration monitoring on pumps and fans.
Bearing housing measurement on compressors.
Machine condition monitoring in industrial plants.
Predictive maintenance programs.
Vibration data collection for spectrum analysis.
Installation Guidelines
Install the 200350-01-00-00 using the included 1/4-28 to M6 x 1.00 stainless steel mounting stud. First, clean the mounting surface thoroughly. Then, screw the stud into the machine's threaded hole. For metric holes, use the M6 side. For imperial holes, use the 1/4-28 side.
After the stud is secured, mount the sensor onto the stud. Apply mounting torque between 2 and 5 ft-lb (2.7 to 6.8 N-m). Do not overtighten. Connect the 2-pin Mil-C-5015 connector to a compatible constant current power supply. Supply 18-28 VDC at 2-20 mA. The output bias voltage will settle within 8-12 VDC after approximately 2 seconds.
What is in the Box
Please inspect all items upon delivery.
Bently Nevada 200350-01-00-00 accelerometer.
1/4-28 to M6 x 1.00 stainless steel mounting stud.
2-pin Mil-C-5015 connector (on sensor).
Installation instruction manual.
Frequently Asked Questions (FAQ)
1. What is the sensitivity of the 200350-01-00-00?
The 200350-01-00-00 has a sensitivity of 100 mV/g ±20%. This equals 10.2 mV/m/s² ±20%.
2. What is the frequency range of this accelerometer?
The frequency range is 30 to 600,000 cpm (0.5 to 10,000 Hz) within ±3 dB. Therefore, it captures a wide spectrum of vibration signals.
3. What power supply does this sensor require?
The 200350-01-00-00 requires 18 to 28 VDC constant current excitation. The current must be between 2 and 20 mA. Many industrial IEPE power supplies meet this requirement.
4. Is this sensor suitable for outdoor use?
Yes. The IP68 enclosure rating and welded hermetic sealing make the 200350-01-00-00 suitable for outdoor and wet environments. It also withstands condensing humidity.
5. What mounting stud does this version include?
The -01 option includes a 1/4-28 to M6 x 1.00 stainless steel mounting stud. Consequently, it adapts to both imperial (1/4-28) and metric (M6) mounting holes.
