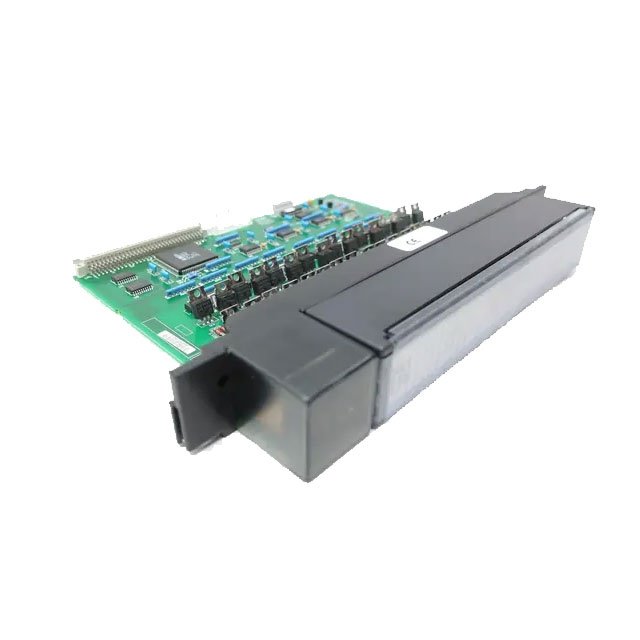

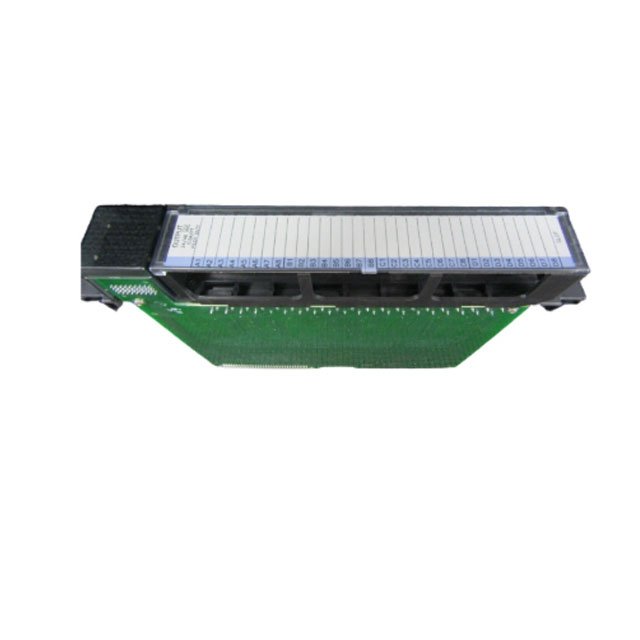

Overview of the IC697MDL750

The IC697MDL750 is a high-density discrete output module belonging to the legendary GE Fanuc Series 90-70 Programmable Logic Controller (PLC) family. While GE Fanuc originally manufactured this series, Emerson Automation now manages the product lifecycle. This module provides thirty-two (32) independent output channels, making it an ideal choice for systems requiring extensive I/O control within a compact footprint.

Engineers utilize the IC697MDL750 to drive a variety of DC loads, including motor starters, solenoid valves, and indicator lamps. Its robust design adheres to the VME standard C.1, ensuring seamless integration into Series 90-70 baseplates. Despite its discontinued status, it remains a critical component for maintaining and upgrading legacy industrial automation systems.

Technical Specifications

The following table outlines the essential electrical and physical parameters of the IC697MDL750:

High-Density Output Configuration

The IC697MDL750 features thirty-two discrete output channels organized into four isolated groups. Each group contains eight channels. This grouping strategy allows for better circuit segregation and safety. Each individual point supports a steady-state current of 0.5 Amperes. However, users must ensure the total current for a single group does not exceed 2.0 Amperes to maintain thermal stability and hardware longevity.

Electrical Performance and Protection

The module excels in demanding environments where rapid switching and high inrush currents occur. It handles an inrush current of up to 10 Amperes for a 20-millisecond duration, which is crucial when energizing inductive loads like large solenoids.

Furthermore, the IC697MDL750 minimizes signal latency with a maximum response time of only 1 millisecond for both “on” and “off” states. The internal circuitry also limits the output voltage drop to a maximum of 1.0 Volt, ensuring that field devices receive consistent power within the 20 to 60 VDC operating range.

Advanced Isolation and Safety Features

Safety remains a priority in the design of the Series 90-70 components. The IC697MDL750 provides 1500 VAC optical isolation between the sensitive logic side (backplane) and the field side. This prevents electrical noise or field-side faults from damaging the PLC CPU. Additionally, the module offers 500 VAC isolation between the four output groups, allowing for different power sources or ground references if necessary.

Installation and Maintenance

GE designed the IC697MDL750 for ease of use and error prevention:

• Mechanical Keying: The module includes a unique mechanical keying system. This physical feature prevents operators from inserting the wrong module type into a slot configured for an MDL750, protecting both the module and the backplane.
• Removable Terminal Block: A high-density removable terminal block simplifies the wiring process. Technicians can pre-wire the terminal blocks before installing the module. Each terminal accepts two wires ranging from #22 AWG to #14 AWG, facilitating flexible field connections.
• Status Monitoring: The front panel typically includes LED indicators that provide real-time status updates for each output, aiding in rapid troubleshooting during system downtime.

Application Scenarios

The IC697MDL750 serves as a reliable interface for various industrial applications, including:

1. Manufacturing Lines: Controlling motor starters and conveyors.
2. Power Plants: Managing solenoid-actuated valves and trip circuits.
3. Process Control: Operating pilot lamps and annunciator panels for operator feedback.
