GE Nexus MVP50 369B1848G5007 Valve Position Control Module

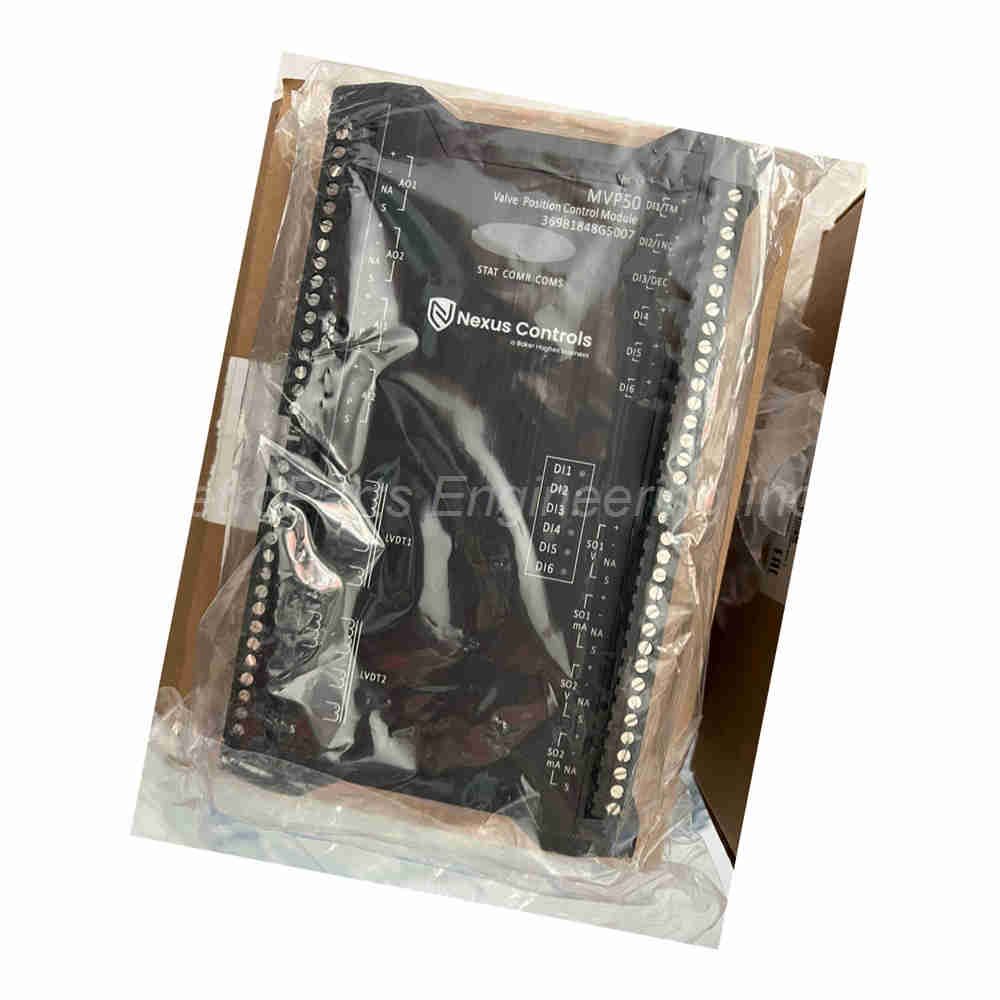

The GE Nexus MVP50 369B1848G5007 is a dedicated valve position control module. This unit combines powerful processing with specialized I/O for valve control. You can use it for electro-hydraulic servo valve positioning. The module includes LVDT inputs for position feedback. It provides servo outputs for direct valve actuation.

Technical Specifications of the 369B1848G5007 MVP50

The GE Nexus MVP50 369B1848G5007 features two (2) LVDT input channels. These support 3-wire or 6-wire LVDT connections. The module includes broken wire detection for reliability. Excitation frequency and amplitude are adjustable. This allows optimization for different LVDT sensors.

Analog and Servo I/O Channels

The GE Nexus MVP50 369B1848G5007 provides two (2) analog input channels. These accept 0-20 mA, 0-5V, or +/-10V signals. Two (2) servo output channels deliver +/-40 mA or +/-10V. These outputs include channel fault detection for safety. Two (2) analog output channels provide 0-5V signals. Six (6) digital input channels are also included.

Signal Processing and Filtering

The GE Nexus MVP50 369B1848G5007 includes firmware-based signal filtering. The filter time adjusts from 3 to 50 milliseconds. The default filter setting is 24 milliseconds. This reduces noise on input signals. Channel input status is clearly displayed.

Status and Diagnostic LEDs

The GE Nexus MVP50 369B1848G5007 has comprehensive LED indicators. Module run status is clearly shown. Communication status is displayed for network monitoring. Fault alarm LEDs help with quick troubleshooting.

Isolation and Power

Channel-to-ground isolation is rated at 500V AC. Channel-to-system bus isolation reaches 1500V AC. The GE Nexus MVP50 369B1848G5007 features redundant 24V DC power inputs. Typical power consumption is 3.7 Watts. Maximum power consumption reaches 10.7 Watts. The module follows system CE certification.

Intelligent Processor Specifications

The GE Nexus MVP50 369B1848G5007 includes an Intel 1.66 GHz 64-bit embedded processor. Memory includes DDR2 667/800 MHz with 1GB capacity. The module has 2GB onboard non-volatile flash storage.

Network and Communication

Redundant 1Gbps UDH control network ports are included. These use Ethernet for high-speed communication. The GE Nexus MVP50 369B1848G5007 also has redundant 1Gbps I/O network connections. A dedicated 1Gbps dual-redundant tracking network is provided.

I/O Bus and Expansion

Four intelligent high-speed redundant serial I/O buses are included. Each bus operates at 1Mbps. The GE Nexus MVP50 369B1848G5007 supports up to 12 Nexus I/O modules per bus. Maximum I/O capacity reaches 48 Nexus modules.

Operating System and Performance

The module runs QNX real-time multi-tasking OS. The minimum control cycle is 40 milliseconds. You can create up to 999 control configuration pages. NTP network clock synchronization achieves ±1ms accuracy. SOE (Sequence of Events) precision is 1ms. The GE Nexus MVP50 369B1848G5007 operates from 0°C to 60°C.

Installation Guidelines for the 369B1848G5007

Mount the GE Nexus MVP50 369B1848G5007 in a suitable chassis. Connect both redundant 24V DC power inputs. Wire LVDT sensors using 3-wire or 6-wire configuration. Connect servo outputs to electro-hydraulic valve coils. Configure excitation frequency and amplitude for your LVDT. Set signal filtering based on your application noise level.

Package Contents

• One (1) GE Nexus MVP50 369B1848G5007 valve position control module

• Installation and configuration manual

Common FAQs for the 369B1848G5007

1. How many LVDT inputs does the MVP50 provide?
The GE Nexus MVP50 369B1848G5007 provides two (2) LVDT input channels. These support both 3-wire and 6-wire configurations.

2. What servo output ranges are available?
The GE Nexus MVP50 369B1848G5007 provides +/-40 mA or +/-10V servo outputs. Two channels are available with fault detection.

3. What is the minimum control cycle time?
The GE Nexus MVP50 369B1848G5007 achieves a minimum 40 millisecond control cycle. This supports fast valve positioning applications.

4. Does this module have redundant power inputs?
Yes, the GE Nexus MVP50 369B1848G5007 features redundant 24V DC power inputs. This ensures continuous operation during a single supply failure.

5. What signal filtering options are available?
The GE Nexus MVP50 369B1848G5007 has adjustable firmware filtering from 3 to 50 milliseconds. The default setting is 24 milliseconds.

Why Choose the GE Nexus MVP50 369B1848G5007?

This valve position control module delivers specialized control for hydraulic valves. The 1.66 GHz processor and QNX RTOS ensure reliable real-time performance. Two LVDT inputs and two servo outputs provide complete valve positioning. Redundant power and networks maximize system availability. Order the GE Nexus MVP50 369B1848G5007 today for your valve control needs.
