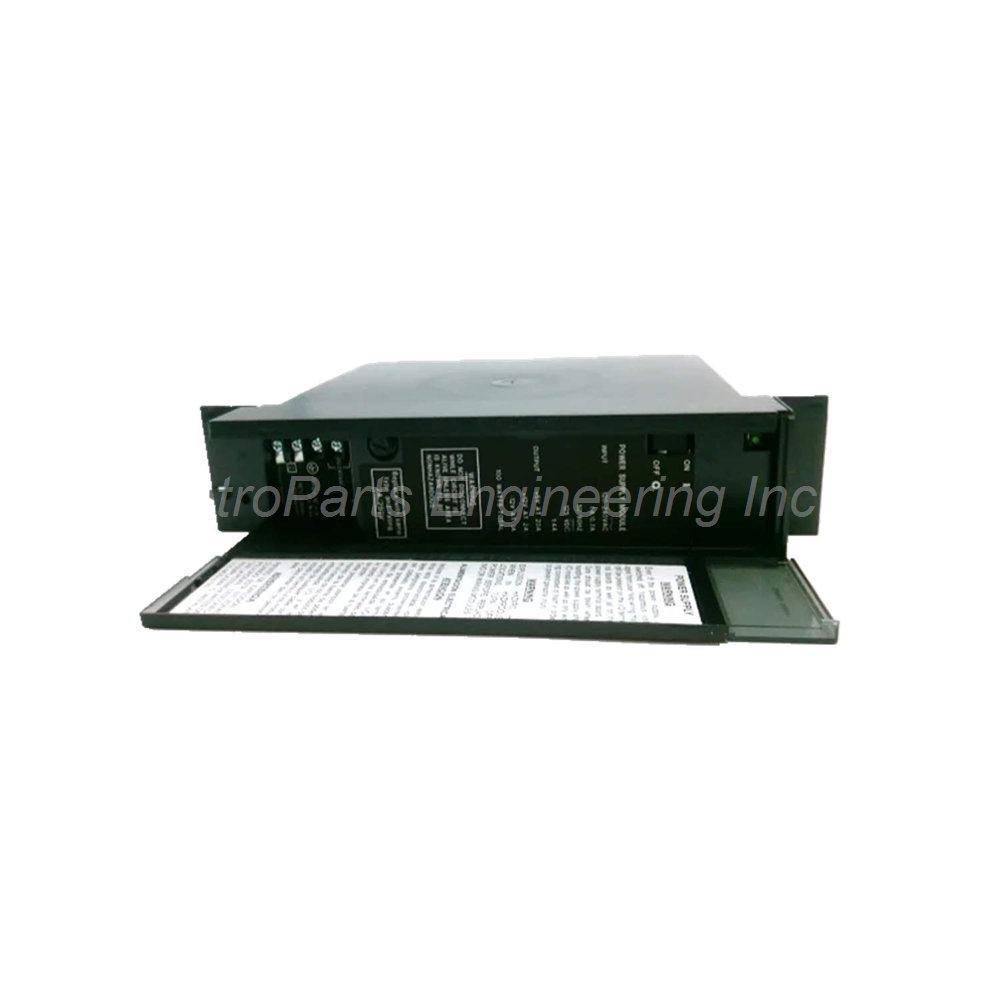

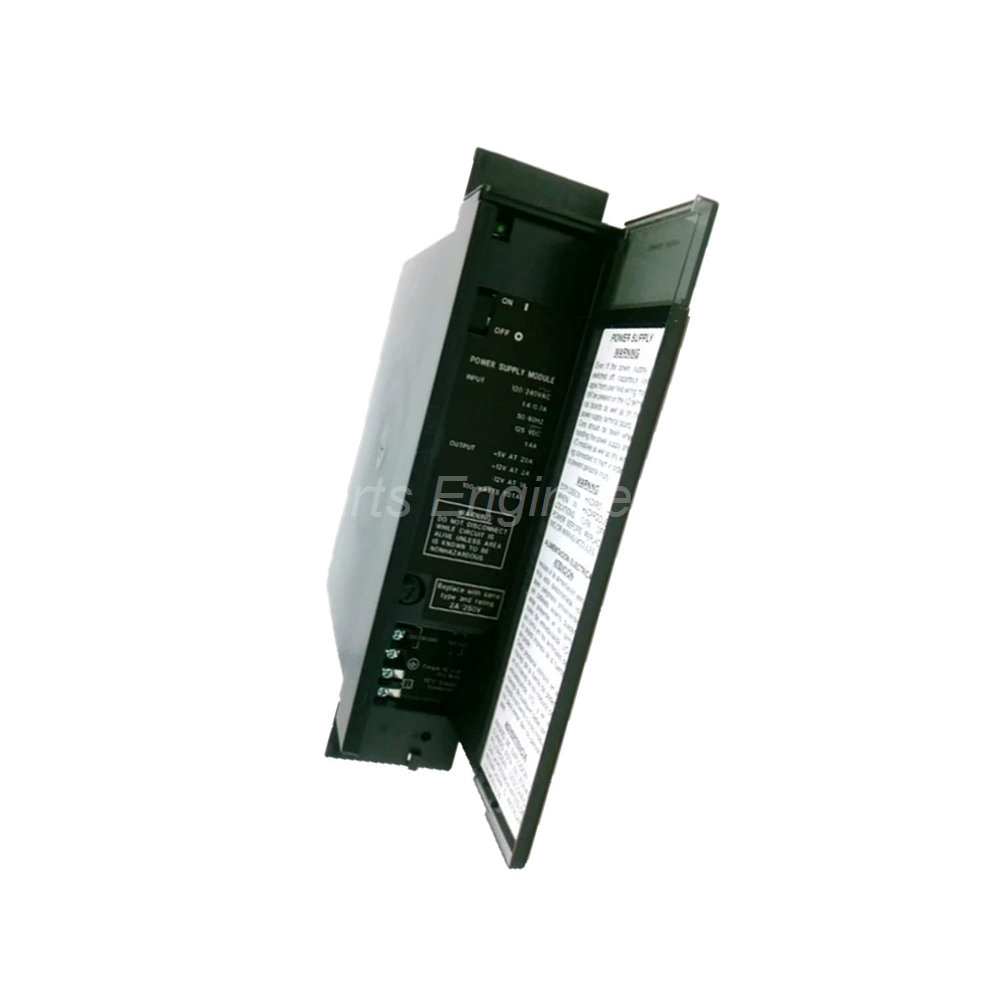

GE Fanuc IC697PWR721 External Power Supply Module

The GE Fanuc IC697PWR721 is an external power supply module. It belongs to the Series 90-70 product line. This module provides regulated DC power to compatible racks. You must use it with a Power Supply Adapter (PSA) module. The PSA plugs into the power supply slot on the rack.

Technical Specifications of the IC697PWR721

The GE Fanuc IC697PWR721 delivers 90 Watts of maximum output power. The total input power reaches 156 Watts at full load. This module mounts externally without going into the rack. A cable connects the power supply to both the PSA and the rack. The PSA joins the power supply outputs to the rack backplane.

Input and Output Ratings

The nominal input voltage is 24 Volts DC. The operating range spans 21 to 32 Volts DC. The inrush energy rating is 22 Joules maximum at 32 Volts DC. The output voltage regulation provides three DC levels. These levels are 5V, 12V, and -12V DC. The respective current ratings are 16.5 A, 1.5 A, and 1 A.

Protection and Environmental Ratings

The GE Fanuc IC697PWR721 has an overvoltage limit of 6 to 7 Volts. This protects connected equipment from excessive voltage. The operating temperature ranges from 0°C to 60°C. The shock rating is 15 G for 11 milliseconds. This ensures reliable operation in industrial environments.

TTL Signal and Monitoring

This power supply module provides a TTL-compatible logic shut-down signal. The PSA module monitors this TTLS signal for proper operation. The PSA connects the power supply outputs to the rack backplane. This arrangement allows external mounting while maintaining full rack functionality.

Compatibility and Installation Guidelines

The GE Fanuc IC697PWR721 is fully compatible with GE IC697 racks. It also works with WME integrated racks from the same series. Mount the power supply externally near the rack. Use the proper cable to connect to the PSA module. Ensure the PSA is properly inserted into the rack power supply slot. Maintain ambient temperature between 0°C and 60°C during operation.

Package Contents

• One (1) GE Fanuc IC697PWR721 external power supply module

• Connection cable for PSA and rack

• Product documentation and installation guide

Common FAQs for the IC697PWR721

1. Does the IC697PWR721 mount inside the rack?
No, the GE Fanuc IC697PWR721 mounts externally. You need a PSA module in the rack slot. A cable connects the power supply to the PSA.

2. What is the maximum output power of this module?
The GE Fanuc IC697PWR721 provides 90 Watts maximum output power. The input power at full load is 156 Watts.

3. What voltage outputs does the IC697PWR721 provide?
The GE Fanuc IC697PWR721 provides three DC outputs: 5V at 16.5A, 12V at 1.5A, and -12V at 1A. This supports all Series 90-70 rack requirements.

4. What racks work with this power supply?
The GE Fanuc IC697PWR721 works with GE IC697 racks and WME integrated racks. It requires a PSA module for proper connection.

5. What is the operating temperature range?
The GE Fanuc IC697PWR721 operates from 0°C to 60°C. Keep the module within this range for reliable performance.

Why Choose the GE Fanuc IC697PWR721?

This external power supply provides clean DC power to Series 90-70 racks. The 90W output handles most system configurations easily. External mounting saves valuable rack space for I/O modules. The TTL shutdown signal adds a layer of system protection. Order the GE Fanuc IC697PWR721 today to power your Series 90-70 system.
