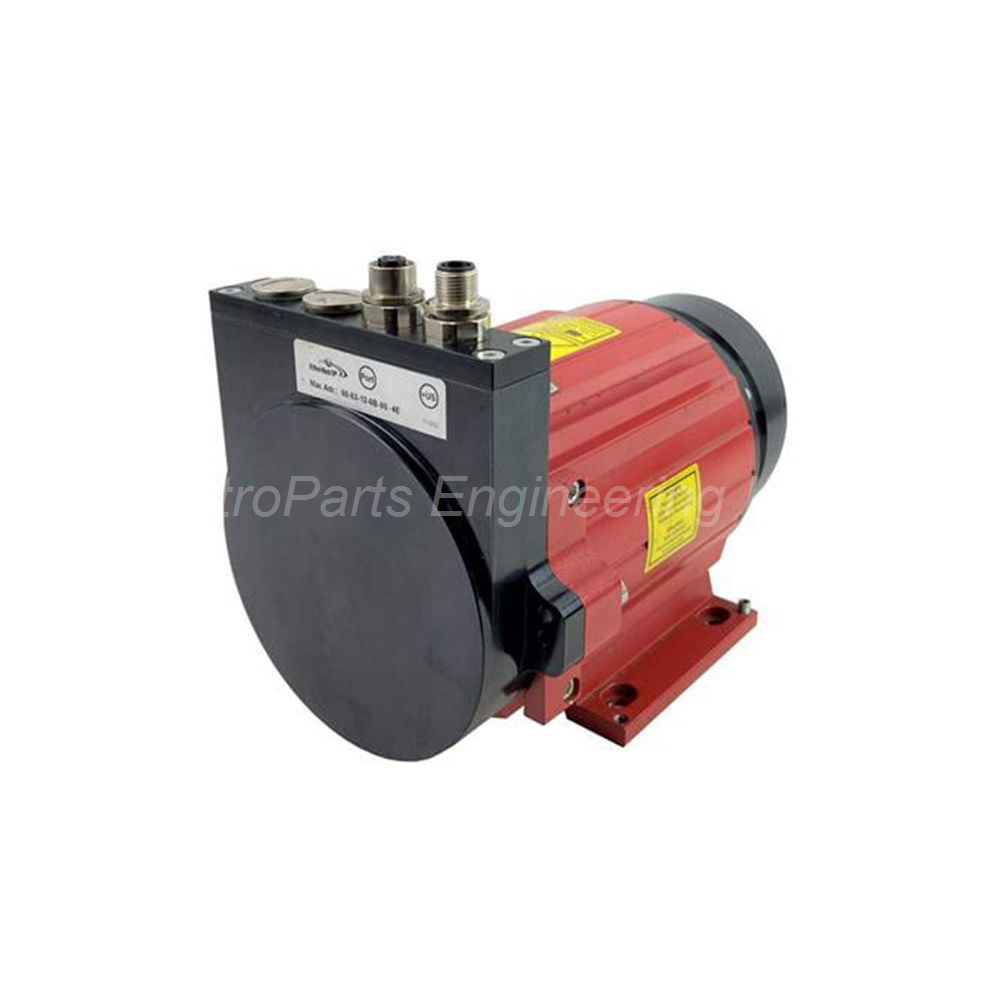

TR Electronic 2200-00702 Laser Distance Measurement Sensor

The TR Electronic 2200-00702 is a laser distance measurement sensor. This device measures linear movements with high precision. You can use it for industrial automation and positioning applications. The rugged construction ensures wear-free detection. It offers customer-specific solutions and flexible programming options.

Technical Specifications of the 2200-00702

The TR Electronic 2200-00702 has a measuring range of 125 meters. The resolution is 1.0 mm for precise distance readings. The interface is Ethernet IP for industrial network integration. The output level is RS485 for serial communication. The code is programmable for flexible configuration.

Electrical Specifications

The supply voltage range is 18 to 27V DC. The TR Electronic 2200-00702 includes ENC 12 Mbaud option for high-speed encoding. The full stroke is linearized for accurate measurements across the entire range. Reflective foil is included for improved target detection.

Connector Configuration

The connector type includes 1x4P plus 8P male connector. It also includes a 4P female M12 connector. The connector position is radial for flexible cable routing. The TR Electronic 2200-00702 pinout follows document TR-ELE-TI-DGB-0014. The drawing number is 04-K2200-014 for reference.

Environmental and Protection Ratings

The protection class is IP65 for dust and water resistance. The temperature range is 0 to 50°C for operation. The laser protection class is Class 2 for safe use. The TR Electronic 2200-00702 requires no water cooling. The rugged construction withstands industrial environments.

Additional Features

The TR Electronic 2200-00702 offers programmable code for customization. Further interfaces are available upon request. The sensor provides wear-free detection for long service life. It is designed for measuring distances of 125/170/195 meters options. Customer-specific solutions are available for unique applications.

Installation Guidelines for the 2200-00702

Mount the TR Electronic 2200-00702 securely on a stable surface. Connect the supply voltage between 18 and 27V DC. Use the M12 connectors for Ethernet IP and RS485 wiring. Position the reflective foil at the target point. Keep the sensor within 0 to 50°C ambient temperature. Avoid direct laser exposure to eyes (Class 2 laser safety).

Package Contents

• One (1) TR Electronic 2200-00702 laser distance measurement sensor

• Reflective foil for target detection

• Installation and programming documentation (DOKUMENTE)

Common FAQs for the 2200-00702

1. What is the maximum measuring range of the 2200-00702?
The TR Electronic 2200-00702 has a measuring range of 125 meters. Options for 170m and 195m are also available.

2. What communication interfaces does this sensor support?
The TR Electronic 2200-00702 features Ethernet IP and RS485 interfaces. Further interfaces are available on request.

3. Is this sensor programmable?
Yes, the TR Electronic 2200-00702 is fully programmable. The code can be customized for your specific application.

4. What is the laser protection class?
The TR Electronic 2200-00702 is Laser Protection Class 2. This is safe for normal use but avoid direct eye exposure.

5. What is the temperature range for operation?
The TR Electronic 2200-00702 operates from 0°C to 50°C. The IP65 protection ensures dust and water resistance.

Why Choose the TR Electronic 2200-00702?

This laser distance sensor delivers precise 125m measurements for industrial positioning. The Ethernet IP and RS485 interfaces enable flexible system integration. Programmable code allows customization for your specific needs. Rugged IP65 construction ensures reliable operation. Order the TR Electronic 2200-00702 today for your laser distance measurement needs.
