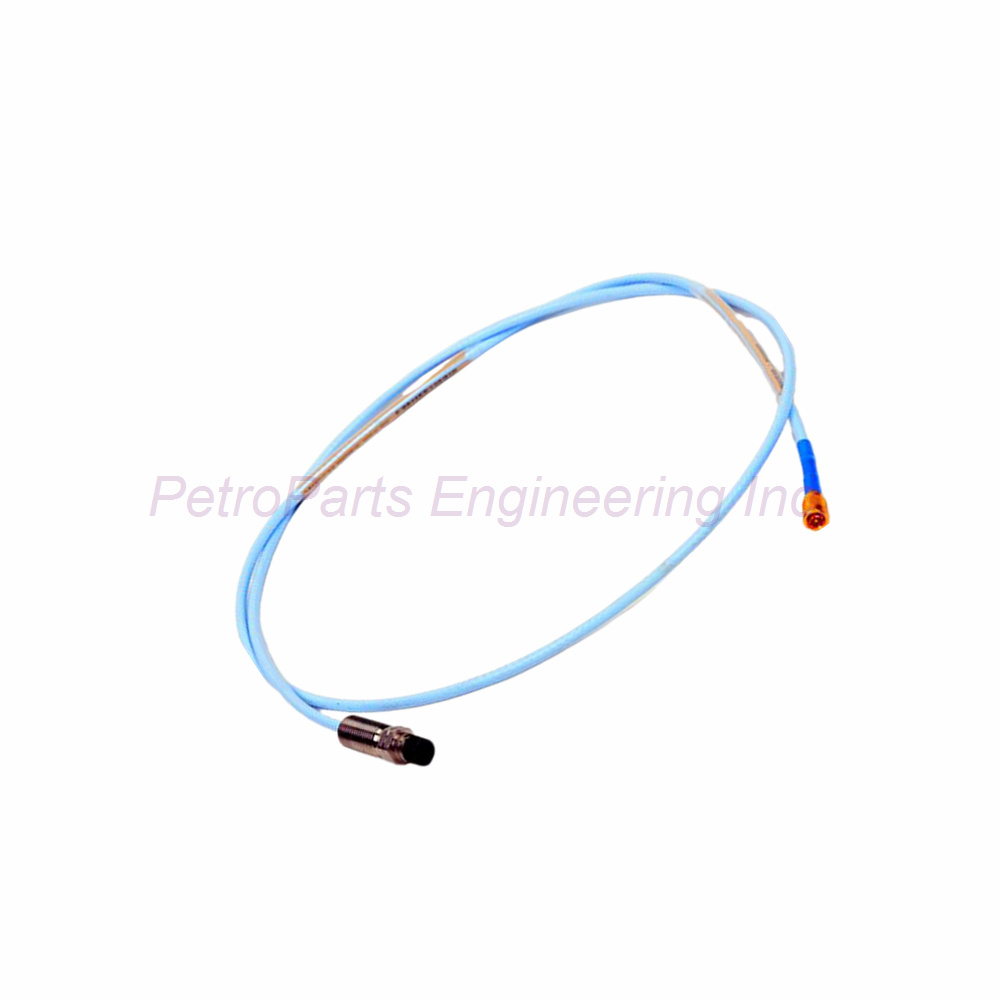

Technical Specifications of Bently Nevada 330106-05-30-10-12-05

The Bently Nevada 330106-05-30-10-12-05 belongs to the reliable 3300 XL series.
This probe uses an 8 mm reverse mount design for confined spaces.
The probe tip material is Polyphenylene sulfide (PPS).
The probe case uses AISI 303 or 304 stainless steel.
Nominal DC resistance for this 1.0 meter probe is 7.59 ± 0.50 Ω.
The total length option is 1.0 meter (3.3 feet).
Connector option is Miniature ClickLoc coaxial with FluidLoc cable (12).
Agency approval is CSA, ATEX, and IECEx (05).
Thread size is M10x1 with maximum engagement of 15 mm.
Probe weight is 323 g per meter (11.4 oz per meter).

Environmental and Mechanical Ratings

The standard probe operates from -52°C to +177°C (-62°F to +350°F).
Extended range probe tip works up to +218°C (+425°F).
Extended cable and connector handle -51°C to +260°C (-60°F to +500°F).
Do not expose this probe below -34°C (-30°F) to protect the pressure seal.
The probe uses a Viton® O-ring for differential pressure sealing.
Humidity testing shows less than 3% change in Average Scale Factor (ASF).
This test follows IEC standard 68-2-3 for up to 56 days at 93% humidity.
Maximum tensile strength is 330 N (75 lbf) from case to lead.
Connector tensile strength is 270 N (60 lbf) between probe and extension cables.
Connector materials are gold-plated brass or gold-plated beryllium copper.

Cable and FluidLoc Information

The 330106-05-30-10-12-05 includes the FluidLoc cable option.
This option is not needed for most standard probe sleeve installations.
Only order FluidLoc when your application has special fluid exposure risks.
Standard cable uses 75Ω triaxial FEP insulation.
Extended range cable uses 75Ω triaxial PFA insulation.
Available total probe lengths include 0.5, 1, 1.5, 2, 3, 5, or 9 meters.
Optional armor uses flexible AISI 302 or 304 SST with FEP jacket.

Hazardous Area Approvals

This Bently Nevada 330106-05-30-10-12-05 carries multiple safety certifications.
CSA approval allows use in Canadian hazardous locations.
ATEX certification meets European explosive atmosphere requirements.
IECEx approval ensures international compliance for gas and dust hazards.
Always verify your local regulations before installing this probe.

Installation Guidelines

Handle the 330106-05-30-10-12-05 by its case, not the cable.
Use a proper torque wrench for the M10x1 threads.
Do not exceed 15 mm thread engagement depth.
Keep the probe tip clean and free from debris.
Avoid bending the cable beyond its minimum bend radius.
Secure the Miniature ClickLoc connector firmly.
Check that the target surface is smooth and conductive.
Leave adequate space for the reverse mount orientation.
Follow all ATEX and IECEx installation safety rules.

Packaging List for Bently Nevada 330106-05-30-10-12-05

One Bently Nevada 330106-05-30-10-12-05 probe assembly

Attached 1.0 meter triaxial cable with FluidLoc feature

Miniature ClickLoc coaxial connector pre-installed

Protective plastic cap for the probe tip

Anti-static bag for safe transportation

Printed installation instruction sheet

Frequently Asked Questions (FAQ)

1. What makes the 330106-05-30-10-12-05 different from standard probes?

This probe includes CSA, ATEX, and IECEx hazardous area approvals. It also features the FluidLoc cable option for fluid-resistant applications.

2. Do I really need the FluidLoc cable on this probe?

Most installations do not require FluidLoc due to the probe sleeve. Only order it when fluids may enter the cable assembly regularly.

3. Can I use the 330106-05-30-10-12-05 with existing 3300 XL monitors?

Yes, it fully matches all 3300 XL series monitors and proximity systems. You will get accurate vibration and position readings.

4. What is the maximum cable length available for this probe series?

This series offers total probe lengths up to 9 meters. Standard and extended temperature cables are both available.

5. Does this probe work in high humidity environments?

Yes, it passes the 93% humidity test per IEC 68-2-3. The sealed tip and gold-plated connector resist moisture well.

Why Choose This Bently Nevada 330106-05-30-10-12-05?

You get reliable performance with full hazardous area certifications.
The reverse mount design saves valuable space inside machinery.
PPS tip material offers excellent chemical and wear resistance.
Stainless steel case provides long life in harsh industrial environments.
The FluidLoc option adds protection against fluid ingress.
CSA, ATEX, and IECEx approvals simplify global compliance.
Low DC resistance keeps signal quality stable over distance.
