Product Overview

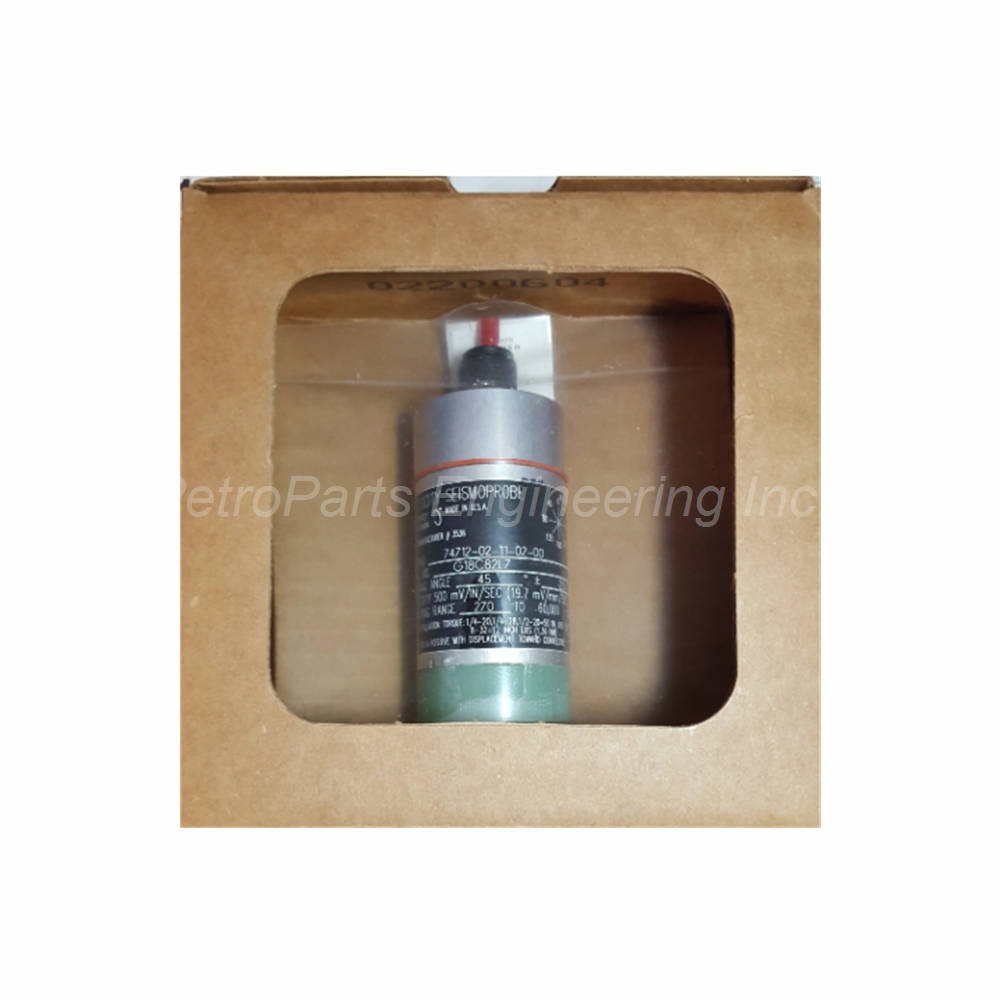

The Bently Nevada 9200-03-01-01-00 is a two-wire velocity seismoprobe transducer. This device measures casing vibration in rotating machinery. It uses a moving coil velocity sensing system for accurate readings. The transducer requires no external power source for operation. You can use this model for monitoring pumps, compressors, and turbines. The Bently Nevada 9200-03-01-01-00 delivers reliable performance in harsh industrial environments.

Ordering Information Breakdown

The Bently Nevada 9200-03-01-01-00 includes specific ordering options:

• Transducer Mounting Angle/Minimum Operating Frequency (03): 90° ±2.5°, 4.5 Hz (270 cpm)

• Connector Option (01): Top mount with no cable included

• Mounting Base Option (01): Circular base with 1/4-20 UNC stud

• Agency Approval Option (00): No approvals required

Technical Specifications

Sensitivity and Calibration:

• The Bently Nevada 9200-03-01-01-00 offers 20 mV/mm/s (500 mV/in/s) sensitivity.

• Accuracy is ±5% when properly terminated.

• The unit must be oriented at the correct calibration angle.

• Calibration load uses a 10 kΩ resistor between Terminal A and B.

• Output is taken across pins A and B.

• Temperature coefficient is 0.2% per °C.

Dynamic Operating Range:

• Maximum displacement is 2.54 mm (0.100 in) peak to peak.

• Velocity range reaches 25 mm/s (1 in/s) at +22 °C.

• This rating applies to casing vibration at 100 Hz.

• The test uses a 10 kΩ load for measurement.

Electrical Characteristics:

• Coil resistance is 1.25 kΩ ±5%.

• Locked coil inductance is 125 mH (typical value).

Environmental Specifications

The Bently Nevada 9200-03-01-01-00 operates from -29°C to +121°C. Storage temperature matches the same range of -29°C to +121°C. For high-temperature versions, the 74712 option reaches +204°C. The transducer resists dust and moisture effectively. Relative humidity tolerance goes up to 95% (non-condensing). The unit handles 100% humidity when non-submerged. This requires an integral cable option for full protection.

Physical Construction:

• Case and adapter material is anodized aluminum A204.

• Gasket material is neoprene for reliable sealing.

• Height measures 102 mm (4 inches) typical.

• This height varies depending on the connector option selected.

• Diameter is 41 mm (1.6 inches) typical.

Weight:

• The Bently Nevada 9200-03-01-01-00 weighs 300 grams (10.5 ounces) typical.

Installation Guide

Follow these steps to install the Bently Nevada 9200-03-01-01-00 correctly:

1. Prepare a flat mounting surface on your machine casing.

2. Drill and tap a hole for the 1/4-20 UNC stud.

3. Screw the circular mounting base onto the stud securely.

4. Mount the transducer at a 90° ±2.5° angle.

5. Ensure the minimum operating frequency meets 4.5 Hz.

6. Connect pins A and B to your monitoring system.

7. Use a 10 kΩ termination load across the output pins.

8. Verify the calibration orientation before permanent installation.

Package List

• 1 x Bently Nevada 9200-03-01-01-00 transducer main unit

• 1 x circular mounting base (1/4-20 UNC stud type)

• 1 x neoprene mounting gasket

• 1 x top mount connector (no cable included)

• 1 x installation instruction sheet

Frequently Asked Questions (FAQ)

1. Does the Bently Nevada 9200-03-01-01-00 need external power?
No, this is a passive two-wire velocity transducer. It generates its own output signal without external power.

2. What is the minimum frequency this transducer can measure?
The Bently Nevada 9200-03-01-01-00 has a minimum operating frequency of 4.5 Hz (270 cpm) at the 90° mounting angle.

3. Can I use this sensor above 121°C operating temperature?
The standard 9200 model works up to 121°C. For higher temperatures up to 204°C, order the 74712 high-temperature version.

4. What termination load should I use for this transducer?
You need a 10 kΩ load connected across output pins A and B. This load ensures proper sensitivity calibration of ±5%.

5. How do I interpret the full part number 9200-03-01-01-00?
The number breaks down as: 9200 series, option 03 for 90°/4.5Hz, option 01 for top connector, option 01 for circular base, and option 00 for no agency approvals.
