Engineering Overview

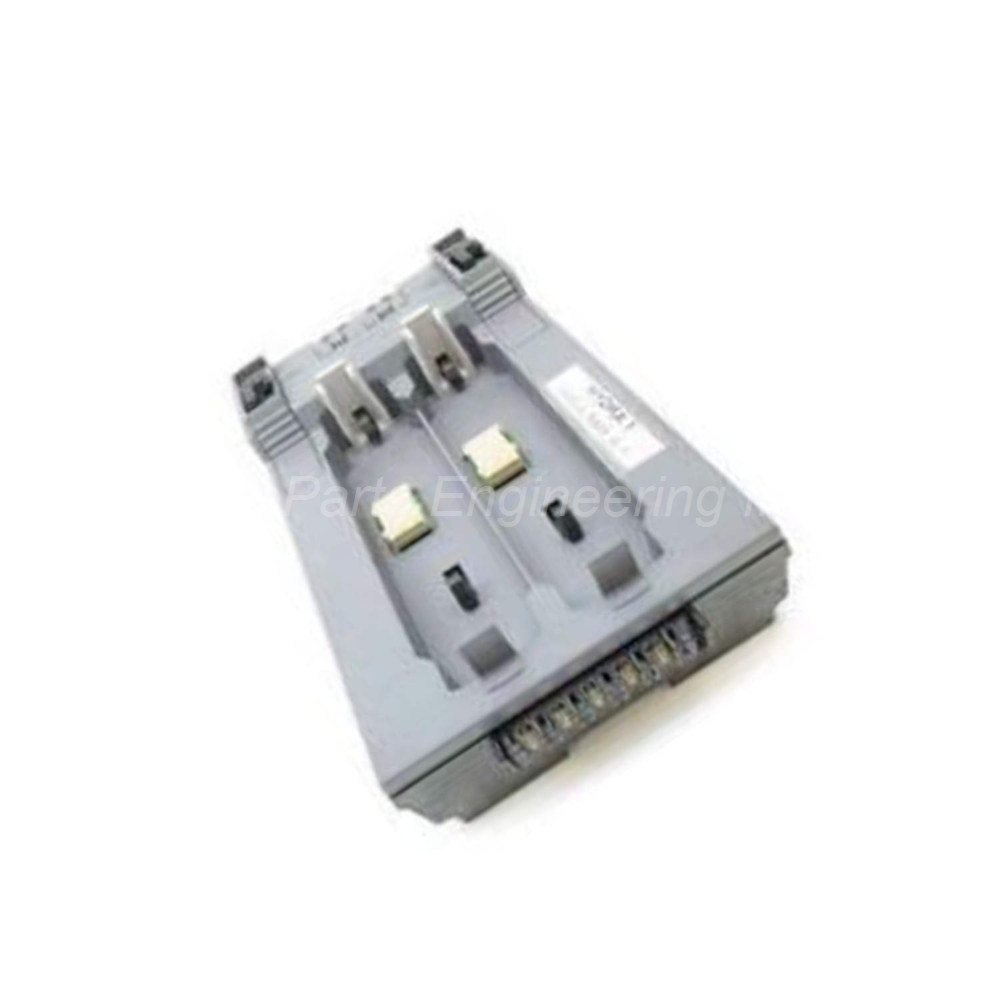

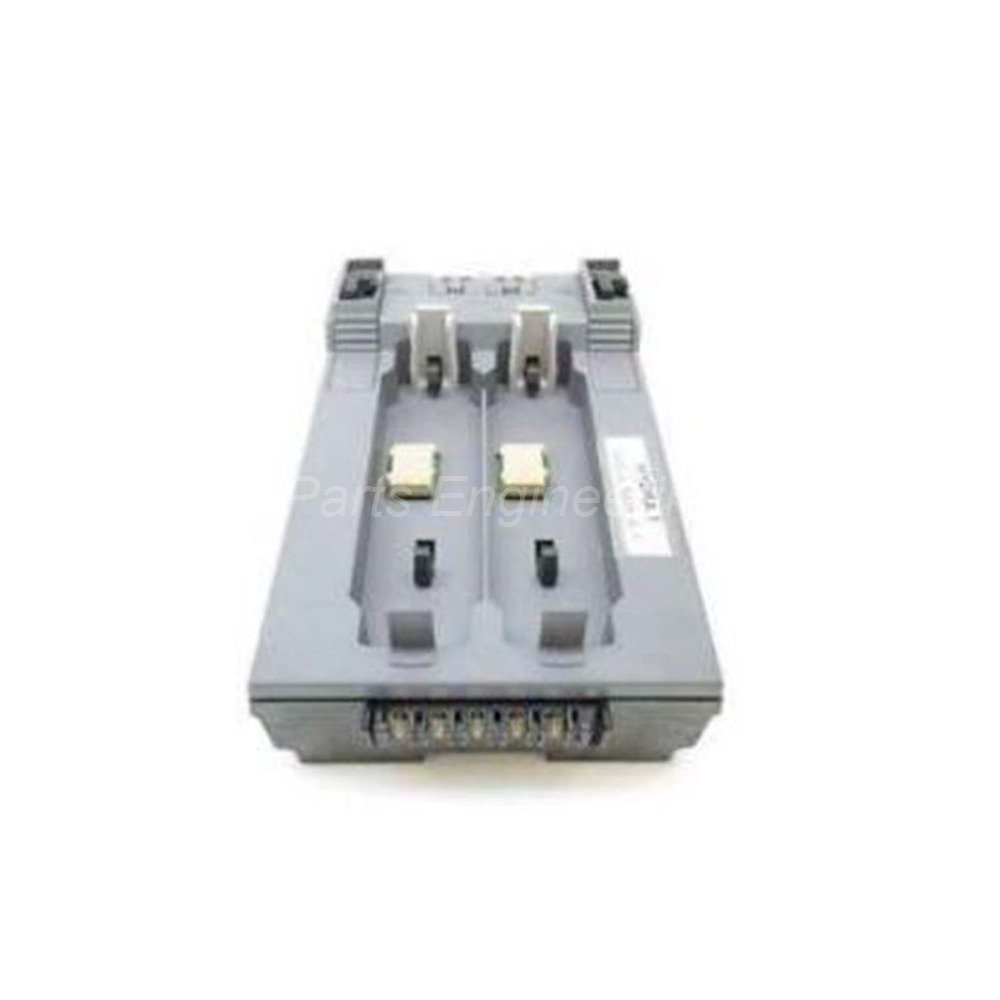

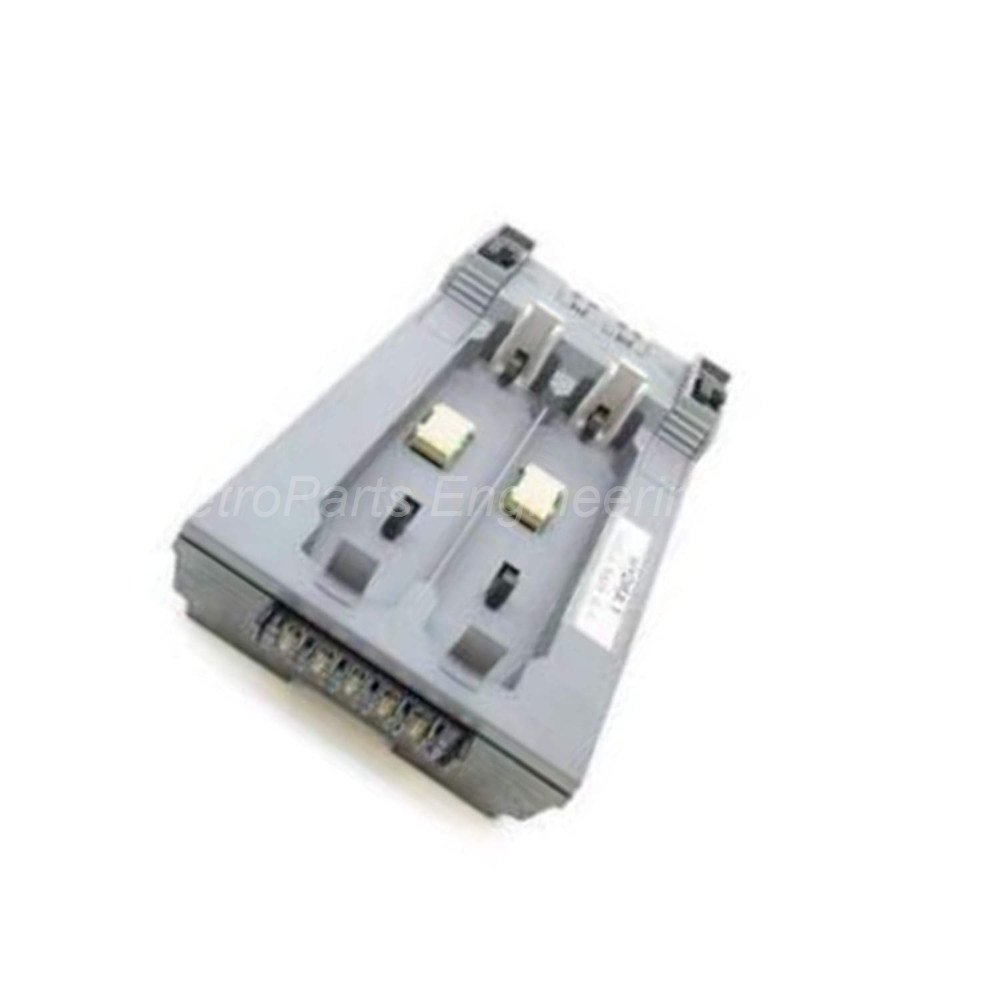

• The KL4101X1-BA1 serves as the backbone for DeltaV CHARM technology.
• It enables electronic marshalling by providing a secure interface for I/O modules.
• This Card Carrier optimizes cabinet space by eliminating traditional terminal blocks.
• The KL4101X1-BA1 is built for mission-critical safety and process control loops.
• Integrated power distribution ensures consistent 6.3 VDC delivery to installed CHARMs.

Core Technical Data

• Brand: Emerson DeltaV
• Model: KL4101X1-BA1
• Device Category: CHARM I/O Card Carrier
• Input Power: 24 VDC at 12 A
• Output Power (to CHARMs): 6.3 VDC at 3.25A
• Operational Temperature: -40 °C to +70 °C
• Atmospheric Protection: Class G3 (ISA-S71.04-1985)
• Vibration Tolerance: 0.7g (13.2 to 150Hz)
• Shock Rating: 10g half-sinewave for 11msec
• Humidity Limits: 5 to 95% (Non-Condensing)

Safety & Installation Protocol

• Hot-swapping the KL4101X1-BA1 is strictly prohibited in hazardous areas while energized.
• Verify the atmosphere is non-hazardous before any Removal and Insertion procedure.
• The carrier requires no manual Calibration or internal user adjustments.
• Mounting should follow DeltaV S-series standard rail practices for heat dissipation.
• Do not attempt to disassemble the unit; it contains no user-serviceable parts.

Compliance & Global Standards

• ATEX: FM19ATEX0173U (II 3G Ex ec IIC Gc)
• IECEx: IECEx FMG 19.0019U for international safety.
• North America: Class I Division 2 Groups A, B, C, D.
• UKEX: FM21UKEX0017U compliant hardware.

Procurement & Logistics

• Warranty: Full 12-month warranty on all new KL4101X1-BA1 units.
• Shipping Partners: Express logistics via FedEx, UPS, or DHL.
• Package Contents: One (1) KL4101X1-BA1 CHARM I/O Card Carrier.
• Typical Application: Remote I/O enclosures and high-density marshalling cabinets.
