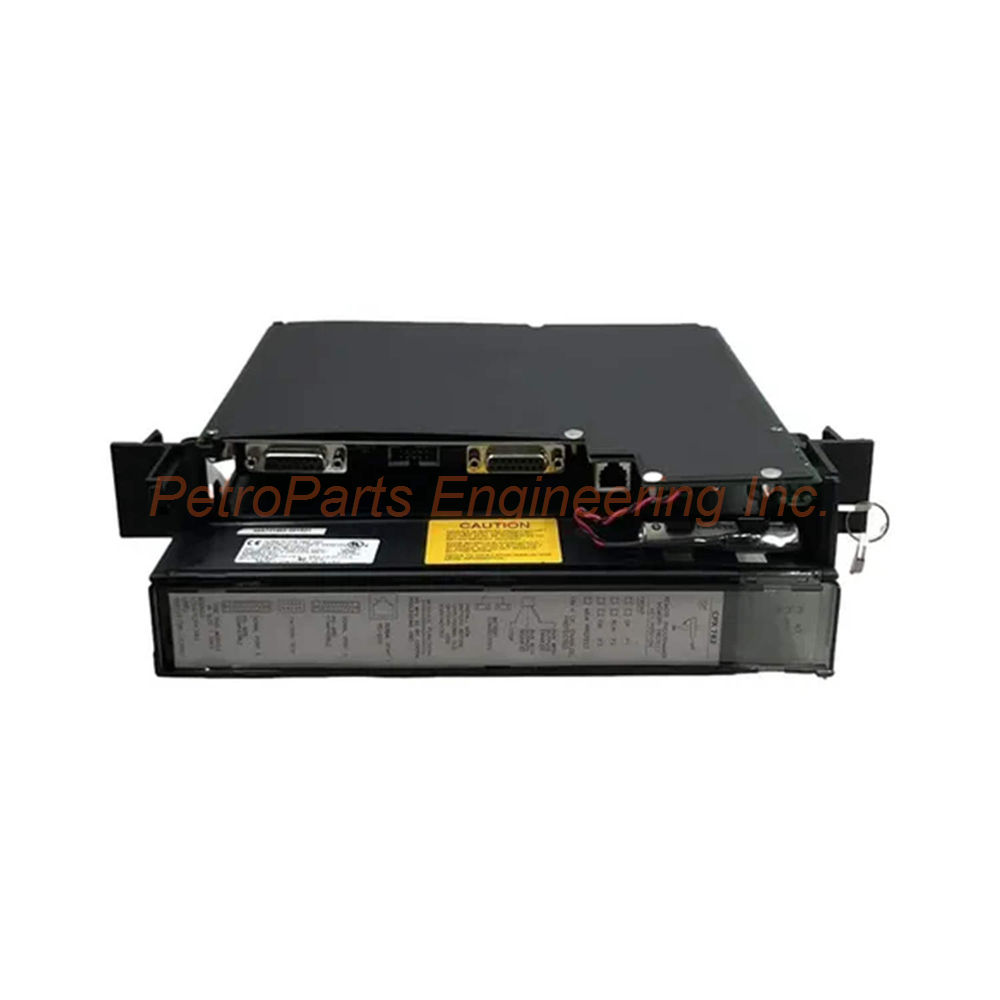

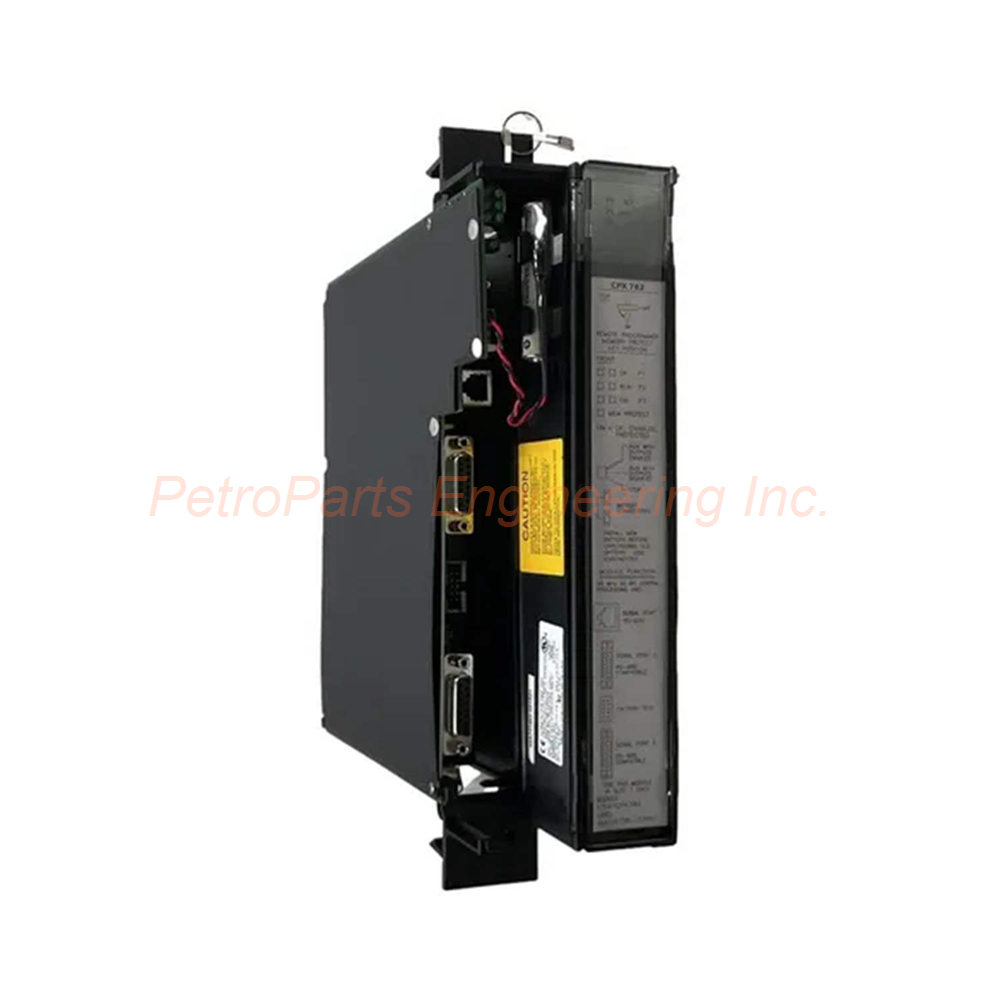

GE Fanuc IC697CPX782 CPU Module Overview

The GE Fanuc IC697CPX782 is a CPU module for Series 90-70 PLCs. It uses an 80486DX4 microprocessor running at 96 megahertz clock speed. This module provides 1 MB of battery-backed RAM for program and data storage. In addition, it includes 256 KB of non-volatile memory (NV-RAM) . The IC697CPX782 supports BMA functionality in release 7.92 and later. Consequently, this CPU handles demanding control applications with ease.

Technical Specifications

The GE Fanuc IC697CPX782 delivers impressive processing power for its class. The microprocessor type is 80486DX4 with 96 MHz clock speed. Boolean function execution takes only 0.4 microseconds per operation. As a result, the CPU handles high-speed logic scanning efficiently. I/O capacity reaches 8000 analog I/O points maximum. Digital I/O capacity goes up to 12,000 points in any mix. These specifications make the IC697CPX782 suitable for large-scale automation projects.

Now consider the memory configuration in detail. Battery-backed RAM capacity is 1 MB for user programs and data tables. NV-RAM provides 256 KB of non-volatile storage. This NV-RAM retains data without battery backup. The module battery has a shelf life of 5 years at 20°C. Regular battery replacement ensures reliable operation. The IC697CPX782 supports in-system firmware upgrades for convenience.

Serial Ports & Communication

The GE Fanuc IC697CPX782 includes three on-board serial ports. Port 1 supports RS-232 communication for direct programmer connection. Port 2 and Port 3 both support RS-485 communication for multi-drop networks. A serial cable is required for interfacing with Port 1. For Ports 2 and 3, you need a converter as well. Three of the five front panel LED indicators show serial port activity status. This makes troubleshooting communication issues straightforward.

For Ethernet connectivity, additional hardware is necessary. The IC697CPX782 requires an Ethernet interface module in the PLC rack. Once installed, you can connect a programmer via Ethernet. Configuration software runs on standard computers. Communication happens over Ethernet or serial connections.

Power Requirements & Environment

The GE Fanuc IC697CPX782 draws specific current from the backplane. Nominal current is 3.1 Amps from the 5 Volts DC bus. Ensure your power supply can handle this load. Operating temperature range spans 0°C to 60°C. Store the module between -40°C and 85°C. The IC697CPX782 fits standard Series 90-70 racks. No special cooling is required within the specified temperature range.

Key Features & Benefits

• High speed processing – The IC697CPX782 executes Boolean logic in 0.4 microseconds.

• Dual memory types – 1MB battery-backed RAM plus 256KB NV-RAM for data security.

• Three serial ports – One RS-232 and two RS-485 ports for flexible connectivity.

• Large I/O capacity – Supports 8000 analog or 12,000 digital I/O points.

• In-system upgrades – Firmware updates without removing the module.

• BMA support – Available in release 7.92 and later versions.

Installation Guidelines

Follow these steps to install the GE Fanuc IC697CPX782 correctly. First, power down the Series 90-70 PLC system completely. Second, select an available CPU slot in the main rack. Third, align the module with the card guides in the chassis. Fourth, push the IC697CPX782 firmly into the backplane connector. Fifth, secure the module with the top and bottom retaining screws. Finally, apply power and check the LED indicators for normal operation.

Do not install or remove the IC697CPX782 while power is applied. Use appropriate electrostatic discharge precautions when handling the module. Keep the battery replacement schedule to prevent memory loss. The IC697CPX782 requires proper grounding for reliable communication.

Package Contents

Your shipment includes the following items:

• 1 x GE Fanuc IC697CPX782 CPU module

• 1 x Installation manual with configuration instructions

• 1 x Battery for memory backup (installed)

• 1 x Serial port adapter for RS-485 conversion

No programming software is included with the IC697CPX782. Therefore, you must purchase compatible software separately. No communication cables are provided in this package.

Frequently Asked Questions (FAQ)

1. What software is needed to program the IC697CPX782?
The GE Fanuc IC697CPX782 requires Proficy Machine Edition software. Alternatively, use CIMPLICITY Logic Developer for Series 90-70 programming.

2. Can this CPU work with Release 6.0 firmware?
No. The IC697CPX782 requires release 7.92 or later for BMA support. Earlier releases may not recognize this CPU module correctly.

3. How do I connect a PC to Port 2 on the IC697CPX782?
Port 2 uses RS-485 communication. Therefore, you need an RS-232 to RS-485 converter. Connect the converter between your PC and Port 2.

4. What happens if the battery fails?
The IC697CPX782 will lose its battery-backed RAM contents. The 256KB NV-RAM data remains safe. Replace the battery immediately when the low battery LED lights up.

5. Is the IC697CPX782 compatible with Series 90-30 racks?
No. The IC697CPX782 only works with Series 90-70 racks and backplanes. Series 90-30 uses a different form factor and bus structure.

Why Choose the GE Fanuc IC697CPX782?

This CPU module delivers reliable processing for Series 90-70 PLC systems. For starters, the IC697CPX782 uses a fast 80486DX4 processor at 96 MHz. Its 0.4 microsecond Boolean execution handles high-speed logic requirements. The combination of 1MB battery-backed RAM and 256KB NV-RAM provides flexible data storage. Furthermore, three on-board serial ports simplify programmer connections. Port 1 offers RS-232 for direct laptop connections. Ports 2 and 3 provide RS-485 for multi-drop networks. The IC697CPX782 supports up to 12,000 digital I/O points or 8000 analog I/O points. Most importantly, in-system firmware upgrades reduce maintenance downtime.

Order the IC697CPX782 today for your Series 90-70 PLC upgrade or repair needs. This CPU is perfect for legacy system maintenance, control panel retrofits, and factory automation expansions.
