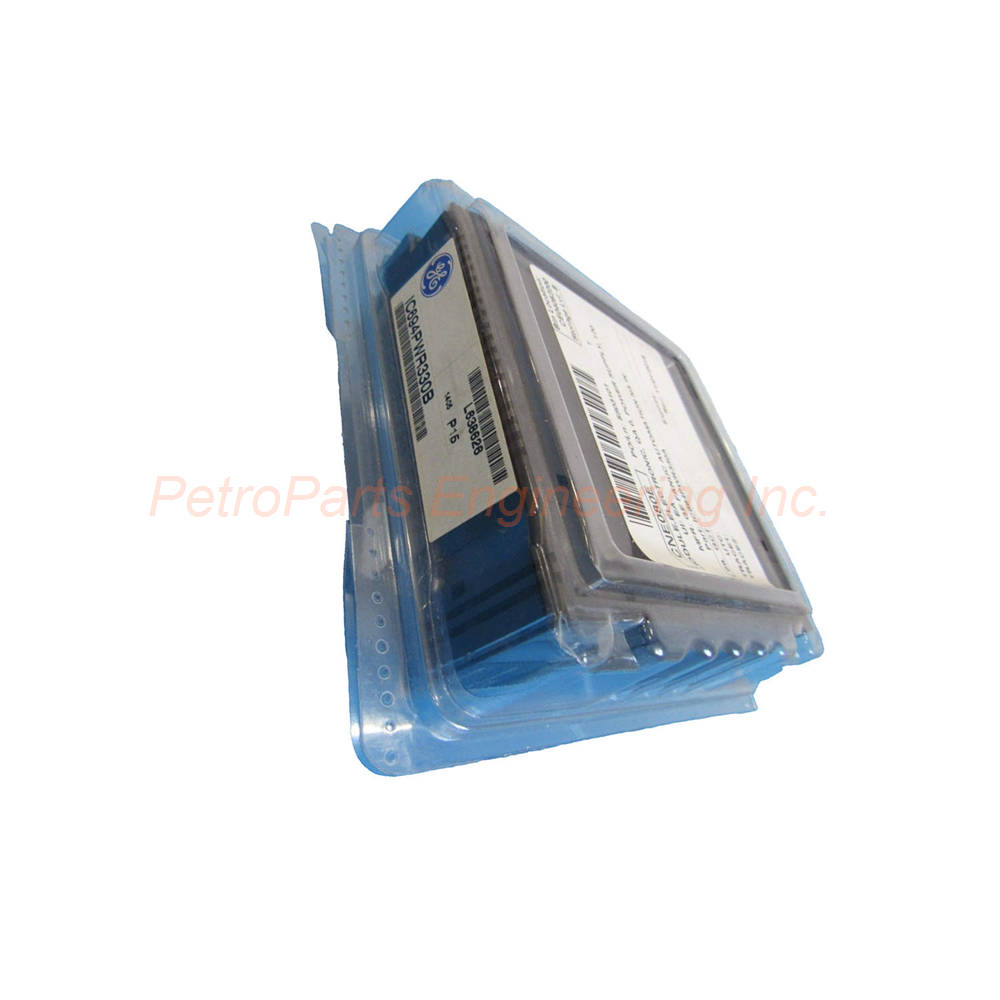

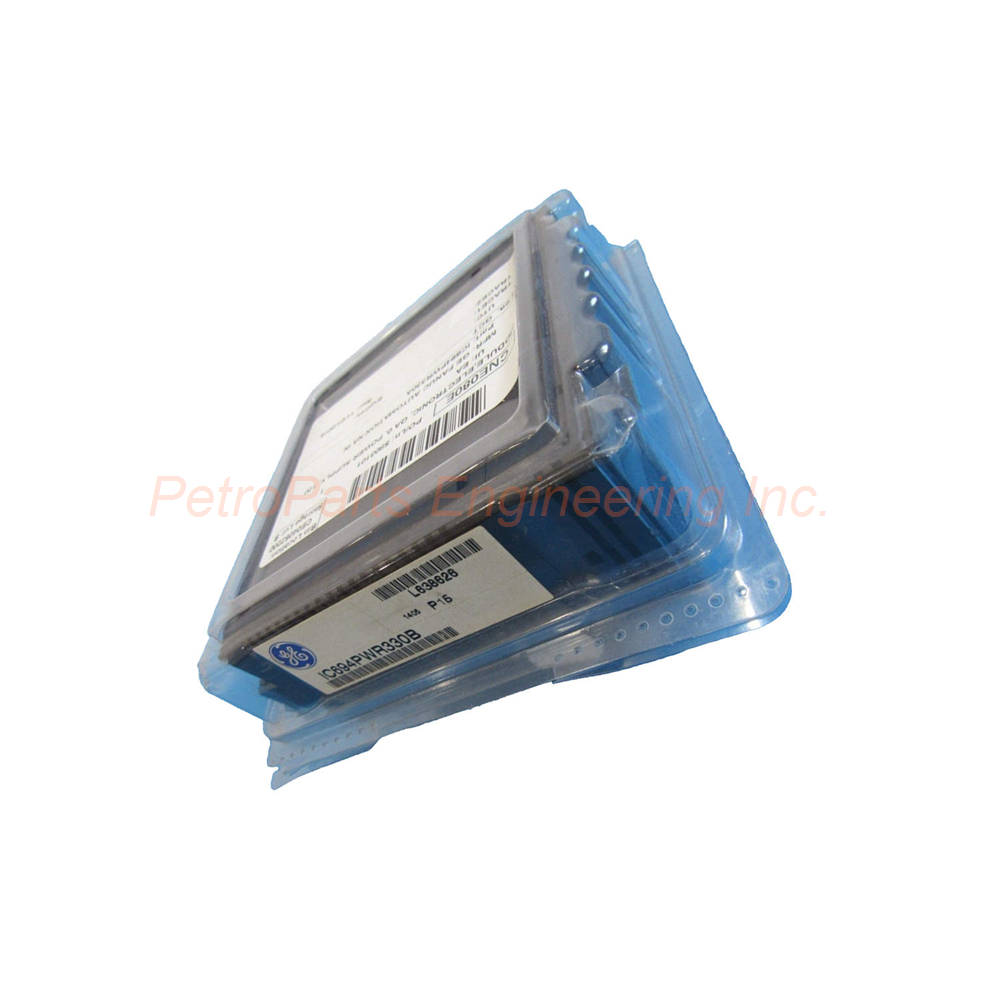

GE Fanuc IC694PWR330 Power Supply Module RX3i
Introduction:
The IC694PWR330 is a high-capacity serial expansion power supply for GE Fanuc RX3i PacSystems. It operates on AC or DC input and provides additional power to any RX3i CPU.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The GE Fanuc IC694PWR330 is a high-capacity serial expansion power supply module. This device serves as an expansion power supply for GE RX3i PacSystems programmable logic controllers (PLCs). It can operate with any CPU in the RX3i product series.
The module is designed to be installed in the PLC's serial expansion backplane. Furthermore, it can provide up to 30 Watts of additional power to a PLC system. Therefore, it supports systems that require more power than the main power supply can deliver.
General Specifications
The IC694PWR330 offers flexible input voltage options for global installations.
Manufacturer: GE Fanuc.
Series: RX3i PacSystems.
Part Number: IC694PWR330.
Product Type: Power Supply Module.
Voltage Type: AC and DC.
Current Rating: 2 Amps.
Fuse Type: GE 44A724627-109 Fuse.
Input Voltage Specifications
The IC694PWR330 accepts a wide range of input voltages.
AC Input:
AC Input Voltage Range: 85 to 264 Volts AC.
Nominal AC Input Ratings: 120/240 Volts AC.
DC Input:
DC Input Voltage Range: 100 to 300 Volts DC.
Nominal DC Input Rating: 125 Volts DC.
Consequently, this power supply operates on standard industrial power systems worldwide without configuration changes.
Output Power Capacity
The IC694PWR330 provides up to 30 Watts of total additional power. However, note that it cannot support load-sharing redundancy.
Output Power by Voltage:
At 5 Volts DC: 30 Watts.
At 24 Volts DC (Isolated): 20 Watts.
At 24 Volts DC (Relay): 15 Watts.
Therefore, the IC694PWR330 adds significant capacity to the RX3i backplane.
Mechanical Specifications
The IC694PWR330 has specific torque requirements for secure installation.
Torque Rating: 12 Pounds on an Inch (1.3 N-m).
Installation Guidelines
Install the IC694PWR330 in the serial expansion backplane of an RX3i PLC. First, set the backplane's rack number selection DIP switch properly before installation. Then, insert the module into the designated slot.
Never attempt to install or remove this module while power is applied. User injury or component damage may otherwise occur. The module should only be installed in the serial expansion backplane because it is a serial expansion device.
Connect the AC or DC input power to the appropriate terminals. For AC input, the acceptable range is 85 to 264 Volts AC. For DC input, the acceptable range is 100 to 300 Volts DC.
Key Features
The IC694PWR330 offers several advantages for RX3i system expansion.
AC/DC Universal Input:
Accepts both AC (85-264V) and DC (100-300V) input. Therefore, it suits global installations without needing different power supply models.
High-Capacity Expansion:
Provides up to 30 Watts of additional power to the PLC system. Consequently, it supports systems with high I/O counts or special modules.
Serial Expansion Backplane Mounting:
Installs directly in the serial expansion backplane. Hence, it adds power where it is needed most in expanded systems.
Any RX3i CPU Compatibility:
Operates with any CPU in the RX3i product series. Thus, it is a versatile expansion power supply for all RX3i systems.
Fused Protection:
Uses a GE 44A724627-109 fuse for overcurrent protection. For this reason, the module and backplane are protected from fault conditions.
No Load-Sharing Redundancy:
This module cannot support load-sharing redundancy. However, it provides ample capacity for non-redundant expansion applications.
Typical Applications
The IC694PWR330 suits various RX3i system expansion needs.
Adding I/O modules beyond the main power supply capacity.
Supporting special modules with high power demands.
Expanding an RX3i system into multiple serial expansion racks.
Providing isolated 24V DC power for field devices.
Retrofitting additional power to existing RX3i installations.
What is in the Box
Please inspect all items upon delivery.
GE Fanuc IC694PWR330 power supply module.
Installation instruction manual.
Anti-static protective bag.
Frequently Asked Questions (FAQ)
1. What is the input voltage range for the IC694PWR330?
The IC694PWR330 accepts 85 to 264 Volts AC or 100 to 300 Volts DC. Consequently, it operates on standard 120/240V AC or 125V DC industrial supplies.
2. How much power does this module provide?
The IC694PWR330 provides up to 30 Watts at 5V DC, 20 Watts at 24V DC isolated, and 15 Watts at 24V DC relay. Therefore, total capacity is 30 Watts of additional power.
3. Can this module be installed in any backplane slot?
No. The IC694PWR330 must be installed in the serial expansion backplane. It is a serial expansion device and will not function in other backplane types.
4. Does this module support hot-swap installation?
No. Never attempt to install or remove the IC694PWR330 while power is applied. Always disconnect power before installation or removal.
5. What type of fuse does this module use?
The IC694PWR330 uses a GE 44A724627-109 fuse. Use only this specified fuse type for replacement.
