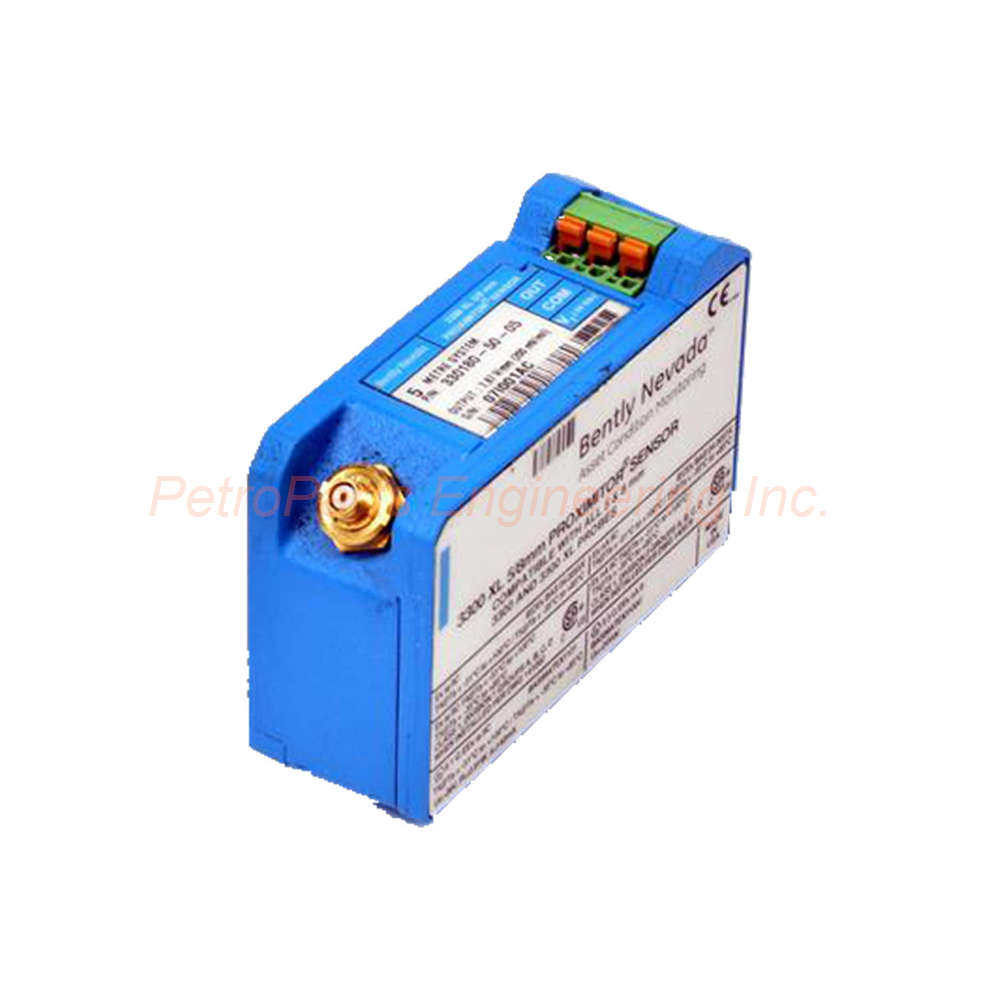

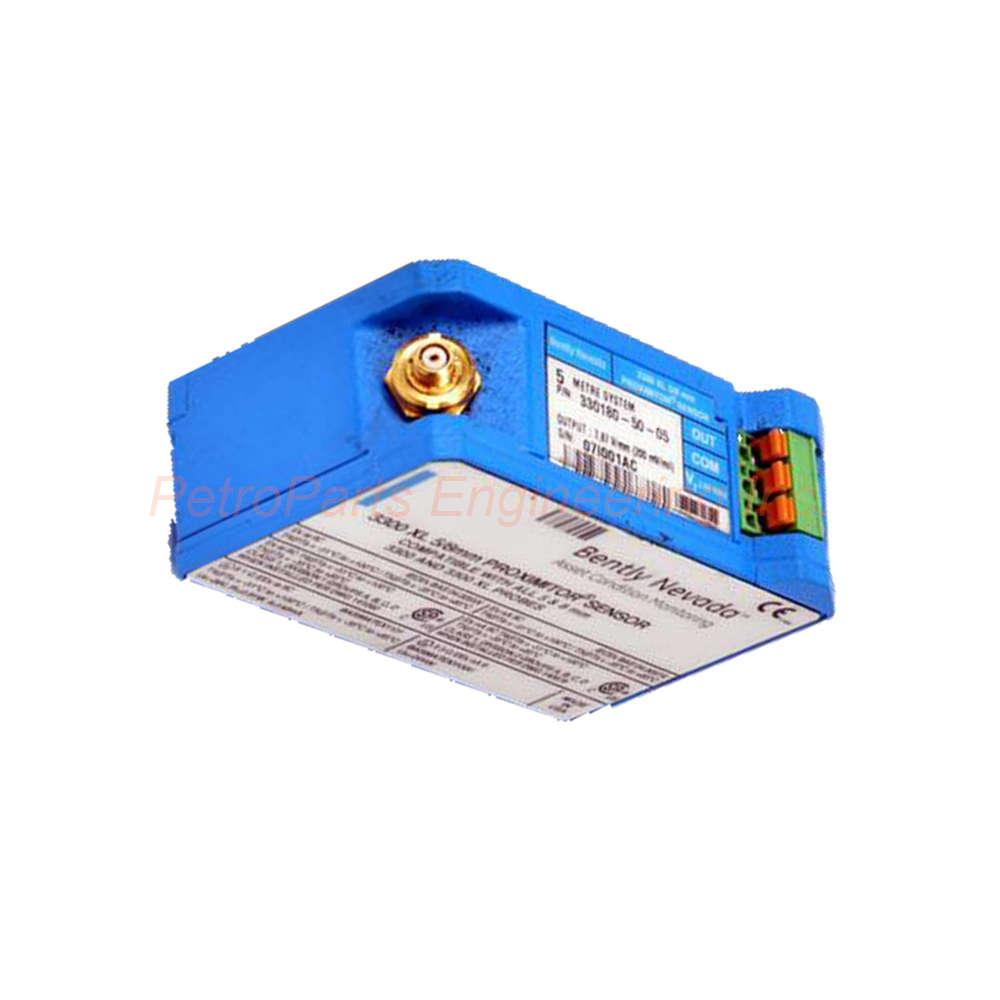

Bently Nevada 330180-50-05 3300 XL Proximitor Sensor Overview

The Bently Nevada 330180-50-05 is a 3300 XL Proximitor Sensor. This device accepts one non-contacting proximity probe. Specifically, it works with 3300-series 5 mm or 3300 XL 8 mm probes. Extension cables are also compatible with this sensor. The physical packaging allows high-density DIN-rail installations. Alternatively, you can mount this sensor in a traditional panel mount configuration. For panel mounting, it shares an identical 4-hole footprint with older designs. Consequently, the Bently Nevada 330180-50-05 offers flexible installation options for various applications.

Technical Specifications of 330180-50-05

Manufacturer: Bently Nevada (Baker Hughes Digital Solutions).

Part Number: Bently Nevada 330180-50-05.

Product Type: 3300 XL Proximitor Sensor.

Made in: U.S.A.

Total System Length: [Color: Red] 5.0 meters (16.4 feet) [/Color].

Mounting Option: Panel mount configuration.

Agency Approval Option (05): CSA, ATEX, and IECEx approvals.

Proximitor Sensor Input: Accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe. Extension cables are also supported.

Power Requirement (Non-incendive): -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.

Power Requirement (With Barriers): -23 Vdc to -26 Vdc.

Important Note: Operation above -23.5 Vdc may reduce linear range.

Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.

Output Resistance: 50 Ω.

Proximitor Sensor Material: A308 aluminum.

Connector Material: Gold-plated brass or gold-plated beryllium copper.

Sensor Weight: 246 g (8.67 oz).

Operating Temperature Range: -52°C to +100°C (-62°F to +212°F).

Storage Temperature Range: -52°C to +105°C (-62°F to +221°F).

Key Features of 330180-50-05

The Bently Nevada 330180-50-05 offers excellent RFI/EMI immunity. Consequently, you can install it in fiberglass housings without adverse effects. Nearby radio frequency signals do not interfere with its operation. This improved immunity satisfies European CE mark approvals. Notably, special shielded conduit or metallic housings are not required. As a result, installation costs and complexity are significantly reduced. The SpringLoc terminal strips require no special installation tools. These strips eliminate screw-type clamping mechanisms that can loosen over time. Therefore, field wiring connections become faster and more robust. The mounting base provides electrical isolation. Additionally, separate isolator plates are not needed.

Installation Guidelines for 330180-50-05

Before starting, disconnect all power to the monitoring system. Choose either DIN-rail or panel mount configuration. For panel mount, use the 4-hole mounting footprint. Then, secure the Bently Nevada 330180-50-05 using appropriate hardware. Connect your 3300-series 5 mm or 3300 XL 8 mm probe to the input. Ensure the extension cable is properly attached. Wire the power supply within the -17.5 Vdc to -26 Vdc range. For installations with barriers, use -23 Vdc to -26 Vdc exclusively. Verify that the supply voltage does not exceed -23.5 Vdc for linear operation. After wiring, test the output signal for proper response.

Application Scenarios for 330180-50-05

The Bently Nevada 330180-50-05 monitors shaft vibration in turbomachinery. Compressors and turbines benefit from its non-contacting measurement. High-density DIN-rail installations suit modern control cabinets. Panel mount configurations work well for retrofitting older panels. Hazardous area installations use the ATEX and IECEx approvals. Specifically, the CSA approval covers North American requirements. The 330180-50-05 operates reliably in extreme temperatures from -52°C to +100°C. Therefore, outdoor and cold climate applications are well supported.

Package List for 330180-50-05

• One Bently Nevada 330180-50-05 3300 XL Proximitor Sensor

• One panel mount adapter kit (4-hole footprint)

• One SpringLoc terminal strip (pre-installed)

• One installation drawing (reference 140979)

Common FAQs about the Bently Nevada 330180-50-05

Q1: What is the system length of the 330180-50-05?

The Bently Nevada 330180-50-05 has a total system length of 5.0 meters (16.4 feet). This length includes the probe, extension cable, and Proximitor sensor combination.

Q2: What approvals does the 330180-50-05 carry?

This model includes the 05 agency approval option. Specifically, it carries CSA, ATEX, and IECEx certifications. Accordingly, it suits hazardous area installations worldwide.

Q3: Can the 330180-50-05 be mounted on DIN rail?

Yes, the Bently Nevada 330180-50-05 supports high-density DIN-rail installations. Alternatively, traditional panel mount configuration is also available. Both options provide electrical isolation.

Q4: What power supply is required for the 330180-50-05?

Without barriers, use -17.5 Vdc to -26 Vdc at 12 mA maximum. For installations with barriers, use -23 Vdc to -26 Vdc. Importantly, operation above -23.5 Vdc may reduce linear range.

Q5: Is the 330180-50-05 immune to radio frequency interference?

Yes, this sensor has highly improved RFI/EMI immunity. Consequently, fiberglass housings are acceptable without special shielding. European CE mark approvals are satisfied without metallic conduit.
