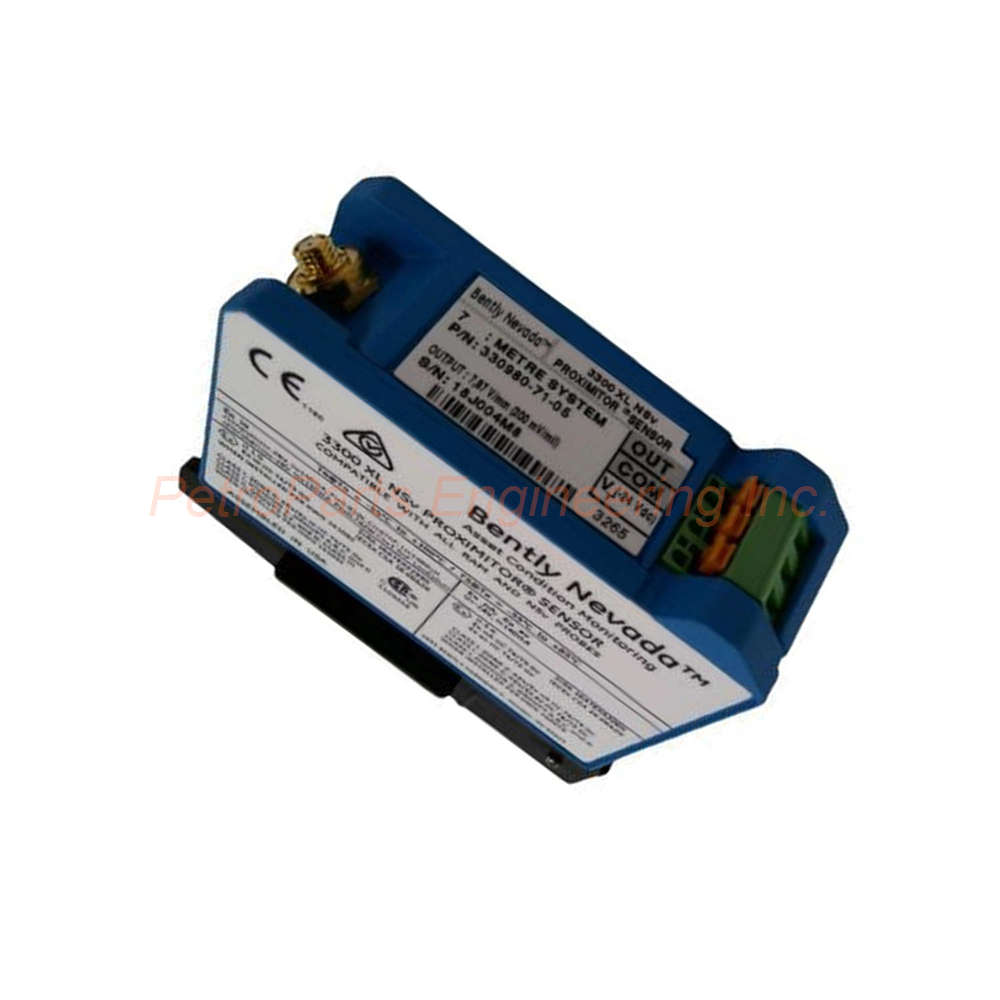

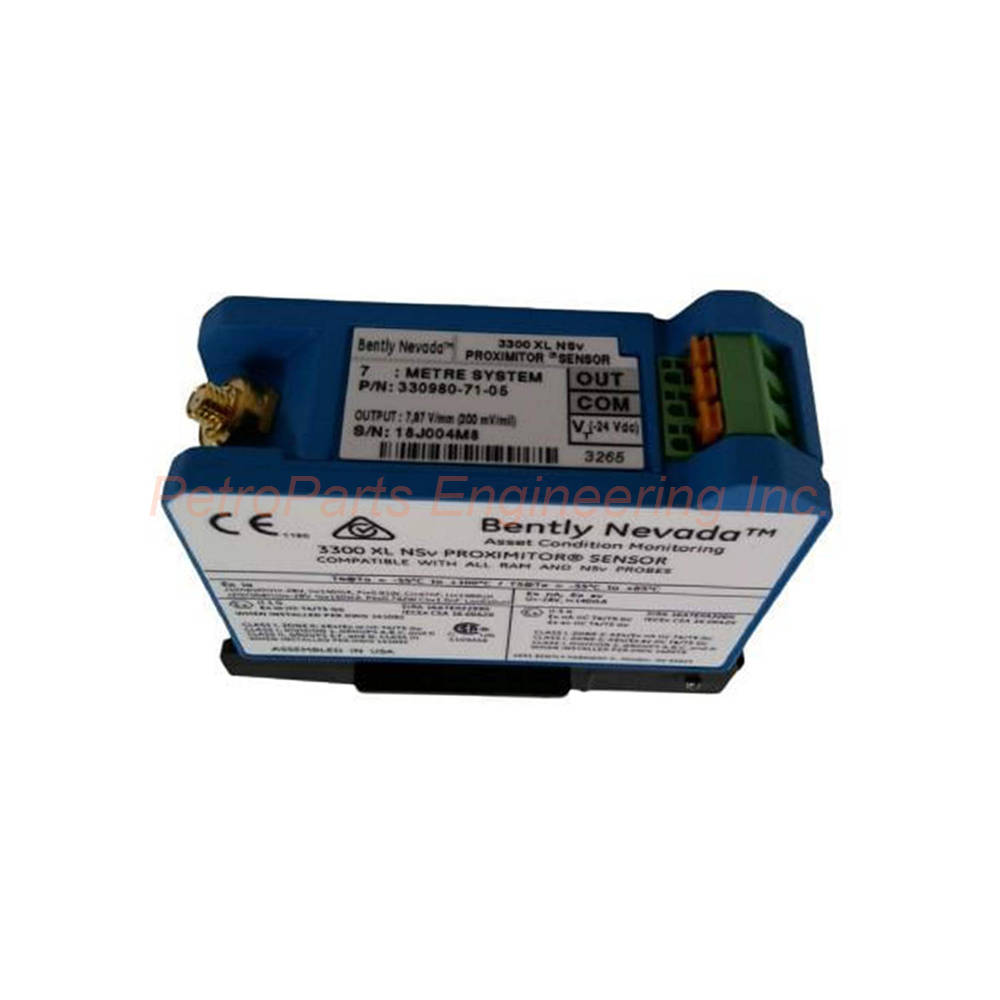

Product Overview for the 330980-71-05 NSv Proximitor Sensor

The 330980-71-05 is an NSv Proximitor Sensor from Bently Nevada. Firstly, this model belongs to the trusted 3300 XL NSv product family. Specifically, it shares many features with the standard 3300 XL 8 mm Proximitor Sensor. However, the 330980-71-05 has a thinner design for high-density installations. In addition, this sensor accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe. It also works with a matching extension cable. Consequently, the 330980-71-05 provides reliable proximity measurement for rotating machinery. Moreover, its improved RFI/EMI immunity eliminates special mounting considerations. Therefore, this sensor achieves European CE mark approvals easily.

Model Number Breakdown

The 330980-71-05 part number contains three distinct sections. Firstly, 330980 identifies the base model as an NSv Proximitor Sensor. Secondly, 71 specifies the total length and mounting option. Specifically, this means a 7.0 meter (23.0 feet) system length with DIN rail mount. Thirdly, 05 indicates the agency approval option. This suffix means the 330980-71-05 carries multiple approvals. As a result, you can use this sensor in various regulated environments worldwide.

Key Features and Benefits

High-Density Mounting Flexibility

The 330980-71-05 features a thin design for flexible mounting. Firstly, you can install it in a high-density DIN-rail configuration. Alternatively, you can choose a more traditional panel mount setup. Consequently, the 330980-71-05 adapts to your cabinet layout preferences. Therefore, space-constrained applications remain fully supported.

Superior RFI/EMI Immunity

The 330980-71-05 offers significantly improved RFI and EMI immunity. Firstly, this immunity prevents nearby high frequency radio signals from affecting measurements. In addition, it allows the sensor to achieve CE mark approvals easily. Specifically, no special mounting considerations are required for compliance. As a result, the 330980-71-05 performs reliably even in electrically noisy environments.

SpringLoc Terminal Strips

The Proximitor Sensor includes SpringLoc terminal strips for wiring. Firstly, these terminals require no special installation tools. In addition, they facilitate faster field wiring connections. Moreover, the SpringLoc design creates a highly robust electrical connection. Consequently, installation time decreases while reliability increases with the 330980-71-05.

Technical Specifications of the 330980-71-05

General Specifications

• Manufacturer: Bently Nevada.

• Model: 330980-71-05 - NSv Proximitor Sensor.

• Total Length: 7.0 meters (23.0 feet) system length.

• Mounting Option: DIN mount configuration.

• Agency Approval: 05 = Multiple approvals suffix code.

• Proximitor Sensor Material: A380 aluminum.

• Proximitor Sensor Weight: 255 g (9 oz) approximately.

Sensor Input and Probe Compatibility

• Input Acceptance: Accepts one noncontacting probe.

• Compatible Probes: Works with 3300 RAM or 3300 NSv Proximity Probe.

• Extension Cable: Requires a matching extension cable for full system length.

Power Requirements

• Power Supply (No Barriers): Requires -17.5 Vdc to -26 Vdc at 12 mA maximum.

• Power Supply (With Barriers): Requires -23 Vdc to -26 Vdc.

• Voltage Warning: Operation above -23.5 Vdc may reduce linear range.

• Supply Sensitivity: Shows less than 2 mV output change per volt of input change.

• Output Resistance: Rated at 50 Ω.

Environmental Specifications

• Operating Temperature: Ranges from -52°C to +100°C (-62°F to +212°F).

• Storage Temperature: Ranges from -52°C to +105°C (-62°F to +221°F).

• Relative Humidity: Withstands 100% condensing humidity.

• Submersion Note: Not submersible unless connectors are protected.

• Humidity Testing: Tested to IEC 68-2-3 damp heat standard.

System Accuracy Conditions

The following conditions apply for standard specifications. Firstly, the temperature range is 0°C to +45°C (+32°F to +113°F). Secondly, the maximum altitude is 2000 m above sea level. Thirdly, the power supply must be -24 Vdc with a 10 kΩ load. The target must be Bently Nevada AISI 4140 steel (31 mm diameter or larger). The probe gap must be 1.0 mm (40 mils). However, accuracy specifications do not apply with other target materials. Therefore, always use a Bently Nevada AISI 4140 steel target for rated performance.

Installation Guide for the 330980-71-05

Follow these steps for a proper installation of the 330980-71-05.

Step 1: Mounting the Proximitor Sensor

Firstly, choose either DIN rail or panel mount locations. Then, secure the 330980-71-05 Proximitor Sensor using the appropriate method. For DIN rail mounting, clip the unit onto a standard rail. For panel mounting, use screws through the mounting holes.

Step 2: Probe and Extension Cable Connection

After that, connect your 3300 RAM or 3300 NSv Proximity Probe. Then, attach the matching extension cable to reach the 330980-71-05. Ensure all connectors are fully tightened and protected from moisture.

Step 3: Power Supply Wiring

Then, connect a DC power supply to the SpringLoc terminals. Specifically, provide between -17.5 Vdc and -26 Vdc without barriers. If barriers are present, provide -23 Vdc to -26 Vdc instead. Therefore, avoid operating above -23.5 Vdc to maintain full linear range.

Step 4: Output Signal Wiring

Furthermore, connect the output signal wires to your monitoring system. The 330980-71-05 has a 50 Ω output resistance. Therefore, use a 10 kΩ load for optimal performance.

Step 5: Target Installation and Gapping

Finally, install a Bently Nevada AISI 4140 steel target on your rotating shaft. Then, set the probe gap to 1.0 mm (40 mils). Consequently, the 330980-71-05 will deliver rated accuracy and interchangeability.

Packaging List for the 330980-71-05

• 330980-71-05 NSv Proximitor Sensor (1 unit)

• SpringLoc terminal strip connectors (pre-installed)

• Product identification label (1 sheet)

Frequently Asked Questions (FAQs) About the 330980-71-05

Q1: What is the difference between standard 3300 XL and NSv versions?

The 330980-71-05 NSv version has a thinner design than the standard 8 mm Proximitor Sensor. Consequently, it fits into high-density DIN rail installations. In addition, it offers improved RFI/EMI immunity for CE compliance. Therefore, the NSv version is ideal for space-constrained panels.

Q2: What power supply should I use with the 330980-71-05?

The 330980-71-05 requires a negative DC voltage supply. Firstly, use -17.5 Vdc to -26 Vdc at 12 mA maximum without barriers. However, with barriers installed, use -23 Vdc to -26 Vdc instead. As a result, operation above -23.5 Vdc may reduce the linear range.

Q3: What target material is required for accurate measurement?

The 330980-71-05 is calibrated specifically for AISI 4140 steel targets. Specifically, the target must be 31 mm (1.2 in) diameter or larger. Consequently, accuracy and interchangeability specifications do not apply with other materials.

Q4: What is the operating temperature range of this sensor?

The 330980-71-05 operates between -52°C and +100°C (-62°F to +212°F). In addition, it can be stored between -52°C and +105°C (-62°F to +221°F). Therefore, this sensor works in extreme environmental conditions.

Q5: Does the 330980-71-05 work in humid environments?

Yes, it does. The 330980-71-05 withstands 100% condensing humidity. However, it is not submersible unless connectors are properly protected. The sensor has been tested to IEC 68-2-3 damp heat standards. Therefore, it is suitable for most humid industrial environments.
