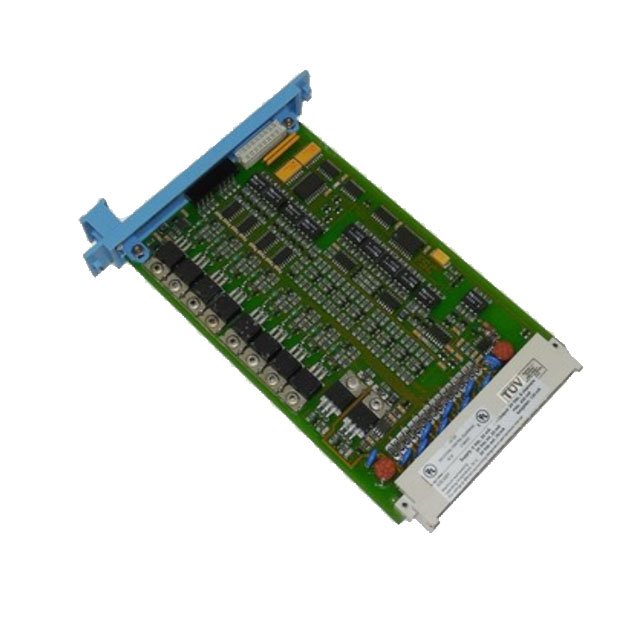

Overview of the Honeywell FC-SDO-0824 Safety Output Module

The Honeywell FC-SDO-0824 is a high-reliability digital output module specifically engineered for the Honeywell Safety Manager (SM) system. This module serves as a critical interface in Safety Instrumented Systems (SIS), providing eight independent channels to drive field-level actuators such as solenoid valves, motor starters, and indicating lamps.

Safety Manager systems rely on the FC-SDO-0824 to execute emergency shutdown (ESD) commands and fire and gas (F&G) mitigation strategies. Honeywell designed this module with a focus on fault tolerance and rapid response, ensuring that safety-critical actions occur within milliseconds of a logic solver command. Its solid-state architecture eliminates the wear and tear associated with mechanical relays, significantly extending the operational lifespan of the control hardware.

Detailed Output Specifications and Load Management

The FC-SDO-0824 provides eight 24 VDC solid-state source outputs. Each channel features a robust design capable of delivering a maximum current of 550 mA. This current capacity allows the module to power most industrial-grade solenoids directly without the need for interposing relays.

Key performance metrics include:

• Voltage Drop: The module maintains high efficiency with a voltage drop of less than 2.0 V DC even at a 500 mA load.
• Lamp Load Handling: Engineers specifically rated the module for a maximum lamp load of 120 mA (2.9 W), which accounts for the high inrush currents typical of incandescent signaling bulbs.
• Capacitive Load Stability: Each channel supports a maximum load capacitance of 1 µF, ensuring stability when driving long field cables or devices with internal filtering.
• Leakage Control: In the “OFF” state, the shutdown current remains below 0.1 mA, preventing “ghost” signals or unintended activation of sensitive field devices.

Power Requirements and Efficiency

The FC-SDO-0824 utilizes a multi-rail power architecture to balance internal logic needs with field-side power delivery.

1. Logic Power: The module draws a minimal 25 mA from the 5 VDC logic bus.
2. Internal 24V Power: It consumes 25 mA for internal circuit operations.
3. External 24V Power: To drive field loads, the module requires an external 24 VDC supply. Under a no-load condition, the module draws 70 mA from this external source.

This separation of logic and field power ensures that electrical disturbances on the field wiring do not compromise the integrity of the Safety Manager’s central processing units.

Comprehensive Safety Certifications and Hardware Coding

Safety is the defining characteristic of the FC-SDO-0824. It carries a suite of international certifications, including TUV, UL, CSA, FM, and CE. These endorsements verify that the module meets the stringent requirements for use in SIL (Safety Integrity Level) rated environments.

To prevent human error during maintenance, Honeywell employs a rigorous hardware coding system. The module features a specific hole configuration at A9 and C9. Correspondingly, the chassis uses large pins at the same coordinates. This mechanical “keying” ensures that technicians can only insert the FC-SDO-0824 into the correct slot, preventing accidental damage caused by mismatched voltage levels or signal types.

Built-in Protection and Diagnostics

The FC-SDO-0824 incorporates advanced protection mechanisms to safeguard the system against common field faults:

• Short-Circuit Proofing: Each channel is inherently short-circuit proof. If a wiring fault occurs in the field, the module limits the current to prevent internal damage and reports the fault to the Safety Manager logic.
• Watchdog (WDG) Integration: The module includes a Watchdog input current of 8 mA. This feature allows the Safety Manager to monitor the health of the output stage continuously. If the module detects an internal logic failure, the Watchdog mechanism forces the outputs to a predefined safe state (typically de-energized).

Physical Dimensions and Rack Integration

Honeywell designed the FC-SDO-0824 using the standard Eurocard format. It occupies a space of 4 TE (width) and 3 HE (height), which translates to 4HP and 3U in standard rack terminology. This compact footprint allows for high-density I/O configurations within the Safety Manager cabinet, maximizing the use of floor space in control rooms.

The front panel typically features clear LED indicators for each of the eight channels, allowing maintenance personnel to verify output status at a glance. These visual cues, combined with the comprehensive software diagnostics provided by the Safety Builder environment, make the FC-SDO-0824 one of the most user-friendly safety modules on the market.

Why the FC-SDO-0824 is Essential for Your Safety System

Choosing the genuine Honeywell FC-SDO-0824 ensures that your facility remains compliant with global safety standards. Its combination of high-current solid-state outputs, short-circuit protection, and TUV-certified reliability makes it the ideal choice for high-risk industries. By utilizing this module, you reduce the risk of unplanned downtime and, more importantly, you protect the lives of personnel and the integrity of your industrial assets.
