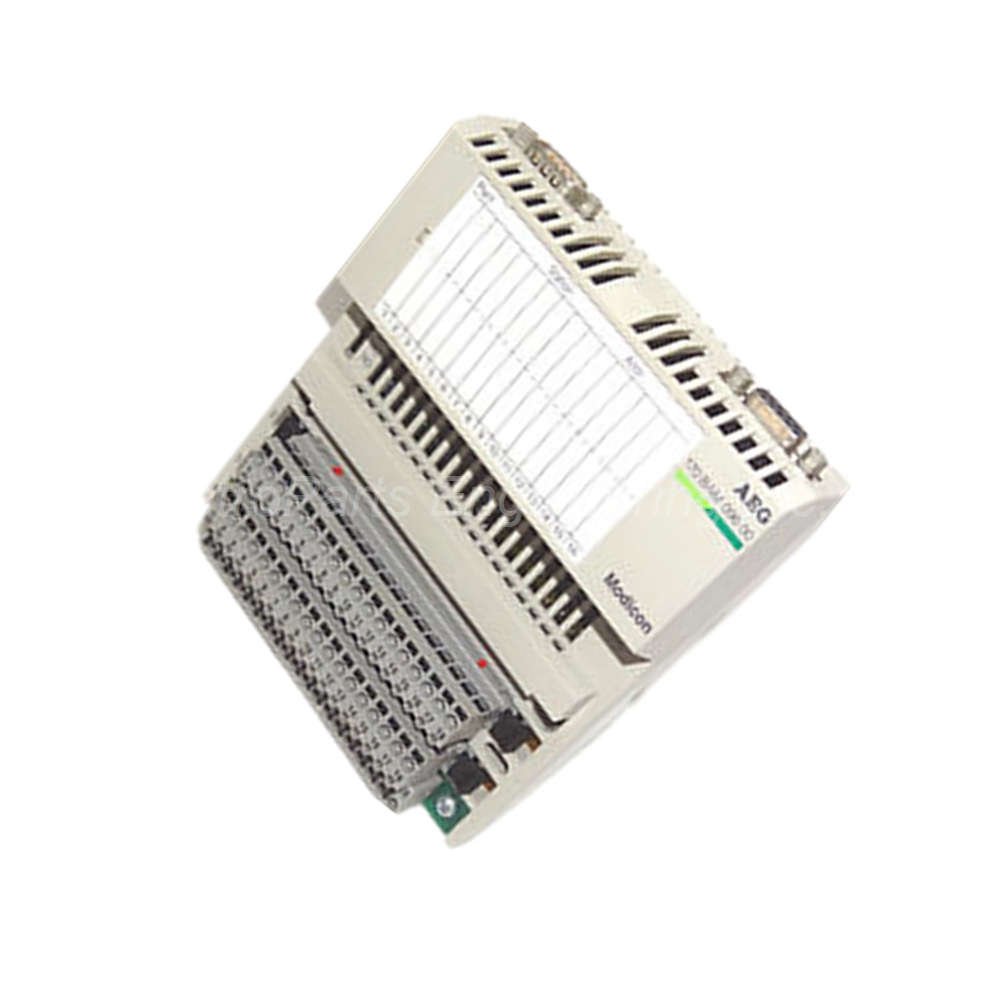

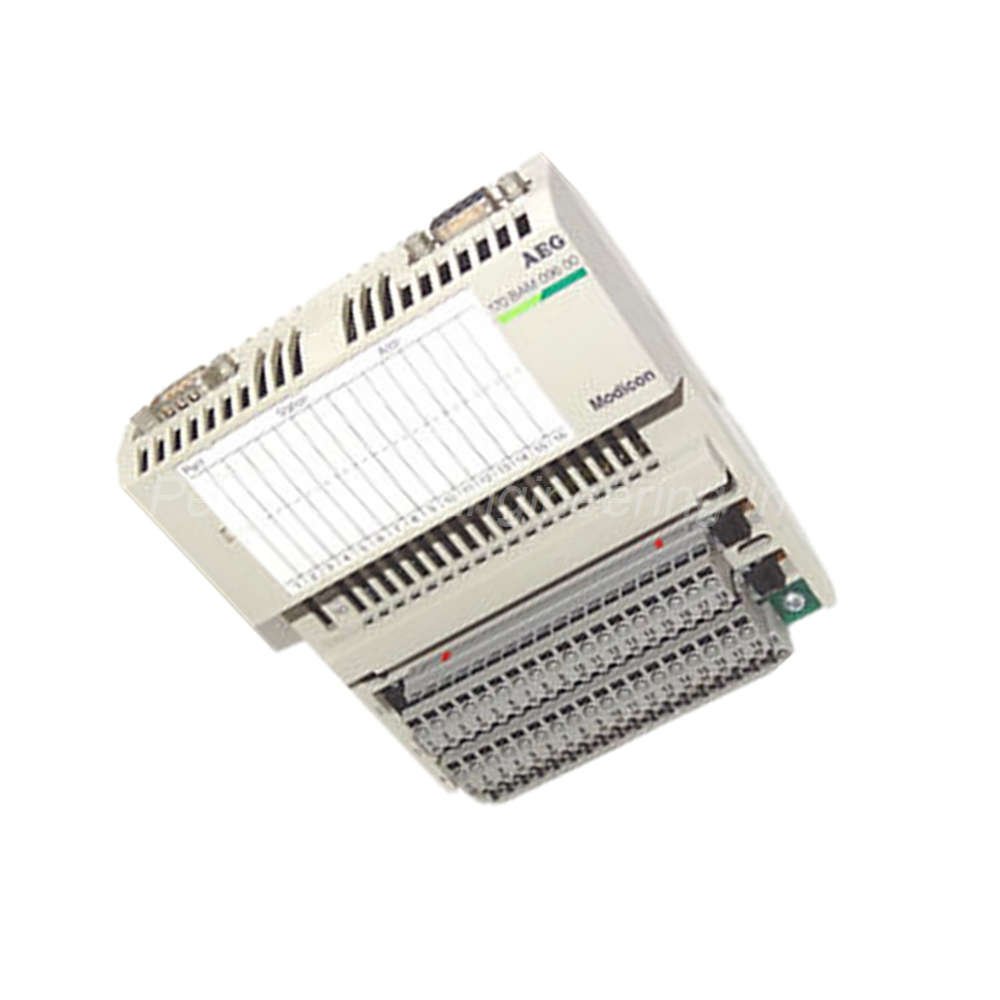

High-Performance Schneider Electric 170BAM09600 Analog I/O Module

The Schneider Electric 170BAM09600 offers superior data interfacing for modern automated control systems across various industrial sectors. This Modicon Momentum series module provides flexible analog signal processing with high accuracy and a very compact footprint. It handles four input channels and two output channels to streamline your complex automation tasks effectively. The 170BAM09600 ensures reliable data handling in moderate environments while maintaining high signal integrity during operation.

Primary Technical Specifications

• Brand: Schneider Electric
• Model Number: 170BAM09600
• Current Range: 4 to 20 mA
• Voltage Range: 0 to 10 V DC
• Input Count: 4 Differential Analog Inputs
• Output Count: 2 Single-Ended Analog Outputs
• Resolution: 12-bit for precise signal conversion
• Frequency Response: 50/60 Hz for noise rejection
• Linearity Error: +/- 0.1% of full scale
• Isolation Voltage: 500 V DC between signals and ground

Key Product Benefits and Selling Points

• The 170BAM09600 features a dual-signal design supporting both voltage and current modes.
• Its lightweight 0.23 kg body allows for easy mounting in small control cabinets.
• The Modicon Momentum architecture simplifies complex wiring and reduces total installation time.
• Built-in diagnostic LEDs provide instant visual feedback on module status and errors.
• This module delivers consistent performance for sensitive monitoring and control tasks.

Packing List and Global Shipping

• Schneider Electric 170BAM09600 Analog I/O Module
• Industrial Protective Box
• Standard Warranty: 12-Month Quality Guarantee
• Fast Delivery via FedEx, UPS, or DHL
• Safe and secure packaging for worldwide international transit

Environmental and Durability Limits

• Operating Temperature: 0 to 40 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
• Operating Humidity: Up to 80% RH non-condensing
• Maximum Altitude: 1000 meters without any performance derating
• Anti-Interference: High EMC resistance for noisy industrial environments
• Vibration Resistance: Meets standard IEC 60068-2-6 requirements

Installation and Maintenance Guide

• Snap the 170BAM09600 module onto a compatible Momentum communication adapter or processor base.
• Tighten all terminal screws to ensure secure electrical contact for signal wires.
• Keep signal cables away from high-voltage power lines to minimize electrical noise.
• Verify the power supply voltage stays within the specified DC operating range.

Professional Frequently Asked Questions

• What is the bit resolution for the analog conversion?
• The 170BAM09600 utilizes 12-bit resolution to provide highly accurate data readings.
• Does the module require external cooling at 40 degrees?
• No, the module functions safely using natural convection within its rated temperature range.
• Can I mix voltage and current signals on the inputs?
• Yes, you can configure the inputs to accept either 4-20mA or 0-10V signals.
• What happens if the altitude exceeds 1000 meters?
• Operation above 1000 meters might require derating the maximum current or temperature limits.
• How does the module handle electromagnetic interference?
• The device includes internal shielding to resist interference from nearby industrial machinery.
