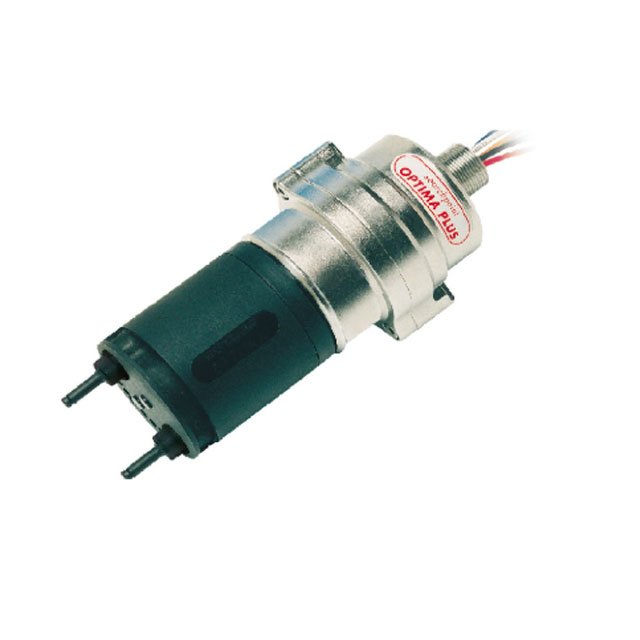

Overview of the Honeywell 2108B2101N Searchpoint Optima Plus

The Honeywell 2108B2101N (Searchpoint Optima Plus) represents the gold standard in point infrared gas detection. This specific model, designed for hydrocarbon detection, offers a measuring range of 0-100% LEL (Lower Explosive Limit). Honeywell Analytics engineered the Optima Plus to overcome the limitations of traditional catalytic bead sensors, such as poisoning and frequent recalibration requirements.

By utilizing advanced infrared (IR) technology, the 2108B2101N provides a “fail-to-safety” operation. It continuously monitors for the presence of combustible gases in the most demanding environments, including offshore oil platforms, refineries, and chemical processing plants. The unit’s 316 Stainless Steel construction ensures maximum longevity against salt spray and corrosive atmospheric elements.

Industry-Leading Response Times

In the world of gas detection, every second counts. The 2108B2101N boasts some of the fastest response times available in the market today.

• T50 Response: Achieved in less than 3 seconds.
• T90 (Methane) Response: Achieved in less than 4 seconds.

These rapid detection speeds allow safety systems to trigger emergency shutdowns or ventilation protocols almost instantly, significantly reducing the risk of ignition or explosion. The internal optical design compensates for environmental changes, ensuring that the detector remains accurate even during sudden temperature shifts or heavy fog.

Robust Construction and Environmental Resilience

Honeywell chose 316 Stainless Steel for the housing of the 2108B2101N to provide superior mechanical strength and chemical resistance. This material choice makes the detector ideal for “heavy-duty” industrial applications. The device features an IP66/67 rating, meaning it is completely dust-tight and can withstand powerful water jets or temporary immersion.

The unit operates reliably across a wide temperature spectrum, from -40°F to 149°F (-40°C to +65°C). Whether installed in the freezing conditions of an Arctic pipeline or the sweltering heat of a desert refinery, the Optima Plus maintains its calibration and performance integrity.

Global Safety Certifications and Compliance

The 2108B2101N carries an exhaustive list of international approvals, making it a “universal” solution for global projects.

1. UL & CSA: Certified for Class I, Division 1, Groups B, C, and D, ensuring compliance with North American safety standards.
2. ATEX/IECEx: Rated II 2 GD Ex d op is IIC Gb, suitable for explosive gas and dust atmospheres.
3. FM (Factory Mutual): Approved for high-hazard industrial locations.
4. InMetro & CU-TR: Certified for use in the Brazilian and Eurasian (Russian) markets, respectively.

These certifications confirm that the device meets the highest safety requirements for explosion-proof equipment. The “Ex d” (flameproof) protection method ensures that any internal spark or explosion cannot ignite the surrounding atmosphere.

Electrical Integration and Output

The detector provides a standard 4-20mA analog signal output, which integrates easily with most PLC, DCS, and fire/gas controllers.

• Power Supply: Operates on a maximum of 32Vdc.
• Power Consumption: Maximum 8W.
• Optics: The dual-beam, self-compensating optical design eliminates drift caused by component aging or obscured lenses.

The Optima Plus also supports the use of the Handheld Interrogator or SHC-1 protection device, allowing technicians to perform non-intrusive calibration and diagnostics in the field without opening the explosion-proof housing.

Why Choose the Searchpoint Optima Plus 2108B2101N?

Investing in the Honeywell 2108B2101N reduces the total cost of ownership for your facility. While initial costs may be higher than electrochemical or catalytic sensors, the Optima Plus requires significantly less maintenance. It does not suffer from “sensor poisoning” by silicones or sulfides, and the IR source typically lasts for many years without replacement.

Furthermore, the 316 Stainless Steel build prevents the need for frequent hardware replacements in marine or coastal environments. By choosing this UL-certified hydrocarbon detector, you ensure the highest level of protection for your personnel and your high-value industrial assets.
