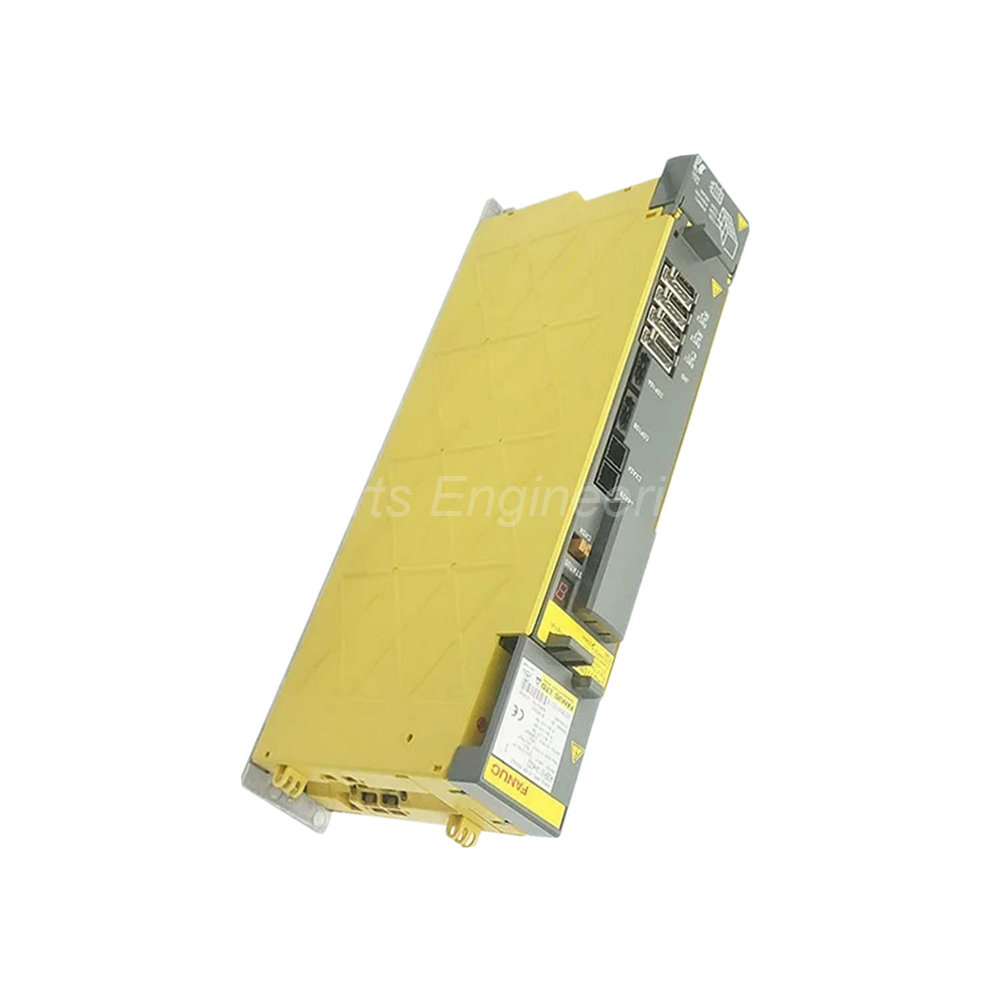

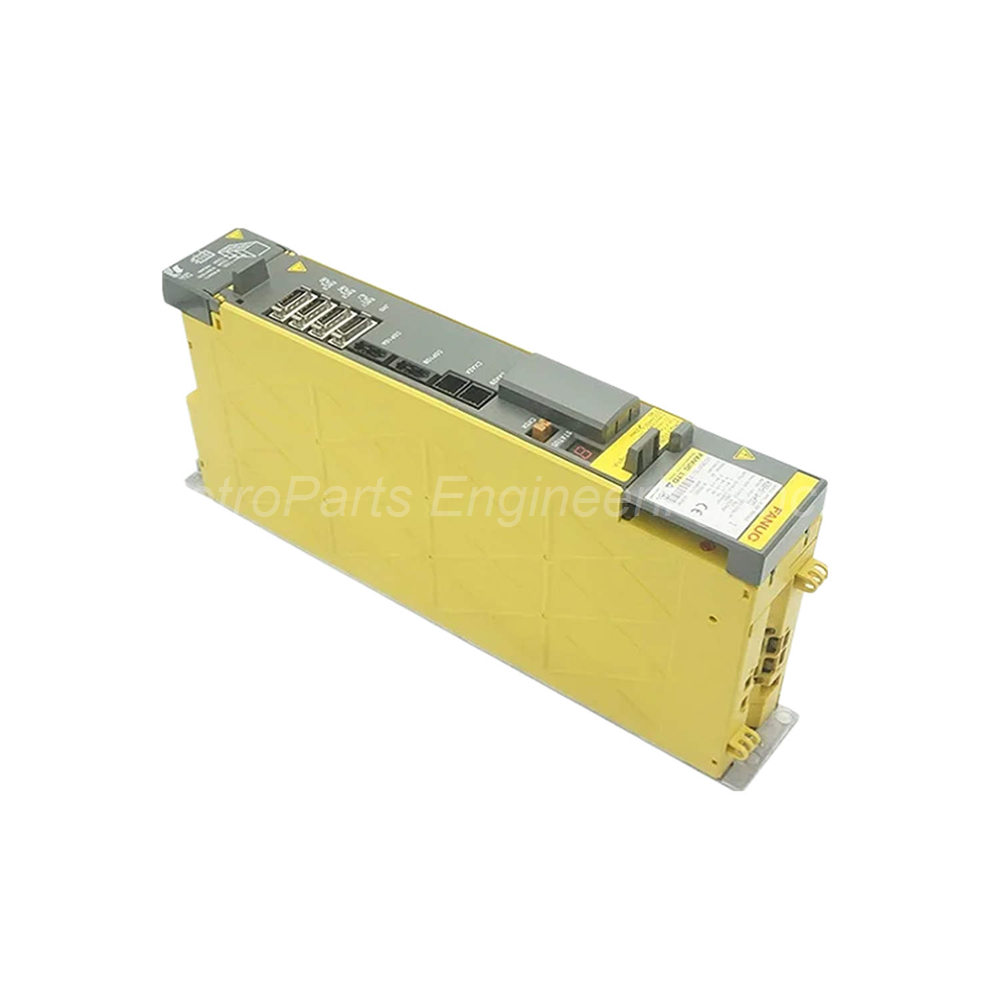

FANUC A06B-6114-H303 Triple-Axis Servo Amplifier Module
The FANUC A06B-6114-H303 is a triple-axis servo amplifier module. It belongs to the A06B product series from FANUC. This unit provides precision motion control for three axes independently. You can use it for complex CNC machinery with multiple servo motors. It delivers efficient power distribution across all three axes.
Technical Specifications of the A06B-6114-H303
The FANUC A06B-6114-H303 accepts an input voltage range of 283 to 339 VDC. The input frequency works at 50 Hz or 60 Hz. The rated input power is 7.5 kW for balanced operation. The output voltage ranges from 200 to 240 VAC. This provides standard power for AC servo motors.
Output Current Ratings Per Axis
The FANUC A06B-6114-H303 has three axes with identical ratings. The L-axis rated output current is 6.5 Amps. The M-axis rated output current is also 6.5 Amps. The N-axis rated output current is 6.5 Amps as well. The maximum output current reaches 20 Amps total. The maximum output power is 30 kW peak.
Output Frequency Range
The output frequency spans from 0.1 Hz to 800 Hz. This wide range allows precise speed control for all three axes. The FANUC A06B-6114-H303 provides consistent frequency response across each axis. This enables synchronized motion for complex multi-axis applications.
Environmental Specifications
The FANUC A06B-6114-H303 operates from 0°C to 55°C ambient temperature. This covers most industrial environments. The module handles ambient humidity up to 90% RH. Condensation must not be present during operation. These ratings ensure reliable performance in demanding conditions.
Physical Specifications
The FANUC A06B-6114-H303 weighs 15.00 lbs or 6.80 kg. The compact design facilitates easy integration into existing systems.
Installation Guidelines for the A06B-6114-H303
Mount the FANUC A06B-6114-H303 in a well-ventilated control cabinet. Ensure the ambient temperature stays between 0°C and 55°C. Keep relative humidity under 90% without condensation. Provide adequate airflow around the module for cooling. Use proper shielding for all input and output cables. Connect each axis to its corresponding servo motor.
Package Contents
Common FAQs for the A06B-6114-H303
1. How many axes does the A06B-6114-H303 drive?
The FANUC A06B-6114-H303 is a triple-axis servo amplifier. It drives three servo motors independently.
2. What is the rated output current per axis?
The FANUC A06B-6114-H303 provides 6.5 Amps for each axis. The L, M, and N axes all have the same rating.
3. What is the maximum output power of this amplifier?
The FANUC A06B-6114-H303 has a maximum output power of 30 kW. The maximum output current is 20 Amps total.
4. What output frequency range does this module support?
The FANUC A06B-6114-H303 supports output frequencies from 0.1 Hz to 800 Hz. This allows precise speed control for all three axes.
5. What is the operating temperature range for this module?
The FANUC A06B-6114-H303 operates from 0°C to 55°C. The minimum temperature is 0°C and the maximum is 55°C.
Why Choose the FANUC A06B-6114-H303?
This triple-axis servo amplifier saves cabinet space and reduces cost. Three 6.5A axes provide balanced power for multi-axis machines. The 7.5 kW rated input handles demanding applications. The wide 0.1-800 Hz frequency range offers excellent speed control. Order the FANUC A06B-6114-H303 today for your multi-axis servo needs.
