Product Overview

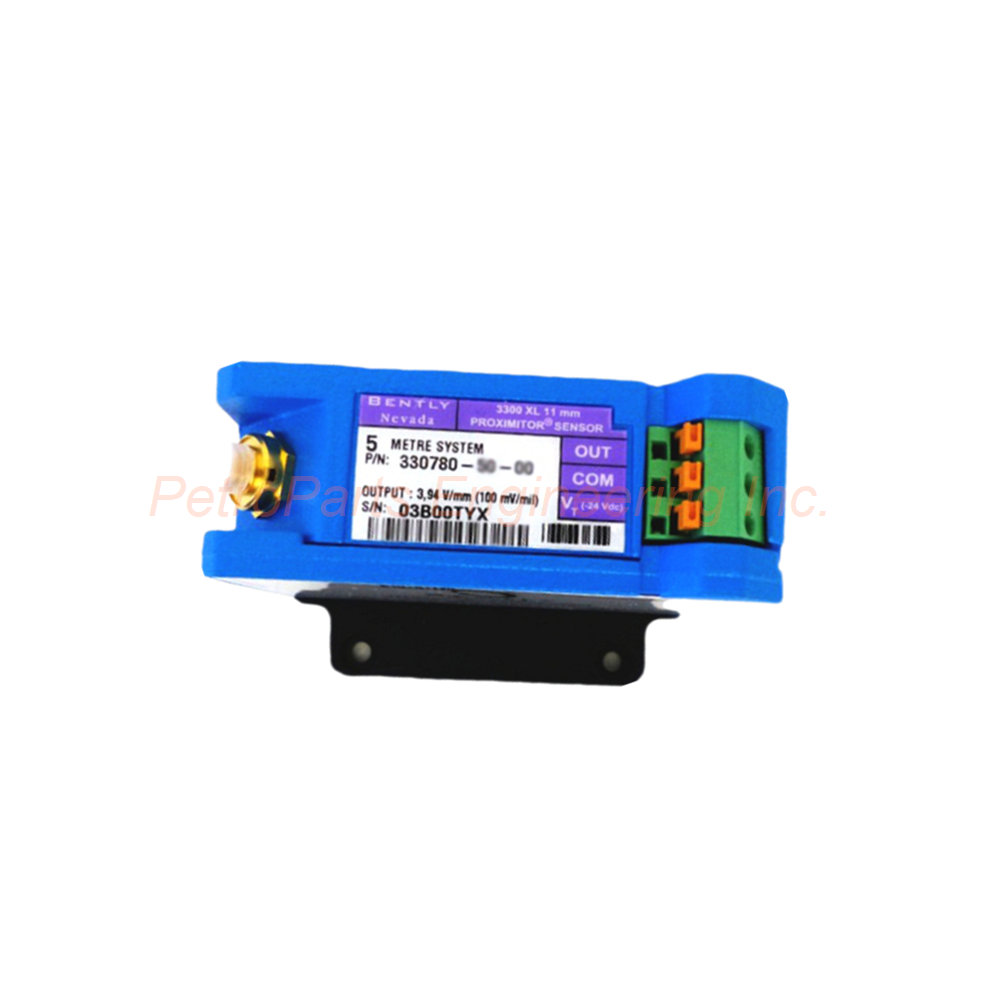

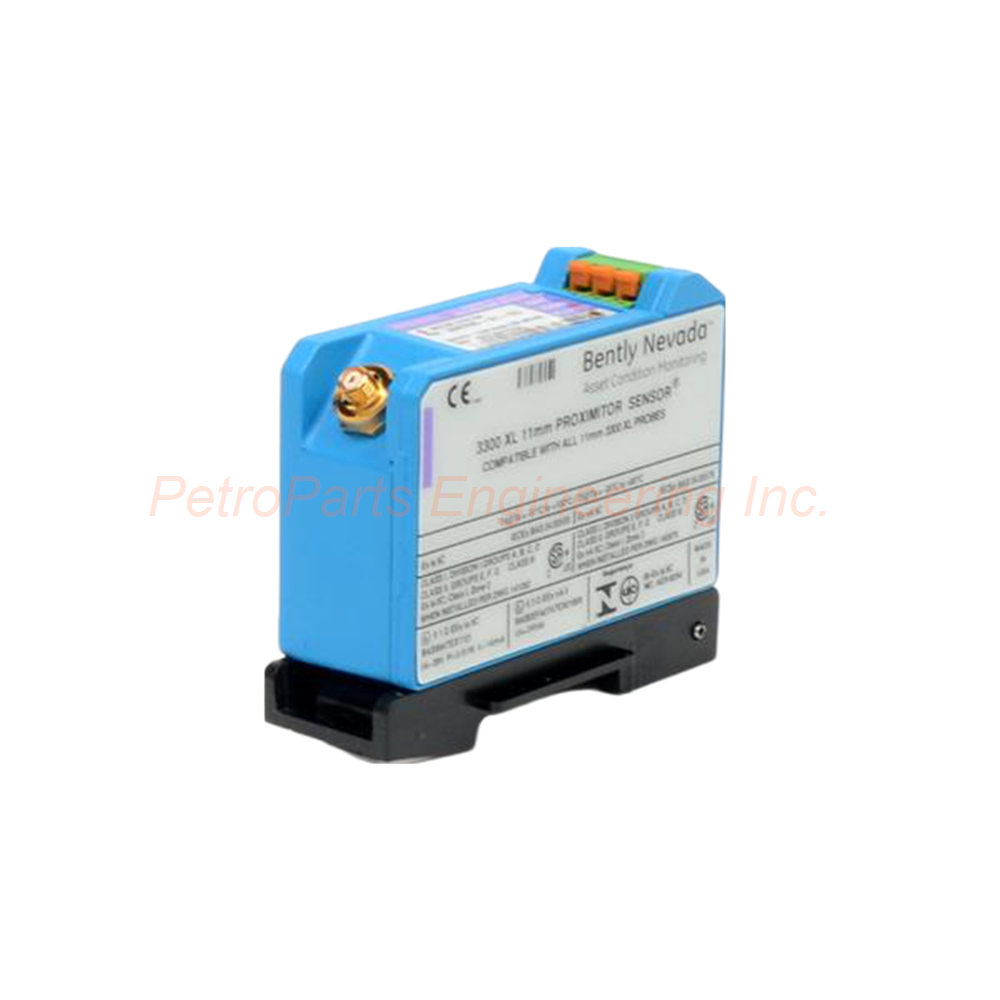

The Bently Nevada 330780-X1-05 is a 3300 XL 11 mm Proximitor Sensor. This model shares the same advanced features found in the 3300 XL 8 mm Proximitor Sensor.

Its thin design allows mounting in either a high-density DIN-rail installation or a traditional panel mount configuration. Improved RFI/EMI immunity enables European CE mark approvals without special mounting considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high frequency radio signals. Furthermore, SpringLoc terminal strips require no special installation tools and facilitate faster, highly robust field wiring connections.

Ordering Information Breakdown

The 330780-X1-05 follows a specific ordering code structure. The X1 placeholder in the part number indicates two possible system length options.

• 330780: 3300 XL 11 mm Proximitor Sensor base model.

• X1: System length and mounting option (choose 51 or 91).

• 05: Multiple agency approvals.

Available System Length Options:

General Specifications

The 330780-X1-05 offers reliable proximity sensing for critical machinery.

• Manufacturer: Bently Nevada.

• Product Type: 3300 XL 11 mm Proximitor Sensor.

• System Length: 5 or 9 meters including extension cable (selectable).

• Proximitor Sensor Material: A380 aluminum.

• Dimensions (HxWxD): 6.35 cm x 6.12 cm x 8.13 cm.

Calibration Information

Proximitor Sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request. Therefore, the 330780-X1-05 suits various shaft materials with proper calibration.

Electrical Specifications

The 330780-X1-05 accepts one non-contacting 3300 XL 11 mm Proximity Probe and Extension Cable.

Power Requirements:

• Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption.

• Requires -23 Vdc to -26 Vdc with barriers.

• Important Note: Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.

Supply Sensitivity:

• Less than 2 mV change in output voltage per volt change in input voltage.

Output Resistance:

• 50 Ω.

Temperature and Environmental Specifications

The 330780-X1-05 withstands harsh industrial environments.

Proximitor Sensor Temperature Range:

• Operating Temperature: -52°C to +100°C (-62°F to +212°F).

• Storage Temperature: -52°C to +105°C (-62°F to +221°F).

Relative Humidity:

• 100% condensing, non-submersible when connectors are protected.

• Tested to IEC 68-2-3 damp heat.

Key Features

The 330780-X1-05 offers several advantages for proximity measurement.

Thin Profile Design:
Enables mounting in high-density DIN-rail installations. Alternatively, it suits traditional panel mount configurations. Consequently, installation flexibility is maximized.

Enhanced RFI/EMI Immunity:
Achieves European CE mark approvals without special mounting considerations. This immunity prevents adverse effects from nearby high frequency radio signals. Therefore, reliable operation near radios or wireless devices is assured.

SpringLoc Terminal Strips:
Require no special installation tools. They facilitate faster, highly robust field wiring connections. As a result, installation time and costs are reduced.

Wide Temperature Range:
Operates from -52°C to +100°C. Storage temperature extends to +105°C. Hence, the sensor suits extreme climate conditions.

Multiple Agency Approvals:
The -05 suffix indicates multiple approvals. This simplifies global equipment certification.

Typical Applications

The 330780-X1-05 suits various turbomachinery monitoring applications.

• Radial vibration monitoring on steam turbines with DIN rail mounting.

• Axial position measurement on gas compressors.

• Shaft eccentricity monitoring on hydro turbines.

• Differential expansion measurement on large rotating equipment.

• Thrust position monitoring requiring 11 mm probe systems.

Installation Guidelines

Install the 330780-X1-05 according to standard 3300 XL proximity system practices. Mount the Proximitor Sensor on a DIN rail for high-density installations. Alternatively, use the thin profile for traditional panel mount.

System Length Selection:
Choose the 5.0 meter (51) or 9.0 meter (91) system length based on the distance between the probe and the Proximitor Sensor.

Power Connections:
Connect power at -17.5 Vdc to -26 Vdc without barriers. For installations with intrinsic safety barriers, use -23 Vdc to -26 Vdc. Ensure the voltage does not exceed -23.5 Vdc positive side to avoid reduced linear range.

Field Wiring:
The SpringLoc terminal strips accept simple wire insertion. No special tools are required. Protect connectors from submersible conditions. The sensor is not submersible but operates in 100% condensing humidity when connectors are protected.

What is in the Box

Please inspect all items upon delivery.

• Bently Nevada 330780-X1-05 3300 XL 11 mm Proximitor Sensor.

• DIN rail mounting base.

• SpringLoc terminal strips (installed).

• Installation instruction manual.

Frequently Asked Questions (FAQ)

1. What system lengths are available for the 330780-X1-05?

The 330780-X1-05 is available in two system lengths. Code 51 provides 5.0 meters (16.4 feet). Code 91 provides 9.0 meters (29.5 feet). Both options include DIN rail mounting.

2. What target material is the sensor calibrated to by default?

The 330780-X1-05 is factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request.

3. What is the operating temperature range of this Proximitor Sensor?

The 330780-X1-05 operates from -52°C to +100°C (-62°F to +212°F). Storage temperature ranges from -52°C to +105°C.

4. What power supply voltage does this sensor require?

The 330780-X1-05 requires -17.5 Vdc to -26 Vdc without barriers. With barriers, it requires -23 Vdc to -26 Vdc. Operation above -23.5 Vdc may reduce linear range.

5. Does this sensor require special installation tools for wiring?

No. The 330780-X1-05 uses SpringLoc terminal strips that require no special tools. This facilitates faster and more robust field wiring connections.
