Product Overview

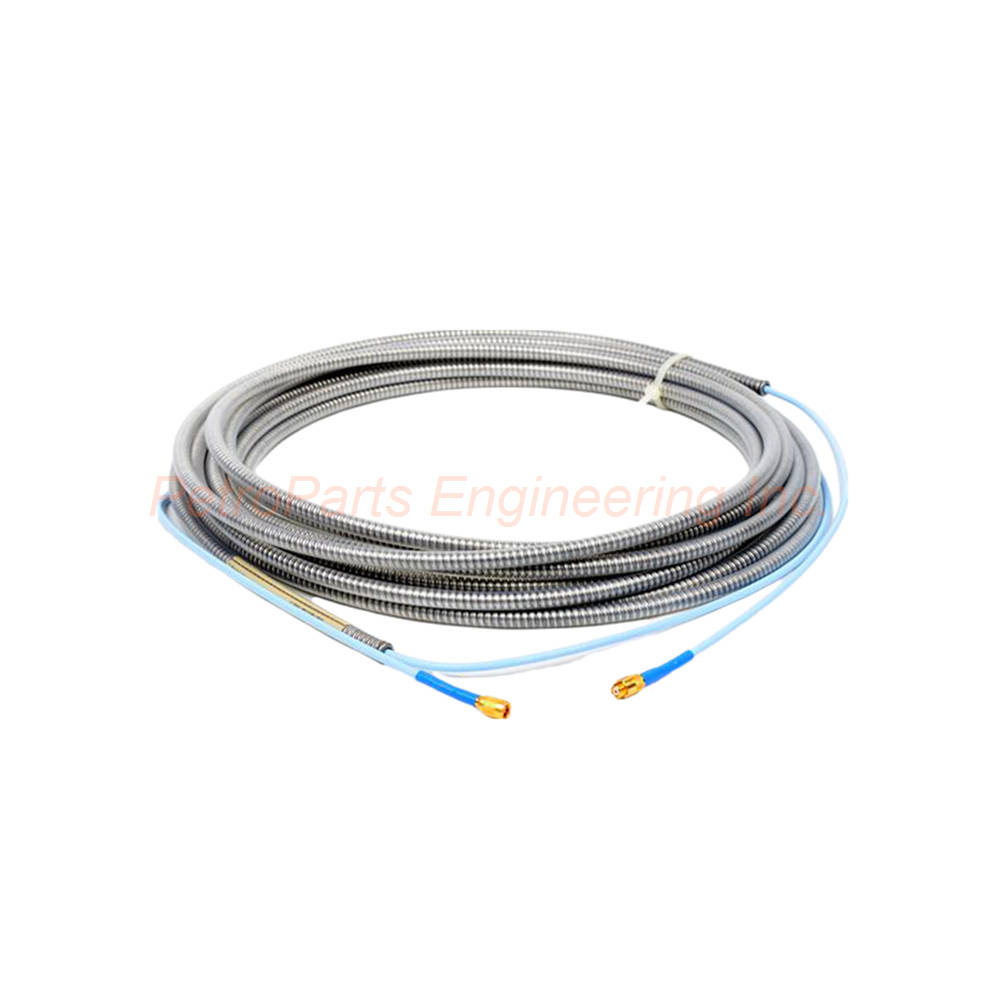

The Bently Nevada 330730-080-01-00 is a 3300 XL 11 mm Extension Cable. This armored cable connects a 3300 XL 11 mm probe to its Proximitor Sensor. As a result, it provides robust mechanical protection for demanding industrial environments.

The 3300 XL 11 mm probe comes in varying probe case configurations. For example, these include armored and unarmored ½-20, ⅝-18, M14 x 1.5 and M16 x 1.5 probe threads. Meanwhile, the reverse mount 3300 XL 11 mm probe comes standard with either ⅜-24 or M10 x 1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. Furthermore, these connectors lock into place, preventing the connection from becoming loose.

Ordering Information Breakdown

The 330730-080-01-00 follows a specific ordering code structure. Understanding this code helps verify correct configuration.

• 330730: 3300 XL 11 mm Extension Cable base model.

• 080: 8.0 meters (26.2 feet) cable length.

• 01: Armored cable.

• 00: Agency approval not required.

General Specifications

The 330730-080-01-00 offers robust signal transmission for proximity systems. Below are the core technical details.

Cable Weight:

• Extension Cable (non-armored): 45 g/m (0.5 oz/ft).

• Armored Extension Cable: 140 g/m (1.5 oz/ft). Consequently, the armored version is substantially heavier.

Electrical Specifications

The 330730-080-01-00 meets precise electrical requirements for reliable signal transmission.

DC Resistance (8.0 meter length):

• RCORE (Center to Center): 2.0 ± 0.5 ohms.

• RJACKET (Coaxial to Coaxial): 0.6 ± 0.2 ohms.

Extension Cable Capacitance:

• 69.9 pF/m (21.3 pF/ft) typical.

Extension Cable Material:

• 75 Ω triaxial, fluoroethylene propylene (FEP) insulated.

Extension Cable Armor:

• Flexible AISI 302 SST with FEP outer jacket.

Armored Cable Construction

The -01 option specifies armored cable without a connector protector. The armor consists of flexible AISI 302 stainless steel with an FEP outer jacket. For this reason, the 330730-080-01-00 provides superior mechanical protection in harsh industrial environments. However, note that no connector protector is included with this option.

Connector Features

All components of the transducer system have gold-plated brass ClickLoc connectors. These connectors lock into place, preventing the connection from becoming loose. In addition, the patented TipLoc molding method provides a robust bond between the probe tip and the probe body. Similarly, the probe cable is securely attached to the probe tip utilizing the patented CableLoc design. Consequently, it provides 330 N (75 lb) pull strength.

Temperature Range

The 330730-080-01-00 handles extreme temperatures effectively.

• Operating and Storage Temperature: -52°C to +177°C (-62°F to +351°F).

Linear Range and Gap Setting

The 3300 XL 11 mm proximity system provides an extended linear range. For optimal performance, follow these parameters.

• Linear Range: 4.0 mm (160 mils).

• Linear Range Begins: Approximately 0.5 mm (20 mils) from target.

• Linear Range Extends: 0.5 to 4.5 mm (20 to 180 mils) (approximately -1 to -17 Vdc).

• Extended DSL Range: 0.5 to 5.0 mm (20 to 200 mils) (-1 to -19 Vdc).

• Important Note: The extended DSL range is not applicable when using zener barriers.

• Recommended Gap Setting: 2.5 mm (100 mils).

Field Wiring Guidelines

Field wiring connects the Proximitor Sensor to the monitor. For proper installation, adhere to these specifications.

• Wire Size: 0.2 to 1.5 mm² (16 to 24 AWG).

• With Ferrules: 0.25 to 0.75 mm² (18 to 23 AWG).

• Recommendation: Use three-conductor shielded triad cable.

• Maximum Length: 305 meters (1,000 feet) between Proximitor Sensor and monitor.

• Note: See the frequency response graph for signal rolloff at high frequencies when using longer field wiring lengths.

Mechanical Specifications

The 330730-080-01-00 uses high-quality materials throughout its construction.

• Probe Tip Material: Polyphenylene sulfide (PPS).

• Probe Case Material: AISI 304 stainless steel (SST).

• Probe Cable Specification: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated.

• Probe Lengths Available: 1, 5, or 9 meters.

Locknut Feature

The 3300 XL 11 mm probe comes standard with a locknut with pre-drilled safety wire holes. Therefore, safety wire can be installed to prevent loosening under vibration.

Reference to Other Cable Options

3300 XL Probes and Extension Cables can also be ordered with a FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable's interior. Additionally, the connector protector option provides additional protection of the connectors in a humid or moist environment. Connector protectors are recommended for all installations. Nevertheless, note that the 330730-080-01-00 includes neither FluidLoc nor connector protector. For these features, select the appropriate -03 or -10 options instead.

Silicone Tape Note: Silicone tape is also provided with each 3300 XL extension cable. It can be used instead of connector protectors. However, silicone tape is not recommended in applications where the probe-to-extension cable connection will be exposed to turbine oil.

Calibration Note

Proximitor Sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request.

Key Features

The 330730-080-01-00 offers several advantages for proximity measurement.

Armored Cable Construction:
Flexible AISI 302 stainless steel armor with an FEP outer jacket. Therefore, it provides superior mechanical protection in harsh environments.

Gold-Plated ClickLoc Connectors:
Lock into place to prevent loosening. Thus, this ensures reliable connections under vibration.

High Pull Strength:
The CableLoc design provides 330 N (75 lb) pull strength. Consequently, the cable remains securely attached to the probe tip.

Wide Temperature Range:
Operates from -52°C to +177°C. Hence, it suits extreme climate conditions.

No Agency Approvals Required:
The -00 suffix indicates no approvals. Therefore, this version has lower cost for non-hazardous installations.

Typical Applications

The 330730-080-01-00 suits various turbomachinery monitoring applications.

• Connecting 3300 XL 11 mm probes to Proximitor Sensors in harsh environments.

• Installations requiring mechanical armor protection without connector sealing.

• Turbine and compressor monitoring where cable abrasion is a concern.

• Retrofit of existing 3300 XL systems with armored cables.

• Non-hazardous area installations where agency approvals are not needed.

Installation Guidelines

Install the 330730-080-01-00 between the 3300 XL 11 mm probe and the Proximitor Sensor. First, connect the gold-plated ClickLoc connectors by pushing them together until they lock. Then, verify the lock is secure.

The armored cable provides mechanical protection. Route the cable away from sharp edges and excessive heat sources. Furthermore, observe the minimum bend radius for the armored cable. Do not exceed the maximum field wiring length of 305 meters between the Proximitor Sensor and monitor.

The locknut with pre-drilled safety wire holes can be safety wired for vibration resistance. No agency approvals are required for this version. Hence, it is suitable for non-hazardous installations.

What is in the Box

Please inspect all items upon delivery.

• Bently Nevada 330730-080-01-00 3300 XL 11 mm Armored Extension Cable (8.0 meters).

• Flexible AISI 302 SST armor with FEP outer jacket.

• Gold-plated ClickLoc connectors on both ends.

• Silicone tape (for optional connector protection).

• Installation instruction manual.

Frequently Asked Questions (FAQ)

1. What is the length of this extension cable?

The 330730-080-01-00 has a length of 8.0 meters (26.2 feet). The -080 suffix in the part number indicates this length.

2. What is the difference between the -01 and -03 cable options?

The -01 option specifies armored cable only. In contrast, the -03 option includes armored cable with a connector protector. Therefore, the 330730-080-01-00 does not include the connector protector.

3. What type of connectors does this cable use?

The 330730-080-01-00 uses gold-plated brass ClickLoc connectors. Moreover, these connectors lock into place, preventing the connection from becoming loose.

4. What is the operating temperature range of this cable?

The 330730-080-01-00 operates and stores from -52°C to +177°C (-62°F to +351°F).

5. Does this cable have hazardous area approvals?

No. The -00 suffix indicates that agency approval is not required for the 330730-080-01-00. For hazardous area approvals, select the -05 option instead.
