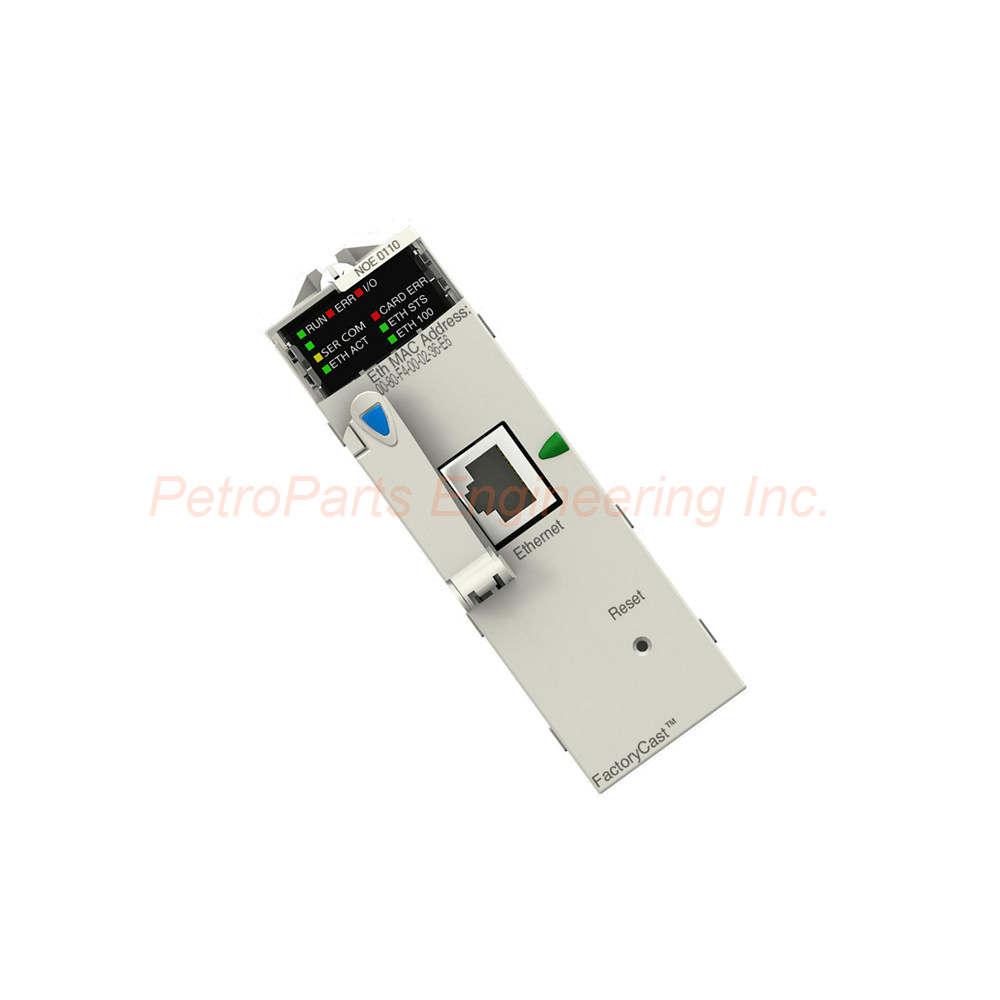

Product Overview

The Schneider Electric BMXNOE0110 is an Ethernet TCP/IP network module for the Modicon M340 automation platform. This module follows the Transparent Ready concept for seamless integration. The BMXNOE0110 includes a supplied flash memory card (BMXRWSC016M). Internal RAM provides 16,000 kB (16 MB) of memory. One RJ45 port operates at 10 or 100 Mbit/s. TC protective treatment guards against moisture and dust. The BMXNOE0110 weighs only 0.2 kg for easy installation.

Technical Specifications

The BMXNOE0110 delivers reliable Ethernet communication for M340 control systems. Below are its core technical parameters.

• Manufacturer: Schneider Electric

• Product Line: Modicon M340 automation platform

• Part Number: BMXNOE0110

• Product Type: Ethernet TCP/IP network module

• Concept: Transparent Ready

• Integrated Connection Type: Ethernet TCP/IP RJ45 10/100 Mbit/s, 1 twisted pair, Transparent Ready class C30

• Port Ethernet: 10BASE-T / 100BASE-TX

• Protective Treatment: TC

• Internal RAM: 16000 kB (16 MB)

• Supplied Flash Memory Card: BMXRWSC016M

• Current Consumption: 90 mA at 24 V DC

• Module Format: Standard

• IP Degree of Protection: IP20

• Net Weight: 0.2 kg (0.4 lb)

Memory and Storage Features

The BMXNOE0110 comes with substantial memory resources. These include:

• Supplied Flash memory card (BMXRWSC016M): For application saving

• Internal RAM 16000 kB: For user web page storage

• Activating the standard web server: Using the supplied flash card

The included flash card on the BMXNOE0110 saves your application program. You can also store custom web pages in the internal RAM. This makes remote diagnostics and monitoring very easy.

Communication Services

The BMXNOE0110 supports a wide range of industrial communication services. These include:

• Bandwidth management for traffic control

• FDR server (Fast Device Replacement)

• Rack Viewer for remote rack monitoring

• SNMP network administrator

• Global Data for peer-to-peer data exchange

• I/O scanning for cyclic data collection

• Modbus TCP messaging

• Configurable web server

• Data Editor via PC, pocket PC, or PDA terminal

• SOAP XML Web service (server)

The I/O scanning feature on the BMXNOE0110 reads data from remote devices automatically. This reduces programming effort for simple data collection tasks. The SOAP XML web service allows integration with enterprise IT systems.

LED Indicators and Local Signalling

The BMXNOE0110 includes six LED indicators for clear diagnostics. These lights include:

• 1 Green LED (ETH ACT): Shows activity on the Ethernet network

• 1 Green LED (RUN): Shows the processor is running

• 1 Green LED (ETH STS): Shows status of the Ethernet network

• 1 Red LED (ETH 100): Shows data rate (on for 100 Mbps, off for 10 Mbps)

• 1 Red LED (CARD ERR): Shows memory card fault

• 1 Red LED (ERR): Shows processor or system fault

The BMXNOE0110 also includes a RESET push-button. This button performs a cold restart of the module.

Product Compatibility

The BMXNOE0110 fits into the Modicon M340 automation platform. It installs in any standard M340 rack slot. The module draws internal power directly from the rack backplane.

Environmental Specifications

The BMXNOE0110 operates reliably in standard industrial environments. Its key ratings include:

• Ambient Air Temperature for Operation: 0 to 60°C (32 to 140 °F)

• Relative Humidity: 10 to 95% without condensation

• IP Degree of Protection: IP20

• Protective Treatment: TC (conformal coating)

• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)

The TC protective treatment on the BMXNOE0110 resists moisture and dust. The wide humidity range makes it suitable for many factory locations.

Installation Guide

Installing the Schneider Electric BMXNOE0110 requires a compatible M340 rack. Follow these steps for a proper setup.

1. Power Down the Rack: Turn off the 24 V DC power supply completely.

2. Insert the Module: Slide the BMXNOE0110 into an available rack slot.

3. Lock the Module: Push the top and bottom tabs until they click firmly.

4. Insert the Flash Card: Ensure the supplied BMXRWSC016M card is fully seated.

5. Connect Ethernet Cable: Plug a twisted pair cable into the RJ45 port.

6. Power Up: Restore the 24 V DC supply.

7. Check LEDs: Verify the RUN LED is green on the BMXNOE0110.

Always handle the BMXNOE0110 with care. The flash memory card is already supplied with the module. Do not remove it while the module has power.

Package List

Your package contains the following items for the BMXNOE0110:

• 1 x Schneider Electric BMXNOE0110 Ethernet TCP/IP network module

• 1 x BMXRWSC016M flash memory card (supplied with module)

• 1 x dust cap for the RJ45 Ethernet port

• 1 x quick start guide

Frequently Asked Questions (FAQ)

Q1: What is the Transparent Ready concept on the BMXNOE0110?
A1: The BMXNOE0110 follows Transparent Ready class C30. This means standard Ethernet and web technologies work without special software. You can use a PC or PDA for data access.

Q2: Does the BMXNOE0110 come with a memory card included?
A2: Yes, the BMXNOE0110 includes a BMXRWSC016M flash memory card. This card stores your application and activates the web server.

Q3: What is the current consumption of this network module?
A3: The BMXNOE0110 consumes only 90 mA at 24 V DC. This low draw leaves plenty of power for other modules in your rack.

Q4: Can I use the BMXNOE0110 for I/O scanning over Ethernet?
A4: Yes, the BMXNOE0110 supports I/O scanning. It reads data from remote Modbus TCP devices automatically without additional programming.

Q5: What does the red CARD ERR LED indicate on the BMXNOE0110?
A5: The red CARD ERR LED on the BMXNOE0110 lights up when the flash memory card is missing or faulty. Check that the BMXRWSC016M card is properly seated.
