Product Overview

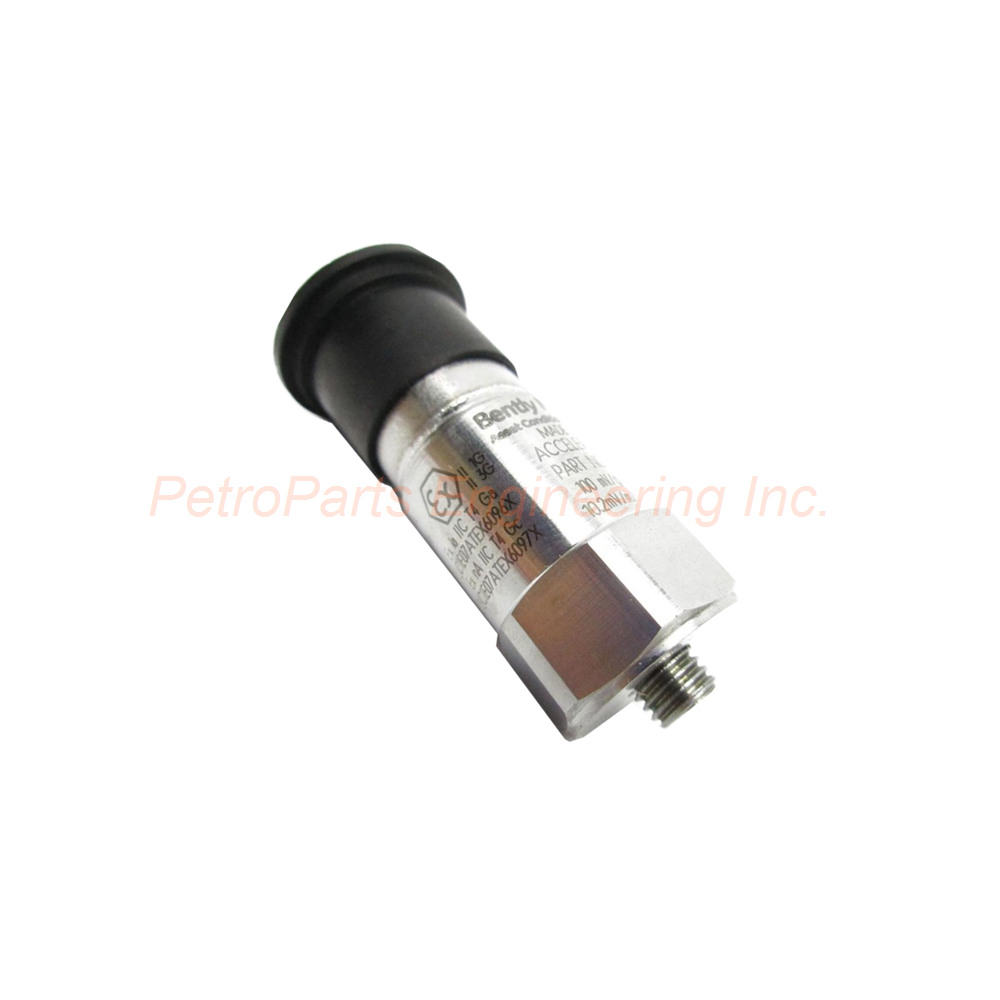

The Bently Nevada 200350-01-00-01 is a rugged accelerometer for machinery vibration monitoring. This sensor provides reliable data for predictive maintenance and protection systems.

The sensing element uses ceramic shear technology for excellent stability. A welded hermetic seal protects internal components from moisture and contamination. Consequently, the 200350-01-00-01 suits harsh industrial environments including offshore and chemical applications.

Ordering Information Breakdown

The 200350-01-00-01 follows a specific ordering code structure.

• 200350: Accelerometer base model.

• 01: ¼-28 to M6 x 1.00 stainless steel mounting stud.

• 00: 100 mV/g ±20% tolerance.

• 01: CSA, ATEX, IECEx agency approvals.

General Specifications

The 200350-01-00-01 offers robust vibration sensing in a compact package.

• Manufacturer: Bently Nevada.

• Product Type: Accelerometer.

• Country of Origin: Made in U.S.A.

• Hex Size: 11/16 inch (1.8 cm).

• Height: 1.65 inches (4.24 cm).

• Weight: 0.051 kg.

Performance Specifications

The 200350-01-00-01 delivers accurate vibration measurements across a wide frequency range.

• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%).

• Frequency Range (±3 dB): 30 to 600,000 cpm (0.5 to 10,000 Hz).

• Measurement Range: ±50g.

• Transverse Sensitivity: ≤7%.

• Amplitude Linearity: ±1%.

• Mounted Resonant Frequency: 1,500 kcpm (25 kHz).

Electrical Specifications

The 200350-01-00-01 uses constant current excitation with IEPE compatibility.

• Broadband Electrical Noise (1-10 kHz): 350 μg (3,434 μm/s²).

• Output Bias Voltage: 8 to 12 VDC.

• Excitation Voltage: 18 to 28 VDC.

• Constant Current Excitation: 2 to 20 mA.

• Settling Time (within 1% of bias): 2.0 seconds.

• Output Impedance: <150 ohms.

• Discharge Time Constant: ≥0.3 seconds.

• Electrical Isolation (Case): >10⁸ ohms.

Environmental Specifications

The 200350-01-00-01 withstands extreme industrial conditions.

• Operating Temperature Range: -54°C to +121°C (-65°F to +250°F).

• Shock Survivability: 5,000 g peak.

• Relative Humidity: 100% relative, condensing, non-submerged.

• Enclosure Rating: IP68.

Mechanical Specifications

The 200350-01-00-01 features rugged stainless steel construction.

• Sensing Element: Ceramic.

• Sensing Geometry: Shear.

• Housing Material: Stainless Steel.

• Sealing: Welded Hermetic.

• Electrical Connector: 2-Pin Mil-C-5015.

• Electrical Connection Position: Top.

Mounting Specifications

The 200350-01-00-01 includes a stainless steel mounting stud.

• Mounting Thread: 1/4-28 Female.

• Mounting Stud Option: ¼-28 to M6 x 1.00 Stainless Steel.

• Mounting Torque (Maximum): 2 to 5 ft-lb (2.7 to 6.8 N-m).

Agency Approvals

The -01 approval option includes multiple hazardous area certifications.

• CSA certified.

• ATEX certified.

• IECEx certified.

Therefore, the 200350-01-00-01 can be installed in explosive atmospheres worldwide.

Key Features

The 200350-01-00-01 offers several advantages for vibration monitoring.

High Sensitivity:
Provides 100 mV/g ±20% output. Therefore, it detects both low and high amplitude vibrations effectively.

Wide Frequency Range:
Measures from 30 to 600,000 cpm (0.5 to 10,000 Hz). Consequently, it captures a broad spectrum of machinery vibrations.

Rugged Stainless Steel Housing:
The housing material is stainless steel with welded hermetic sealing. Thus, it resists corrosion and moisture ingress.

IP68 Enclosure Rating:
Fully protected against dust and continuous immersion. Hence, it suits submersible and wash-down applications.

Hazardous Area Approvals:
CSA, ATEX, and IECEx certified for explosive atmospheres. As a result, global installation is simplified.

Wide Temperature Range:
Operates from -54°C to +121°C (-65°F to +250°F). Therefore, it works in extreme climate conditions.

High Shock Survivability:
Withstands 5,000 g peak shock without damage. Consequently, it survives harsh machine start-up and trip events.

Low Transverse Sensitivity:
≤7% sensitivity to cross-axis vibrations. Hence, measurements accurately reflect the intended axis.

Excellent Amplitude Linearity:
±1% linearity ensures accurate readings across the measurement range. Thus, reliable protection decisions are supported.

Typical Applications

The 200350-01-00-01 suits various vibration monitoring applications.

• Gearbox vibration monitoring on compressors.

• Pump bearing vibration measurement.

• Fan and blower imbalance detection.

• Turbomachinery casing vibration.

• Offshore platform equipment monitoring.

Installation Guidelines

Install the 200350-01-00-01 directly on the machine surface. First, prepare a clean, flat mounting surface. Then, apply the ¼-28 to M6 x 1.00 stainless steel mounting stud. Tighten to 2 to 5 ft-lb (2.7 to 6.8 N-m) maximum torque.

Next, connect the 2-pin Mil-C-5015 connector to the top of the sensor. Apply constant current excitation of 2 to 20 mA at 18 to 28 VDC. The output bias voltage will settle within 2.0 seconds.

For hazardous area installations, follow CSA, ATEX, or IECEx wiring practices. The sensor is IP68 rated, so it can be installed in wet or condensing environments. However, do not fully submerge the connector long-term without proper sealing.

What is in the Box

Please inspect all items upon delivery.

• Bently Nevada 200350-01-00-01 accelerometer.

• ¼-28 to M6 x 1.00 stainless steel mounting stud.

• 2-Pin Mil-C-5015 top connector (installed).

• Calibration certificate.

• Installation instruction manual.

Frequently Asked Questions (FAQ)

1. What is the sensitivity of the 200350-01-00-01?

The 200350-01-00-01 has a sensitivity of 100 mV/g ±20%. This is equivalent to 10.2 mV/m/s² ±20%.

2. What hazardous area approvals does this accelerometer hold?

The -01 approval option includes CSA, ATEX, and IECEx certifications. Therefore, the 200350-01-00-01 is approved for use in explosive atmospheres worldwide.

3. What is the operating temperature range of this sensor?

The 200350-01-00-01 operates from -54°C to +121°C (-65°F to +250°F). Consequently, it suits both cold climate and high-temperature machinery applications.

4. What is the IP rating of this accelerometer?

The 200350-01-00-01 has an IP68 enclosure rating. Thus, it is protected against dust and continuous immersion in water.

5. What type of connector does this sensor use?

The 200350-01-00-01 uses a 2-pin Mil-C-5015 connector. The electrical connection position is on the top of the sensor.
