Product Overview

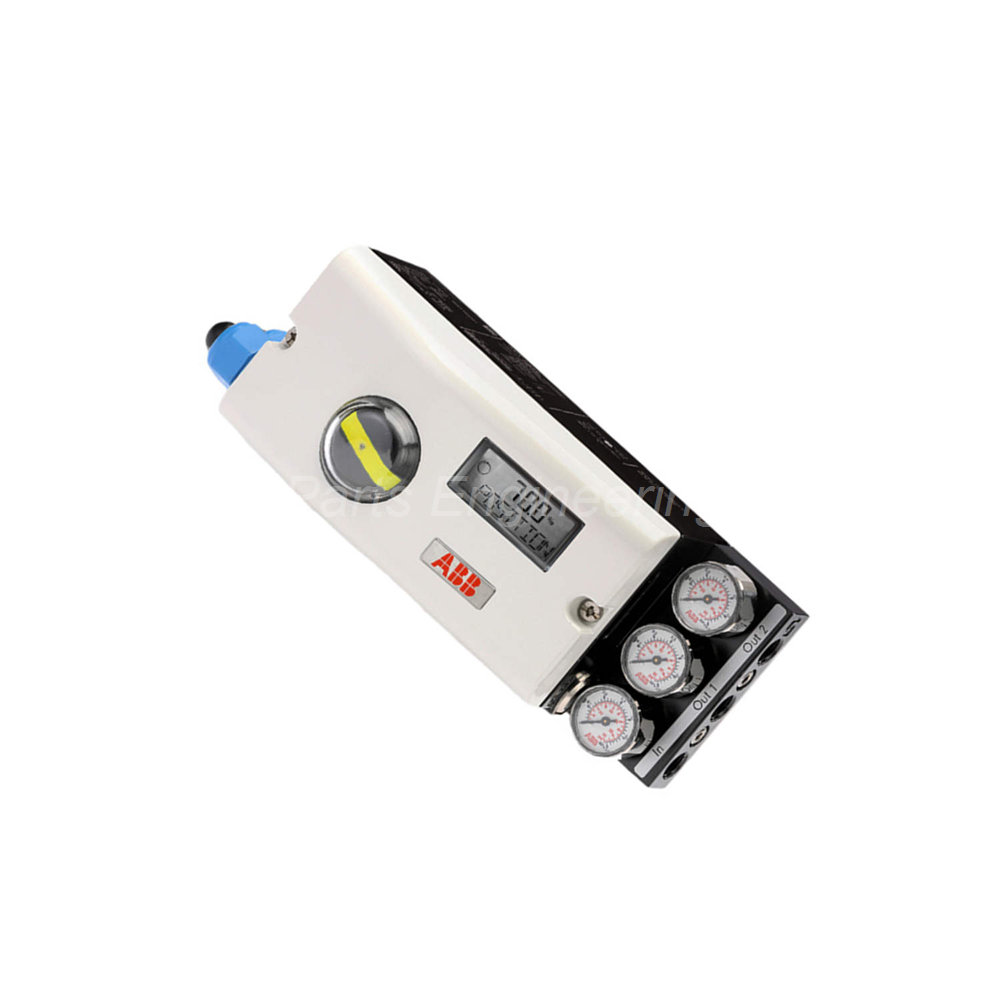

The ABB V18345-1010120001 is a TZIDC intelligent electro-pneumatic positioner. This configurable device includes an indicator and operator panel for local control.

The positioner mounts to linear actuators according to DIN/IEC 534 / NAMUR standards. Alternatively, it mounts to rotary actuators according to VDI/VDE 3845. Furthermore, it is ready for integral mounting. Therefore, this versatile positioner suits a wide range of valve actuation applications.

Ordering Information Breakdown

The V18345-1010120001 follows a specific ordering code structure. Understanding this code helps verify correct configuration.

• V18345: TZIDC intelligent, configurable positioner with indicator and operator panel.

• 1: Aluminium case, varnished, IP65 (NEMA 4X), ready for linear or rotary actuators.

• 1: 4-20 mA input, two-wire with connector plug for LKS adapter.

• 0: Without explosion protection.

• 1: Single acting, fail safe output.

• 2: Cable thread 1/2-14 NPT, air pipe thread 1/4-18 NPT.

• 0: Without analog or digital position feedback modules.

• 0: Without optional mechanical kit for digital position feedback.

• 1: Standard design (varnish/coding).

General Specifications

The V18345-1010120001 offers robust performance for industrial valve control.

• Manufacturer: ABB.

• Product Type: TZIDC Electro-Pneumatic Positioner.

• Weight: 1.7 kg.

Housing:

• Material: Aluminum, electrostatic dipping varnish with epoxy resin, stove-hardened.

• Color (Case): Varnished black, RAL 9005, matte.

• Color (Cover): Pantone 420.

• Protection Class: IP65 / NEMA 4X.

Pneumatic Specifications

The V18345-1010120001 provides reliable pneumatic control for valve actuation.

• Supply Pressure: 1.4 to 6 bar (20 to 90 psi).

• Air Consumption: <0.03 kg/h / 0.015 scfm (independent of supply pressure).

• Pneumatic Connections: Threads G 1/4 or 1/4-18 NPT.

• Output / Safe Position: Single acting, fail safe.

Electrical Specifications

The V18345-1010120001 accepts standard industrial control signals.

Analog Input:

• Nominal Range: 4 to 20 mA (two-wire technology).

• Signal Minimum: 4 mA.

• Signal Maximum: 20 mA (0 to 100%).

• Split-Range Operation: Freely selectable.

• Minimum Range: 20% (3.2 mA).

• Recommended Range: >50% (8.0 mA).

Digital Input:

• Control Voltage (Logic "0"): 0 to 5 V DC.

• Control Voltage (Logic "1"): 11 to 30 V DC.

Digital Output (Control circuit to DIN 19234/NAMUR):

• Supply Voltage: 5 to 11 V DC.

Electrical Connections:

• Screw Terminals (Analog Signal): Max 2.5 mm².

• Screw Terminals (Options): Max 1.0 mm².

• Note: Do not expose the terminals to strain.

• Cable Entry: Two tap holes 1/2-14 NPT.

Environmental Specifications

The V18345-1010120001 withstands harsh industrial conditions.

Ambient Temperature (Operation, Storage, Transport):

• -40 to 85°C.

Ambient Temperature (with proximity switches SJ2-S1N NO):

• -25 to 85°C.

Relative Humidity (Operational, with closed housing and air supply on):

• 95% (annual average), condensation permissible.

Relative Humidity (Transport and Storage):

• 75% (annual average), non-condensing.

Key Features

The V18345-1010120001 offers several advantages for valve positioning applications.

Intelligent TZIDC Platform:
The positioner is fully configurable with an indicator and operator panel. Therefore, local configuration and diagnostics are straightforward.

Versatile Mounting Options:
Mounts to linear actuators per DIN/IEC 534 / NAMUR. Additionally, it mounts to rotary actuators per VDI/VDE 3845. Consequently, one positioner suits many actuator types.

Robust Aluminum Housing:
The case is made of varnished aluminum with IP65 / NEMA 4X protection. Hence, it resists dust and water ingress in harsh environments.

Wide Operating Temperature:
Operates from -40°C to +85°C. For this reason, it suits outdoor and extreme climate installations.

Low Air Consumption:
Consumes less than 0.03 kg/h independent of supply pressure. Thus, it reduces operating costs compared to higher consumption positioners.

Flexible Signal Configuration:
Supports increasing or decreasing signal action. Moreover, split-range operation is freely selectable. As a result, it adapts to various control system requirements.

Multiple Characteristic Curves:
Offers linear, equal percentage (1:25, 1:50, 25:1, 50:1), or freely configurable with 20 reference points. Therefore, it matches virtually any valve characteristic.

Adjustable Travel Limit:
The positioning travel can be reduced within 0-100% range. However, a minimum value of 20% must be observed.

Shut-Off Function:
Configurable separately for each end position. When the limit value is exceeded, the positioner drives the actuator to the set end position. Consequently, tight valve shut-off is achieved.

Travel Time Prolongation:
This function increases the maximum travel time for full travel. Furthermore, the time parameter can be set separately for each direction.

Action and Characteristic Curve Options

The V18345-1010120001 offers flexible positioning response.

Positioning Signal Action:

• Increasing: Signal 4-20 mA = position 0-100%.

• Increasing: Signal 20-4 mA = position 0-100%.

Characteristic Curves:

• Linear.

• Equal percentage 1:25 or 1:50.

• Equal percentage 25:1 or 50:1.

• Freely configurable with 20 reference points.

Typical Applications

The V18345-1010120001 suits a wide range of valve control applications.

• Linear control valves in chemical processing plants.

• Rotary actuators in oil and gas facilities.

• Pneumatic valve positioning in power generation.

• Industrial automation requiring precise valve control.

• Retrofit of existing valve assemblies with TZIDC technology.

Installation Guidelines

Install the V18345-1010120001 according to standard pneumatic positioner practices. First, mount the positioner to the actuator using the appropriate mounting kit. For linear actuators, follow DIN/IEC 534 / NAMUR guidelines. For rotary actuators, follow VDI/VDE 3845 guidelines.

Connect supply air at 1.4 to 6 bar (20 to 90 psi). The air consumption is less than 0.03 kg/h. Then, connect the 4-20 mA control signal to the analog input terminals. Use 2.5 mm² maximum wire size.

For the digital input, apply 11-30 V DC for logic "1" or 0-5 V DC for logic "0". The digital output provides 5-11 V DC per NAMUR DIN 19234.

Configure the positioner using the indicator and operator panel. Set the action (increasing or decreasing), characteristic curve, travel limits, and shut-off parameters as required. Finally, perform an auto-calibration to match the valve's stroke characteristics.

What is in the Box

Please inspect all items upon delivery.

• ABB V18345-1010120001 TZIDC electro-pneumatic positioner.

• Indicator and operator panel (integrated).

• Mounting kit for linear or rotary actuators (as ordered).

• Installation instruction manual.

Frequently Asked Questions (FAQ)

1. What types of actuators can the V18345-1010120001 work with?

The V18345-1010120001 mounts to linear actuators per DIN/IEC 534 / NAMUR standards. Additionally, it mounts to rotary actuators per VDI/VDE 3845. Therefore, it suits both linear and rotary valve applications.

2. What is the input signal range for this positioner?

The analog input range is 4 to 20 mA (two-wire technology). The minimum signal is 4 mA, and the maximum is 20 mA (0-100%). Split-range operation is freely selectable.

3. What is the supply pressure requirement?

The V18345-1010120001 requires supply pressure between 1.4 and 6 bar (20 to 90 psi). Air consumption is less than 0.03 kg/h independent of supply pressure.

4. What is the operating temperature range of this positioner?

The V18345-1010120001 operates, stores, and transports from -40°C to +85°C. With SJ2-S1N proximity switches, the range is -25°C to +85°C.

5. Does this positioner include explosion protection?

No. The -0- option in the ordering code specifies without explosion protection. For hazardous area installations, select a different explosion protection option when ordering.
