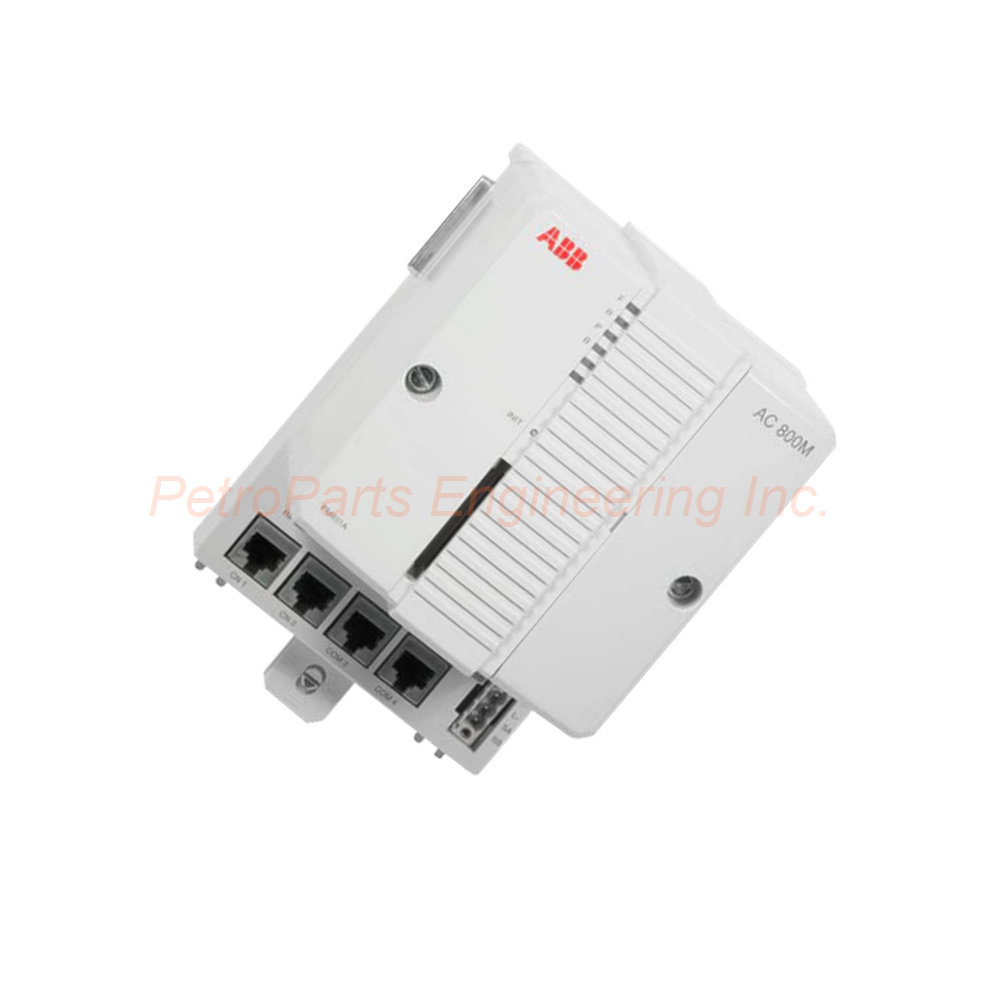

ABB CI867AK01 Modbus TCP Interface Overview

The ABB CI867AK01 is a communication interface for AC 800M controllers. This package includes the CI867A module and the TP867 baseplate. The ABB CI867AK01 uses Modbus TCP protocol for industrial networking. Modbus TCP combines Modbus RTU with standard Ethernet and TCP protocols. This is an application-layer messaging protocol at OSI model level 7. The CI867AK01 connects an AC 800M controller to external Ethernet devices. The article number for this complete package is 3BSE043660R1.

Technical Specifications

General Specifications

• Article Number: 3BSE043660R1.

• Communication Protocol: Modbus TCP.

• Master or Slave: Master and Slave (both supported).

• Number of Channels: 1 channel (Ch1).

• Transmission Speed: 10/100 Mbit/s (Ch1 supports full duplex at 100 Mbps).

• Line Redundancy: No.

• Module Redundancy: Yes (configurable).

• Hot Swap: Yes.

• Used Together with HI Controller: Yes.

• Max Units on CEX Bus: 12 modules.

Device Limits

• Maximum Slave Units per CI867A: 70 slave devices.

• Maximum Master Units per CI867A: 8 master devices.

• Connector Type: RJ-45 female (8-pin).

Hardware Description

• CEX-Bus Logic: Included in the CI867 expansion unit.

• Communication Unit: Handles all Modbus TCP messaging.

• DC/DC Converter: Supplies appropriate voltages from +24 V via CEX-Bus.

• Ethernet Connection: Cable connects to main network through an Ethernet switch.

• Port Configuration: CI867A uses one Ethernet port (100 Mbit/s only).

System Compatibility

• System 800xA Versions: Works with 6.0.3.3, 6.1.1, and subsequent versions only.

• Earlier Model Difference: CI867A has one port versus CI867 with two ports (100 Mbit/s and 10 Mbit/s).

Environmental and Certification

• Operating Temperature: 0 to +55 °C (+32 to +131 °F).

• Storage Temperature: -40 to +70 °C (-40 to +158 °F).

• Altitude: 2000 m according to IEC/EN 61131-2.

• Pollution Degree: Degree 2 according to IEC/EN 61131-2.

• Corrosion Protection: G3 compliant to ISA 71.04.

• Relative Humidity: 5 to 95%, non-condensing.

• Protection Class: IP20 according to EN60529, IEC 529.

• CE Marking: Yes.

• Electrical Safety: UL 61010-1, UL 61010-2-201.

• Hazardous Location: UL 60079-15, cULus Class 1, Zone 2, AEx nA IIC T4, Ex nA IIC T4 Gc X.

• Marine Certificates: DNV-GL (pending ABS, BV, LR).

• RoHS Compliance: EU RoHS, UAE RoHS, CN RoHS.

• WEEE Compliance: DIRECTIVE/2012/19/EU.

Physical Dimensions and Weight

• Width: 59 mm (2.3 in.).

• Height: 185 mm (7.3 in.).

• Depth: 127.5 mm (5.0 in.).

• Weight (including base): 700 g (1.5 lbs).

Installation Guide

Follow these steps to install the ABB CI867AK01 correctly:

1. Mount the TP867 baseplate onto the DIN rail or backplane.

2. Insert the CI867A module into the TP867 baseplate.

3. Connect the CEX-Bus to the AC 800M controller system.

4. Power the unit via the +24 V supply through the CEX-Bus.

5. Connect an Ethernet cable from the RJ-45 port to an Ethernet switch.

6. Configure the ABB CI867AK01 as master or slave in System 800xA.

7. Set up redundancy if required for your application.

8. Test communication with all connected Modbus TCP devices for 3BSE043660R1.

Packaging List

• CI867A communication interface module (1 unit)

• TP867 baseplate (1 unit)

• Anti-static protective bag for module (1 piece)

• Anti-static protective bag for baseplate (1 piece)

• Installation instruction manual (1 copy)

• RJ-45 protective cap (1 piece)

Frequently Asked Questions (FAQ)

1. What is included in the ABB CI867AK01 package?
The ABB CI867AK01 package includes the CI867A communication module and the TP867 baseplate together.

2. Can I use the CI867AK01 as both master and slave?
Yes, the 3BSE043660R1 supports both master and slave functionality for Modbus TCP communication.

3. Is the ABB CI867AK01 redundant capable?
Yes, the ABB CI867AK01 supports module redundancy and hot swap for high availability systems.

4. How many slave devices can connect to one CI867A?
A single ABB CI867AK01 can communicate with up to 70 slave devices and 8 master units.

5. Which System 800xA versions work with the CI867AK01?
The ABB CI867AK01 works with System 800xA 6.0.3.3, 6.1.1, and all subsequent versions only.
