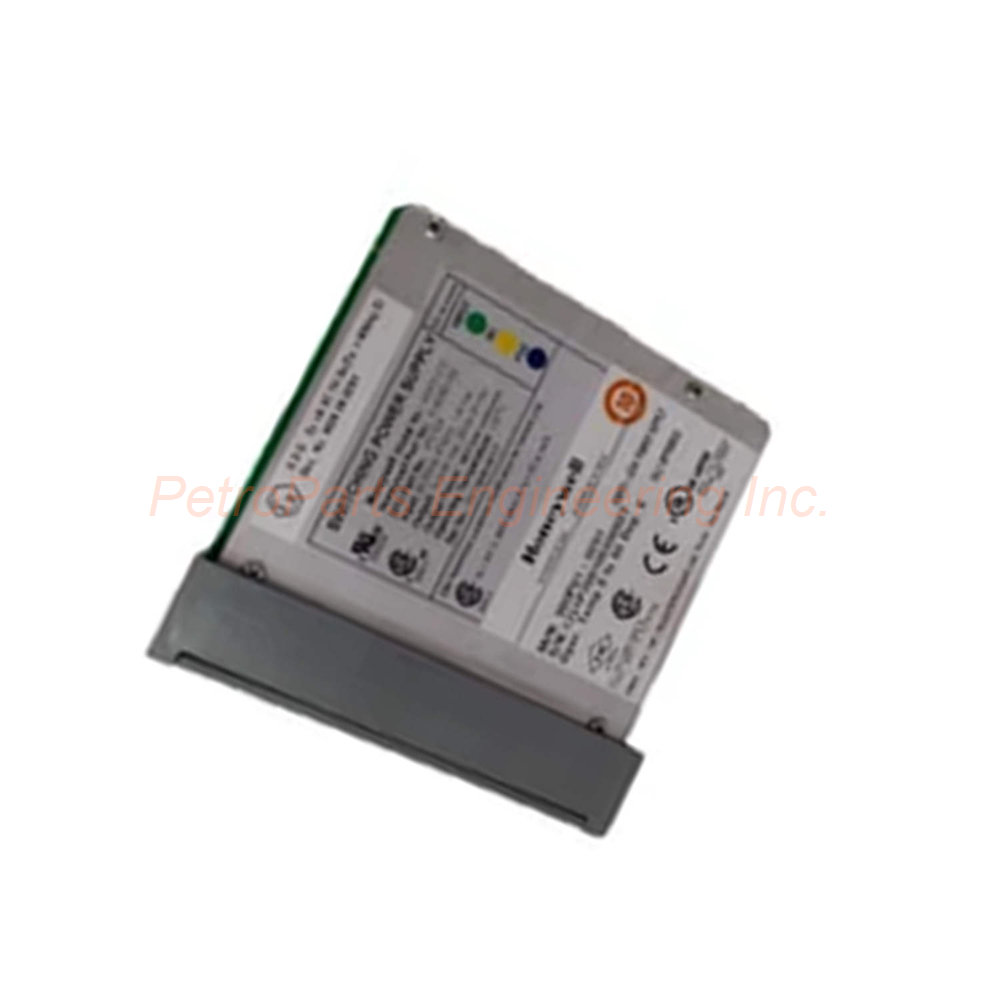

Honeywell 900P01-0501 Power Supply – Technical Overview

The Honeywell 900P01-0501 is a compact AC/DC power module. It converts 120/240VAC into reliable DC power. This unit serves industrial automation systems well. You can use it with Honeywell controllers and I/O racks. Its design focuses on stability and safety.

Key Technical Specifications

The input voltage range is wide from 90 to 264 V AC. It supports frequencies of 47 to 63 Hz. Maximum continuous input current is 1.4 A. Inrush current reaches 40 Amps peak-to-peak. This inrush lasts for 120 ms at 240 V AC. Input rating stands at 130 VA. Output rating provides 58W of clean power.

An internal non-replaceable fuse protects the circuit. The power supply hold-up time is 20 milliseconds. This hold-up time applies at 115V AC and 60Hz. It works under maximum load conditions. Ambient temperature range goes from 0°C to 60°C (T4 rating). This ensures stable operation in control cabinets.

Wiring and Test Features

Wiring uses screw type terminals for secure connections. Wire size accepts 0.3 mm² to 3.3 mm² (AWG #12 to #22). Test jacks provide two convenient points: 5 V DC and 24 V DC. These jacks help verify output quickly. You do not need extra tools for basic checks.

Installation Guidelines

Mount the Honeywell 900P01-0501 inside a ventilated enclosure. Keep ambient temperature below 60°C for best performance. Use proper gauge wire (AWG #14 recommended). Tighten screw terminals to 0.5 Nm torque. Do not block airflow around the unit. Leave 50mm clearance on all sides. Verify input voltage before connecting power. Power off the system during installation. Test output voltages at the test jacks first. Then connect to the load safely.

Environmental and Electrical Endurance

The power supply tolerates industrial electrical noise. It handles voltage sags and surges well. Internal filtering reduces conducted emissions. The non-replaceable fuse prevents overcurrent damage. You cannot repair the fuse internally. Replace the whole unit if the fuse blows. This design improves safety and reliability. The 900P01-0501 also withstands common vibration levels. It fits T4 temperature class environments.

Package Contents

• One Honeywell 900P01-0501 power supply unit

• One product quick start guide

• Two terminal block connectors (pre-attached)

• Four mounting screws (M4 type)

Frequently Asked Questions (FAQ)

Q1: Can I replace the internal fuse of the 900P01-0501?
No, the fuse is non-replaceable inside the Honeywell 900P01-0501. You must replace the entire unit if the fuse fails.

Q2: What wire size works best with the screw terminals?
The screw terminals accept 0.3 mm² to 3.3 mm² (AWG #12 to #22). For 58W load, use AWG #14 or #16.

Q3: Does this power supply work with 220VAC input?
Yes, the 900P01-0501 accepts 90 to 264 V AC. It works perfectly with 220VAC or 240VAC mains power.

Q4: How do I check the 5V and 24V outputs?
Use the built-in test jacks on the front. A standard multimeter probe fits directly into these jacks.

Q5: What happens if ambient temperature exceeds 60°C?
Above 60°C, the Honeywell 900P01-0501 may shut down or reduce output. Keep it within 0°C to 60°C range.
