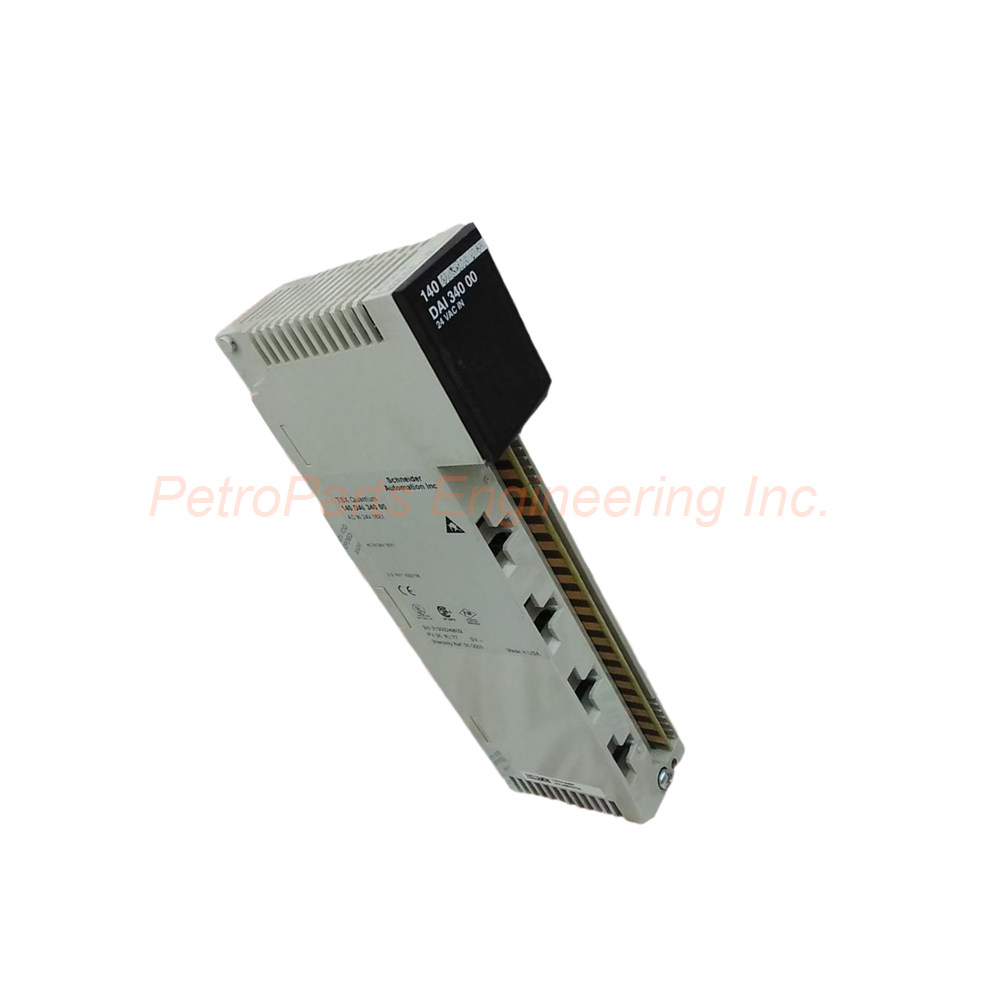

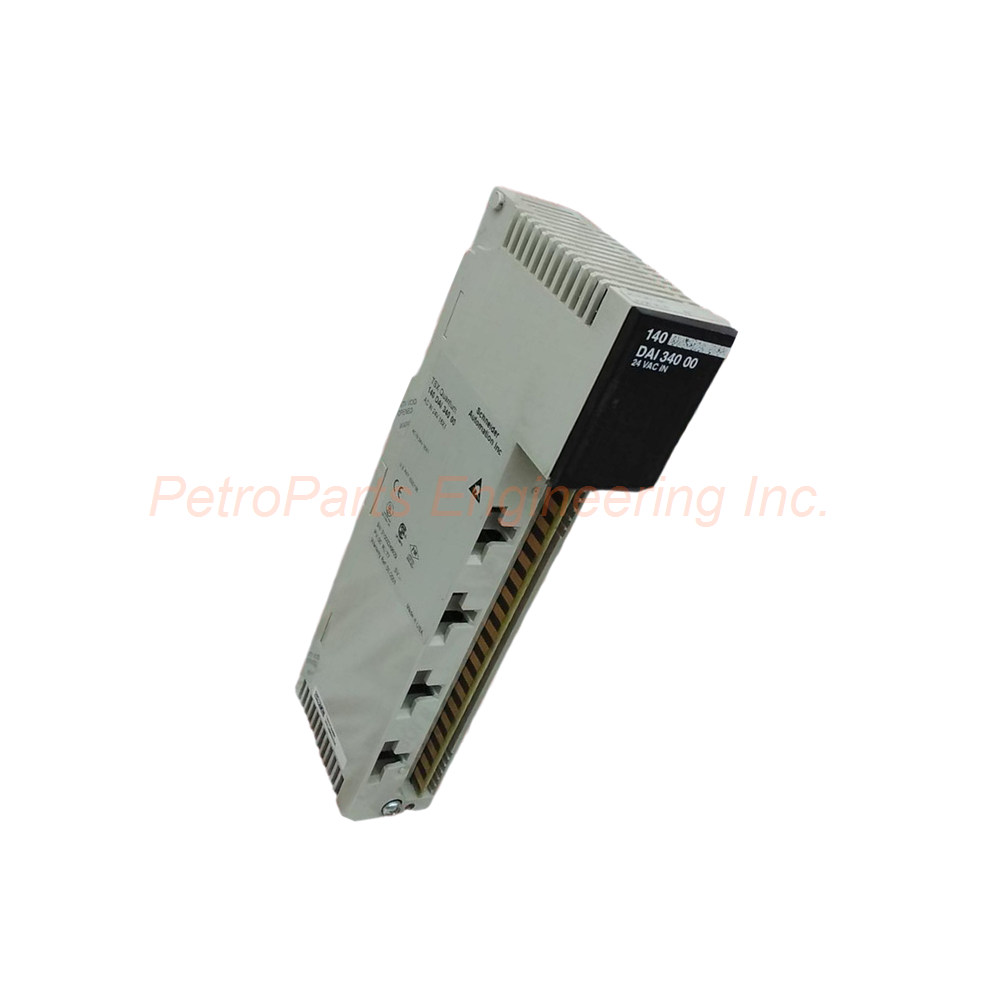

Schneider Electric 140DAI34000 16 Input Module 24V AC Quantum
Introduction:
The Schneider Electric 140DAI34000 is a discrete input module for Modicon Quantum. It provides 16 inputs at 24V AC for industrial control. The module requires 1 input word for addressing. It works with Concept, ProWORX 32, and Unity Pro software. Isolation reaches 1780Vrms between channels and bus.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Technical Specifications
The Schneider Electric 140DAI34000 belongs to the Modicon Quantum automation platform. This product is a VAC discrete input module in the I/O category. The module delivers 16 discrete inputs for AC voltage sensing applications.
Input Specifications
| Parameter | Value |
|---|---|
| Discrete Input Number | 16 |
| Group of Channels | 16 |
| Addressing Requirement | 1 input word |
| Discrete Input Voltage | 24 V AC |
| Network Frequency Limits | 47 to 63 Hz |
Input Current and Impedance
Input Current (57 to 63 Hz): 12 mA.
Input Current (47 to 53 Hz): 10.7 mA.
Input Impedance (57 to 63 Hz): 2600 Ohm capacitive.
Input Impedance (47 to 53 Hz): 3100 Ohm capacitive.
Voltage Thresholds
State 1 (Guaranteed On)
| Frequency Range | Voltage Range |
|---|---|
| 57 to 63 Hz | 16 to 30 V AC |
| 47 to 53 Hz | 18 to 30 V AC |
State 0 (Guaranteed Off)
| Frequency Range | Voltage Range |
|---|---|
| 57 to 63 Hz | 0 to 6 V |
| 47 to 53 Hz | 0 to 5 V |
Maximum Ratings
Maximum Leakage Current: 1.9 mA.
Absolute Maximum Input (Continuous): 30 V.
Absolute Maximum Input (10 seconds): 32 V.
Absolute Maximum Input (1 cycle): 50 V.
Response Time
| Transition | Time Range |
|---|---|
| Off to On | 4.9 to 0.75 ms x line cycle |
| On to Off | 7.3 to 12.3 ms |
Isolation and Protection
Isolation Between Channels: 1780 Vrms for 1 minute.
Isolation Between Channels and Bus: 1780 Vrms for 1 minute.
Bus Current Requirement: 180 mA.
Maximum Power Dissipation: 5.5 W.
Local Signaling
The 140DAI34000 provides clear visual status indicators.
| LED Color | Function |
|---|---|
| Green (1) | Bus communication active |
| Red (1) | External fault detected (F) |
| Green (16) | Input status per channel |
Physical Specifications
Module Format: Standard size for Quantum racks.
Net Weight: 0.3 kg (0.7 lb).
Package 1 Height: 16.3 cm (6.42 in).
Package 1 Width: 4.5 cm (1.77 in).
Package 1 Length: 31.2 cm (12.28 in).
Package Weight: 443.0 g (15.6 oz).
Country of Origin: CN (China).
Environmental Specifications
Standards: CSA C22.2 No 142 and UL 508.
Product Certifications: cUL and FM Class 1 Division 2.
Operating Temperature: 0°C to +60°C (32°F to +140°F).
Storage Temperature: -40°C to +85°C (-40°F to +185°F).
Relative Humidity: 95% without condensation.
Operating Altitude: Up to 5000 m (16,404 ft).
Immunity Specifications
| Test | Rating |
|---|---|
| Electrostatic Discharge | 4 kV contact, 8 kV on air (IEC 801-2) |
| Electromagnetic Fields | 10 V/m at 80 to 2000 MHz (IEC 801-3) |
Software Compatibility
The 140DAI34000 works with these programming software packages.
Concept – For legacy Quantum programming.
ProWORX 32 – For ladder logic configuration.
Unity Pro – For modern IEC 61131-3 programming.
Installation Guidelines
Follow these steps to install your Schneider Electric 140DAI34000 module correctly.
Power Down the Rack – Turn off all power to the Quantum backplane.
Select the Slot – Choose an available slot in the backplane.
Insert the Module – Slide the 140DAI34000 into the selected slot.
Secure the Module – Tighten the top and bottom retaining screws.
Wire Inputs – Connect 24V AC field devices to the input terminals.
Verify Voltage – Confirm input voltage is between 16V and 30V AC.
Apply Power – Turn on the rack power and check the green Active LED.
Test Inputs – Toggle each field device and verify the green input LEDs.
Do not exceed 30V AC continuous on any input channel. Higher voltage will damage the module.
Input Wiring Example
| Terminal | Connection |
|---|---|
| Input 1 | 24V AC field device 1 |
| Input 2 | 24V AC field device 2 |
| ... | ... |
| Input 16 | 24V AC field device 16 |
| Common | Neutral return from all devices |
Package Contents (No Certificates or Warranty Terms)
Your shipment for product number 140DAI34000 includes the following items:
1 x Schneider Electric 140DAI34000 Discrete Input Module
1 x Installation instruction sheet (printed)
1 x Anti-static protective bag for storage
Note: Terminal blocks and wiring accessories are sold separately.
Frequently Asked Questions (FAQ)
1. What is the input voltage range for the Schneider Electric 140DAI34000?
The 140DAI34000 accepts 24V AC nominal input. The guaranteed On range is 16 to 30V AC depending on frequency.
2. How many input points does this module provide?
This module provides 16 discrete input points. All 16 inputs share one input word for addressing.
3. What certifications does the 140DAI34000 hold?
The 140DAI34000 holds cUL and FM Class 1 Division 2 certifications. These approvals permit use in hazardous locations.
4. What is the isolation rating between channels?
Isolation between channels reaches 1780 Vrms for 1 minute. This provides excellent protection against voltage spikes and cross-talk.
5. Which software programs work with the 140DAI34000?
The 140DAI34000 works with Concept, ProWORX 32, and Unity Pro. Choose the software that matches your Quantum system version.
6. What does the red LED indicate on this module?
The red LED (F) indicates an external fault detected. Check your field wiring and input devices when this LED illuminates.
Why Choose This Model?
The Schneider Electric 140DAI34000 offers reliable AC input sensing for Modicon Quantum systems. Its 16 input channels provide dense I/O in a standard format module. The 1780Vrms isolation protects your backplane and processor from field side surges. The wide frequency range (47 to 63 Hz) accepts global power systems without adjustment. The FM Class 1 Division 2 certification allows installation in hazardous industrial areas. The five LED indicators simplify troubleshooting with per-point visual status. Choose this 140DAI34000 for AC input monitoring in HVAC systems, conveyor controls, pump stations, and factory automation applications.
