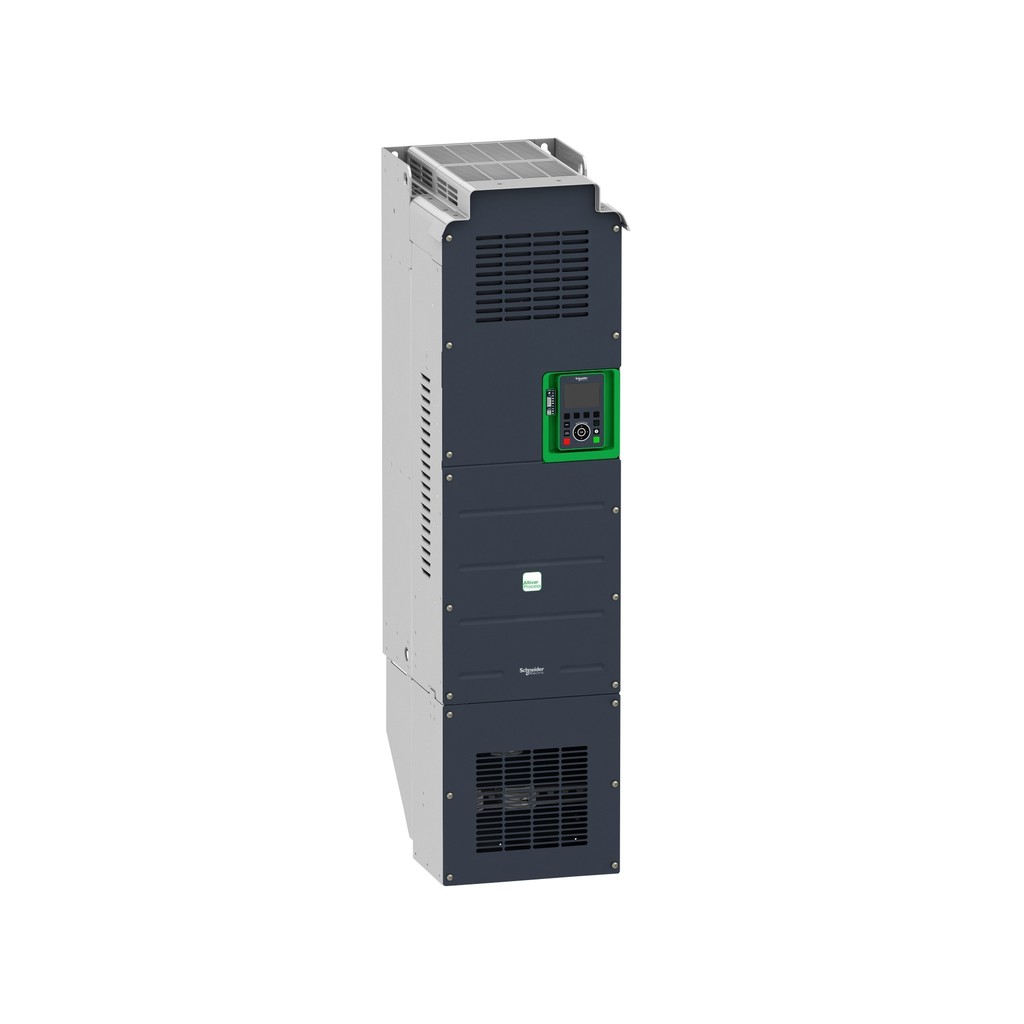

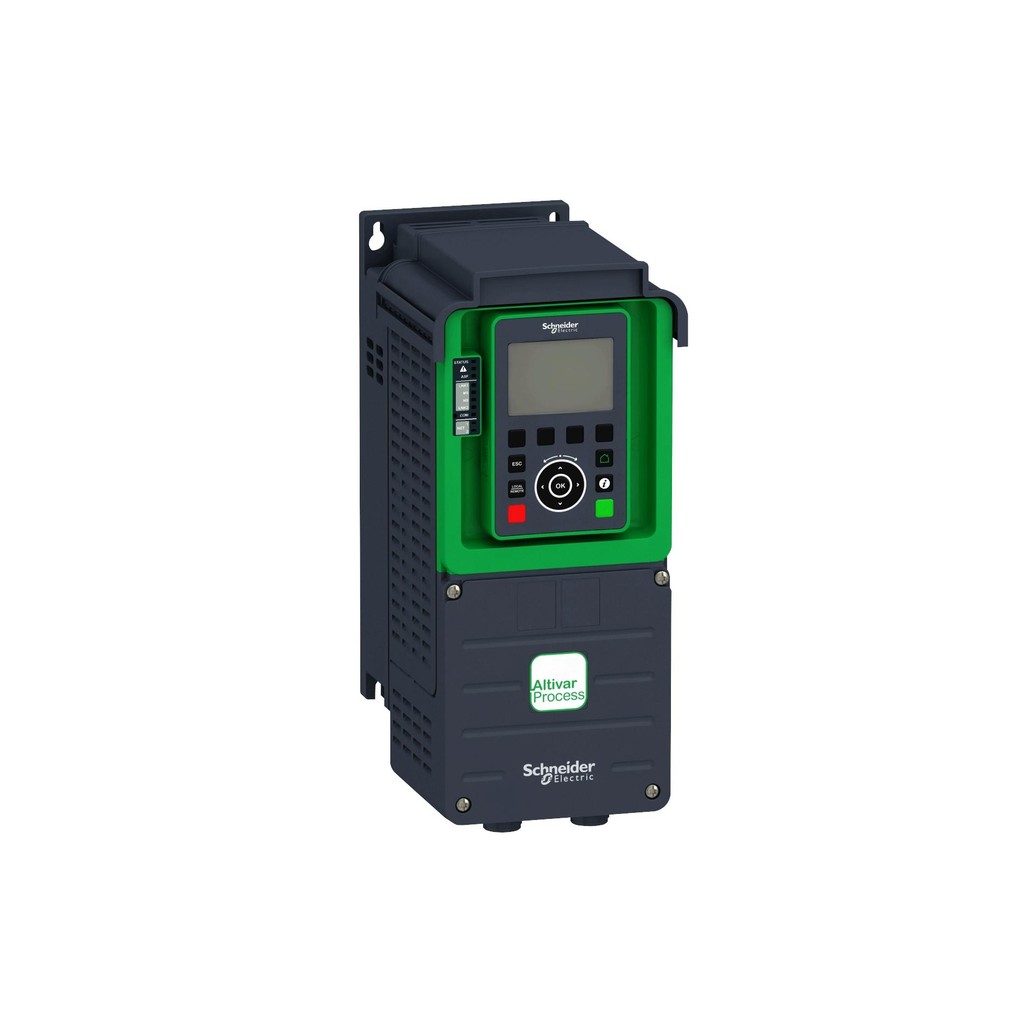

ATV930C13N4: A Rugged Drive for Mission-Critical Operations

Schneider Electric ATV930C13N4 is a three-phase variable speed drive from the Altivar Process ATV930 series, designed for 380...480 V supplies with a dual ND/HD rating of 132 kW (200 HP) in normal duty and 110 kW (150 HP) in heavy duty. It combines a built-in braking unit, integrated safety, and advanced motor control in a single package.

The evolution of industrial automation has moved from simple electromechanical controls to intelligent, connected drives that optimize processes and reduce downtime. In the oil and gas sector, this shift demands equipment that can withstand harsh conditions while delivering precise motor control. This unit embodies this progression, offering field-proven reliability for mission-critical operations.

Key Features and Technical Specifications

• Supply voltage: 380...480 V three-phase (-15%/+10%), 50/60 Hz
• Motor power (ND): 132 kW (200 HP), overload up to 120% for 60 s
• Motor power (HD): 110 kW (150 HP), overload up to 150% for 60 s
• Output frequency: 0.1...599 Hz
• Integrated safety: 1 STO function, SIL3 / Cat. PL e per IEC 61508 and ISO 13849-1
• Built-in ports: 1 Ethernet dual-port switch (RJ45); 1 Modbus serial port (RJ45)
• Protocols: EtherNet/IP and Modbus TCP (dual-port, built-in); Modbus RTU/TCP serial
• Digital inputs: 8 inputs, 24 V DC, positive or negative logic
• Analog outputs: 2 outputs configurable as 0...10 V or 0/4-20 mA
• Operating temperature: -15 to +50 °C standard, derating up to 60 °C
• Protection rating: IP20/UL Type 1
• Dimensions (H×W×D): 1205 x 320 x 393 mm
• Weight: 104.000 kg (229.000 lb)

The dual-rated ND/HD capability allows the drive to handle both continuous and heavy-duty cycles, making it adaptable to varying load profiles in oil and gas operations. The built-in dynamic brake transistor enables rapid stopping of high-inertia loads, while the STO safety function ensures safe torque off for maintenance.

Applications and Use Cases in Oil & Gas

This drive is well-suited for mission-critical applications such as pump jacks, compressors, and mud pumps, where reliable operation and precise speed control are essential. In upstream extraction, This unit can manage the cyclic loads of beam pumps, leveraging its heavy-duty rating to handle peak torque demands. Midstream, it provides dependable control for pipeline pumps, ensuring consistent flow rates. Downstream, it supports fans and blowers in refining processes, where energy efficiency and process uptime are paramount. The drive's robust design and integrated safety features make it a dependable choice for these demanding environments.

Installation and Setup

Proper installation is critical for optimal performance. The drive requires a minimum clearance of 250 mm above and below, and 100 mm in front, to ensure adequate airflow. Terminal tightening torque is 27 N·m for main terminals and 13.5 N·m for control terminals. The drive is designed for wall mounting with IP20 protection, and the built-in braking unit simplifies wiring. For detailed installation instructions, refer to the official manual NHA80932.

Maintenance and Reliability

Regular maintenance is key to extending the drive's service life. Inspect cooling fans and heatsinks periodically for dust accumulation, and verify that the ambient temperature remains within the specified range. The drive's environmental class 3C3/3S3/3M3 ensures resistance to harsh conditions, but routine checks of connections and braking resistors are recommended. By following a preventive maintenance schedule, operators can avoid unplanned downtime and maintain reliability you can depend on.

Compatibility and Integration

This unit integrates seamlessly into modern control systems via its built-in Ethernet dual-port switch and Modbus serial port. It supports EtherNet/IP and Modbus TCP protocols, enabling direct connection to PLCs and SCADA systems. For other fieldbus networks, an optional module can be added. When integrating into such networks, it may require an external gateway or connection module; confirm cables and gateways with the supplier.

Frequently Asked Questions

What is the power rating of This unit?

This unit is dual-rated: 132 kW (200 HP) in normal duty with 120% overload for 60 s, and 110 kW (150 HP) in heavy duty with 150% overload for 60 s.

Does This unit include a braking unit?

Yes, This unit has a built-in dynamic brake transistor, but an external braking resistor is required. The minimum resistor value is 1.9 Ω.

What communication protocols are supported by This unit?

The drive includes built-in EtherNet/IP and Modbus TCP protocols, as well as a Modbus serial port. Additional fieldbus modules can be added via the option slot.

What is the operating temperature range of This unit?

The standard operating temperature range is -15 to +50 °C, with derating possible up to 60 °C.

Is This unit suitable for safety-related applications?

Yes, it includes a Safe Torque Off (STO) function certified to SIL3 / Cat. PL e per IEC 61508 and ISO 13849-1.

Contact PetroPartsOnline for parts suited to your application's requirements.
