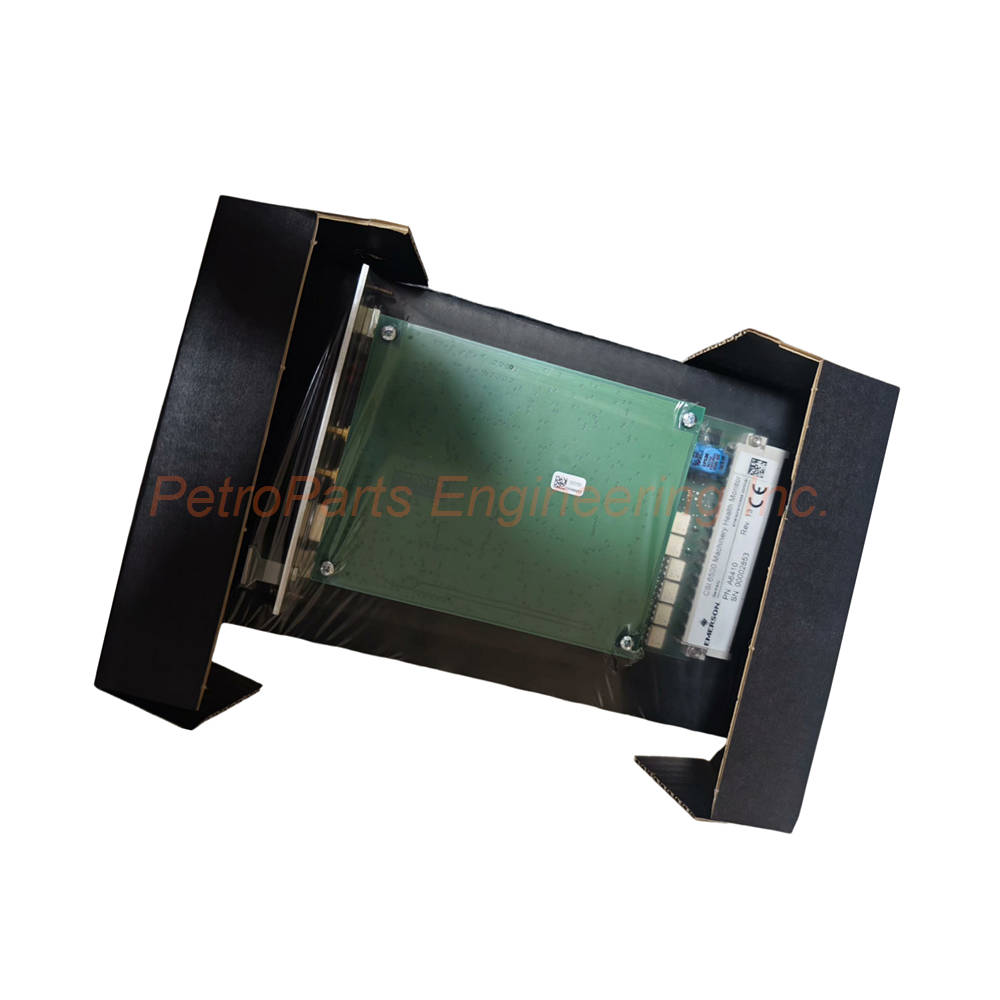

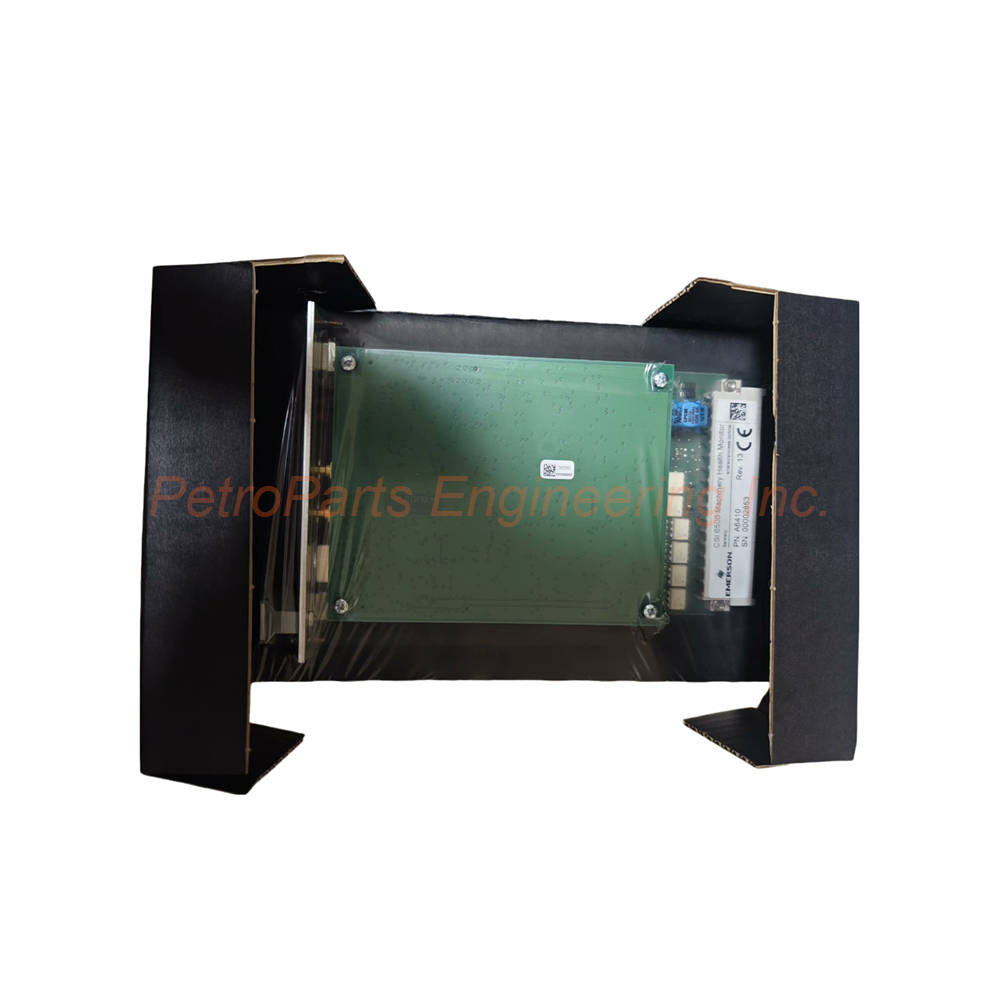

Emerson A6410 Valve and Case Expansion Monitor for AMS 6500

Product Overview

A high-reliability monitoring module arrives as the A6410 from Emerson. This valve and case expansion monitor belongs to the AMS 6500 Machinery Health Monitor family. The A6410 occupies only one slot in a 3U, 19-inch rack system. Engineers use this monitor for steam turbines, gas turbines, compressors, and hydro machinery. Consequently, the A6410 helps build complete API 670 compliant protection systems. The module accurately monitors valve position and case expansion against alarm setpoints. Furthermore, it drives alarms and relays when parameters exceed safe limits.

Functional Description

The A6410 provides two main measurement functions for rotating machinery. Valve position measurement shows the main steam inlet valve stem position. Operators typically view this measurement in percent open for easy interpretation. Thus, the valve position reading indicates the current load on the turbine. Case expansion monitoring uses two inductive displacement sensors mounted axially. These sensors mount parallel to the shaft on each side of the turbine case.

Case expansion monitoring proves especially important during turbine start-up. Both sides of the turbine case must be monitored for proper expansion rates. The turbine slides on rails as it expands during warm-up. If both sides cannot expand freely, the turbine "crabs" or bends. Consequently, the rotor may collide with the case and cause serious damage. Therefore, the A6410 plays a critical role in preventing costly turbine failures.

Technical Specifications

Transducer Input Specifications

The A6410 accepts two independent, differential transducer inputs. These inputs work with inductive half bridge or full bridge sensors. Differential transformers also connect directly to this monitor. Emerson recommends sensor part numbers PR 9350/xx and K20315/xx. The inputs are galvanically separated from the power supply for safety. Input impedance measures 200 kΩ for minimal signal loading. Input voltage range reaches 3.6 VDC with overvoltage protection included.

Sensor power supply comes from a separate buffered source. This supply is galvanically separated from all system voltages. It is also open circuit and short circuit proof for robust operation. Nominal supply voltage measures 4 V rms for proper sensor excitation. Permissible load ranges from 120 to 600 Ω for flexible sensor matching.

Channel Configuration

The A6410 offers flexible channel configuration for different measurement needs. Channel 1 can measure static values like case expansion directly. It can also measure dynamic quantities including displacement, angles, and forces. Channel 2 is reserved for static measurements and relative displacements. Relative displacement measurements compare channel 2 readings against channel 1. Thus, differential expansion between two points becomes easy to monitor.

One or both outputs may be inverted using configuration software. The measuring range is continuously adjustable through the same software. Engineering units and sensitivity also get configured digitally. Therefore, the A6410 adapts to various sensor types and measurement requirements.

Front Panel Features

The A6410 front panel provides clear visual status indicators for operators. Two green LEDs indicate channel OK status separately for each channel. Four red LEDs indicate alert and danger conditions for each channel. Thus, operators can see machine health status at a glance. Two front panel buffered outputs match the transducer sensor inputs. These outputs deliver ±12 V signals into loads greater than 100 kΩ.

A mini DIN configuration socket provides RS-232 interface connectivity. This socket serves as the module interface for configuration access. Technicians can monitor parameters and status through this connection. A handle allows easy card removal from the rack system. The handle also provides a plate for module and sensor identification labels.

Rear Outputs Available

The A6410 provides multiple output types on its rear connectors. Current mode outputs deliver 0/4-20 mA for each channel proportionally. These outputs are open circuit and short circuit proof for reliability. Permissible load stays below 500 Ω for proper current loop operation. Accuracy reaches ±1% of full scale for precise signal transmission. Settling time is configurable from 0 to 10 seconds for flexibility.

Rear buffered outputs deliver raw buffered output signals as well. These signals range from 0 to 12 V peak to peak for analysis. They are also open circuit and short circuit proof for robustness. Frequency range spans 0 to 100 Hz (-3 dB) for these outputs. Permissible load must exceed 100 kΩ for accurate signal representation.

DC voltage outputs provide 0 - 10 VDC proportional to the main value. Accuracy for these outputs reaches ±1% of range for reliability. Permissible load must exceed 10 kΩ for proper voltage measurement.

Alarm Setpoints and Delays

The A6410 offers comprehensive alarm configuration for each channel. Alert setpoints are selectable as normally open or normally closed contacts. Delay times range from 0 to 5 seconds per channel individually. With the A6740 relay card, delays extend to 36 seconds maximum. Alerts can be blocked when a channel reports "not OK" status. Adjustable range spans 5 to 100% of full scale value for flexibility. Resolution reaches 1% of full scale for precise setpoint placement. Alarm hysteresis on decreasing signal values adjusts from 0 to 20%.

Danger setpoints share the same flexible configuration options. Delay times, blocking behavior, range, resolution, and hysteresis all match alert settings. Thus, the A6410 provides consistent alarm behavior across both levels.

Self-Checking Facilities

The A6410 includes extensive self-checking capabilities for high reliability. Monitoring hardware continuously checks its own operational status. Power input and hardware temperature get verified regularly. Sensor and cable integrity also fall under self-checking surveillance. OK self-checking uses a normally closed relay contact. The green LED turns off when a channel is not OK. During delay time, the LED flashes to indicate pending status changes. The reason for "not OK" status can be read from the communication bus.

Limit multiply function accepts remote relay input with 1.00-4.99 factor. Trip bypass also accepts remote relay input for maintenance situations. Thus, the A6410 integrates seamlessly with plant control systems.

Environmental Specifications

The A6410 withstands typical industrial control room environments easily. Module IP rating is IP00 per DIN 40050 standards. Front plate achieves IP21 for basic splash protection. Climate class meets DIN 40040 class KTF requirements. Operating temperature ranges from 0° to 65°C (32° to 149°F). Storage temperature extends from -30° to 85°C (-22° to 185°F). Relative humidity tolerates 5 to 95% non-condensing conditions.

Vibration resistance follows IEC 68-2 part 6 standards. At 10-55 Hz, the monitor withstands 0.15 mm displacement. At 55-150 Hz, it handles 19.6 mm/s² acceleration. Shock resistance meets IEC 68-2 part 29 requirements. Peak shock tolerance reaches 98 m/s² for 16 ms duration. EMC resistance complies with EN50081-1 and EN50082-2 standards.

Installation Guide

Follow these steps to install the A6410 correctly.

1. Power Down Rack: De-energize the AMS 6500 rack completely first.

2. Use ESD Protection: Wear a grounded wrist strap when handling the module.

3. Identify Slot: Select an available 1-slot position in the 19-inch rack.

4. Align Module: Insert the A6410 into the card guides carefully.

5. Push Firmly: Seat the module fully into the backplane connector.

6. Secure Front Panel: Tighten the retaining screws on top and bottom.

7. Connect Sensors: Wire inductive sensors to the rear terminal blocks.

8. Configure Software: Set measuring range, units, and alarm setpoints.

9. Power Up Rack: Apply power and verify green LED status indicators.

Important: Never install the A6410 with rack power applied. Always use ESD protection when handling this sensitive electronic module. The configuration software requires password protection for security. Finally, verify sensor compatibility with PR 9350/xx or K20315/xx part numbers.

Key Features and Benefits

• Dual-Channel Design: Monitors valve position and case expansion simultaneously.

• 1-Slot Footprint: Reduces cabinet space requirements by half compared to 4-channel 6U cards.

• API 670 Compliant: Meets international standards for machinery protection.

• Hot Swappable: Replace modules without powering down the entire rack.

• Self-Checking Facilities: Monitors hardware, power, temperature, sensors, and cables.

• Multiple Outputs: Provides 4-20 mA, 0-10 V, and buffered outputs.

The A6410 delivers reliable valve and case expansion monitoring for critical turbomachinery. Consequently, this monitor suits steam turbines, gas turbines, compressors, and hydro units. Its frequency response covers 0 to 100 Hz for static and dynamic measurements. The sensitivity adjusts continuously through configuration software. Environmental tolerance includes 0-65°C operation and 5-95% humidity.

Package Contents

• One A6410 valve and case expansion monitor module

• One front panel handle with identification plate

• One installation instruction sheet

Frequently Asked Questions (FAQ)

1. What sensors work with the A6410 monitor?

The A6410 works with inductive half bridge or full bridge sensors. Emerson recommends PR 9350/xx and K20315/xx sensor part numbers. LVDTs and differential transformers also connect directly to this monitor.

2. How many A6410 modules fit in a 19-inch rack?

Each A6410 occupies only one slot in a 3U rack system. Therefore, 14 modules fit into each standard 19-inch rack. This high density saves significant cabinet space compared to older 6U designs.

3. Can the A6410 measure dynamic as well as static values?

Yes, channel 1 measures both static and dynamic quantities. Dynamic measurements include displacement, angles, forces, and torsions. Channel 2 is reserved for static measurements and relative displacements only.

4. Is the A6410 compliant with API 670 standards?

Yes, the A6410 is fully API 670 compliant for machinery protection systems. It also features hot swappable capability for maintenance without shutdown. Thus, this monitor meets stringent refinery and power plant requirements.

5. What alarm outputs does the A6410 provide?

The A6410 provides alert and danger relay outputs for each channel. Front panel LEDs show alarm status for quick visual reference. Rear outputs include 0/4-20 mA, 0-10 VDC, and buffered signals for each channel.
