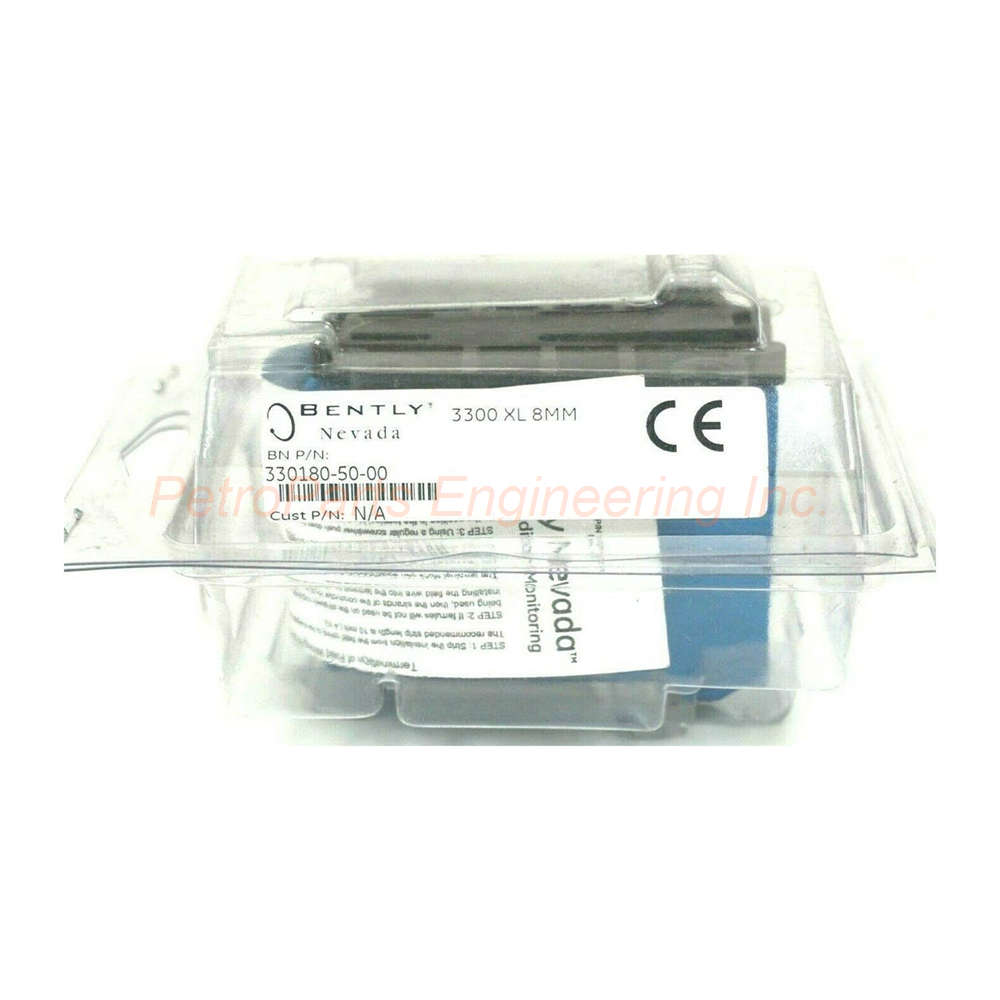

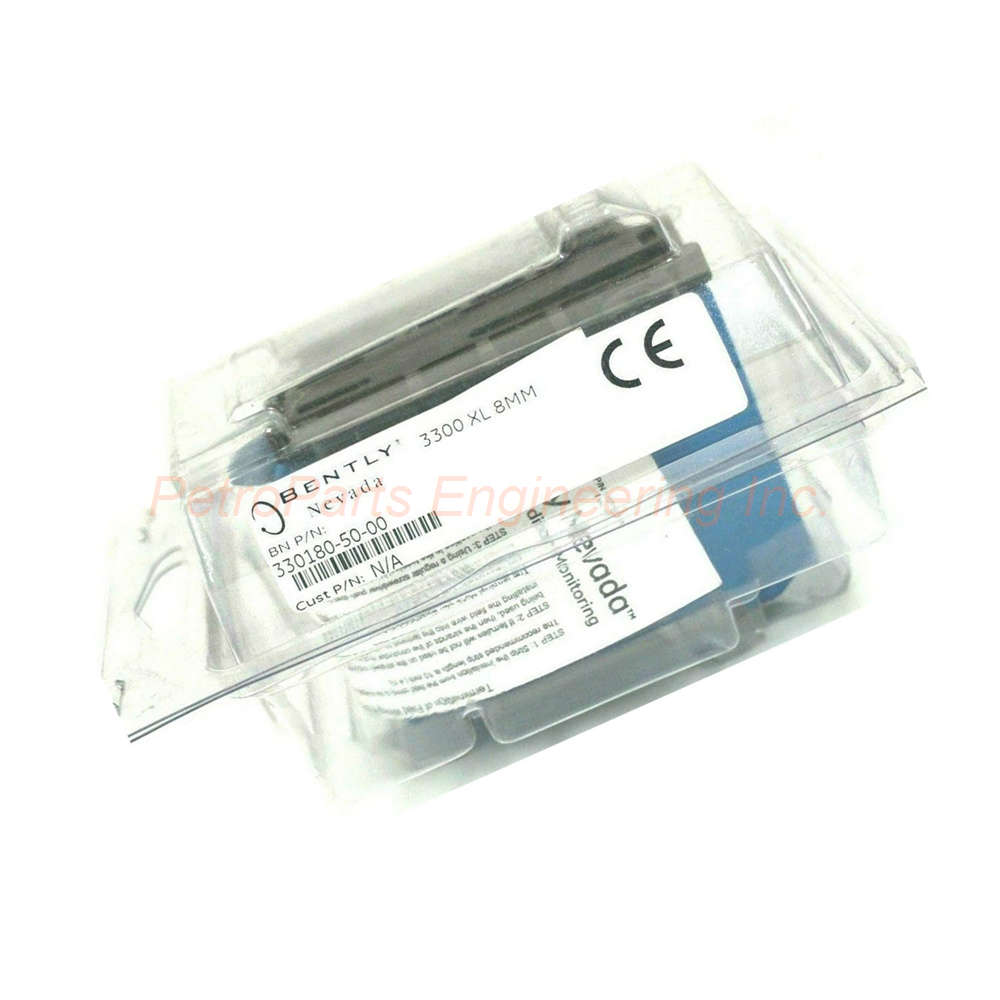

330180-50-00 Bently Nevada Proximity Sensor Panel Mount 50mm
Introduction:
3300 XL Proximitor Sensor with 5.0 meter cable. Panel mount design. Accepts 5mm or 8mm proximity probes. RFI/EMI immune.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The Bently Nevada 330180-50-00 is a 3300 XL Proximitor Sensor manufactured in the USA. Therefore, this sensor incorporates numerous improvements over previous designs. The physical packaging allows high-density DIN-rail installations. In addition, you can mount the sensor in a traditional panel mount configuration. Specifically, the 330180-50-00 shares an identical 4-hole mounting footprint with older Proximitor Sensor designs. Consequently, retrofitting existing systems becomes very straightforward. The mounting base provides electrical isolation for both options. As a result, separate isolator plates are no longer required.
Technical Specifications
This section details the core parameters of the Bently Nevada 330180-50-00.
General Specifications
Manufacturer: Bently Nevada
Product Number: 330180-50-00
Series: 3300 XL
Product Type: Proximitor Sensor
Country of Origin: Made in U.S.A.
Material (Sensor): A308 aluminum
Connector Material: Gold-plated brass or gold-plated beryllium copper
Weight: 246 grams (8.67 ounces)
Length and Mounting Options
Total System Length: 5.0 meters (16.4 feet)
Mounting Configuration: Panel mount
Agency Approval Option: 00 (Not required)
Mounting Footprint: 4-hole pattern (compatible with older designs)
Proximitor Sensor Input
The 330180-50-00 accepts specific proximity probes and extension cables.
Probe Compatibility: Non-contacting 3300-series 5 mm probe
Probe Compatibility: Non-contacting 3300 XL 8 mm probe
Extension Cable: Compatible with 3300 XL extension cables
Power Requirements
Voltage Range (Non-incendive): -17.5 Vdc to -26 Vdc
Voltage Range (With Barriers): -23 Vdc to -26 Vdc
Maximum Current Consumption: 12 mA
Linear Range Warning: Operation above -23.5 Vdc reduces linear range
Supply Sensitivity: Less than 2 mV output change per volt input change
Output Resistance: 50 Ω
Temperature Ranges
The Bently Nevada 330180-50-00 operates in extreme temperature conditions.
| Condition | Temperature Range |
|---|---|
| Operating Temperature | -52°C to +100°C (-62°F to +212°F) |
| Storage Temperature | -52°C to +105°C (-62°F to +221°F) |
RFI and EMI Immunity
The 330180-50-00 offers superior interference protection.
RFI Immunity: Highly immune to radio frequency interference
EMI Immunity: Improved immunity satisfies European CE mark approvals
Installation Flexibility: No special shielded conduit required
Housing Options: Works in fiberglass housings without adverse effects
Cost Benefit: Lower installation costs and reduced complexity
Installation Guide
Follow these steps to install the Bently Nevada 330180-50-00 correctly.
Prepare Mounting Surface: First, locate the 4-hole mounting footprint on your panel.
Position Sensor: Next, place the 330180-50-00 against the mounting surface.
Secure Base: Then, fasten the sensor using appropriate screws or bolts.
Connect Probe: After that, attach your 3300 XL 8 mm probe to the input.
Wire Power: Meanwhile, connect -17.5 Vdc to -26 Vdc to the power terminals.
Verify Isolation: Finally, confirm that the mounting base provides electrical isolation.
The 330180-50-00 requires no special installation tools for the SpringLoc terminal strips. Therefore, field wiring connections become faster and more robust. In addition, the screw-type clamping mechanism has been eliminated. Consequently, connections will not loosen over time due to vibration.
Package List
The package includes the following physical items.
Bently Nevada 330180-50-00 Proximitor Sensor (1 piece)
SpringLoc terminal strips (pre-installed)
Product label with part number and revision
5.0 meter integral cable (attached)
Note: The 3300 XL proximity probe and extension cable are not included. Mounting hardware is sold separately. No calibration certificate is provided with this sensor.
Frequently Asked Questions (FAQ)
1. What probes are compatible with the 330180-50-00?
The Bently Nevada 330180-50-00 accepts non-contacting 3300-series 5 mm probes. In addition, it works with 3300 XL 8 mm proximity probes. Therefore, you have flexible options for your measurement application. However, always use genuine Bently Nevada probes for optimal performance.
2. What is the system length of the 330180-50-00?
The Bently Nevada 330180-50-00 has a total system length of 5.0 meters (16.4 feet). Therefore, this length suits most panel mount installations. The configuration includes both the sensor and the attached cable. Consequently, you do not need separate extension cables for typical setups.
3. Can I mount the 330180-50-00 on a DIN rail?
Yes, the Bently Nevada 330180-50-00 supports both DIN-rail and panel mount configurations. Specifically, the physical packaging allows high-density DIN-rail installations. In addition, the traditional panel mount option uses a 4-hole footprint. Therefore, you can choose the mounting method that best suits your cabinet layout.
4. What happens if I operate above -23.5 Vdc?
The Bently Nevada 330180-50-00 requires careful attention to supply voltage. Operation at a more positive voltage than -23.5 Vdc will reduce the linear range. Therefore, always provide -23 Vdc to -26 Vdc when using barriers. For non-incendive circuits, the acceptable range is -17.5 Vdc to -26 Vdc. Consequently, verify your power supply before commissioning.
5. Is the 330180-50-00 immune to radio frequency interference?
Yes, the Bently Nevada 330180-50-00 is highly immune to RFI and EMI. Therefore, you can install the sensor in fiberglass housings without adverse effects. In addition, special shielded conduit or metallic housings are not required. Consequently, the sensor satisfies European CE mark approvals while lowering installation costs.
6. What is the weight of the 330180-50-00 Proximitor Sensor?
The Bently Nevada 330180-50-00 weighs 246 grams (8.67 ounces). Therefore, the sensor is lightweight and easy to handle during installation. The A308 aluminum body provides durability without adding excess weight. Consequently, the sensor places minimal mechanical stress on panel mounts.
Related Accessories
Enhance your 3300 XL monitoring system with these compatible parts.
Proximity Probe: Bently Nevada 3300 XL 8 mm probe for non-contacting measurement
Extension Cable: Bently Nevada 3300 XL extension cable for longer distances
Mounting Hardware: Bently Nevada 3300 XL mounting screw kit for panel installation
Power Supply: Bently Nevada 3500/15 for stable -24 Vdc operation
Always use genuine Bently Nevada components with the 330180-50-00. Therefore, third-party probes may cause measurement errors or reduced linear range. In addition, verify power supply compatibility before ordering.
