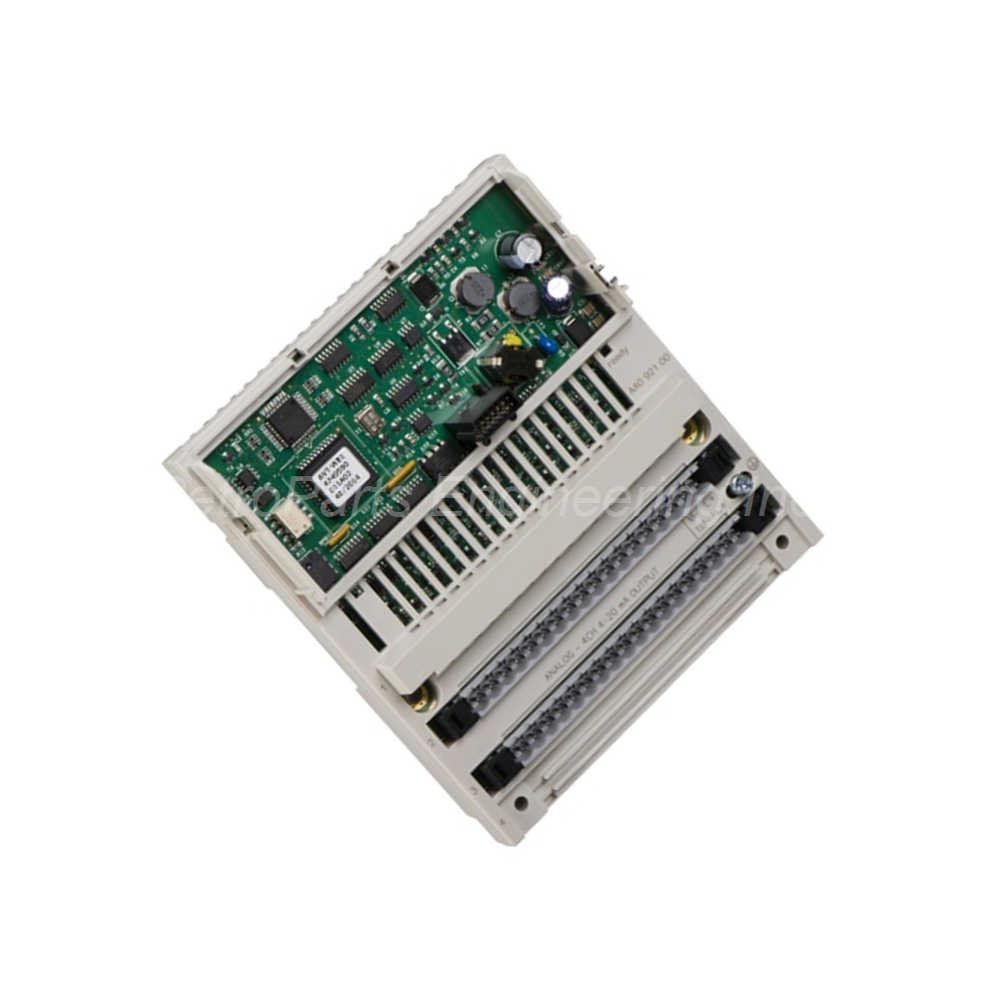

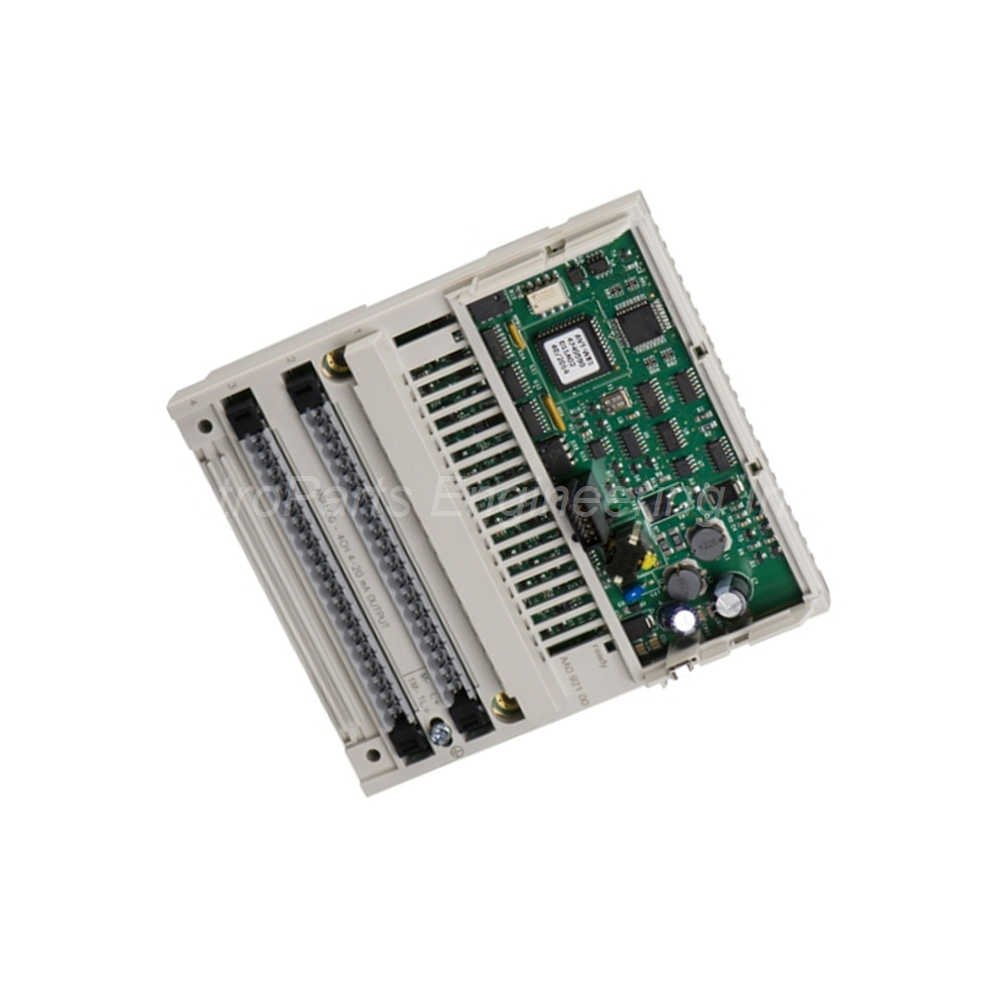

170AAO92100 Schneider Modicon Momentum 4-Channel Analog Output Module
Introduction:
Schneider Electric 170AAO92100 is an analog output base module for the Modicon Momentum series. This unit provides four high-precision analog output channels. It uses a full 16-bit signed data format for accurate signal representation. The 170AAO92100 delivers reliable control signals to actuators and drives. Use this module to convert digital commands into smooth analog outputs.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Schneider Electric 170AAO92100 Analog Output Module Overview
Technical Specifications of 170AAO92100
Analog Outputs: Provides 4 independent analog output channels.
Data Format: Uses full 16-bit signed format for precise control.
Update Time: Achieves a fast 2 ms update time per module.
Isolation Voltage: Delivers 500V AC isolation between channels and ground (1 minute).
Power Dissipation: Consumes a maximum of 8.5 Watts.
Reverse Polarity Protection: Includes internal reverse polarity protection.
Module Format: Standard Modicon Momentum form factor.
Operating Temperature: Works reliably from 0 to 60 degrees Celsius.
Storage Temperature: Survives from -40 to 85 degrees Celsius.
Operating Humidity: Handles up to 95% non-condensing humidity.
Storage Humidity: Also tolerates up to 95% non-condensing humidity.
Dimensions: Measures approximately 4.9 x 1.9 x 5.6 inches.
Weight: Weighs only 0.50 lbs (0.23 kg).
Installation and Compatibility Guide
Mount the 170AAO92100 onto a compatible Modicon Momentum base. The module requires proper power supply connections before operation. Wire each analog output channel to your field devices carefully. The 16-bit signed format accepts both positive and negative values. Use the 2 ms update time for fast closed-loop control applications. The 500V AC isolation protects your control system from ground loops. Reverse polarity protection prevents damage from accidental wiring errors. Keep the module within the 0 to 60°C operating range for best performance. Avoid condensation by staying below 95% relative humidity. Store the module between -40°C and 85°C when not in use.
Package Contents
One Schneider Electric 170AAO92100 analog output base module.
Product documentation and quick start guide.
No additional cables or connectors are included.
Frequently Asked Questions (FAQ)
Q: What analog signals does the 170AAO92100 output?
A: The module outputs voltage or current signals depending on your wiring. Please consult the full manual for specific signal ranges.
Q: Can I use this module with non-Momentum PLCs?
A: The 170AAO92100 is designed specifically for Modicon Momentum systems. It requires a Momentum base for proper operation.
Q: Why is my output value not matching my command?
A: Check your scaling configuration in the PLC program. The 16-bit signed format ranges from -32768 to +32767.
Q: How do I protect the module from electrical noise?
A: Use shielded cables for all analog output wiring. Connect the shield to ground at one end only.
Q: What happens if I reverse the power supply wires?
A: The internal reverse polarity protection will prevent damage. Correct the wiring and the module will resume normal operation.
