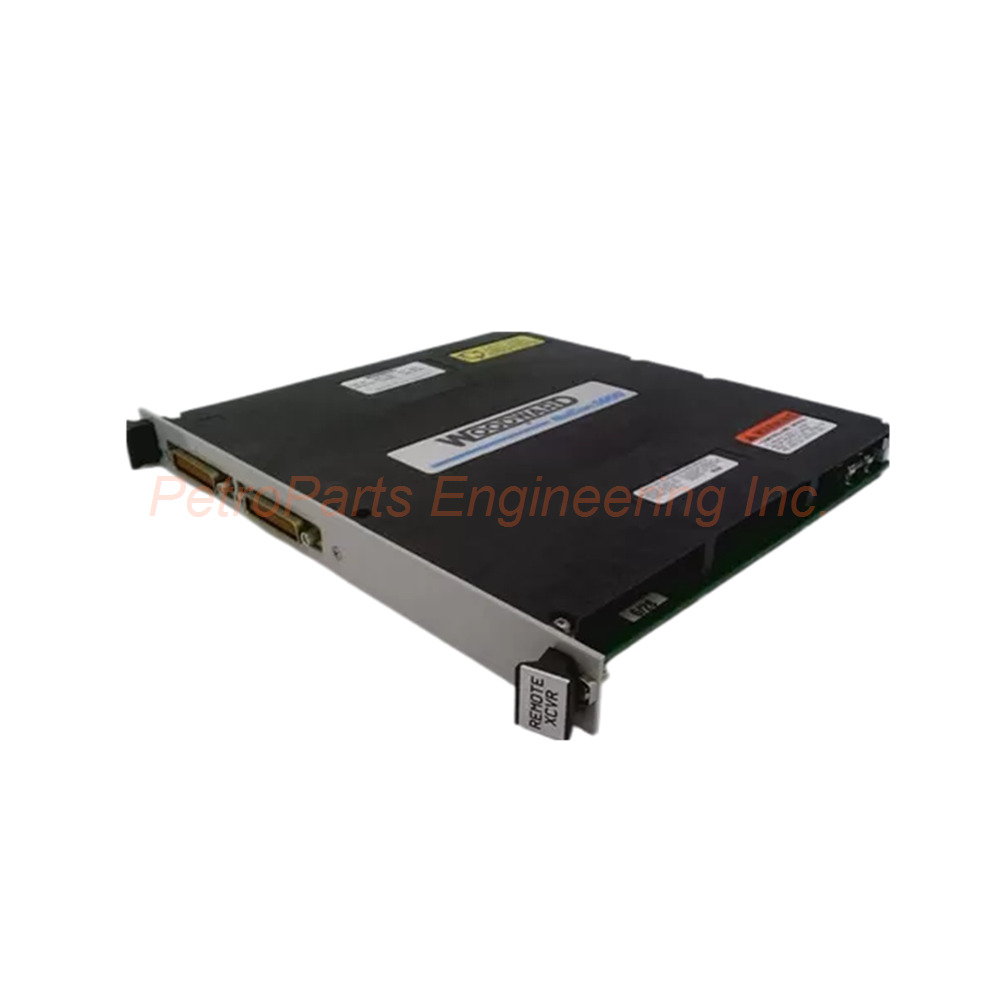

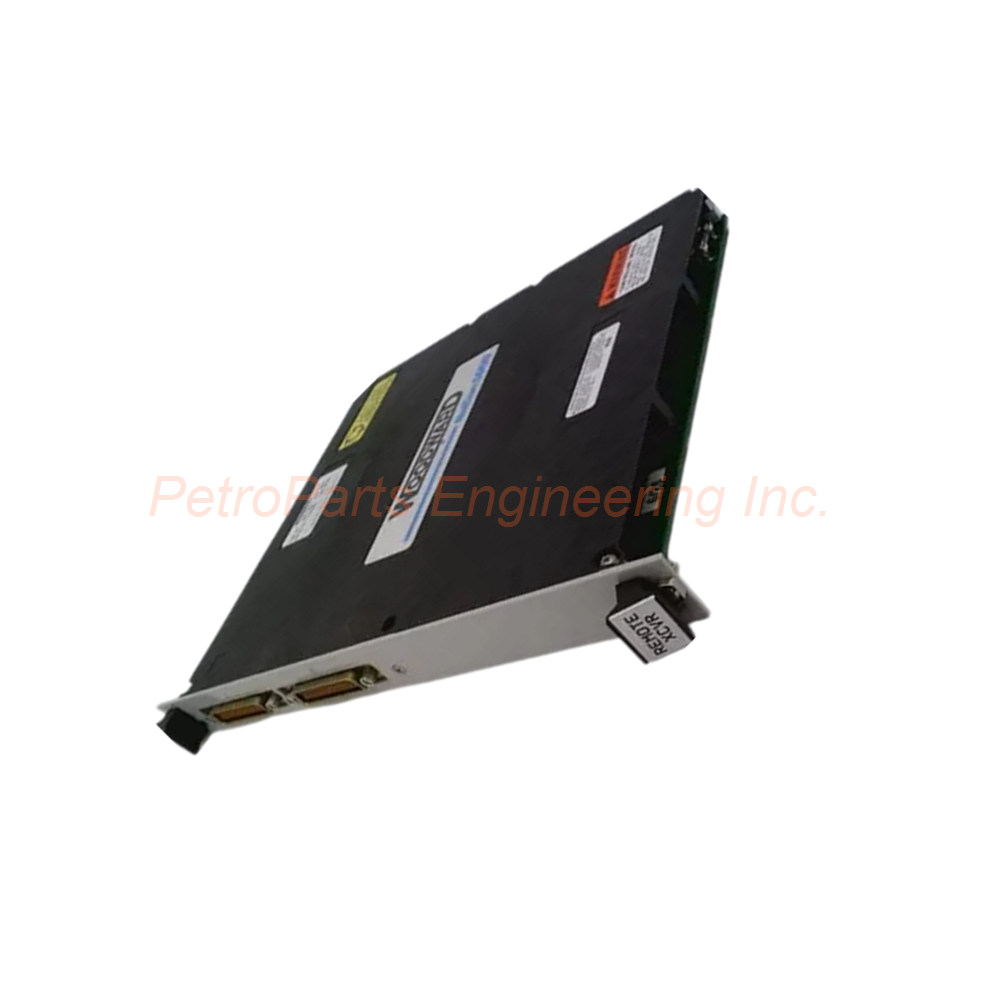

Woodward 5464-836 Programmable Logic Controller Module Overview

The Woodward 5464-836 is a programmable logic controller module. Specifically, it belongs to the MicroNet series from Woodward. Therefore, this module offers programmable logic capabilities for diverse control architectures. As a result, users can customize and configure its functions based on specific requirements. Furthermore, the module is manufactured in the United States. Consequently, the 5464-836 delivers fast data processing for real-time control applications. Moreover, it is currently in stock and available for immediate order.

Technical Specifications of 5464-836

The Woodward 5464-836 has a part number of 5464-836. Specifically, the product type is a PLC transceiver module. Furthermore, it features dual port communication without LED indication. The module mounts on a panel inside a MicroNet chassis. In addition, it employs the VME bus standard for data transfer. Consequently, connector specifications follow VERSAmodule Eurocard guidelines.

The module supports multiple communication protocols. Specifically, Ethernet, serial RS-232, and RS-485 are available. Likewise, discrete I/O connections are also supported. Therefore, seamless integration with other control devices is possible. Moreover, efficient data exchange enables proper system coordination. The module offers a wide range of input and output options. For instance, both analog and digital I/O channels are included.

The module detects and reports faults within the system. As a result, proactive maintenance becomes much easier. Consequently, this feature minimizes downtime significantly. Furthermore, user-friendly programming software accompanies the 5464-836. Specifically, the software provides intuitive tools and libraries. Likewise, debugging features help engineers configure the system properly.

The module is designed for harsh industrial environments. Its compact form factor allows easy installation in tight spaces. Moreover, the rugged construction ensures reliable operation. However, this equipment has specific location requirements. Specifically, use only in Class I, Division 2, Groups A, B, C, and D. Alternatively, non-hazardous locations are also acceptable. The ground leakage current exceeds 3.5 mA. Therefore, the input PE terminal requires proper grounding.

MicroNet Chassis Compatibility Information

The Woodward 5464-836 installs into a MicroNet Plus chassis. Specifically, the chassis consists of three blocks. A motherboard inserts in the back to connect all components. Consequently, the motherboard connects fans, switches, and power supplies. Likewise, control modules also connect through this motherboard.

An etched-circuit motherboard links logic and power slots together. I/O connections use cables from the module front to field termination modules. Therefore, any I/O module can install in any I/O slot. However, the application software assigns each module to a specific slot. As a result, the software expects that module in its designated slot at all times.

Installation Guidelines for Woodward 5464-836

First, mount the 5464-836 into a MicroNet chassis slot. Then, push the module firmly until the connectors engage fully. After that, secure the module with the front panel screws. Next, connect the Ethernet or serial cables as needed. Subsequently, run I/O cables to the field termination modules. Finally, ground the input PE terminal properly.

First, follow Class I Division 2 wiring methods for hazardous locations. Then, use fixed wiring as required by local authorities. After that, verify the ground leakage current exceeds 3.5 mA. Next, install the programming software on a Windows PC. Do not use the 16-channel relay interface modules in hazardous locations. Specifically, those modules are suitable for ordinary locations only. Finally, download the control logic to the 5464-836 for operation.

Package Contents of 5464-836

Your shipment includes these items:

One Woodward 5464-836 programmable logic controller module

Two front panel mounting screws

One 37-pin I/O connector (female)

One Ethernet communication port adapter

One quick start installation guide

However, the package does not include the MicroNet chassis. Therefore, you must purchase the chassis separately. Also, no programming software CD is provided with this module. Finally, field termination modules are sold separately.

Frequently Asked Questions about 5464-836

1. What communication protocols does the 5464-836 support?

The Woodward 5464-836 supports Ethernet, RS-232, and RS-485 protocols. Specifically, it also handles discrete I/O connections. Therefore, it integrates easily with most industrial control systems. Moreover, the dual port design allows redundant communication paths.

2. Can I use the 5464-836 in a hazardous location?

Yes, the 5464-836 is certified for Class I Division 2 locations. Specifically, Groups A, B, C, and D are acceptable. However, the 16-channel relay interface modules are not suitable. Therefore, those relay modules must stay in ordinary locations only.

3. What is the VME bus standard on this module?

The Woodward 5464-836 uses the VERSAmodule Eurocard (VME) bus standard. Specifically, this standard defines connector specifications and data transfer methods. As a result, the module communicates efficiently with other MicroNet components. Consequently, system integration becomes straightforward and reliable.

4. Does the 5464-836 have LED indicators?

No, the Woodward 5464-836 operates without LED indication. Specifically, the specifications state "W/O LED indication" clearly. Therefore, users must rely on programming software for status monitoring. Alternatively, check the system controller for module communication status.

5. What programming software works with the 5464-836?

The 5464-836 works with Woodward's user-friendly programming software. Specifically, the software includes intuitive tools and debugging features. Consequently, engineers can develop and modify control logic easily. Moreover, the software library supports various function blocks and data types.

Compatibility and Application Notes

The Woodward 5464-836 works exclusively with MicroNet and MicroNet Plus chassis. Specifically, it installs into any I/O slot from a connector standpoint. However, the application software assigns each module to a fixed slot. Therefore, always install the 5464-836 in its designated position. The country of manufacture is the United States (USA). The HS code for customs is 85371000. Finally, store the module in anti-static packaging before installation. This product is currently in stock for immediate shipment.
