Overview

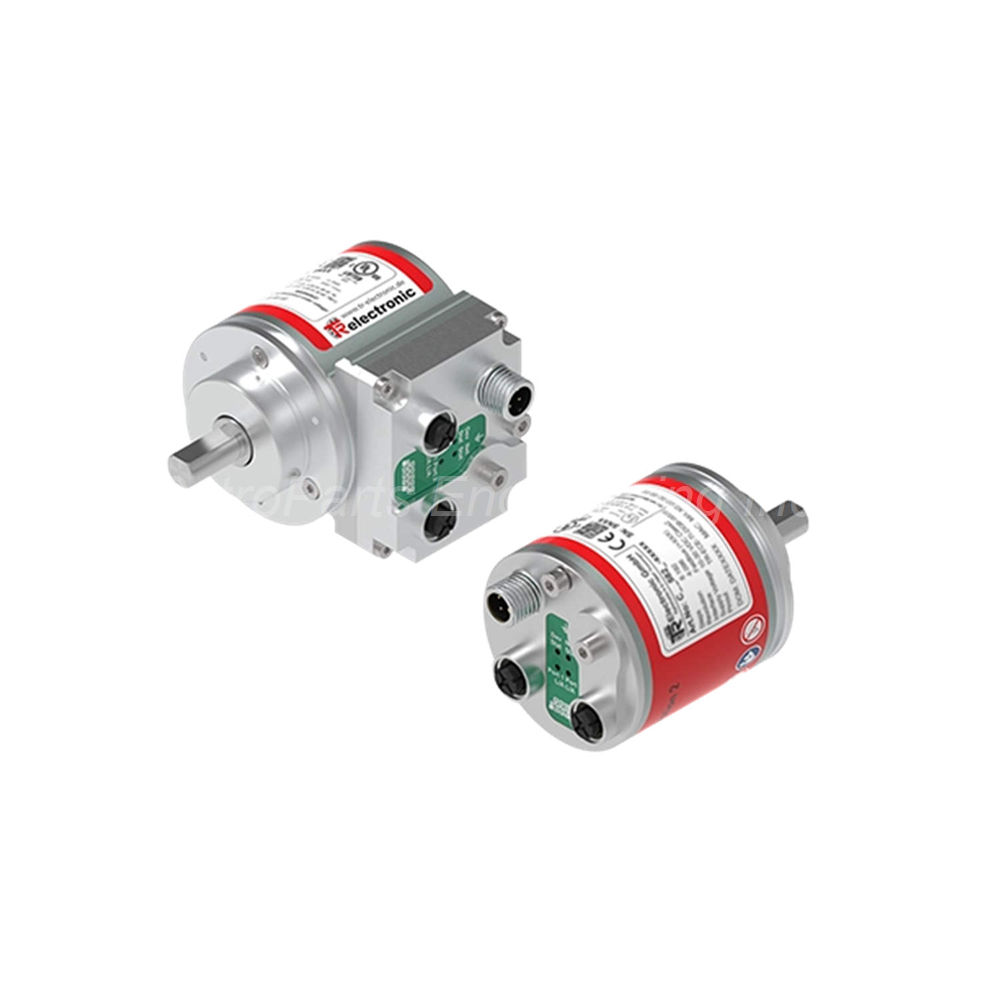

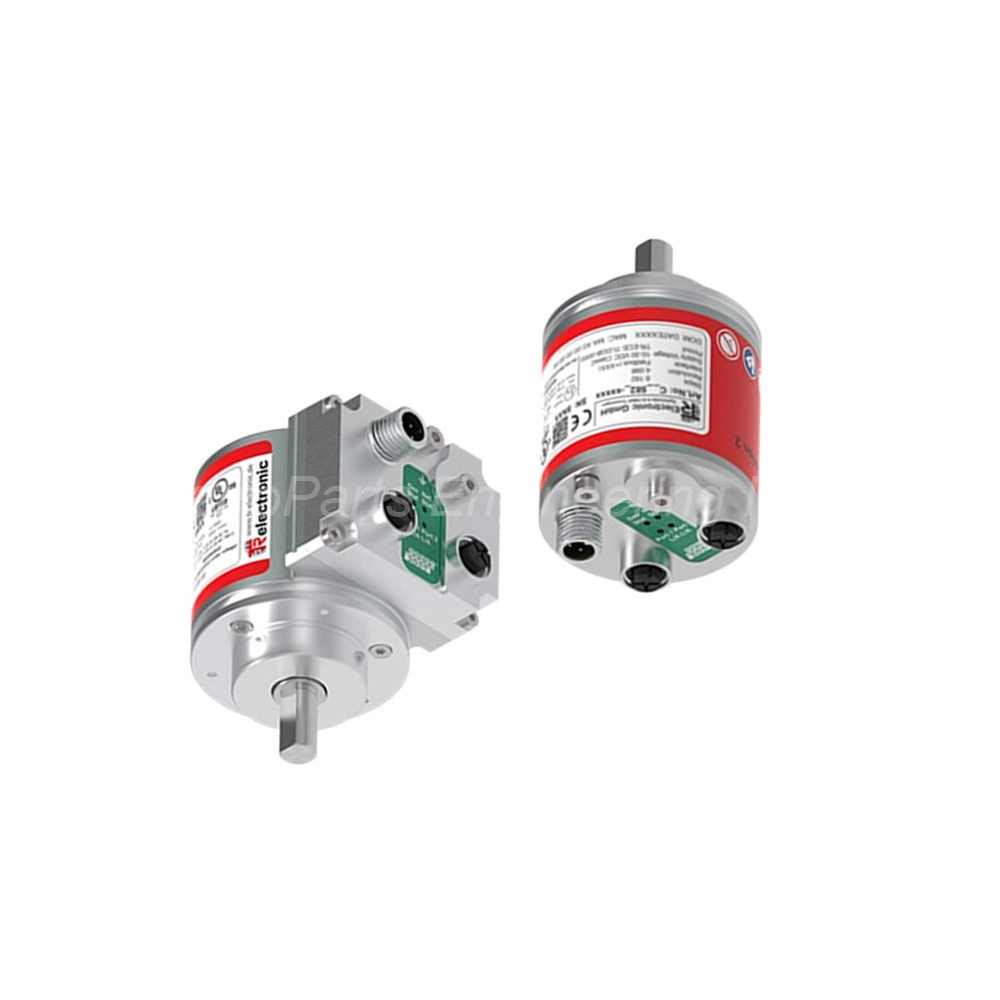

The TR CEV58M-00441 is a high-performance absolute encoder. This unit belongs to the TR CEV58M series. It provides precise position feedback for industrial automation. The CEV58M-00441 features PROFINET IO communication. Industrial users trust this encoder for motion control applications.

This encoder supports both single-turn and multi-turn operation. The total resolution reaches 33 bits. The PROFINET interface supports RT and IRT real-time classes. The rugged IP65 design suits harsh industrial environments.

Technical Specifications

The TR CEV58M-00441 delivers 8,192,000 steps per revolution. The number of revolutions is 4,096,000. The interface is PROFINET IO. The code type is binary. The supply voltage ranges from 11 to 27V.

Resolution and Output Specifications

• Steps per Revolution: 8,192,000

• Number of Revolutions: 4,096,000

• Total Resolution: ≤ 33 Bit

• Steps per Revolution (Max): ≤ 32,768

• Revolutions (Max): ≤ 256,000

• Output Capacity: ≤ 30 Bit

Power Specifications

• Nominal Voltage: 24 VDC

• Limit Values (Min/Max): 11 to 27 VDC

• Nominal Current (Unloaded): 120 mA

PROFINET IO Interface

• Standard: IEC 61158, IEC 61784-1

• Physical Layer: Fast Ethernet, ISO/IEC 8802-3

• PROFINET Specification: V2.2

• Conformance Class: B and C

• Real-Time Classes: Class 1 (RT), Class 2 (RT), Class 3 (IRT)

Communication Parameters

• Transmission Rate: 100 MBit/s

• Cycle Time (IRT/RT): ≥ 1000 µs

• Programming Tool: Fieldbus Device

Connector Specifications

The CEV58M-00441 uses M12 connectors for reliable field wiring.

Connector Configuration

• Connector Type 1: 1 x 4-pin M12 connector

• Connector Type 2: 2 x 4-pin M12 connector, D-coded (female)

• Connector Position: Axial

• Mating Plug: Not included

Mechanical Specifications

The TR CEV58M-00441 features a robust mechanical design for industrial duty.

Flange and Shaft

• Flange Type: ZB36

• Shaft Type: 10FL/19.5

• Shaft Diameter Options: 6 mm, 8 mm, 10 mm, 12 mm, 3/8 inch

Performance Limits

• Maximum Speed (Mechanical): ≤ 12,000 1/min

• Maximum Speed (Bearing Life Rating): 6,000 1/min

• Angular Acceleration: ≤ 10E+4 rad/s²

• Moment of Inertia: 2.5E-6 kg m² (typical)

• Start-up Torque (20°C): 2 Ncm

Bearing Life

• Bearing Life Time: ≥ 3.9E+10 revolutions

• Operating Temperature for Rating: 60°C

• Shaft Load (Axial): ≤ 50 N

• Shaft Load (Radial): ≤ 100 N

• Shaft Load Point of Origin: Mounting flange + 10 mm

Environmental Specifications

The CEV58M-00441 withstands demanding environmental conditions.

Temperature Ranges

• Working Temperature (Standard): -20°C to +70°C

• Storage Temperature (Dry): -30°C to +80°C

Vibration and Shock

• Vibration (Sine, 50-2000 Hz): ≤ 100 m/s²

• Shock (Half sine, 11 ms): ≤ 1000 m/s²

Environmental Ratings

• Protection Class (Standard): IP65

• Relative Humidity: 98% (non-condensing)

• Immunity to Disturbance: DIN EN 61000-6-2

• Transient Emissions: DIN EN 61000-6-3

Physical Specifications

• Mass (Typical): 0.3 to 0.5 kg

• Material: Standard industrial encoder materials

Key Features

The TR CEV58M-00441 provides high resolution absolute position feedback. The 33 bit total resolution delivers precise position data. The multi-turn design tracks position across many revolutions. The binary code output simplifies controller integration.

The PROFINET IO interface supports modern industrial networks. Conformance Class B and C meet various application requirements. IRT (Isochronous Real-Time) enables deterministic communication. Cycle times as low as 1000 µs support high speed applications.

The encoder operates from 11 to 27 VDC supply voltage. Nominal current is only 120 mA unloaded. The IP65 protection class resists dust and water jets. The wide temperature range suits outdoor and unheated locations.

The ZB36 flange and multiple shaft options fit various mounting requirements. The axial M12 connector position simplifies cable routing. The encoder withstands high vibration and shock levels. Bearing life exceeds 3.9E+10 revolutions at rated speed.

Installation Guidelines

Install the CEV58M-00441 on a clean, flat mounting surface. Align the shaft carefully with the driven equipment. Do not hammer or strike the encoder shaft. Tighten mounting screws evenly to avoid distortion.

Connect the M12 connectors as per the pinout drawing (TR-ECE-TI-DGB-0214). Use approved PROFINET cables for communication. Supply 11 to 27 VDC power to the encoder. Verify polarity before applying power.

Do not exceed the maximum shaft load of 50 N axial or 100 N radial. Keep operating temperature within -20°C to +70°C. Avoid condensing humidity conditions. Configure encoder parameters using the fieldbus tool.

Package Contents

• TR CEV58M-00441 Absolute Encoder (1 unit)

• Factory installed axial M12 connectors

• Shaft key (if applicable)

• Mounting instructions

• PROFINET configuration guide

• Pinout drawing (TR-ECE-TI-DGB-0214)

Frequently Asked Questions (FAQ)

1. What is the total resolution of the TR CEV58M-00441 encoder?
The CEV58M-00441 has total resolution up to 33 bits. Steps per revolution are 8,192,000. Number of revolutions is 4,096,000.

2. What communication protocol does this absolute encoder use?
The TR CEV58M-00441 uses PROFINET IO. It supports Real-Time classes 1, 2, and 3 (IRT). Conformance classes are B and C. Transmission rate is 100 MBit/s.

3. What is the supply voltage range for the CEV58M-00441?
Supply voltage range is 11 to 27 VDC. Nominal voltage is 24 VDC. Nominal current is 120 mA when unloaded.

4. What is the protection class and temperature range of this encoder?
Protection class is IP65. Working temperature range is -20°C to +70°C. Storage temperature range is -30°C to +80°C.

5. What shaft and flange options does the TR CEV58M-00441 have?
Flange type is ZB36. Shaft type is 10FL/19.5. Shaft diameter options include 6 mm, 8 mm, 10 mm, 12 mm, and 3/8 inch.
