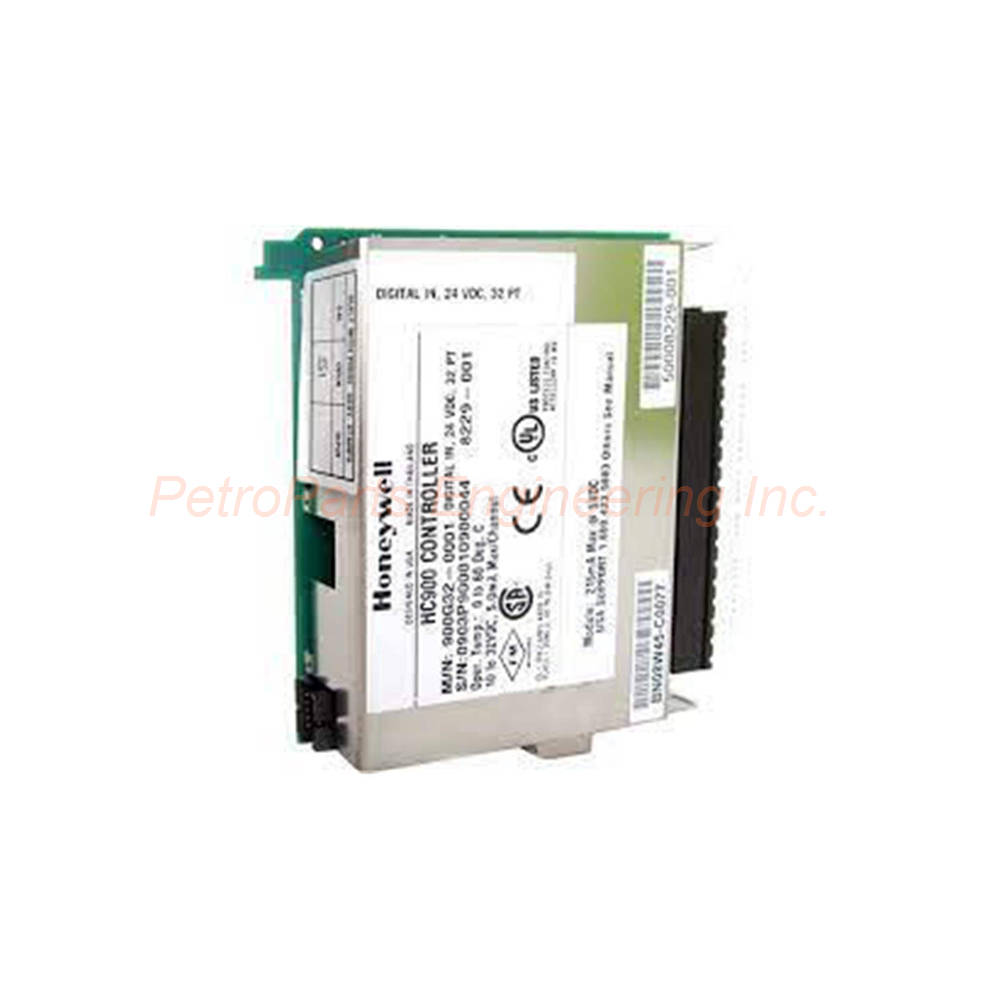

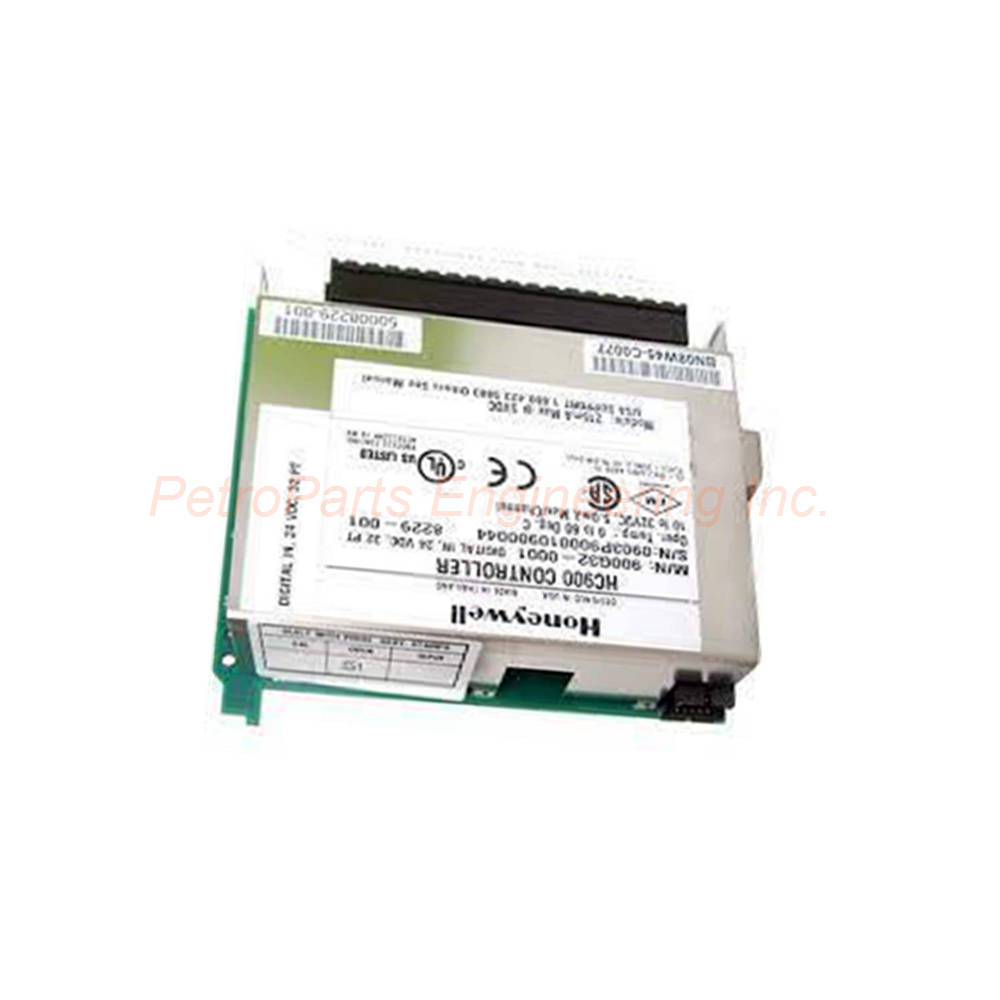

Honeywell 900G32-0101 32 Channel Digital Input Module 24VDC
Introduction:
The Honeywell 900G32-0101 is a high-density Digital Input module. It operates at 24VDC with 32 sinking channels. This module delivers reliable performance for factory automation. Its fast 5ms response ensures accurate signal acquisition.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Honeywell 900G32-0101 Digital Input 24VDC 32 Channel Module
Technical Specifications
The Honeywell 900G32-0101 module provides 32 digital input channels per unit. Each channel uses sinking wiring configuration. The input voltage range spans from 10 VDC to 32 VDC. Peak voltage reaches a maximum of 32 VDC. This module does not support AC frequency.
Galvanic isolation separates inputs into two groups. Each group contains 16 isolated channels. The isolation supports up to 30 VDC maximum. The ON voltage level requires a minimum of 9.5 VDC. The OFF voltage level stays below 3.5 VDC maximum.
Nominal input impedance is 6.9 K ohms. Input current measures 1.7 mA at 12 VDC. At 24 VDC, the input current is 3.5 mA nominal. Minimum ON current needs 1.0 mA. Maximum OFF current cannot exceed 0.7 mA.
Response Time and Power Data
Both OFF to ON and ON to OFF response times are 5 ms maximum. This fast switching suits high-speed monitoring tasks. The module draws 215 mA maximum from the 5V supply. It draws 0 mA from the 24V supply. This low power consumption reduces system heat.
Physical Dimensions
The module measures 137mm in height. Its width is 35.6mm. These dimensions equal 5.4 inches by 1.4 inches. The 900G32-0101 weighs only 0.175 kg. This lightweight design saves rack space.
Installation Guide
Follow these steps for correct installation. First, ensure system power is completely off. Second, mount the Honeywell 900G32-0101 into a compatible chassis. Third, connect field devices to the 32-channel terminal block. Use shielded cables for noisy environments. Fourth, verify each input voltage stays between 10 and 32 VDC. Fifth, configure the I/O mapping in your controller software.
Always observe polarity for sinking inputs. Do not exceed 32 VDC peak voltage. Keep wiring away from high-power cables. Tighten terminal screws to the recommended torque.
Environmental Tolerance and Noise Immunity
The 900G32-0101 operates in industrial environments. It withstands temperature ranges from 0°C to 60°C. Storage temperatures range from -40°C to 85°C. The module resists humidity up to 95% non-condensing. Galvanic isolation provides strong noise rejection. This protects against ground loops and electrical interference.
Package List
One Honeywell 900G32-0101 Digital Input Module
One 32-channel terminal block connector
One installation guide sheet
Two mounting screws
Frequently Asked Questions (FAQ)
1. What is the difference between sinking and sourcing inputs?
The Honeywell 900G32-0101 uses sinking inputs. This means the input connects to the negative side of the supply. The field device provides positive voltage to activate the channel.
2. Can I mix different voltage devices on one module?
Yes, but each group shares a common return. Stay within 10 to 32 VDC range for all channels. Do not exceed 32 VDC peak voltage on any input.
3. How do I check if a channel is working correctly?
Apply a voltage above 9.5 VDC to test ON state. Remove voltage to test OFF state below 3.5 VDC. Use your controller's diagnostic status bits.
4. What happens if I exceed the maximum input voltage?
Exceeding 32 VDC can permanently damage the 900G32-0101. It may also damage adjacent channels. Always use a stable 24VDC power supply.
5. Does this module support hot swapping?
No, the Honeywell 900G32-0101 does not support hot swapping. You must power down the chassis before inserting or removing the module.
