Product Overview

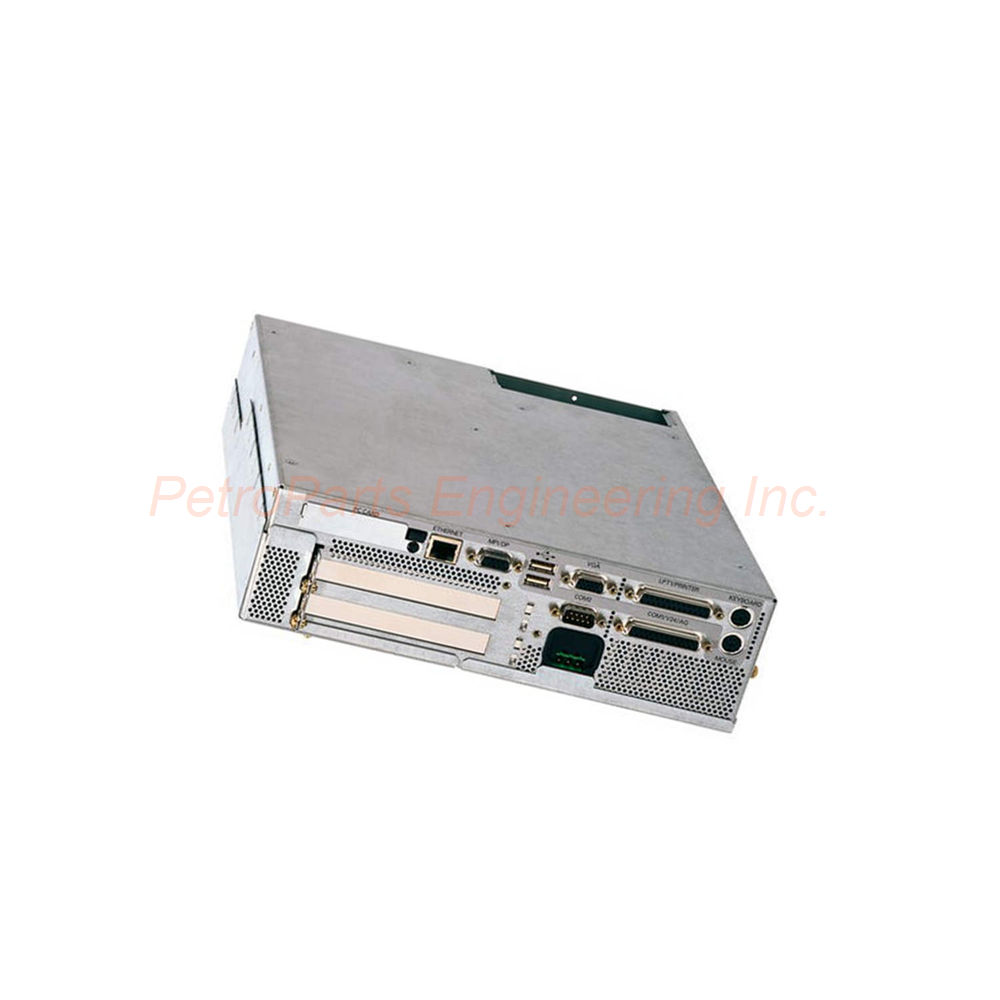

The 6FC5210-0DF03-0AA0 belongs to the SINUMERIK Series. Its product type is a PLC CPU (Central Processing Unit) . The product classification is Controllers & CPUs. The current price for this item is ¥8,650 RMB, and the product gross weight is 6.00 kg.

Siemens designed this CPU specifically for various control applications. The device boasts a processing speed of 500 MHz , ensuring efficient task execution. Equipped with 128 MB of memory , it handles numerous instructions simultaneously. This capability supports complex control systems with demanding computational requirements. Therefore, the 6FC5210-0DF03-0AA0 delivers reliable performance for sophisticated automation tasks.

Technical Specifications

Processor and Memory

The clock speed reaches 500 MHz , providing fast instruction processing. The memory capacity is 128 MB , sufficient for complex control programs and data handling. This combination enables the CPU to manage multiple axes, I/O points, and communication tasks. Consequently, users can implement advanced motion control and logic functions without performance degradation.

Power Requirements

The CPU operates at 24 VDC , matching standard industrial power systems. This voltage level provides compatibility with most automation panels. The robust construction, weighing approximately 6 kg (13.228 lbs) , indicates high-quality materials and durability. Thus, the 6FC5210-0DF03-0AA0 withstands demanding industrial environments.

Operating Temperature

The minimum operating temperature is 0°C , while the maximum reaches 55°C . This range covers typical factory floor conditions. The CPU operates reliably within these specified temperature limits. For best results, install the unit in a well-ventilated control cabinet. Avoid placing the device near heat sources or in direct sunlight.

Storage Temperature

The storage temperature can go as low as -20°C . This allows safe transport and preservation when you are not using the unit. During storage, protect the CPU from moisture and physical damage. Therefore, you can keep spare units on hand without concern for cold damage during warehouse storage.

Altitude Specification

The CPU operates correctly at altitudes below 2000 meters (6562 feet) . This makes the unit applicable for use in diverse geographical locations. For installations above this altitude, the reduced air density may affect cooling. Consequently, derating or forced cooling might become necessary for high-altitude sites.

RoHS Compliance

Please note that this part is not RoHS compliant . This status may influence its adoption depending on your regional regulatory requirements. Some jurisdictions restrict non-RoHS components for new installations. Therefore, check your local environmental regulations before purchasing this CPU.

Installation Guide

Follow these steps to install your 6FC5210-0DF03-0AA0 correctly.

1. Verify Environmental Conditions: Ensure the installation site stays between 0°C and 55°C . Check that the altitude remains below 2000 meters .

2. Mount the CPU: Secure the 6FC5210-0DF03-0AA0 to the DIN rail or mounting plate. The robust construction weighs 6 kg , so use appropriate hardware.

3. Connect Power: Wire 24 VDC to the power terminals. Observe correct polarity to prevent damage.

4. Connect I/O and Communication: Attach your I/O modules and communication cables to the CPU. Follow the pinout diagrams in the manual.

5. Apply Power: Turn on the 24 VDC supply. Verify the CPU starts up correctly.

6. Download the Program: Transfer your control program to the 128 MB memory. Use Siemens programming software for this task.

7. Test Operation: Run diagnostic checks to confirm all functions work properly. Monitor the CPU temperature during initial operation.

Package List

• 1 x 6FC5210-0DF03-0AA0 PLC CPU (SINUMERIK series)

• 1 x Mounting bracket kit

• 1 x Power connector plug

• 1 x Quick reference manual

Frequently Asked Questions (FAQ)

1. What types of control systems use the 6FC5210-0DF03-0AA0 ?
This CPU works with SINUMERIK CNC systems and complex industrial automation. The 500 MHz clock speed and 128 MB memory handle multi-axis motion control and sophisticated logic.

2. Why does this CPU weigh 6 kg?
The robust construction provides vibration resistance and heat dissipation. The 6FC5210-0DF03-0AA0 uses high-quality materials to withstand demanding factory environments. Therefore, the weight reflects industrial-grade durability.

3. Can I install this CPU above 2000 meters altitude?
The specification limits installation to below 2000 meters . Above this altitude, cooling efficiency decreases. For higher locations, consult Siemens about derating or forced cooling requirements.

4. What does "not RoHS compliant" mean for my application?
Some regions restrict non-RoHS components for new equipment. The 6FC5210-0DF03-0AA0 may not meet environmental regulations in the EU or similar jurisdictions. Therefore, check your local rules before purchasing.

5. How does the 128 MB memory benefit my control system?
The 128 MB memory stores complex control programs, motion profiles, and data logs. This capacity supports advanced features like CNC part programs and high-speed data processing. Consequently, the 6FC5210-0DF03-0AA0 handles sophisticated applications efficiently.
