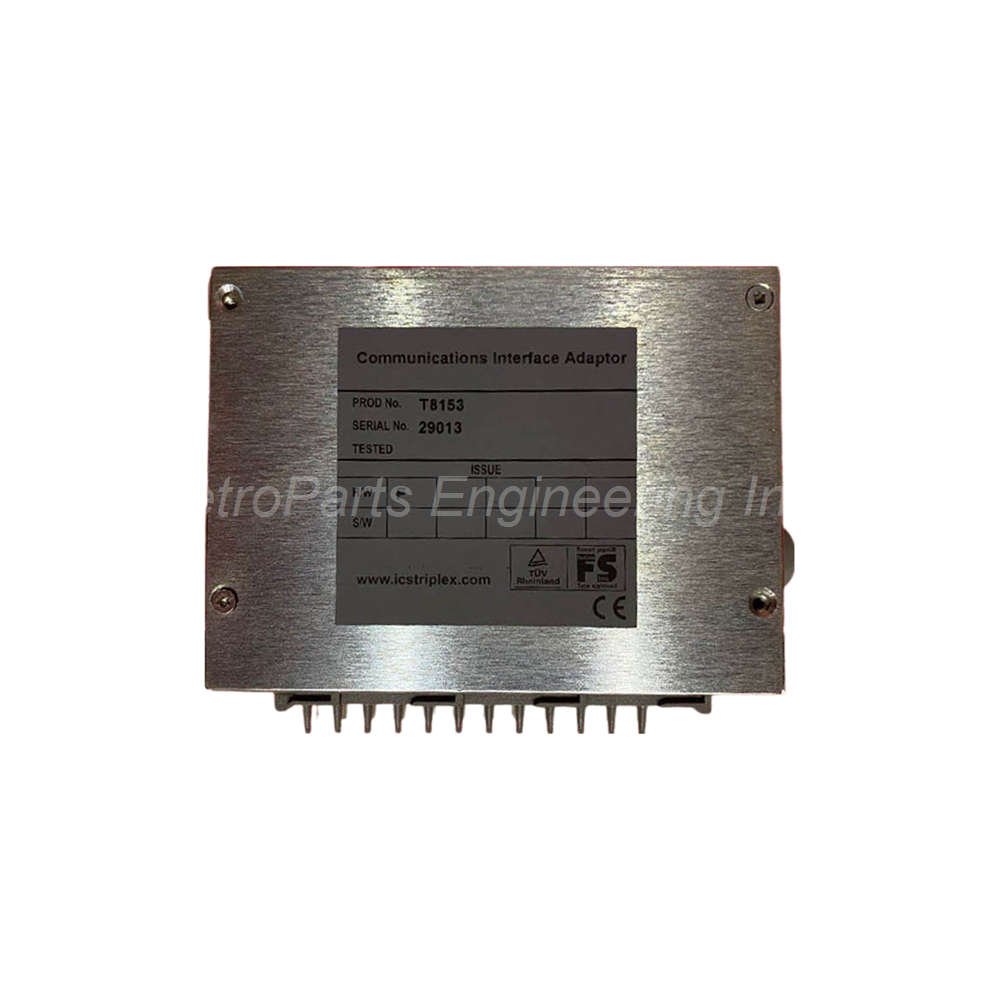

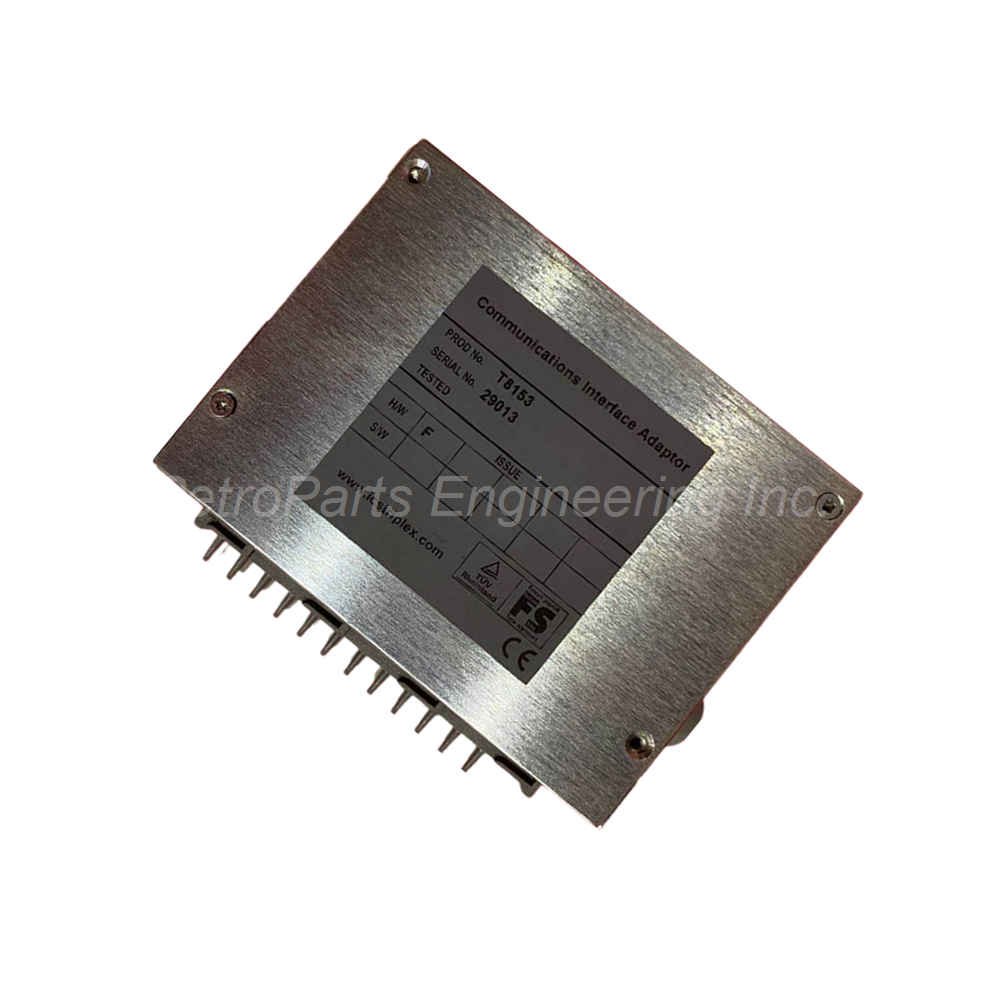

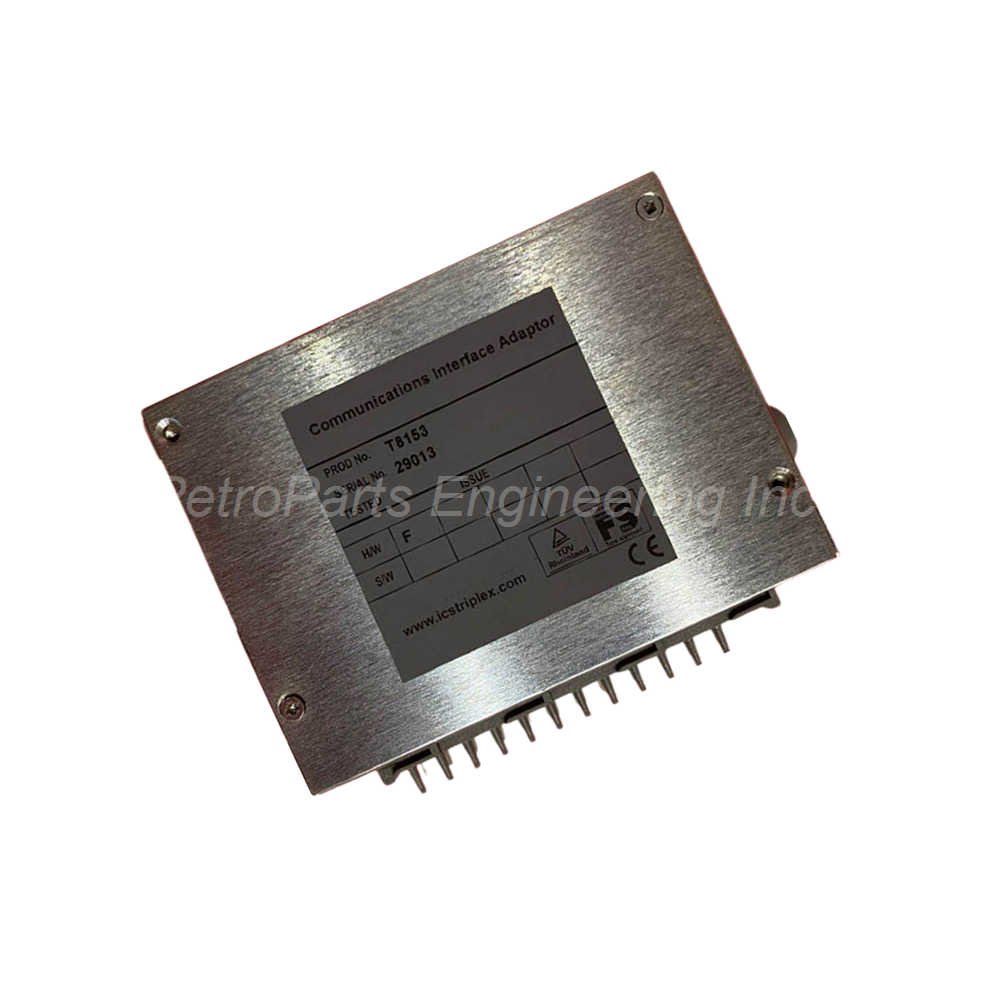

Technical Specifications of T8153

Manufacturer: ICS Triplex (Rockwell Automation)

Model: T8153

Catalog: Trusted TMR System

Description: Communications Interface Adapter

Origin: United States (US)

Certifications: Ord/HazLoc/ATEX/IECEx certified for hazardous locations.

Supply Ratings: N/A (passive adapter, draws no external power)

Communication Ports and Connections

Port 1: One RS422/RS485 2-wire connection.

Ports 2 and 3: Two RS422/RS485 configurable 2 or 4-wire connections.

Fault/Fail Connections: Links for Active and Standby Processors.

Processor Diagnostics: Dedicated connection for processor status.

PSU Shutdown Monitor: Connections for power supply shutdown monitoring.

IRIG-B Option: Supports IRIG-B122 and IRIG-B002 time synchronisation signals.

MODBUS Master Option: Enables MODBUS Master on the Trusted Communications Interface.

Hardware Features and Design

The T8153 connects to the Trusted TMR Processor via two 48-way DIN41612 E-type connectors (SK1). One connector links to the Active Processor. The other connects to the Standby Processor. The adapter includes a PCB with all communication ports and IRIG-B connectors. A metal enclosure protects the internal components. Release buttons allow easy disconnection from the chassis. An earth point connects the Processor chassis ground to the adapter shell.

Safety and Installation Requirements

Proper equipotential bonding is critical for safe operation. This bonding prevents electrostatic discharge (ESD) damage. Always connect the earth point before powering up the system. The adapter is designed for hazardous location use (ATEX/IECEx certified). Follow all local safety codes during installation.

Installation Guide

Turn off all power to the Trusted Controller Chassis.

Align the T8153 adapter with the rear connectors of the processor slot.

Press firmly until the adapter clicks into place.

Connect the earth point to the chassis ground.

Attach communication cables to the required RS422/485 ports.

For IRIG-B time sync, connect signals to the dedicated input.

To enable MODBUS Master, configure the option via system software.

Package Contents

One ICS Triplex T8153 Communications Interface Adapter.

Metal enclosure with release buttons (pre-assembled).

No cables or connectors are included.

Frequently Asked Questions (FAQ)

Q: Which processors work with the T8153 adapter?
A: The T8153 works with Trusted TMR Processors T8110B and T8111. It fits into the Controller Chassis rear slot.

Q: Does the T8153 need external power?
A: No, this adapter draws no external power. It connects passively to the processor via the DIN41612 connectors.

Q: Can I use the T8153 in a hazardous area?
A: Yes, the T8153 holds ATEX and IECEx certifications. It is approved for ordinary and hazardous locations.

Q: What is the difference between 2-wire and 4-wire RS485?
A: 2-wire uses half-duplex communication. 4-wire supports full-duplex for faster data transfer. Ports 2 and 3 support both modes.

Q: How do I enable MODBUS Master on this adapter?
A: The MODBUS Master option requires configuration in the Trusted system software. Contact technical support for setup assistance.
