Product Overview

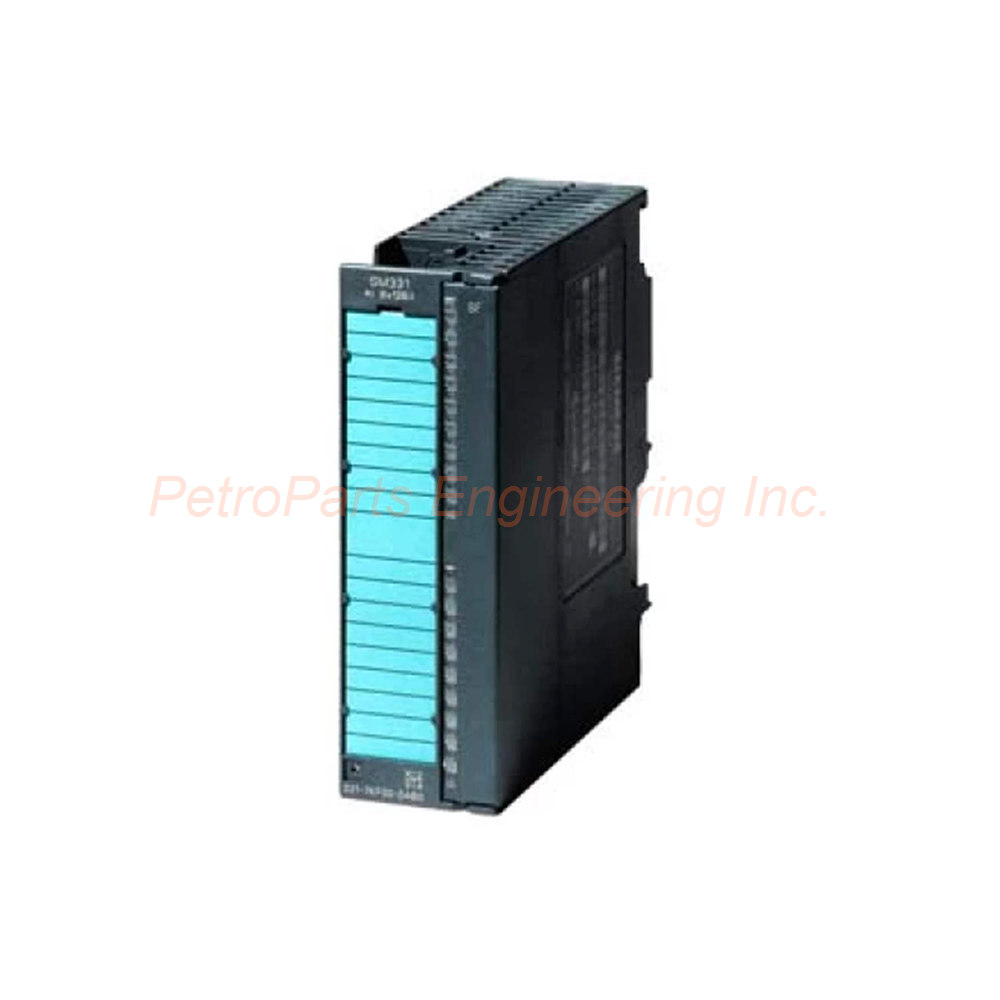

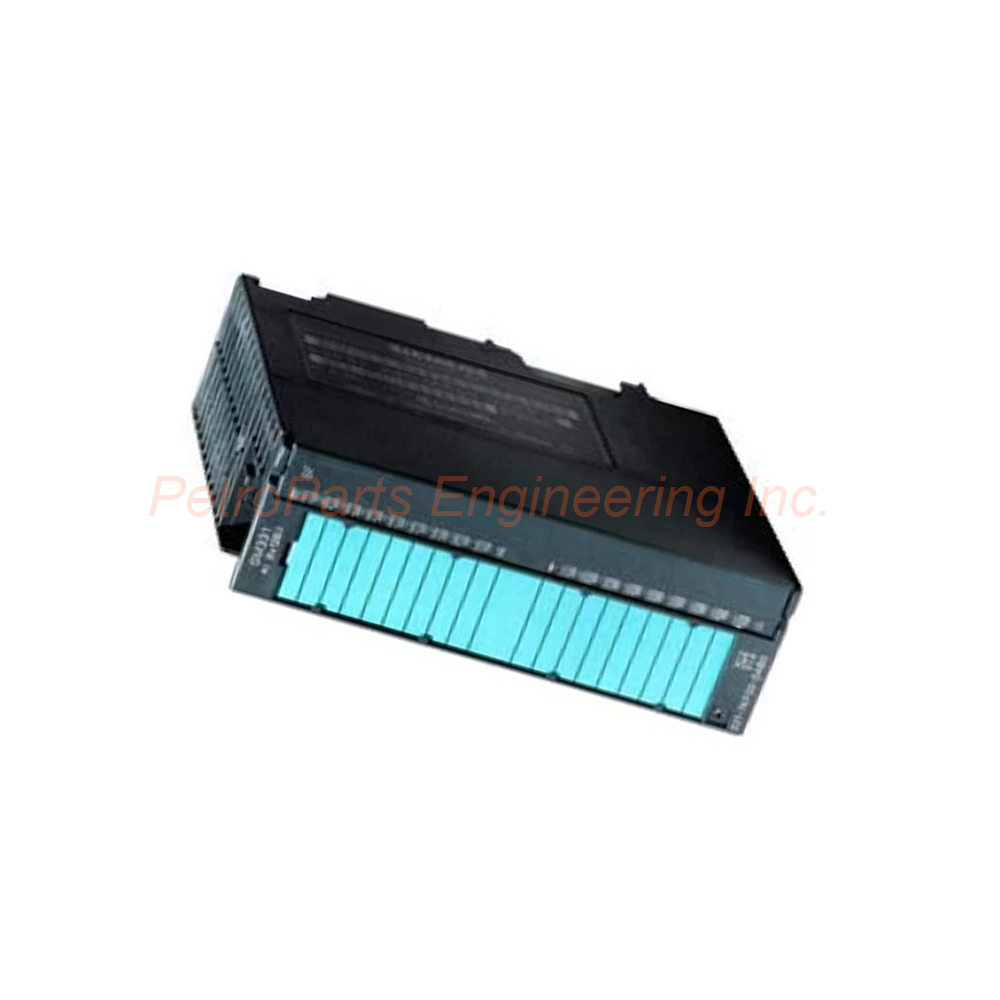

The Siemens 6ES7331-7PF01-0AB0 is an isolated analog input module. It is specifically designed for use with S7-300 PLC systems.

This module can accommodate eight input channels tailored for resistance and RTD measurements. Furthermore, it offers compatibility with various sensor types, including resistance thermometers and resistors. Therefore, it suits a wide range of temperature monitoring applications.

General Specifications

The 6ES7331-7PF01-0AB0 delivers reliable resistance measurement for critical processes.

• Manufacturer: Siemens.

• Product Type: Isolated Analog Input Module for S7-300 PLC.

• Product Line: I/O Modules.

• Part Number: 6ES7331-7PF01-0AB0.

• UPC: 662643177916.

• Weight: 0.17 kg (0.38 lbs).

Physical Dimensions (W x H x D):

• 40 mm x 125 mm x 120 mm.

Power Consumption:

• 24 V DC supply.

• 240 mA maximum from L+.

• 100 mA from backplane.

Input Specifications

The 6ES7331-7PF01-0AB0 offers eight dedicated input channels.

• Input Channels: 8 channels dedicated to resistance and RTD measurements.

• Supported Sensor Types: Resistance thermometers (Pt, Ni, Cu) and resistors (0-150/300/600 Ω).

• Channel Grouping: 2-channel groups with internal isolation.

• Isolation Voltage: 500 V DC tested between channels and backplane/power supply.

Wiring Configurations:

• 2-wire connection for resistance measurement.

• 3-wire connection for resistance measurement.

• 4-wire connection for resistance measurement.

Cable Requirements:

• Shielded cables up to 200 m maximum length.

Performance Specifications

The 6ES7331-7PF01-0AB0 provides high accuracy and flexible conversion times.

• Resolution: 16-bit two's complement with overrange capability.

Conversion Time (Configurable):

• 10 ms for ≤4 channels per module cycle.

• 80 ms for 8 channels per module cycle.

• 190 ms for >5 channels per module cycle.

Interference Suppression:

• 50 Hz, 60 Hz, and 400 Hz noise rejection.

Operational Accuracy (Full Range):

• ±0.1% for resistors.

• ±1 K for RTDs.

Basic Accuracy (at 25°C):

• ±0.05% for resistors.

• ±0.5 K for RTDs.

Diagnostic Features

The 6ES7331-7PF01-0AB0 includes comprehensive diagnostic capabilities.

• Configurable Alarms: Available per channel.

• Alarm Types: Limit monitoring, diagnostic alarms, and hardware interrupt.

• Benefits: Enables predictive maintenance and rapid fault detection.

Key Features

The 6ES7331-7PF01-0AB0 offers several advantages for RTD measurement applications.

Eight Isolated Input Channels:
Provides dedicated measurement for up to eight sensors. The channels are grouped in pairs with internal isolation. Consequently, signal interference between channels is minimized.

Wide Sensor Compatibility:
Supports Pt, Ni, and Cu resistance thermometers. Additionally, it measures resistors from 0 to 600 Ω. Therefore, it adapts to various field devices.

Flexible Wiring Configurations:
Accepts 2-wire, 3-wire, or 4-wire connections. As a result, lead resistance compensation is optimized. 4-wire connections provide the highest accuracy for critical measurements.

High 16-Bit Resolution:
Delivers precise analog-to-digital conversion. The two's complement format includes overrange capability. Hence, measurement resolution is excellent across the full scale.

Configurable Conversion Time:
Optimizes speed versus channel count. For example, 10 ms conversion suits fast processes with 4 channels. Conversely, 80 ms conversion supports all 8 channels.

Comprehensive Noise Rejection:
Suppresses 50 Hz, 60 Hz, and 400 Hz interference. Therefore, stable readings are maintained in electrically noisy environments.

500V DC Isolation:
Tested between channels and backplane/power supply. This prevents ground loops and protects the PLC from field transients.

Long Cable Support:
Shielded cables up to 200 meters are permitted. Consequently, remote sensors can be installed far from the PLC cabinet.

Configurable Alarms per Channel:
Provides limit monitoring, diagnostic alarms, and hardware interrupts. Thus, the PLC receives immediate notification of sensor faults.

Typical Applications

The 6ES7331-7PF01-0AB0 suits a wide range of temperature monitoring applications.

• Temperature measurement in chemical reactors using Pt100 sensors.

• Bearing temperature monitoring on large motors and pumps.

• HVAC temperature control in commercial buildings.

• Heat treatment process monitoring in metalworking.

• Resistance measurement for position feedback devices.

Installation Guidelines

Install the 6ES7331-7PF01-0AB0 in an S7-300 rack according to standard practices. First, insert the module into an available slot. Then, connect the 24 V DC power supply to the L+ terminal.

Use shielded cables for all field wiring. Connect the shield to the ground bus at both ends for optimal noise rejection. Maximum cable length is 200 meters.

Select the appropriate wiring configuration (2-wire, 3-wire, or 4-wire) based on accuracy requirements. For highest accuracy, use 4-wire connections to eliminate lead resistance errors.

Configure the conversion time in the PLC software. Use 10 ms for fast loops with up to 4 channels. Use 80 ms or 190 ms when all 8 channels are active. Finally, set up alarms per channel as required.

What is in the Box

Please inspect all items upon delivery.

• Siemens 6ES7331-7PF01-0AB0 isolated analog input module.

• Front connector (sold separately or included depending on order).

• Labeling strips.

• Installation instruction manual.

Frequently Asked Questions (FAQ)

1. What types of sensors can the 6ES7331-7PF01-0AB0 measure?

The 6ES7331-7PF01-0AB0 measures resistance thermometers (Pt, Ni, Cu) and resistors from 0 to 150/300/600 Ω. Therefore, it supports Pt100, Pt1000, Ni100, and similar sensors.

2. What is the resolution of this analog input module?

The 6ES7331-7PF01-0AB0 provides 16-bit resolution in two's complement format. It also includes overrange capability for extended measurement range.

3. What wiring configurations does this module support?

The 6ES7331-7PF01-0AB0 supports 2-wire, 3-wire, and 4-wire connections. For highest accuracy, use 4-wire configuration to compensate for lead resistance.

4. What is the maximum cable length for field wiring?

Shielded cables up to 200 meters are permitted with the 6ES7331-7PF01-0AB0. This allows remote sensor placement far from the PLC cabinet.

5. What isolation voltage does this module provide?

The 6ES7331-7PF01-0AB0 provides 500 V DC isolation tested between channels and backplane/power supply. Consequently, field transients are blocked from the PLC backplane.
