Product Overview
Positioner Design and Configuration

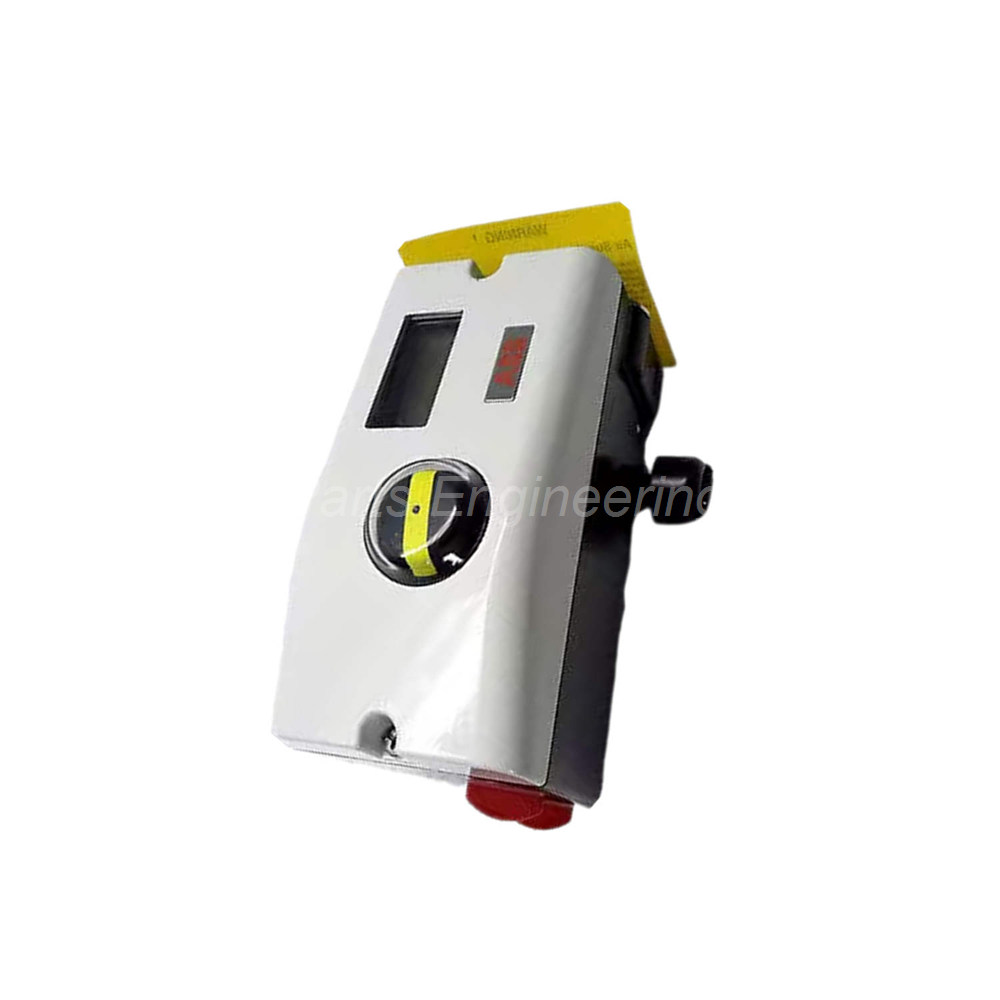

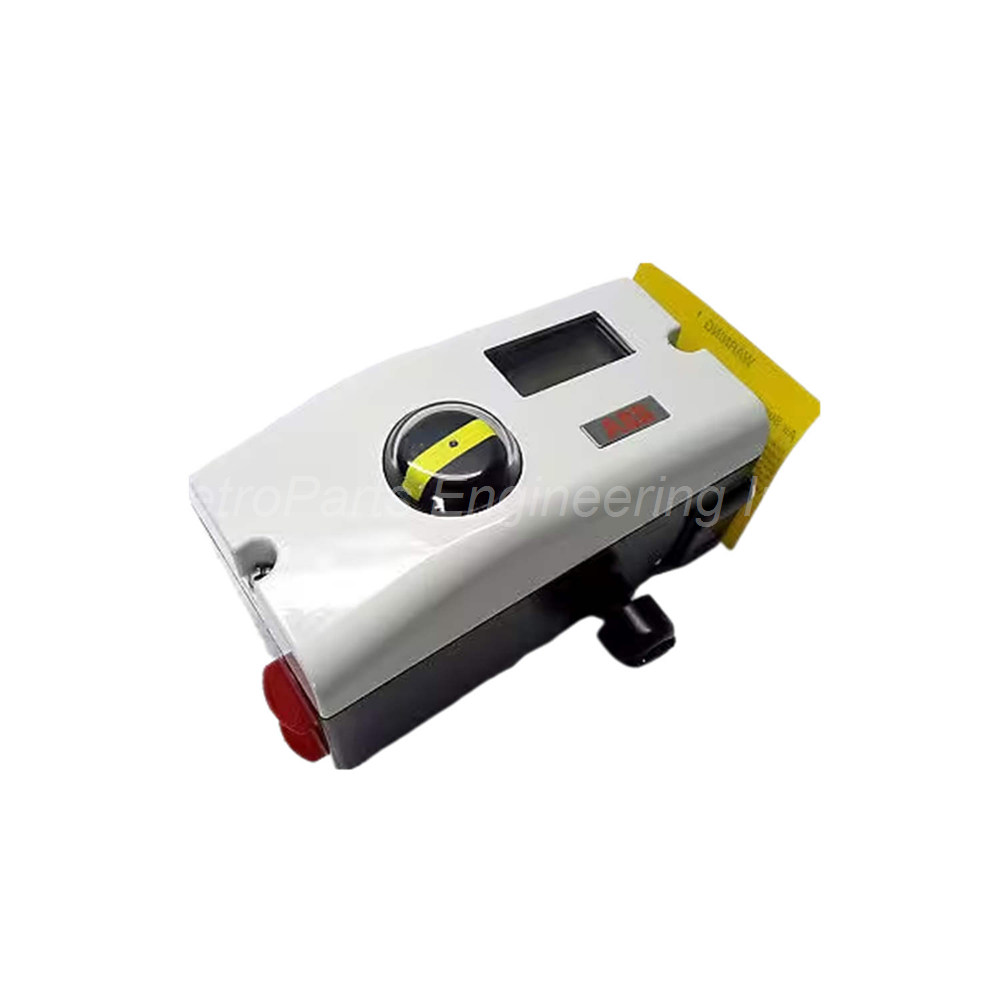

The ABB V18345-2010420001 is a TZIDC electro-pneumatic positioner from the TZIDC series. Therefore, this positioner is intelligent and configurable with an indicator and operator panel. The case is made of varnished aluminum with IP65 (NEMA 4X) protection. Consequently, the V18345-2010420001 suits mounting to linear actuators per DIN/IEC 534 or NAMUR standards. It also mounts to rotary actuators per VDI/VDE 3845 specifications. The mechanical position indicator provides clear visual feedback.
Output and Safe Position Configuration
The V18345-2010420001 features double acting output with fail-safe positioning. Therefore, in case of electrical power failure, the positioner moves the actuator to a safe position. The two-wire technology accepts a 4 to 20 mA nominal input range. Consequently, the positioner integrates seamlessly into existing control loops. The HART protocol 5.1 enables digital communication for configuration and diagnostics.
Construction and Environmental Protection
The aluminum housing features electrostatic dipping varnish with epoxy resin. Therefore, the case is stove-hardened for durability. The case is varnished black (RAL 9005) with a matte finish. Consequently, the V18345-2010420001 withstands harsh industrial environments. The IP65 and NEMA 4X ratings ensure protection against dust and water jets.
Ordering Information and Model Breakdown
The ABB V18345-2010420001 follows a specific ordering code structure.
| Code Position | Value | Meaning |
|---|---|---|
| V18345 | Base Model | TZIDC intelligent positioner |
| 2 | Case/Mounting | Aluminum case IP65, mechanical position indicator |
| 01 | Input/Communication | 4-20mA two-wire with connector plug for LKS adapter |
| 0 | Explosion Protection | Without |
| 4 | Output/Safe Position | Double acting, fail safe |
| 2 | Connections | Cable thread 1/2-14 NPT, Air pipe thread 1/4-18 NPT |
| 0 | Analog Feedback | Without |
| 0 | Mechanical Feedback Kit | Without |
| 1 | Design/Varnish | Standard |
| 0001 | Additional Options | Standard configuration |
Technical Specifications
General Specifications
Manufacturer: ABB
Product Number: V18345-2010420001
Series: TZIDC Series
Product Type: Electro-Pneumatic Positioner
Weight: 1.7 kg
Input and Output Specifications
Output Signal (Two-wire): 4 to 20 mA nominal range
Digital Input Control Voltage (State 0): 0 to 5 V DC
Digital Input Control Voltage (State 1): 11 to 30 V DC
Digital Output Supply Voltage: 5 to 11 V DC (per DIN 19234/NAMUR)
Pneumatic Specifications
Supply Pressure: 1.4 to 6 bar (20 to 90 psi)
Air Consumption: < 0.03 kg/h (0.015 scfm), independent of supply pressure
Output Type: Double acting, fail safe
Pneumatic Connections: Threads 1/4-18 NPT
Air Supply Quality Requirements
The V18345-2010420001 requires instrument air meeting DIN/ISO 8573-1 standards.
| Parameter | Requirement |
|---|---|
| Maximum Particle Size | 5 µm |
| Maximum Particle Density | 5 mg/m³ |
| Maximum Oil Concentration | 1 mg/m³ |
| Pressure Dew Point | 10 K below operating temperature |
Important Note: Do not exceed the maximum operating pressure of the actuator.
Housing and Protection Specifications
Housing Material: Aluminum, varnished
Protection Class: IP65 / NEMA 4X
Surface Finish: Electrostatic dipping varnish with epoxy resin, stove-hardened
Case Color: Black, RAL 9005, matte finish
Cover Color: Pantone 420
Cable Connection Thread: 1/2-14 NPT
Air Pipe Thread: 1/4-18 NPT
Performance Specifications
Characteristic Deviation: < 0.5%
Tolerance Band: 0.3 to 10% (adjustable)
Dead Band: 0.1 to 10% (adjustable)
Resolution (A/D Conversion): > 4000 steps
Sample Rate: 20 ms
Influence of Ambient Temperature: < 0.5% per 10 K
Influence of Vibration: < ±1% at 10 g and 80 Hz
Influence of Mounting Orientation: Not measurable
Characteristic Curves
The V18345-2010420001 supports multiple characteristic curve options.
Linear: Standard proportional response
Equal Percentage: 1:25, 1:50, 25:1, or 50:1 ratios
Freely Configurable: Up to 20 reference points
Action and Output Response
Increasing Signal (4 to 20 mA): Actuator position 0 to 100%
Decreasing Signal (20 to 4 mA): Actuator position 0 to 100%
Output Y1 Behavior:
Increasing output signal (0 to 100%) = Increasing pressure at output
Decreasing output signal (0 to 100%) = Decreasing pressure at output
Seismic and Vibration Compliance
Seismic Requirements: Meets DIN/IEC 68-3-3 Class III for strong and strongest earthquakes
Vibration Influence: < ±1% at 10 g and 80 Hz
Communication Specifications
HART Protocol: Version 5.1
Local Connector: For LKS (local communication interface) adapter
Remote Communication: HART via 20 mA signal line with optional FSK modem
Directive Compliance
The V18345-2010420001 meets the following requirements.
EMC Directive: 89/336/EWG (May 1989)
CE Conformity: EC Directive for CE marking
Installation Guide
Follow these steps to install the ABB V18345-2010420001 correctly.
Prepare Actuator: First, ensure the actuator mounting surface is clean and flat.
Mount Positioner: Next, attach the V18345-2010420001 to the actuator using appropriate brackets.
Connect Air Supply: Then, connect clean instrument air to the 1/4-18 NPT port.
Wire Electrical Input: After that, connect the 4-20 mA control signal to the two-wire input.
Connect Pneumatic Outputs: Meanwhile, connect the double acting outputs to the actuator ports.
Configure Positioner: Finally, use the operator panel or HART communication to configure parameters.
The V18345-2010420001 requires clean, dry instrument air for reliable operation. Therefore, install appropriate filtration upstream of the positioner. In addition, do not exceed 6 bar supply pressure. Consequently, proper installation ensures accurate valve positioning and long service life.
Package List
The package includes the following physical items.
ABB V18345-2010420001 TZIDC positioner (1 piece)
Mechanical position indicator (installed)
Operator panel with indicator (installed)
Mounting bracket kit for linear or rotary actuators
Product label with part number and specifications
Note: Pneumatic tubing and electrical cables are not included. Mounting screws and tools are sold separately. No HART modem is provided with this positioner.
Frequently Asked Questions (FAQ)
1. What is the input signal range for the V18345-2010420001?
The ABB V18345-2010420001 accepts a 4 to 20 mA two-wire input signal. Therefore, it integrates directly into standard analog control loops. The digital input accepts 0 to 30 V DC for discrete control. Consequently, the positioner offers flexible control options for various applications.
2. What type of output does this positioner provide?
The ABB V18345-2010420001 features double acting output with fail-safe positioning. Therefore, the positioner controls actuators requiring pressure on both sides. In case of electrical power failure, the unit moves to a safe position. Consequently, this configuration suits critical safety applications.
3. What communication protocols does the V18345-2010420001 support?
The ABB V18345-2010420001 supports HART protocol 5.1 for digital communication. Therefore, you can configure parameters and access diagnostics remotely. The local LKS adapter connector enables configuration via a local communication interface. Consequently, both local and remote configuration options are available.
4. What is the air consumption of the V18345-2010420001?
The ABB V18345-2010420001 consumes less than 0.03 kg/h (0.015 scfm) of air. Therefore, the air consumption is independent of supply pressure. This low consumption reduces operating costs significantly. Consequently, the positioner suits applications where instrument air is limited or expensive.
5. What protection class does the V18345-2010420001 have?
The ABB V18345-2010420001 has IP65 and NEMA 4X protection ratings. Therefore, the aluminum case protects against dust ingress and water jets. The varnished finish provides additional corrosion resistance. Consequently, the positioner operates reliably in outdoor and washdown environments.
6. What characteristic curves are available on this positioner?
The ABB V18345-2010420001 supports linear and equal percentage characteristics. Specifically, equal percentage ratios include 1:25, 1:50, 25:1, and 50:1. In addition, you can configure up to 20 reference points for custom curves. Consequently, the positioner matches any valve characteristic requirement.
7. What is the vibration tolerance of the V18345-2010420001?
The ABB V18345-2010420001 maintains < ±1% accuracy at 10 g and 80 Hz vibration. Therefore, the positioner withstands high vibration environments without performance degradation. It also meets DIN/IEC 68-3-3 Class III seismic requirements. Consequently, the unit suits power plant and compressor station applications.
Related Accessories
Enhance your TZIDC positioner system with these compatible parts.
LKS Adapter: ABB local communication interface for configuration
HART Modem: ABB FSK modem for remote communication
Mounting Bracket: ABB bracket for linear or rotary actuators
Pressure Regulator: ABB air filter regulator for clean supply air
Pneumatic Tubing: ABB tubing kit for output connections
Always use genuine ABB components with the V18345-2010420001. Therefore, third-party accessories may cause mounting or communication issues. In addition, verify air supply quality meets DIN/ISO 8573-1 standards. Consequently, using authentic parts ensures optimal positioner performance and reliability.
