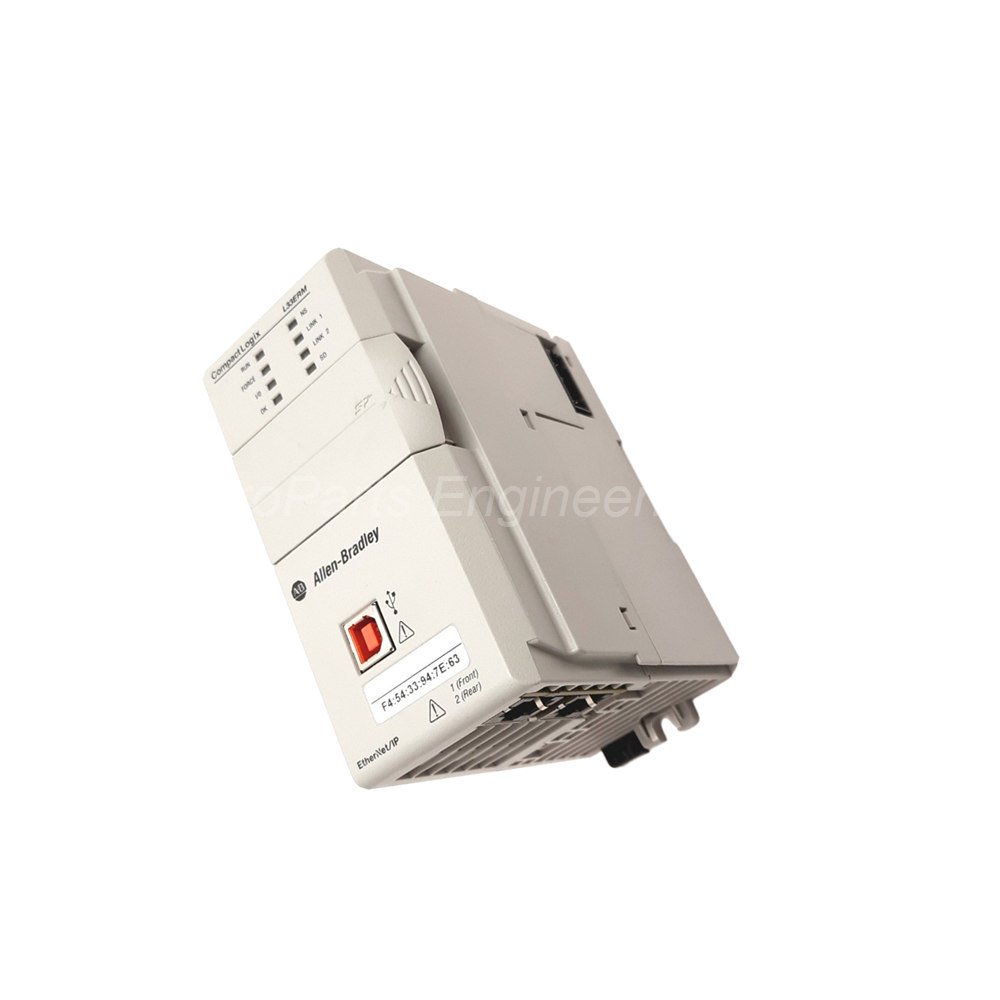

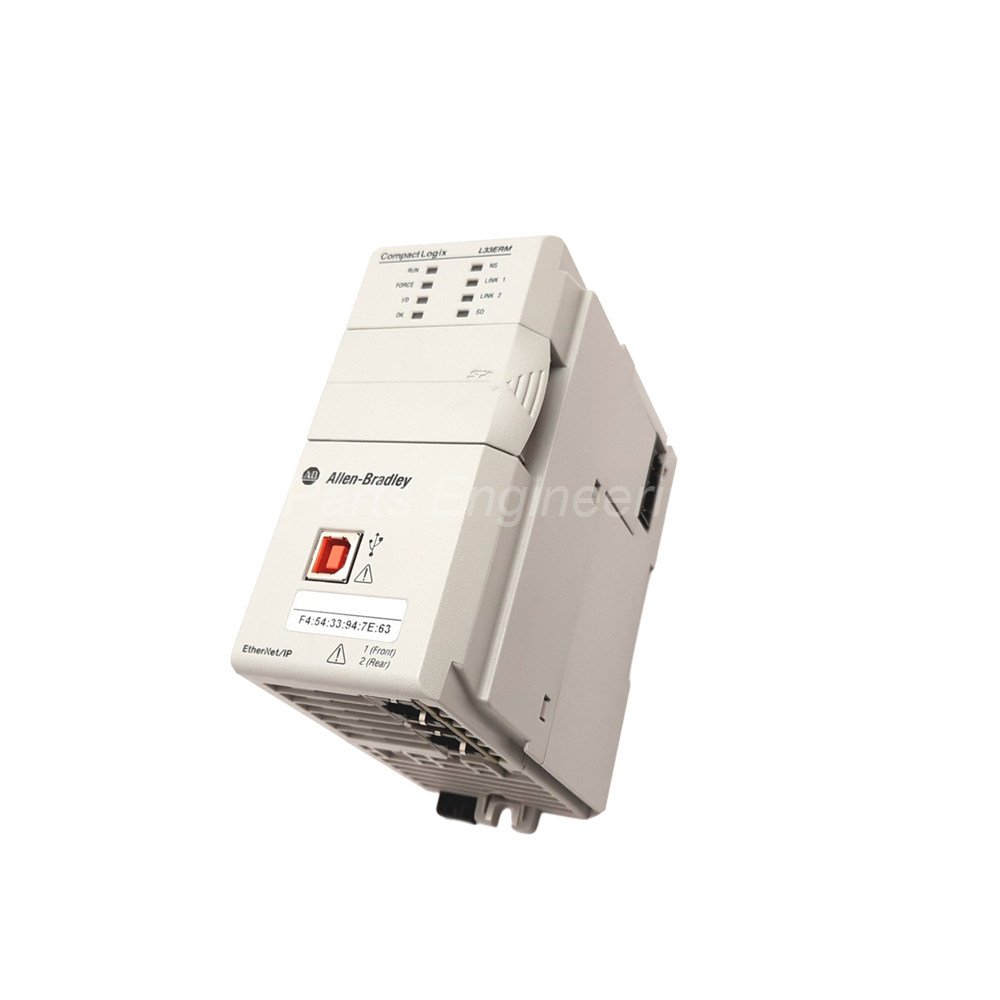

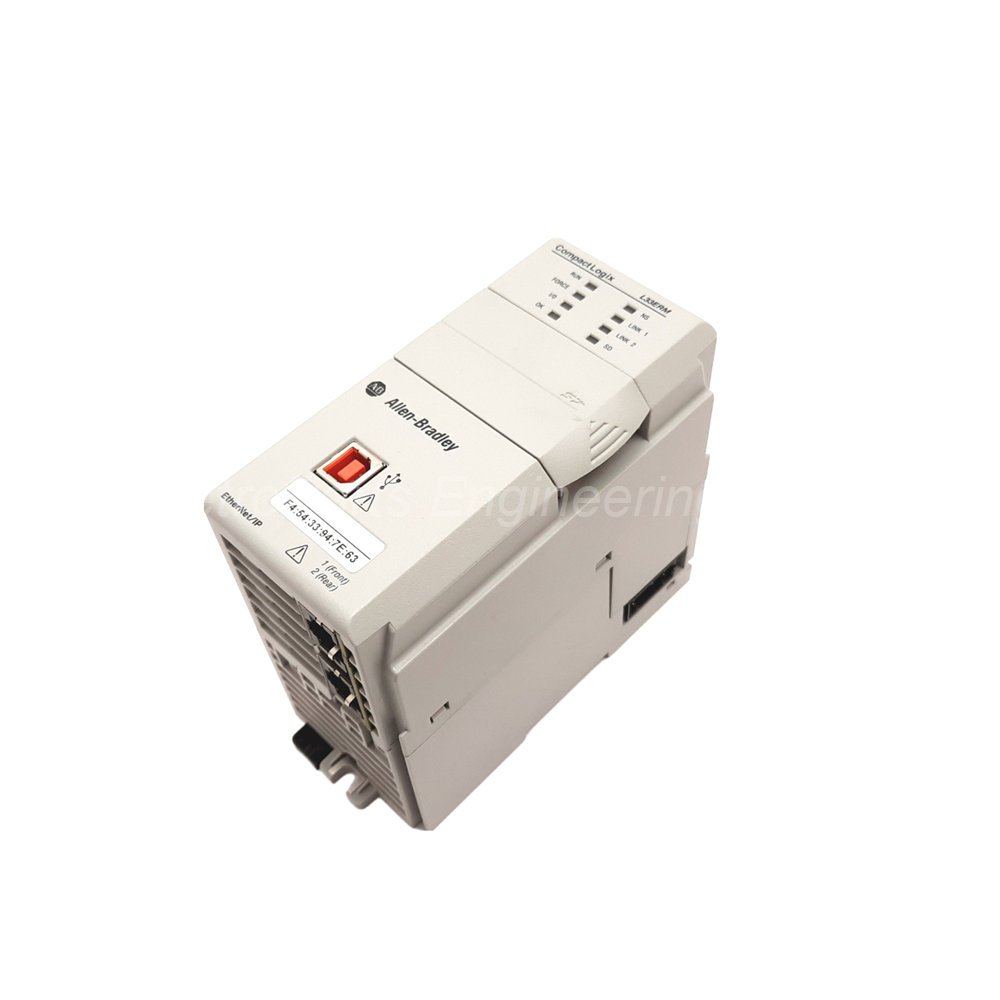

Allen-Bradley 1769-L33ERM Compact GuardLogix 5370 L3 PAC

The Allen-Bradley 1769-L33ERM is a powerful Compact GuardLogix controller. It belongs to the 5370 L3 product category. This processor module delivers 2MB of user memory for control applications. The Allen-Bradley 1769-L33ERM includes integrated motion control over Ethernet/IP.

Key Technical Specifications

This controller operates on 24 Volts DC input power. It supports Eight (8) axes of integrated motion. The module handles up to Sixteen (16) 1769 Compact I/O modules locally. It also supports Three (3) expansion I/O banks for larger systems.

• Communication Ports: Includes Two (2) Ethernet/IP ports and One (1) USB Type B 2.0 Full-Speed port

• Memory: Features 2MB user memory plus a shipped 1GB SD card (1784-SD1)

• I/O Capacity: Maximum of 16 local Compact I/O modules across 3 banks

• Motion Control: Native Ethernet/IP motion for 8 axes

• Programming Languages: Supports Ladder Diagram, Structured Text, Function Block Diagram, and Sequential Function Chart

• Tasks: Handles 32 tasks with 100 programs per task

• Ethernet/IP Nodes: Supports 32 Ethernet/IP nodes

Environmental Specifications

The 1769-L33ERM operates from 0°C to +60°C (32°F to 140°F). Relative humidity tolerance ranges from 5% to 95% without condensation. Vibration rating reaches 5G from 10 to 500 Hz. Operating shock equals 20G for DIN rail mounting and 30G for panel mounting. Non-operating shock reaches 30G for DIN rail and 40G for panel mounting. Radiated RF immunity is 10 V/m with 1 kHz sine-wave 80% AM from 80 to 2000 MHz.

Power Supply Distance and Mounting

You must observe the power supply distance rating of 4. Install the 1769-L33ERM no more than four modules away from the power supply. The controller supports both DIN rail and panel mounting. Turn off the power before inserting or removing the Secure Digital (SD) card. This prevents electrical arcing and protects the module.

Communication and Network Capabilities

The embedded dual Ethernet ports support 10/100 Mbps speed with auto-negotiation. Network topologies include Device Level Ring (DLR), Star, and Linear. Configure the IP address using the BOOTP-DHCP tool. You can also download configuration via the USB 1.0 port at 12 Mbps speed. The USB port handles local communication only and cannot serve industrial data exchange.

Motion Control Integration

The Allen-Bradley 1769-L33ERM features native motion over Ethernet/IP. It supports up to Eight (8) axes of coordinated motion. Compatible drives include Kinetix 350, Kinetix 5500, Kinetix 5700, Kinetix 6500, and PowerFlex 755. These drives support position loop, velocity loop, torque loop, and frequency control applications.

Compatible I/O and Distributed Systems

This controller works with multiple distributed I/O platforms. For chassis-based I/O, compatible systems include 1746 SLC and 1756 ControlLogix. In-cabinet options feature 1734 POINT I/O, 1734D POINTBlock I/O, 1794 FLEX I/O, and 1797 FLEX Ex I/O. On-machine I/O includes 1732 ArmorBlock I/O and 1738 ArmorPOINT I/O. The 1769-L33ERM also communicates with PanelView terminals, InView message displays, SCADA, and DCS systems.

Cross-Controller Messaging

The 1769-L33ERM supports messaging with many other controllers. Compatible platforms include 1756 ControlLogix, 1756 GuardLogix, 1768-L4x CompactLogix, 1789 SoftLogix 5800, 1794 FlexLogix, PowerFlex with DriveLogix, 1785 PLC-5, 1747 SLC, and MicroLogix series (1761, 1762, 1763, 1764). This messaging capability enables data exchange when Remote I/O implementation is not feasible.

Package Contents

• Allen-Bradley 1769-L33ERM Processor Module

• 1784-SD1 Secure Digital Card (1 GB non-volatile memory)

• USB communication port cover

• DIN rail mounting bracket (pre-attached)

• Product documentation and installation instructions

Common FAQs

Question 1: How many I/O modules can the 1769-L33ERM support locally?
The Allen-Bradley 1769-L33ERM supports up to Sixteen (16) 1769 Compact I/O modules. You can distribute them across Three (3) expansion banks.

Question 2: Does this controller support motion control without extra hardware?
Yes, the 1769-L33ERM has integrated motion over Ethernet/IP. It handles up to Eight (8) axes directly from the controller.

Question 3: What SD card is shipped with the 1769-L33ERM?
The controller ships with a 1784-SD1 card providing 1 GB of non-volatile memory. You can upgrade to the 1784-SD2 with 2 GB separately.

Question 4: What is the power supply distance rating for installation?
The power supply distance rating is 4. Install the 1769-L33ERM no more than four modules away from the power supply.

Question 5: Can the USB port be used for industrial data exchange?
No, the USB port on the 1769-L33ERM handles local communication only. It cannot serve industrial data exchange between controllers.
