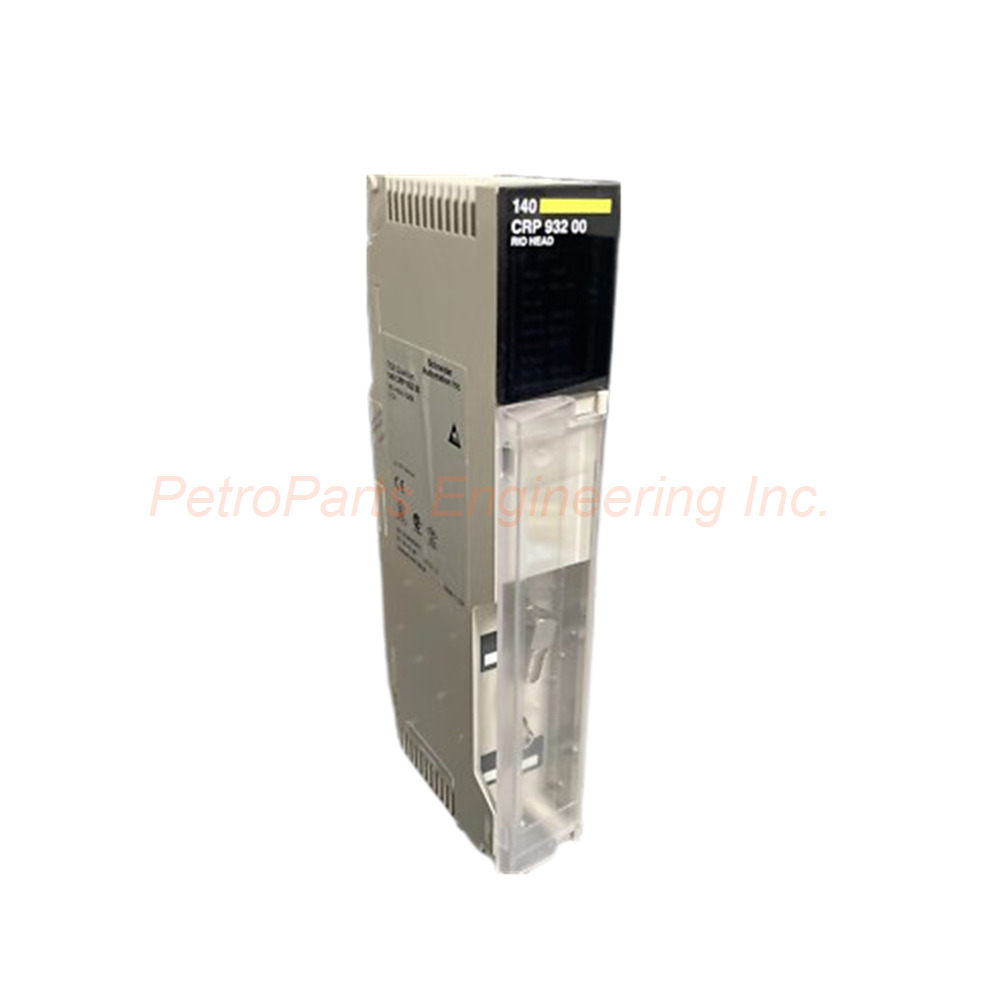

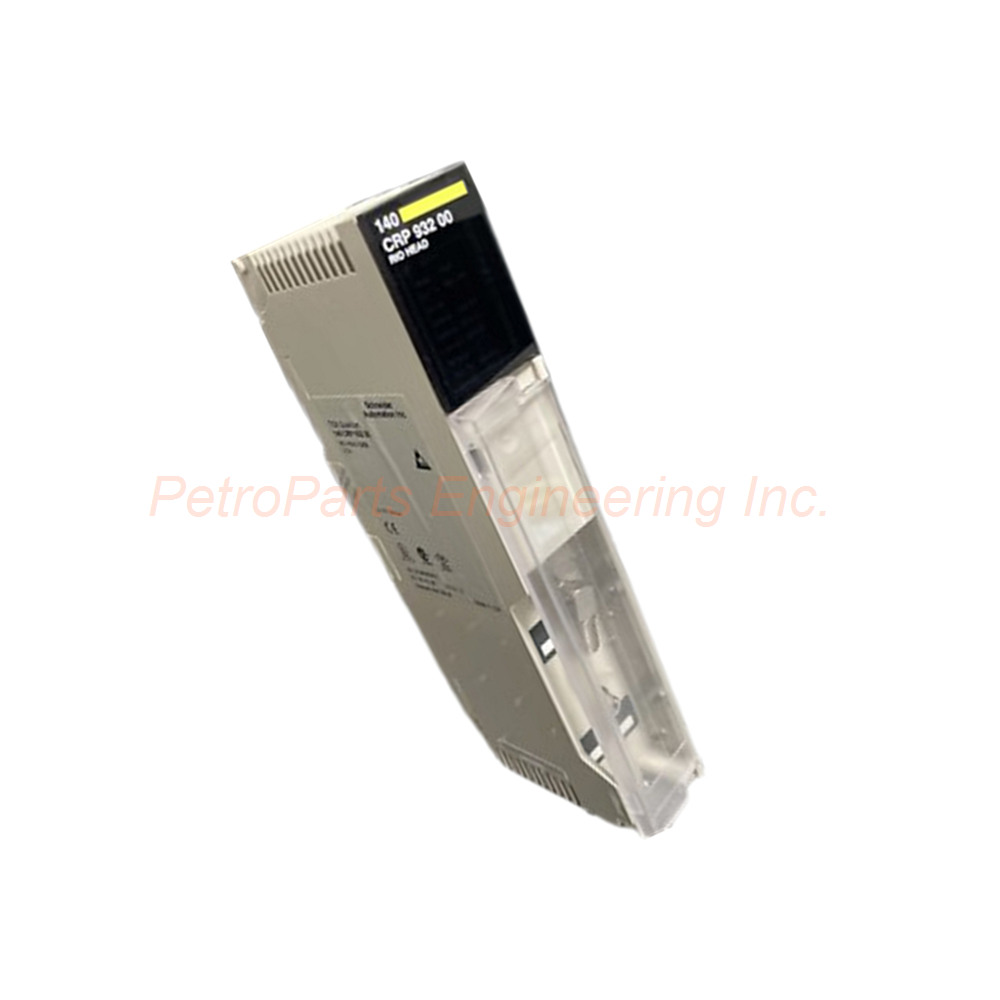

Schneider Electric 140CRP93200 RIO Head-End Adapter Module
The Schneider Electric 140CRP93200 is a RIO head-end adapter module for the Modicon Quantum automation platform. Specifically, this module features two connectors with redundant cable support. As a result, it provides reliable remote I/O communication for distributed control systems. Furthermore, it is compatible with Symax modules and Quantum 200/500/800 series. Consequently, this adapter is ideal for large-scale industrial networks.
Technical Specifications of the 140CRP93200
Network and I/O Capacity
The Schneider Electric 140CRP93200 supports a maximum of 31 drops per network. For each drop, it handles 64 inputs and 64 outputs of I/O words. Therefore, the total network capacity is substantial for large installations. The type of cable required is 75 Ohm coaxial cable.
Communication Performance
The transmission rate is 1.544 Mbit/s for high-speed data exchange. The dynamic range is 35 dB for reliable signal integrity. Moreover, the isolation voltage is 500 V DC between coaxial center and ground. Consequently, the Schneider Electric 140CRP93200 provides excellent noise immunity.
Electrical Connections
The electrical connection uses two female F-type connectors. These connectors are elbowed with redundant cable configuration. As a result, the module supports cable redundancy for fault tolerance. The bus current requirement is 750 mA for both channels. The power dissipation is 3 Watts across the 2 channels.
Diagnostics and Startup
The Schneider Electric 140CRP93200 includes comprehensive startup diagnostics. Specifically, it performs memory checks during initialization. Additionally, it runs LAN controller checks and power-up verification. Therefore, these features ensure reliable system startup and operation.
Environmental and Certification Specifications
The Schneider Electric 140CRP93200 holds FM Class 1 Division 2 certification. This allows installation in hazardous locations. Furthermore, it complies with UL 508 and CSA C22.2 No 142 standards. It also carries cUL certification for Canada.
Environmental Resistance
For electromagnetic compatibility, the resistance to electrostatic discharge is 4 kV contact per IEC 801-2. Additionally, it withstands 8 kV on air per the same standard. The resistance to electromagnetic fields is 9.1 V/m (10 V/m) from 80 to 1000 MHz per IEC 801-3.
Temperature and Humidity
The ambient air temperature for operation is 32°F to 140°F (0°C to 60°C). For storage, the range extends from -40°F to 185°F (-40°C to 85°C). The relative humidity tolerance is 95% without condensation. Consequently, the Schneider Electric 140CRP93200 operates reliably in various industrial environments. The maximum operating altitude is 5000 meters (16,404 feet).
Physical Specifications
The module format is standard for Quantum backplane compatibility. The Schneider Electric 140CRP93200 carries CE marking for European compliance. The package weight is 531.0 g (18.7 oz). Package dimensions are 31.0 x 16.5 x 5.0 cm.
Installation Guidelines for the 140CRP93200
Firstly, mount the Schneider Electric 140CRP93200 in a standard Quantum backplane. Then, connect the 75 Ohm coaxial cables to the two F-type female connectors. For redundancy, ensure both redundant cable paths are properly installed. After that, configure the network settings for up to 31 drops. Next, set the I/O allocation to 64 inputs and 64 outputs per drop. Finally, perform the startup diagnostics to verify proper operation.
Package Contents
Common FAQs for the 140CRP93200
1. What is the maximum number of drops on this RIO network?
The Schneider Electric 140CRP93200 supports up to 31 drops per network. Consequently, it handles large distributed I/O systems effectively.
2. What cable type is required for this adapter?
The Schneider Electric 140CRP93200 requires 75 Ohm coaxial cable. This ensures proper signal transmission at 1.544 Mbit/s.
3. Does this module support redundant cabling?
Yes, the Schneider Electric 140CRP93200 features two female F-type elbowed connectors with redundant cable support. Therefore, it provides fault-tolerant communication.
4. What is the I/O capacity per drop?
Each drop on the Schneider Electric 140CRP93200 supports 64 inputs and 64 outputs. This provides consistent I/O allocation across the network.
5. What certifications does this RIO adapter hold?
The Schneider Electric 140CRP93200 holds FM Class 1 Division 2, cUL, UL 508, and CSA C22.2 No 142 certifications. As a result, it is suitable for hazardous location installations.
Why Choose the Schneider Electric 140CRP93200?
In summary, this RIO head-end adapter delivers reliable remote I/O communication for Quantum systems. Firstly, the 1.544 Mbit/s transmission rate ensures fast data exchange. Secondly, the redundant cable configuration provides fault tolerance for critical applications. Thirdly, support for 31 drops with 64 I/O per drop offers excellent scalability. Finally, FM Class 1 Division 2 certification enables hazardous area deployment. Consequently, order the Schneider Electric 140CRP93200 today for your Quantum RIO network needs.
