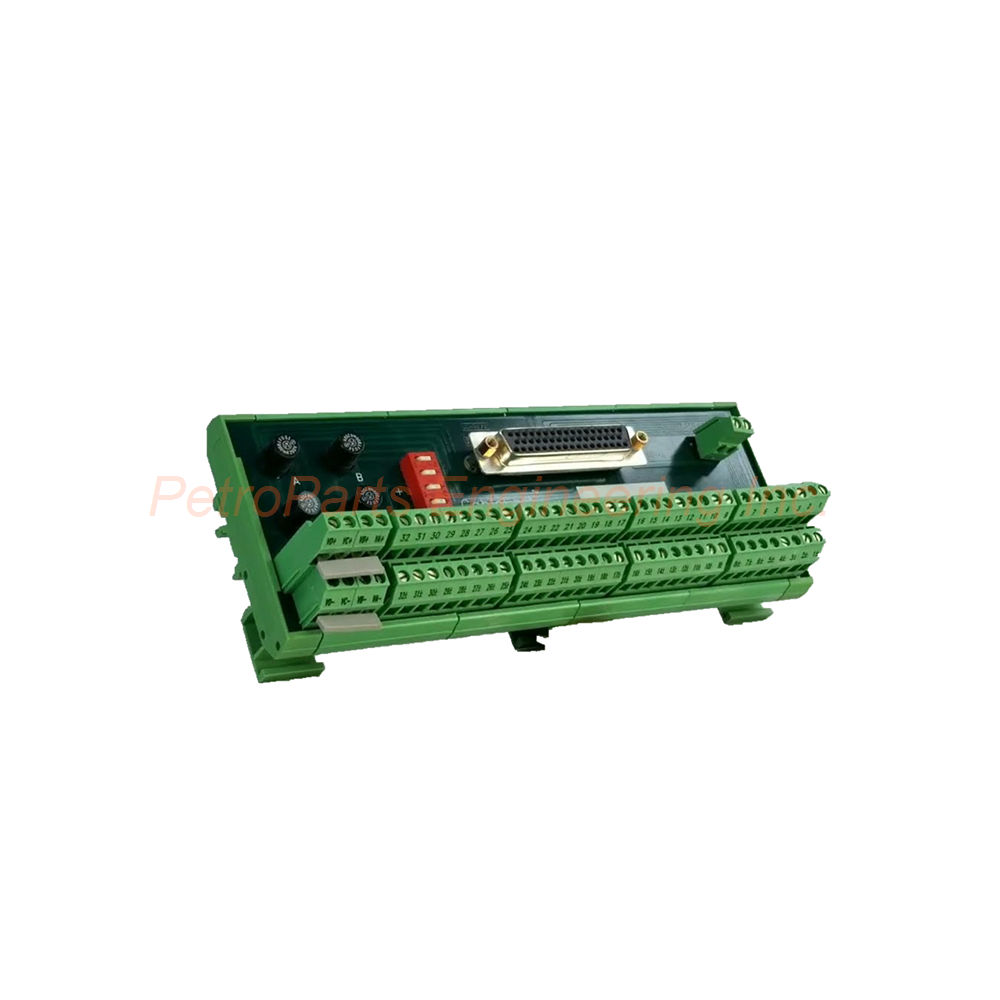

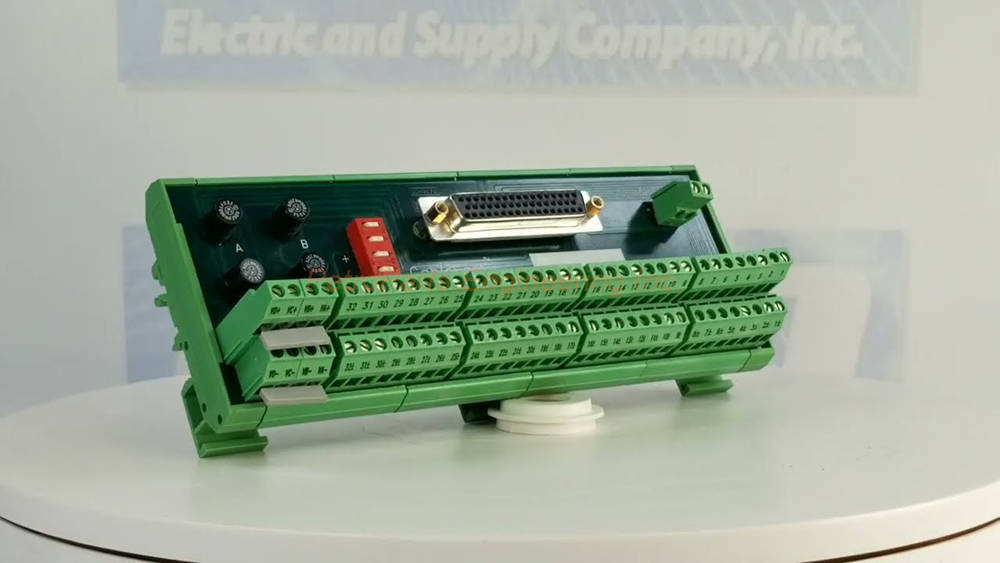

Schneider Electric 140CFD03200 CableFast Terminal Block with Fuse

The Schneider Electric 140CFD03200 is a CableFast terminal block with integrated fuses. This accessory belongs to the Modicon Quantum automation platform. Specifically, you can use it for group fusing connections on Quantum I/O modules. As a result, it provides both organized and protected I/O wiring. Furthermore, this device is manufactured in France.

Technical Specifications of the 140CFD03200

Firstly, the Schneider Electric 140CFD03200 is arranged in 4 distinct groups of 8 I/O points each. Consequently, each group provides 0.8 A of group fusing capacity. Secondly, each input channel is allocated 3 separate terminals. This design, therefore, offers great flexibility for field wiring. Finally, the terminal block is specifically designed for Quantum I/O module compatibility.

Compatible Quantum Modules

For optimal performance, the Schneider Electric 140CFD03200 works with several Quantum I/O modules. These include the 140DDI35300, 140DAI35300, and 140DAI55300. Additionally, it is compatible with the 140DAI45300 and the 140DDI85300. Consequently, always verify compatibility with your specific module before ordering.

Electrical Connection

In terms of connectivity, the Schneider Electric 140CFD03200 uses a SUB-D 50 female connector. This connector provides 50 pins for I/O signal transmission. Moreover, the terminal block uses captive screw terminals for secure wiring. Thus, it ensures reliable and stable field connections.

Mounting and Physical Specifications

Regarding installation, the mounting support is a standard DIN rail. As a result, the Schneider Electric 140CFD03200 snaps easily onto most industrial DIN rails. The total package weight is 670.0 grams (23.6 oz). For reference, the package dimensions are 27.000 x 18.000 x 10.500 cm.

Installation Guidelines for the 140CFD03200

To begin the installation, mount the Schneider Electric 140CFD03200 on a standard DIN rail. Then, ensure the DIN rail is properly grounded. After that, connect the SUB-D 50 female connector to your Quantum I/O module. Next, wire your field devices to the captive screw terminals. Importantly, always observe the 0.8A fusing limit per group. Finally, replace fuses only with the correct rating.

Package Contents

• One (1) Schneider Electric 140CFD03200 CableFast terminal block with fuses

• Captive screw terminals (pre-installed)

Common FAQs for the 140CFD03200

1. What is the fusing rating of the 140CFD03200?
The Schneider Electric 140CFD03200 provides 0.8 A group fusing connections. Specifically, the terminal block is arranged in 4 groups of 8 I/O points each.

2. Which Quantum modules work with this terminal block?
The Schneider Electric 140CFD03200 works with several modules, including the 140DDI35300, 140DAI35300, 140DAI55300, 140DAI45300, and 140DDI85300. Therefore, always verify compatibility before purchase.

3. How many terminals does each input have?
For maximum flexibility, each input on the Schneider Electric 140CFD03200 is allocated 3 terminals.

4. What type of connector does this terminal block use?
The Schneider Electric 140CFD03200 uses a SUB-D 50 female connector. Consequently, it connects directly to compatible Quantum I/O modules.

5. How is this terminal block mounted?
The Schneider Electric 140CFD03200 mounts on a standard DIN rail. As a result, it provides easy installation in control cabinets.

Why Choose the Schneider Electric 140CFD03200?

In summary, this CableFast terminal block provides organized fusing for Quantum I/O modules. Firstly, the 4-group arrangement with 0.8A fuses protects your field circuits effectively. Secondly, the SUB-D 50 connector ensures a secure module connection. Lastly, DIN rail mounting simplifies cabinet installation. Consequently, order the Schneider Electric 140CFD03200 today for your Quantum I/O wiring needs.
