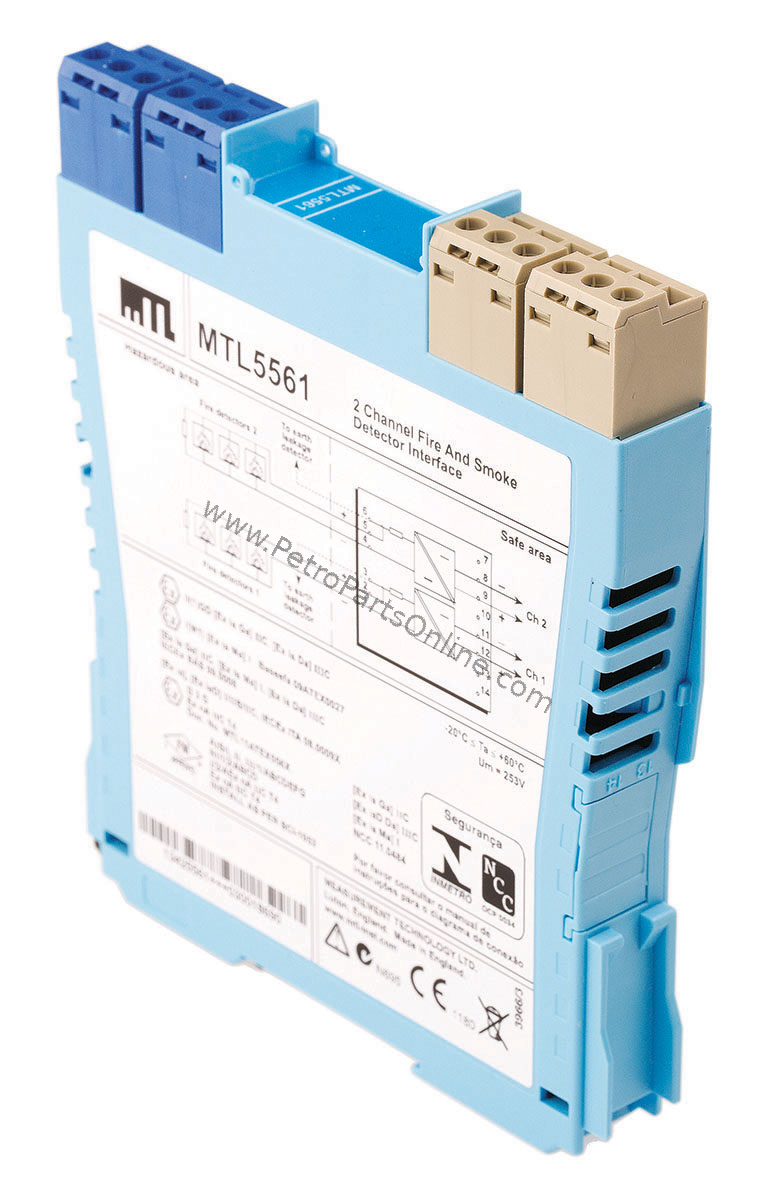

Cost-Effective Hazardous Area Fire Detection with MTL5561

When hazardous area fire and smoke detection demands reliable signal transmission, the MTL5561 from MTL Instruments delivers a loop-powered, two-channel interface that minimizes installation and operational costs. By eliminating the need for separate power supplies, this interface reduces cabling and maintenance expenses while ensuring accurate current changes upon detector activation.

Key Features & Performance Metrics

• Two fully floating, loop-powered channels for independent detector monitoring.
• Input voltage range of 6 to 30V dc accommodates various power sources.
• Current range of 1 to 40mA nominal supports standard detector outputs.
• Quiescent safe-area current below 400µA at 24V per channel minimizes standby power draw.
• Integral reverse input polarity protection prevents damage from wiring errors.
• Transfer accuracy better than 400µA at 20°C ensures precise signal reproduction.
• Response time settles within 1.5ms to 5% of final value for fast alarm detection.
• Maximum power dissipation of 0.7W at 24V and 0.9W at 30V per channel reduces energy costs.

Real-World Applications & Cost Savings

In oil and gas facilities, petrochemical plants, and other hazardous environments, the MTL5561 interfaces with conventional fire and smoke detectors located in Zone 0, IIC, T4–6 areas. By using a loop-powered design, it eliminates external power wiring, cutting installation labor and material costs. The low quiescent current of under 400µA per channel reduces ongoing energy consumption, contributing to lower total cost of ownership over the system's life.

Installation & Setup Guidance

Mount the MTL5561 in a safe-area enclosure and connect hazardous-area detectors to the two floating channels. The unit's reverse polarity protection simplifies wiring, reducing the risk of costly rework. Ensure input voltage stays within 6 to 30V dc and that the total loop current does not exceed 40mA per channel for optimal performance.

Maintenance & Reliability for Long-Term Value

Routine inspection of connections and verification of quiescent current levels help maintain the MTL5561's transfer accuracy of better than 400µA. The unit's temperature drift of less than 4µA/°C from 0°C to 60°C ensures stable operation in varying conditions, minimizing false alarms and downtime. This reliability translates into fewer service calls and extended equipment life, supporting a strong return on investment.

Common Questions About the MTL5561

Q: What is the input voltage range for the MTL5561?

A: The input voltage range is 6 to 30V dc, as specified in the product data.

Q: How many channels does the MTL5561 support?

A: It supports two fully floating, loop-powered channels for connecting fire and smoke detectors.

Q: What is the response time of the MTL5561?

A: The response time settles to within 5% of final value within 1.5ms.

Q: Does the MTL5561 include polarity protection?

A: Yes, the input circuit is protected against reverse polarity, preventing damage during installation.

Q: What is the maximum power dissipation per channel?

A: At 24V with 40mA signal, dissipation is 0.7W maximum; at 30V with 40mA signal, it is 0.9W maximum per channel.

Product Support & Availability

The MTL5561 is available from PetroPartsOnline, a trusted supplier of industrial automation and oil/gas parts. In stock and ready to ship, this interface supports efficient hazardous area fire detection systems. Contact PetroPartsOnline for current lifecycle status and ordering details.
