Technical Specifications

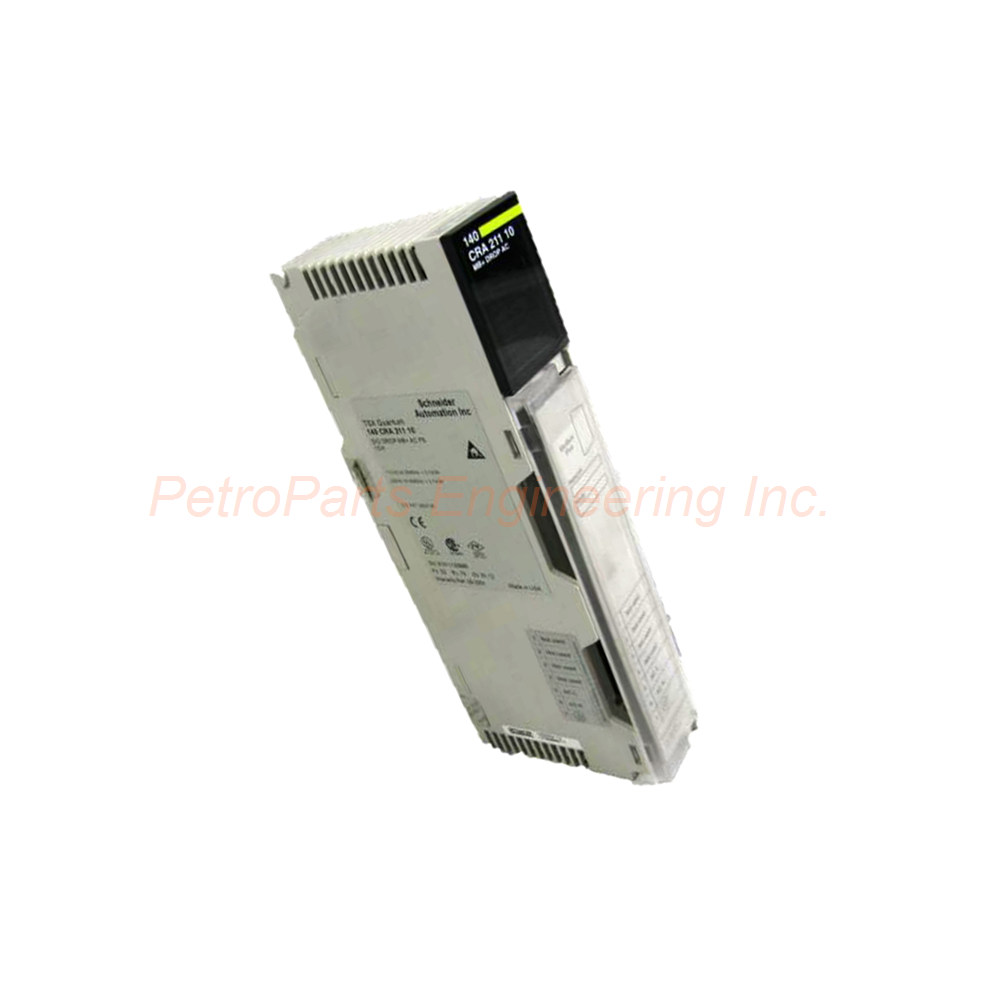

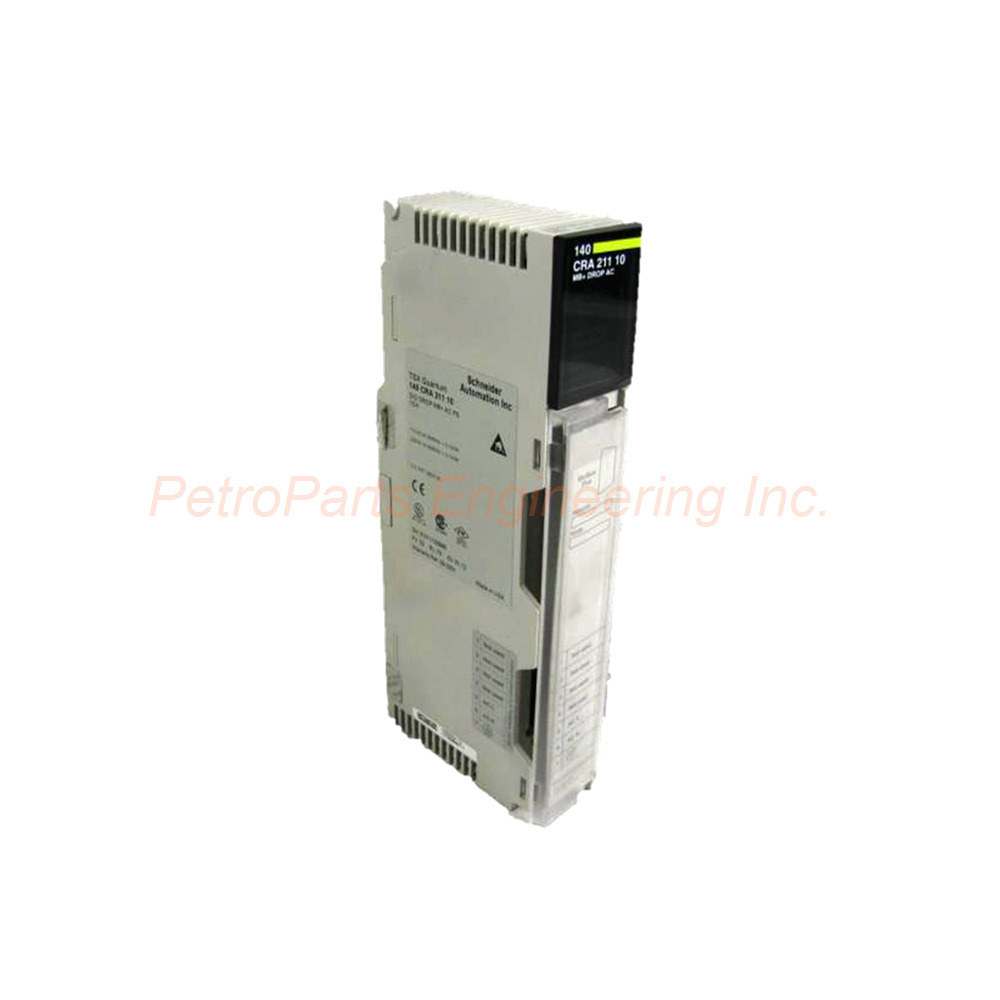

The Schneider Electric 140CRA21110 belongs to the Modicon Quantum automation platform. This product is a DIO drop interface that connects remote I/O drops to the Quantum processor. The single port design suits smaller distributed I/O applications.

Power Supply Specifications

Output Specifications

• Output Voltage: 5.1 V for internal logic power.

• Nominal Output Current: 3 A continuous.

• Minimum Load Current: 0 A for no load operation.

• Short-Circuit Protection: Included for output safety.

• Output Overvoltage Protection: Included for component protection.

I/O and Diagnostics

• I/O Words: 30 input words and 32 output words.

• Diagnostics Startup: RAM address, RAM, and Checksum verification.

• Diagnostics Run Time: RAM address, RAM, and Checksum monitoring.

• Power Dissipation: 11 W typical.

Backplane Compatibility

The 140CRA21110 works with these typical backplanes:

Physical Specifications

• Connections: Terminal block with 7 poles.

• Module Format: Standard size for Quantum racks.

• Weight: 689.0 g (24.303 oz).

• Package 1 Height: 5.0 cm (1.97 in).

• Package 1 Width: 16.5 cm (6.50 in).

• Package 1 Length: 31.5 cm (12.40 in).

Environmental Specifications

• Operating Temperature: 0°C to +60°C (32°F to +140°F).

• Storage Temperature: -40°C to +85°C (-40°F to +185°F).

• Relative Humidity: 95% without condensation.

• Operating Altitude: Up to 5000 m (16,404 ft).

• Protective Treatment: TC (Tropical Coating) for humidity resistance.

Immunity Specifications

Certifications

The 140CRA21110 holds multiple important certifications.

• UL 508 – Industrial control equipment safety.

• CSA Class 1 Division 2 – Hazardous location approval.

• DNV – Marine and offshore applications.

• C-tick – Australian EMC compliance.

• GOST – Russian certification.

Installation Guidelines

Follow these steps to install your Schneider Electric 140CRA21110 module correctly.

1. Power Down the Rack – Turn off all power to the Quantum backplane.

2. Select the Slot – Choose an available slot in the backplane.

3. Insert the Module – Slide the 140CRA21110 into the selected slot.

4. Secure the Module – Tighten the top and bottom retaining screws.

5. Connect Power – Wire 115/230V AC to the 7-pole terminal block.

6. Install the Fuse – Insert a 1.5 A fuse in the power circuit.

7. Connect I/O Cables – Attach remote I/O dropson cables to the single port.

8. Apply Power – Turn on the supply and verify module status.

Do not exceed 50 VA total power consumption. Oversized loads will activate the short-circuit protection.

Terminal Block Wiring (7 Poles)

Package Contents (No Certificates or Warranty Terms)

Your shipment for product number 140CRA21110 includes the following items:

• 1 x Schneider Electric 140CRA21110 DIO drop interface module

• 1 x 7-pole terminal block (installed)

• 1 x Installation instruction sheet (printed)

• 1 x Anti-static protective bag for storage

Note: The 1.5 A fuse is not included and must be purchased separately.

Frequently Asked Questions (FAQ)

1. What is the purpose of the Schneider Electric 140CRA21110 module?
The 140CRA21110 is a DIO drop interface for Modicon Quantum systems. It connects remote I/O drops to the main Quantum processor.

2. How many I/O words does this module support?
This module supports 30 input words and 32 output words. This provides ample capacity for distributed I/O applications.

3. What is the input voltage range for the 140CRA21110?
The supply voltage range is 85 to 276 V AC. The rated voltage is 115/230V AC for global compatibility.

4. Is the 140CRA21110 certified for hazardous locations?
Yes. The 140CRA21110 holds CSA Class 1 Division 2 certification. You can use it in hazardous industrial environments.

5. What fuse rating should I use with this module?
Use a 1.5 A fuse in the power circuit. This matches the associated fuse rating specified by Schneider Electric.

6. Can this module operate at high altitudes?
Yes. The 140CRA21110 operates at altitudes up to 5000 meters (16,404 feet). Performance remains stable at high elevations.

Why Choose This Model?

The Schneider Electric 140CRA21110 offers reliable remote I/O connectivity for Modicon Quantum systems. Its wide power range (85 to 276V AC) accepts global electrical standards without configuration changes. The single port design simplifies wiring for smaller distributed I/O applications. The 30 I/32 O word capacity handles most remote drop requirements. The CSA Class 1 Division 2 certification allows installation in hazardous areas. The broad temperature range (0°C to +60°C) suits factory floor and outdoor enclosures. Choose this 140CRA21110 for remote I/O drops in oil & gas, chemical processing, water treatment, and heavy manufacturing facilities.
