The Ultimate High-Density Universal Input Solution

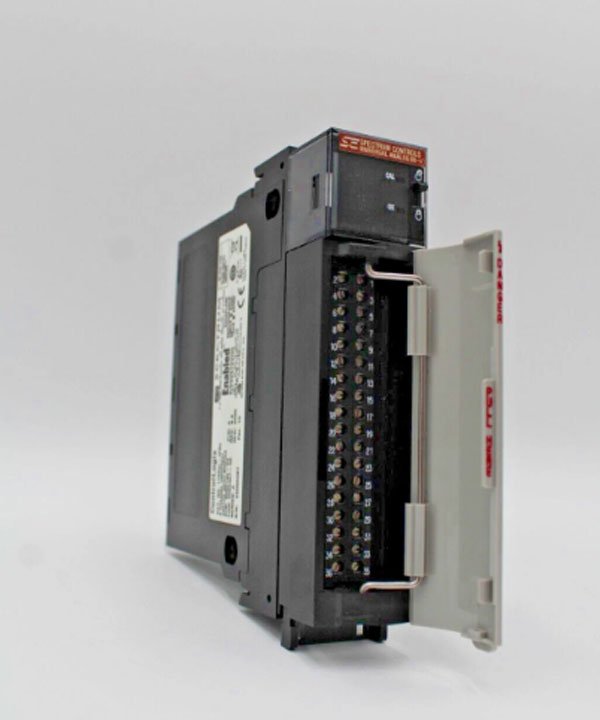

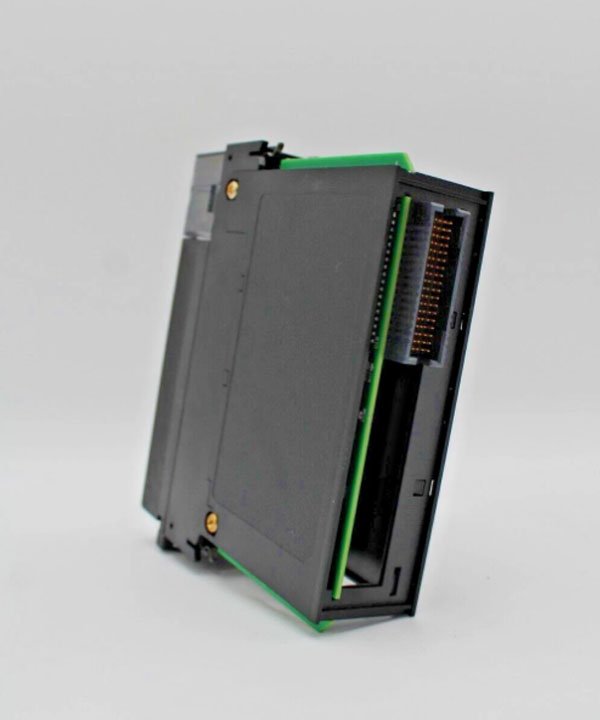

The Spectrum Controls 1756sc-IF8U is a premier universal analog input module specifically engineered for the Allen-Bradley ControlLogix platform. As an official Rockwell Automation Encompass Partner product, this module offers unparalleled flexibility by allowing users to mix and match input types on a single card. Instead of purchasing separate modules for thermocouples, RTDs, voltage, and current, engineers can consolidate all these functions into one 1756sc-IF8U. This versatility significantly reduces system costs, minimizes spare parts inventory, and optimizes rack space in complex industrial environments.

Comprehensive Technical Specifications

The 1756sc-IF8U provides high-resolution data acquisition across eight independent channels. Below are the detailed technical parameters:

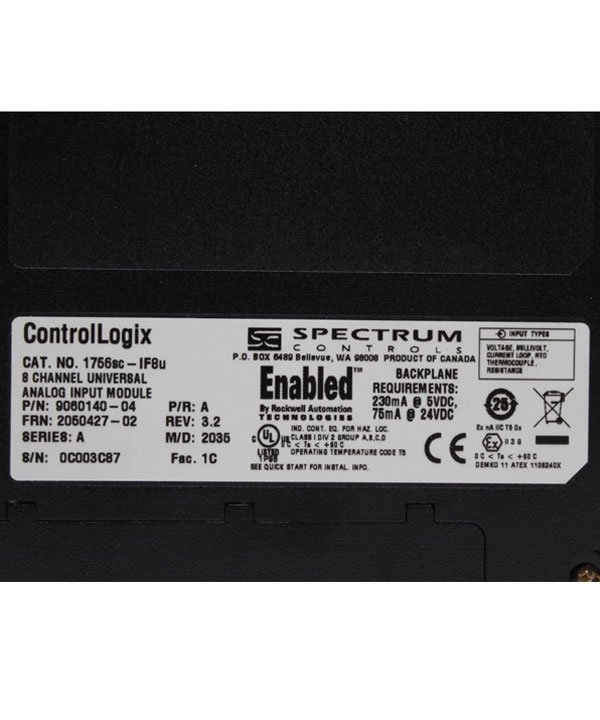

• Manufacturer: Spectrum Controls (Allen-Bradley Encompass Partner)
• Part Number: 1756sc-IF8U
• Module Type: Universal Analog Input
• Number of Channels: 8 Universal Inputs
• Resolution: 16 to 21 bits (frequency-dependent)
• Input Types Supported:
  • Thermocouple: J, K, T, B, E, R, S, N, C
  • RTD: PT385/3916, Ni618/672, NiFe518, Cu426
  • Resistance: 0-150Ω, 0-1000Ω, 0-3000Ω
  • Voltage: ±50 mV, ±100 mV, 0-5V, 1-5V, 0-10V, ±10V
  • Current: 0-20 mA, 4-20 mA
• Update Times: 10 Hz, 50 Hz, 60 Hz, 250 Hz, 1000 Hz
• Isolation:
  • 1000V DC Channel-to-Backplane
  • 1000V DC Channel-to-Chassis Ground
  • 12.5V DC Channel-to-Channel
• Backplane Current: 230 mA @ 5V Max
• Thermal Dissipation: 3 Watts
• Operating Temperature: 0°C to 60°C (32°F to 140°F)

Unmatched Versatility and Performance

The 1756sc-IF8U eliminates the need for multiple specialized I/O cards. Each of the eight channels is individually configurable, meaning a single module can simultaneously monitor a Type K thermocouple, a 4-20 mA pressure transmitter, and a PT100 RTD. This capability is particularly beneficial for pilot plants, research laboratories, and diverse manufacturing lines where sensor types vary frequently.

The module features a sophisticated Producer/Consumer networking model. Unlike traditional modules that wait for a controller poll, the 1756sc-IF8U produces data only when necessary or at defined intervals. This efficiency reduces the communication burden on the ControlLogix backplane and the CPU, ensuring faster overall system response times.

Advanced Diagnostics and Precision

Precision is critical in process automation, and the 1756sc-IF8U delivers with up to 21-bit resolution. Users can select from five different filter frequencies (10 Hz to 1000 Hz) on a channel-by-channel basis. This allows engineers to prioritize high-speed sampling for dynamic signals or high-resolution noise rejection for sensitive temperature measurements.

Furthermore, the module supports Removal and Insertion Under Power (RIUP). This feature allows maintenance teams to replace modules without shutting down the entire system, ensuring maximum process uptime. Integrated time-stamping and alarm features provide an extra layer of diagnostic depth, helping operators identify the exact sequence of events during a process fault.

Robust Electrical Protection

Industrial environments present significant electrical challenges. The 1756sc-IF8U addresses these with rigorous isolation protocols. It provides 1000V DC isolation between the field circuitry and the backplane, protecting the expensive ControlLogix CPU from field-side surges. Additionally, the 12.5V DC channel-to-channel isolation prevents ground loops and cross-talk between sensors, ensuring that each signal remains pure and accurate.

Installation and Integration

The 1756sc-IF8U fits into any standard ControlLogix chassis (1756-A4, A7, A10, A13, or A17). It integrates seamlessly with Studio 5000 Logix Designer software. Spectrum Controls provides easy-to-use configuration tools that allow users to scale data into engineering units directly on the module, simplifying the ladder logic required for the final application.
