Overview

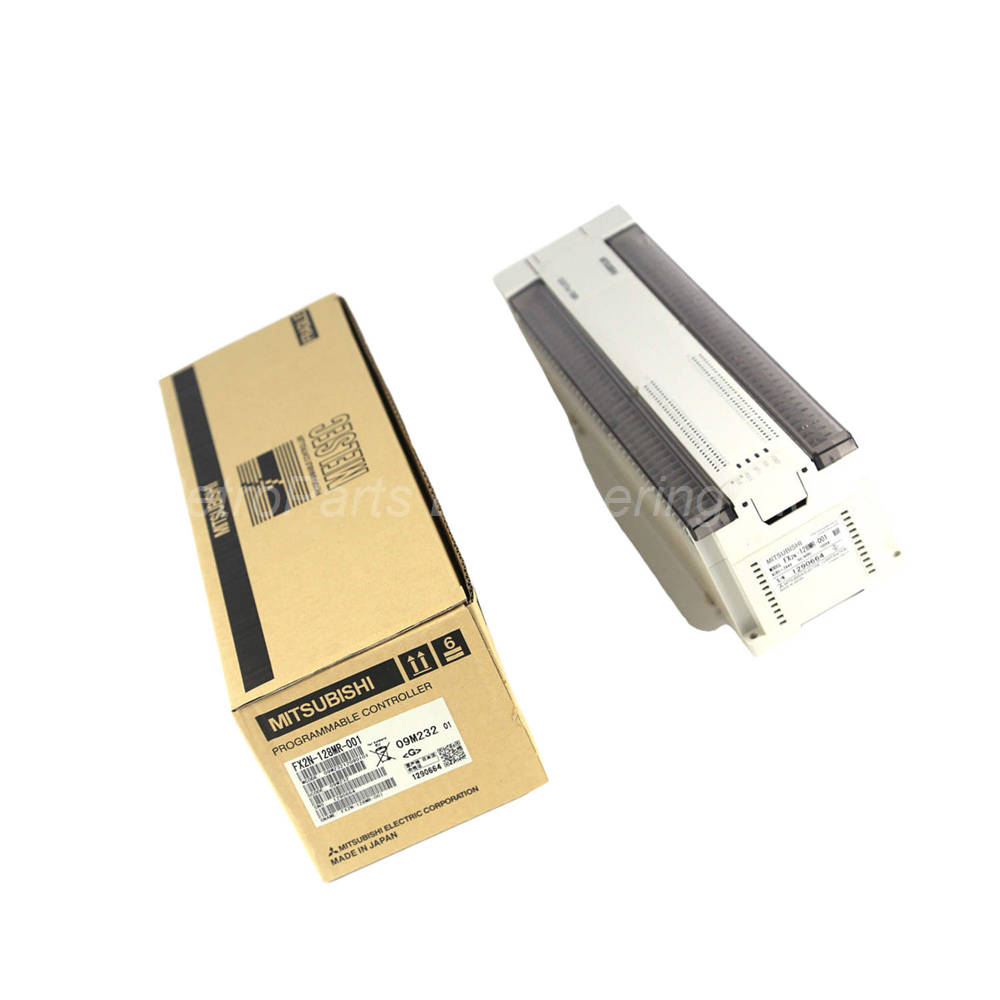

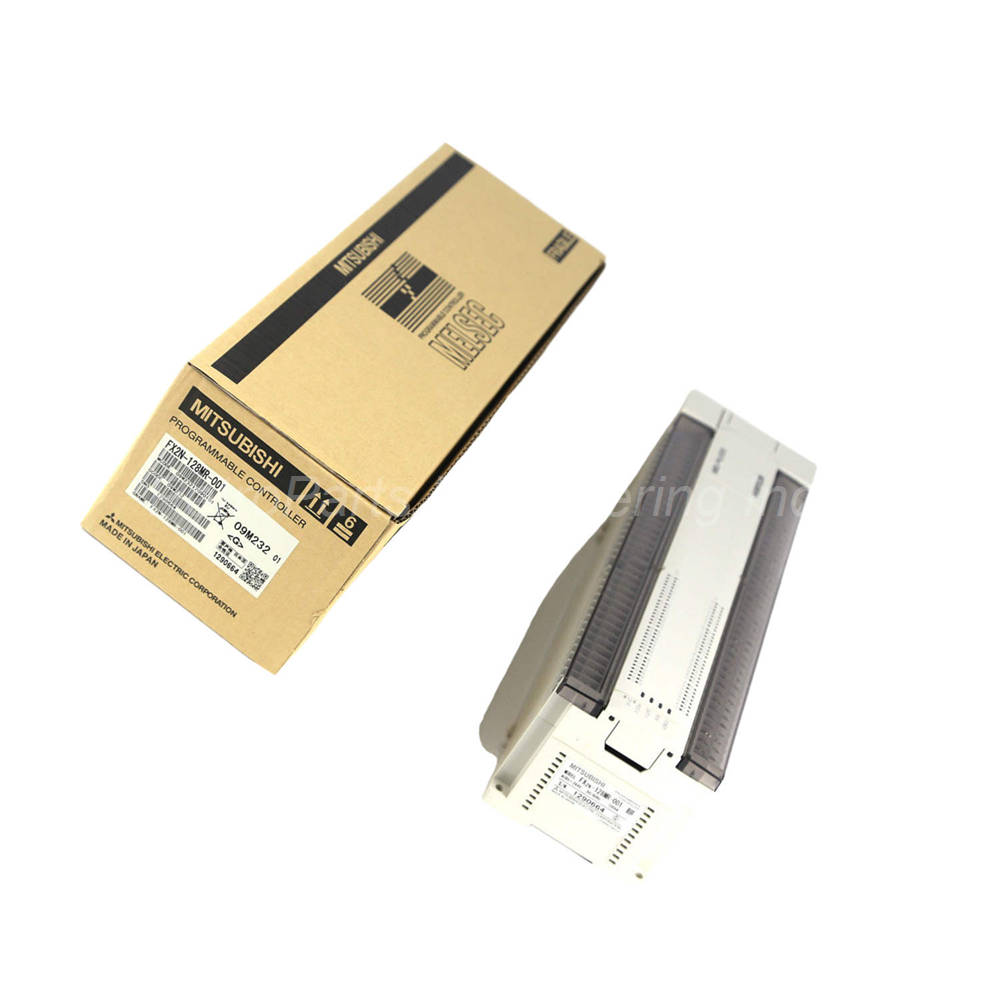

The Mitsubishi FX2N-128MR-001 is a programmable logic controller. This unit belongs to the Mitsubishi FX2N series. It provides flexible control for factory automation applications. The FX2N-128MR-001 features 128 maximum I/O points. Industrial users trust this PLC for reliable machine control.

This controller offers maximum flexibility and control capability. The FX2N series includes standard features with faster program execution. The full complement of communication functions suits global applications. The power supply meets individual needs for special function modules.

Technical Specifications

The Mitsubishi FX2N-128MR-001 has 128 maximum input and output points. The power supply voltage is DC24V. The power consumption is 100VA. The output type is relay.

I/O Configuration

• Max Input/Output Points: 128 points

• Input Points: 64 points

• Output Points: 64 points

• Output Type: Relay

Power Specifications

• Power Supply Voltage: DC24V

• Power Consumption: 100VA

• DC5V Power Consumption: 20mA

Physical Specifications

• Weight: 1.8 kg

• Dimensions (W x H x D): 350 x 90 x 87 mm

Performance Specifications

The FX2N-128MR-001 delivers fast CPU arithmetic processing. The basic instruction speed is 0.08 µs per instruction. The built-in program memory is 8K RAM. The memory can be extended to 16K maximum.

Memory and Processing

• Built-in Memory: 8K RAM (extendable to 16K)

• Basic Instruction Speed: 0.08 µs

• Control Points Range: 16 to 256 points

Key Features

The FX2N-128MR-001 provides excellent scalability and flexibility. The right side connects to I/O expansion modules. It also connects to special function modules. The basic unit has built-in 2 axis independent positioning. The maximum positioning speed is 20kHz for transistor output types.

The quick disconnect terminal block offers excellent maintainability. Users can quickly disconnect terminal blocks. Cables can be replaced easily without rewiring. The RS-422 communication function extension board is included.

The built-in CPU, power supply, and I/O reduce external components. Rich variety of functional extension boards are available. Special adapters enable high precision control. The FX2N series features have been greatly strengthened and enhanced.

Expansion Capabilities

The FX2N-128MR-001 supports extensive expansion options. CC-Link connection includes remote I/O. Maximum input and output control points reach 384 points with CC-Link. This corresponds to various field needs.

Use scalability and flexibility to expand control system applications. The FX3U series offers even higher performance. High speed processing, network communication, and analog control are supported. Advanced positioning systems are also available.

Installation Guidelines

Install the FX2N-128MR-001 in a clean, dry control panel. Mount the unit securely using the mounting holes. Provide adequate clearance for cooling and wiring.

Connect input devices to the 64 input points. Connect output loads to the 64 relay output points. Use appropriate wire gauges for current requirements. Do not exceed the 100VA power consumption rating.

Use the quick disconnect terminal blocks for easy wiring. Connect RS-422 communication for programming and monitoring. Add expansion modules on the right side as needed. Install memory extension if required.

Package Contents

• Mitsubishi FX2N-128MR-001 Programmable Controller (1 unit)

• Built-in 8K RAM memory

• RS-422 communication function extension board

• Quick disconnect terminal blocks

• Installation manual

• Programming software (sold separately)

Frequently Asked Questions (FAQ)

1. What is the maximum I/O capacity of the Mitsubishi FX2N-128MR-001?
The FX2N-128MR-001 has 128 maximum input and output points. It includes 64 input points and 64 output points. The output type is relay.

2. What is the instruction execution speed of this FX2N series PLC?
The FX2N-128MR-001 executes basic instructions in 0.08 µs. The CPU arithmetic processing is very fast. This enables high speed machine control.

3. Does the FX2N-128MR-001 support expansion modules?
Yes. The right side of the FX2N-128MR-001 connects to I/O expansion modules. It also connects to special function modules. CC-Link connection supports remote I/O up to 384 points.

4. What is the power requirement for this Mitsubishi PLC?
The FX2N-128MR-001 requires DC24V power supply. Power consumption is 100VA. DC5V power consumption is 20mA.

5. What is the built-in memory capacity of the FX2N-128MR-001?
The built-in memory is 8K RAM. This can be extended to 16K maximum. The flash memory cartridge supports program transfer.
