Overview

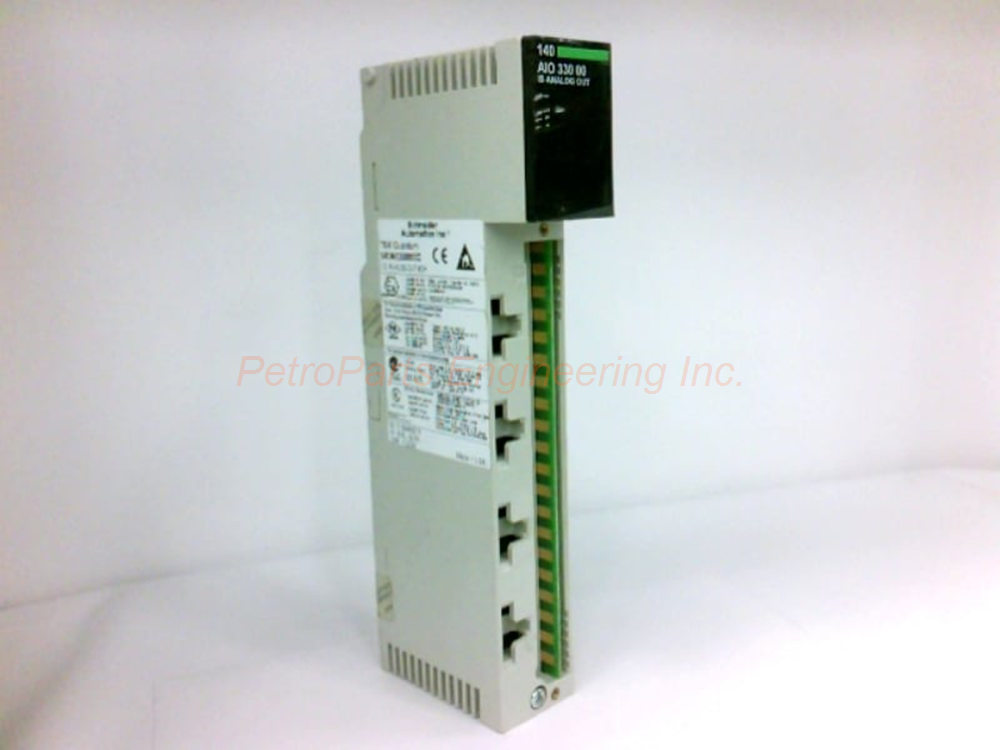

The Schneider Electric 140AIO33000 is an intrinsically safe analog output module for the Modicon Quantum series. This unit belongs to the Modicon Quantum automation platform. Specifically, it provides 8 analog output channels for hazardous area applications. The 140AIO33000 operates in conjunction with devices for Zone 20, 21, or 22 environments. For this reason, industrial users trust this module for safety-critical installations.

Moreover, this intrinsically safe module carries ATEX and FM certifications. Consequently, it suits oil refineries, chemical plants, and grain handling facilities. Additionally, the module features internal fuse protection and rapid setting time of just 1 ms.

Product Specifications

Designed for hazardous location analog control, the 140AIO33000 serves as an intrinsically safe output module. Its primary function converts digital values from the Quantum CPU to analog current signals for field devices.

Main Specifications

• Range of Product: Modicon Quantum automation platform

• Product Type: Intrinsically safe analog output module

• Analog Output Number: 8

• Module Format: Standard

• Product Destination: In conjunction with products for Zone 20, 21, or 22

Software Compatibility

• Concept: V2.2 and above

• ProWORX: Supported

• Unity Pro: Supported

Analog Output Specifications

The 140AIO33000 supports multiple output ranges for flexible field device compatibility. Therefore, users can select the most suitable range for their transmitters and actuators.

Output Ranges and Resolution

• 0 to 20 mA: 0 to 20000 points

• 0 to 25 mA: 0 to 25000 points

• 4 to 20 mA (15 bits): 0 to 16000 points

• 4 to 20 mA (15 bits): 0 to 4095 points

Performance Specifications

• Maximum Loop Resistance: 500 Ohm

• Absolute Accuracy Error: ±0.2% of full scale at 25°C (77°F)

• Accuracy Drift: 40 ppm/°C (≤ 70 ppm/°C maximum)

• Linearity: ±1 LSB

• Update Time: 4 ms

• Setting Time: 1 ms to ±0.1% of final value

Protection and Safety Features

The 140AIO33000 includes multiple protection mechanisms for hazardous area compliance. As a result, field device failures do not compromise intrinsic safety.

Protection Specifications

• Protection Type: Internal fuse

• Fault Type Detection: Open circuit detection (4 to 20 mA range)

• Hot Swapping Fallback: Not allowed per intrinsic safety standards

• Isolation (Channels to Bus): 1780 Vrms AC for 60 seconds

Power Specifications

The Schneider Electric 140AIO33000 has moderate power requirements. Consequently, system power budgeting must account for the 2.5 A bus current draw.

Electrical Specifications

• Bus Current Requirement: 2.5 A

• Power Dissipation: 12.5 W

Hazardous Area Certifications

The 140AIO33000 carries multiple intrinsically safe certifications for global installation. For this reason, it suits the most demanding hazardous location applications.

Markings and Certifications

• CE: Conforms to European requirements

• II1 G/D-EEx ia IIC: ATEX intrinsically safe certification

• SIRA 02ATEX2345X: Specific ATEX certificate number

• Hazardous Location Class 1, Division 1, Groups A, B, C: FM certification

• FM Class 1 Division 2: Additional FM rating

• C-Tick: Australian compliance

ATEX Directives

• Directive ATEX 94/9/EC: Compliant

• Dust Zone: Outside zone (module mounted outside hazardous dust zone)

Environmental Specifications

The 140AIO33000 operates reliably in diverse industrial environments. Furthermore, its wide temperature range suits global installation sites.

Temperature Ranges

• Operating: 0°C to 60°C (32°F to 140°F)

• Storage: -40°C to 85°C (-40°F to 185°F)

Other Environmental Ratings

• Relative Humidity: 95% without condensation

• Operating Altitude: ≤ 5000 m (16404 ft)

Electromagnetic Compatibility

• ESD Resistance: 4 kV contact, 8 kV on air (IEC 801-2)

• EM Field Resistance: 9.1 V/yd (10 V/m) at 80-2000 MHz (IEC 801-3)

Standards and Certifications

The 140AIO33000 meets rigorous international safety standards. Therefore, it can be installed in various regulated industries worldwide.

Standards

• CSA C22.2 No 142

• UL 508

• EN 50020 (Electrical apparatus for potentially explosive atmospheres)

• EN 50014 (General requirements for electrical apparatus)

• EN 50039 (Intrinsically safe electrical systems)

• EN 50281-1-1 (Electrical apparatus for use in presence of combustible dust)

• EN 50284 (Special requirements for Group II, Category 1G apparatus)

Physical Specifications

The Schneider Electric 140AIO33000 has a standard module format. For this reason, it fits easily into Quantum racks without special adapters.

Dimensions and Weight

• Net Weight: 0.3 kg (0.7 lb)

• Gross Weight: 0.91 kg (2.00 lbs)

• Module Format: Standard

Key Features

The 140AIO33000 provides eight intrinsically safe analog outputs for hazardous area control. For example, the 4 to 20 mA range suits most industrial transmitters and positioners. Meanwhile, the 0 to 20 mA and 0 to 25 mA ranges offer additional flexibility for specialized devices.

Accuracy is exceptional on this module. Specifically, absolute accuracy reaches ±0.2% of full scale at 25°C. Likewise, accuracy drift is only 40 ppm/°C (maximum 70 ppm/°C). As a result, output signals remain stable across wide temperature variations.

Response time is remarkably fast. For instance, update time is just 4 ms for all eight channels. Similarly, setting time reaches ±0.1% of final value within 1 ms. Consequently, this module suits high-speed analog control applications.

Intrinsic safety compliance allows direct connection to hazardous area devices. The module carries ATEX II1 G/D-EEx ia IIC certification for Zone 0, 1, and 2 gas environments. Additionally, FM Class 1 Division 1 Groups A, B, C certification covers North American hazardous locations. The SIRA 02ATEX2345X certificate number provides traceable compliance.

Internal fuse protection prevents damage from output overloads. The module also detects open circuit conditions on 4 to 20 mA loops. However, hot swapping is not permitted per intrinsic safety standards. Therefore, power must be removed before installing or removing this module.

1780 Vrms AC isolation between channels and the bus ensures operator safety. This high isolation voltage prevents hazardous energy from reaching the control room. The module also conforms to EN 50020 and EN 50014 for electrical apparatus in explosive atmospheres.

Installation Guidelines

To install the 140AIO33000, first remove power from the Quantum rack. Then insert the module into a standard Quantum slot. After that, push firmly until it seats completely in the backplane. Secure the module with the retaining screws.

Connect field devices using approved intrinsically safe wiring methods. Maintain proper segregation between intrinsically safe and non-intrinsically safe circuits. For 4 to 20 mA loops, ensure load resistance does not exceed 500 Ohms. Above all, follow ATEX or FM installation requirements for your specific hazardous area.

Configure the module using Concept V2.2 (or higher), ProWORX, or Unity Pro software. Select the appropriate output range for each channel. Set the output scaling to match your field device requirements. Finally, apply power and verify output signals with a calibrated current meter.

Package Contents

• Schneider Electric 140AIO33000 Intrinsically Safe Analog Output Module (1 unit)

• Factory-installed terminal block

• Installation manual

• ATEX/FM certification documentation

Frequently Asked Questions (FAQ)

1. How many analog outputs does the Schneider 140AIO33000 have?
The 140AIO33000 provides 8 analog output channels. Each channel can be configured independently for 0-20 mA, 0-25 mA, or 4-20 mA ranges. Update time is 4 ms for all channels.

2. What is the accuracy of the 140AIO33000?
Absolute accuracy is ±0.2% of full scale at 25°C (77°F). Accuracy drift is 40 ppm/°C (maximum 70 ppm/°C). Linearity is ±1 LSB.

3. What hazardous area certifications does the 140AIO33000 hold?
The 140AIO33000 carries ATEX II1 G/D-EEx ia IIC certification (SIRA 02ATEX2345X). It also holds FM Class 1 Division 1 Groups A, B, C and FM Class 1 Division 2. These certifications permit installation in Zone 0, 1, or 2 gas environments.

4. Can I hot swap the 140AIO33000 module?
No. Hot swapping is not allowed per intrinsic safety standards. Power must be removed from the rack before installing or removing this module. This requirement maintains intrinsic safety barriers.

5. What is the maximum loop resistance for the 140AIO33000?
Maximum loop resistance is 500 Ohms. Setting time is 1 ms to ±0.1% of final value. Bus current requirement is 2.5 A with 12.5 W power dissipation.
