Honeywell 900G32-0001 32 Ch Digital Input Module HC900
Introduction:
Reliable 32-channel digital input module for Honeywell HC900. 24VDC operation with Class I Div 2 safety rating.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview

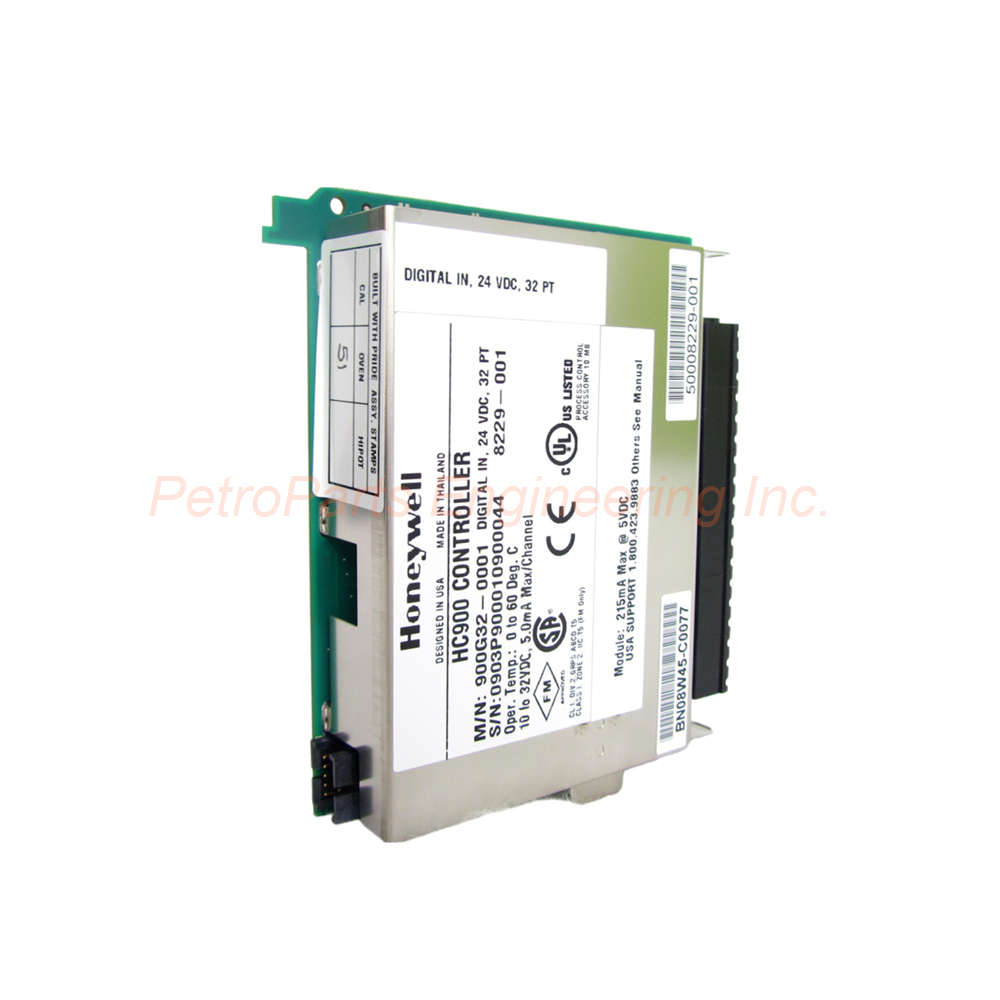

The Honeywell 900G32-0001 is a high-density digital input module. This card serves the Honeywell HC900 controller platform. It provides 32 channels for 24 VDC digital signals. The module suits industrial automation and process control systems. You can rely on this input card for stable field device connections.
Series and Product Classification
Series: HC900 Controller Series
Product Type: Digital Input Module
Product Classification: I/O Modules
Current Price (RMB): ¥4,850.00
Gross Weight: 0.45 kg
Technical Specifications
This section details the core parameters of the Honeywell 900G32-0001.
Input Type: Digital, 32 channels per module
Nominal Voltage: <span style="color:#e67e22;">24 VDC</span>
Operating Voltage Range: <span style="color:#e67e22;">10 to 32 VDC</span>
Current Draw per Channel: 5.0 mA maximum
Module Current Draw: 215 mA maximum at 5 VDC
Operating Temperature: 0 to 60 degrees Celsius
Board Material Rating: 94V-0 flame retardant standard
Assembly Number: 50008229-001 Rev C
PCB Number: 50008228-001
Environmental and Safety Certifications
The 900G32-0001 meets strict industrial safety standards. These ratings ensure safe use in hazardous locations.
Class I, Div 2, Groups A,B,C,D T5
Class I, Zone 2, Group IIC T5 (FM Only)
Suitable for non-incendive field wiring
The module handles typical industrial electrical noise. Its design ensures stable data acquisition for your HC900 system. Always verify the ambient temperature before installation.
Installation Guide
Follow these steps to install the Honeywell 900G32-0001 correctly.
Power Down: Disconnect power from the HC900 rack first.
Slot Selection: Choose an empty I/O slot in the chassis.
Alignment: Slide the card along the plastic guide rails.
Seating: Push firmly until the top and bottom latches click.
Wiring: Connect 24 VDC field devices to the terminal block.
Labeling: Mark each channel for easy future maintenance.
The module requires no external loop power for signal reading. Use copper conductors only for field wiring. Tighten terminal screws to 0.5 Nm maximum torque.
Package List
The package includes the following physical items.
Honeywell 900G32-0001 module (1 piece)
Standard front panel with latch (attached)
Product label with revision C mark
Note: No terminal block is included with this module. You must order the matching Honeywell termination assembly separately.
Frequently Asked Questions (FAQ)
1. Can I use the 900G32-0001 with a non-Honeywell PLC?
No, the Honeywell 900G32-0001 works exclusively with the HC900 controller. Its backplane communication protocol is proprietary to Honeywell.
2. What is the maximum input frequency for this digital card?
The 900G32-0001 handles standard DC ON/OFF signals. It is not designed for high-speed counting. For pulse inputs above 50 Hz, use a dedicated counter module.
3. Does this module support hot-swapping in a live rack?
No, the Honeywell 900G32-0001 does not support hot swapping. You must power down the entire HC900 chassis before removal or insertion.
4. What happens if I apply 120 VAC to a channel?
Applying 120 VAC will permanently damage the 900G32-0001. The module accepts only 10 to 32 VDC signals. Always double-check your field wiring before power-up.
5. How do I check if my Rev C board is faulty?
Use the HC900 control builder software. Monitor the input status table for each channel. A constant 0 or 1 with no field change indicates a potential input failure on the 900G32-0001.
