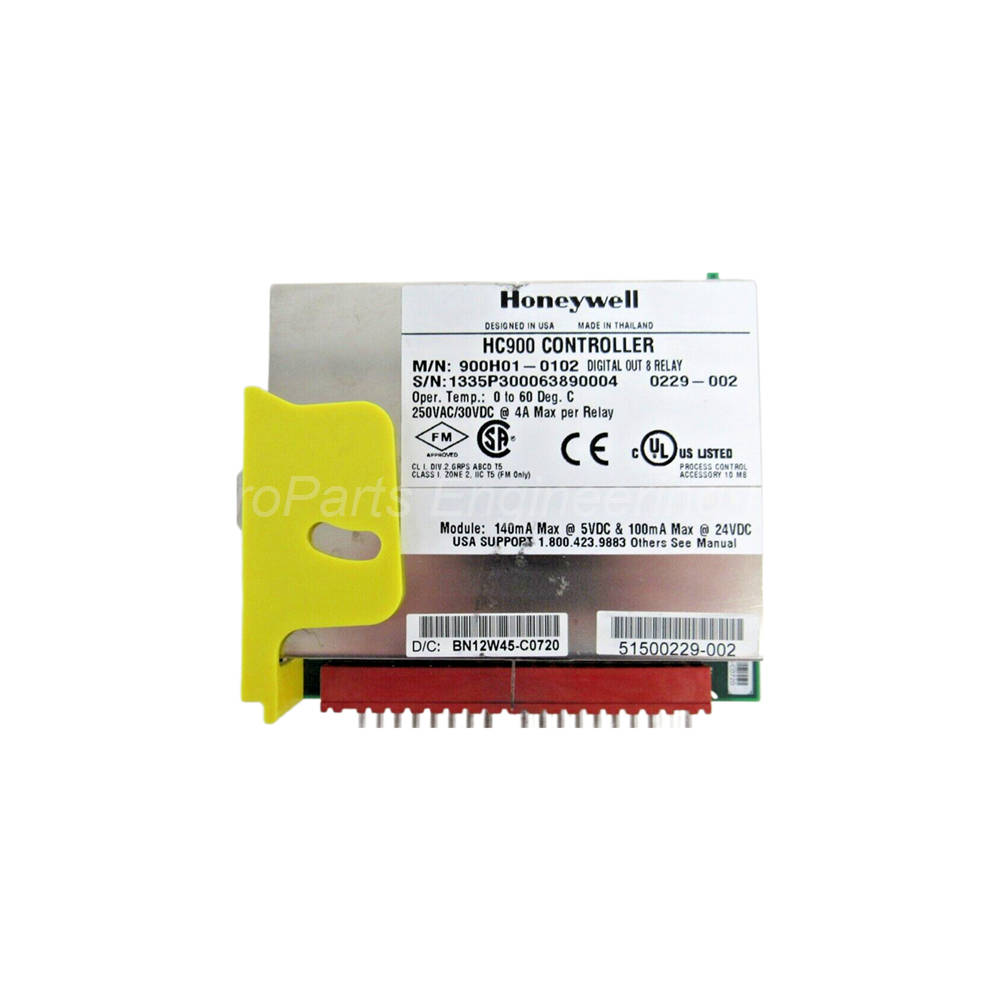

Honeywell 900H01-0102 Digital Output Module Overview

The Honeywell 900H01-0102 is a robust digital output module. It belongs to the trusted Series 900 I/O family. This module provides 8 point relay outputs for field devices. Each relay supports both AC and DC loads. The Honeywell 900H01-0102 handles high inrush currents safely. It suits industrial automation and process control applications.

Technical Specifications of 900H01-0102

Output Type: Digital relay output, form A (SPST-NO).

Number of Points: 8 isolated points per module.

Maximum Switching Voltage: [Color: Red] 250 VAC [/Color] and [Color: Red] 30 VDC [/Color] .

Maximum Current Per Relay: [Color: Red] 4 AMPS [/Color] (resistive load).

Contact Rating: 4 A at 250 VAC or 4 A at 30 VDC.

Inrush Current Support: Up to 15 A for 10 milliseconds.

Isolation: 1500 VAC between field and logic.

Surge Suppression: No internal snubber (external recommended).

Response Time: Less than 10 milliseconds (on to off).

Operating Temperature Range: -20°C to +70°C.

Storage Temperature Range: -40°C to +85°C.

Relative Humidity: 5% to 95% non-condensing.

Vibration Resistance: 2g at 10-500 Hz.

Shock Resistance: 30g for 11 milliseconds.

Agency Approvals: CE, UL, cUL.

Application Scenarios for Honeywell 900H01-0102

This module controls AC contactors and solenoid valves. It also drives pilot lights and small motors. The Honeywell 900H01-0102 works with PLC and DCS systems. Use it for on/off control of pumps or fans. It fits HVAC, packaging, and material handling systems. The relay outputs tolerate noisy industrial environments.

Installation Guidelines for 900H01-0102

First, disconnect power before installing the module. Then mount the module in a Series 900 chassis or rack. Avoid wiring high voltage with low voltage in same conduit. Use copper wires with 14-22 AWG gauge. Torque terminals to 0.5 Nm (4.4 lb-in). Connect external surge suppression for inductive loads. Verify the backplane provides enough 5 VDC power. Label each relay output clearly for maintenance.

Package List for 900H01-0102 Output Module

• One Honeywell 900H01-0102 output module

• One 18-position removable terminal block (plug-in type)

• One module labeling strip (blank)

• Two mounting screws (M3 size)

• One product quick start guide sheet

Common FAQs about the Honeywell 900H01-0102

Q1: Can the 900H01-0102 switch 220 VAC motors directly?

Yes, but only for small motors under 4 AMPS. For larger motors, add an external contactor. The relay contacts support 250 VAC resistive loads.

Q2: What happens if I exceed 4 AMPS per relay on the 900H01-0102?

The relay contacts will overheat and weld shut. You might see permanent damage to the module. Always respect the 4 AMPS maximum rating.

Q3: Does the Honeywell 900H01-0102 work with non-Honeywell PLCs?

Yes, if the PLC uses a standard backplane protocol. However, we recommend testing compatibility first. The module is optimized for Honeywell Series 900 systems.

Q4: Why does my relay stay ON when I command OFF?

Inductive loads create a voltage spike. This spike can keep the relay latched. Install a flyback diode for DC loads or an RC snubber for AC loads.

Q5: How do I verify if each point works on the 900H01-0102?

Use a multimeter to check continuity across the COM and NO terminals. Apply a logic "1" from the CPU. You should hear the relay click each time.
