GE Fanuc IC755CSW07CDACA Quickpanel Capacitive Terminal

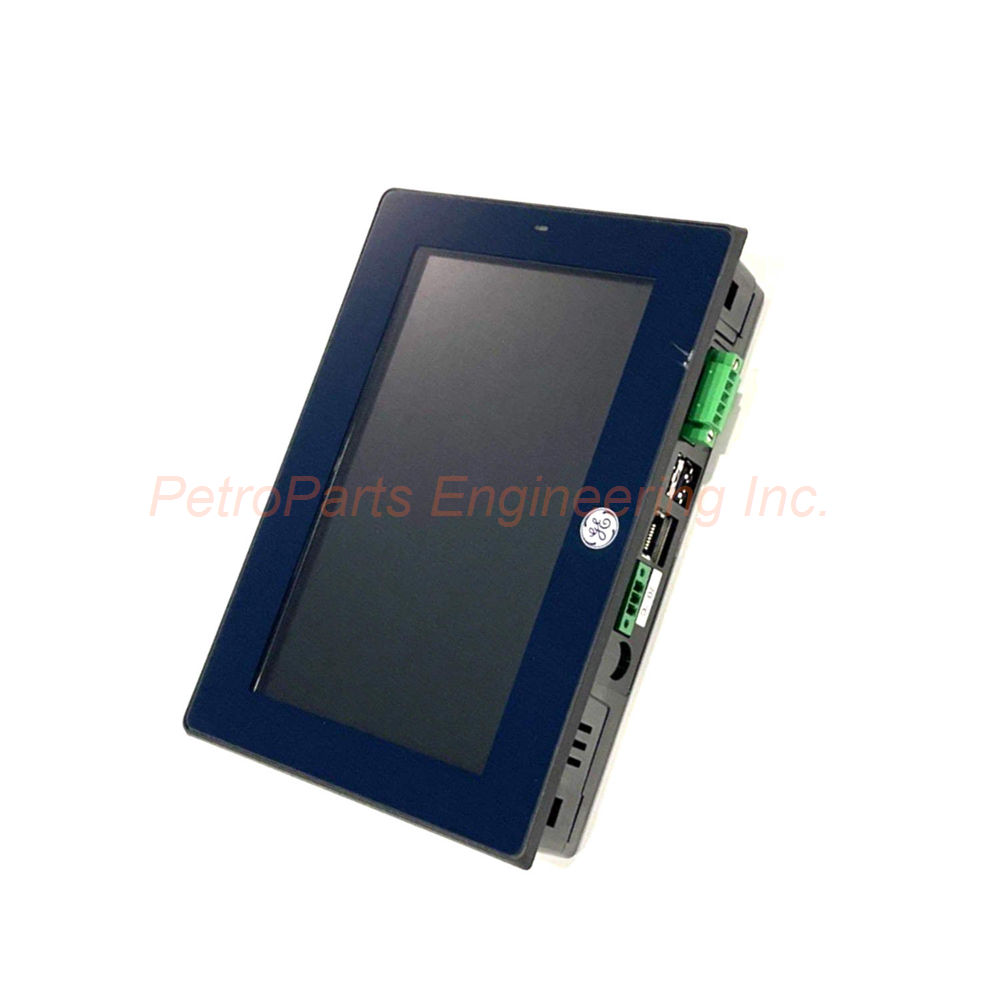

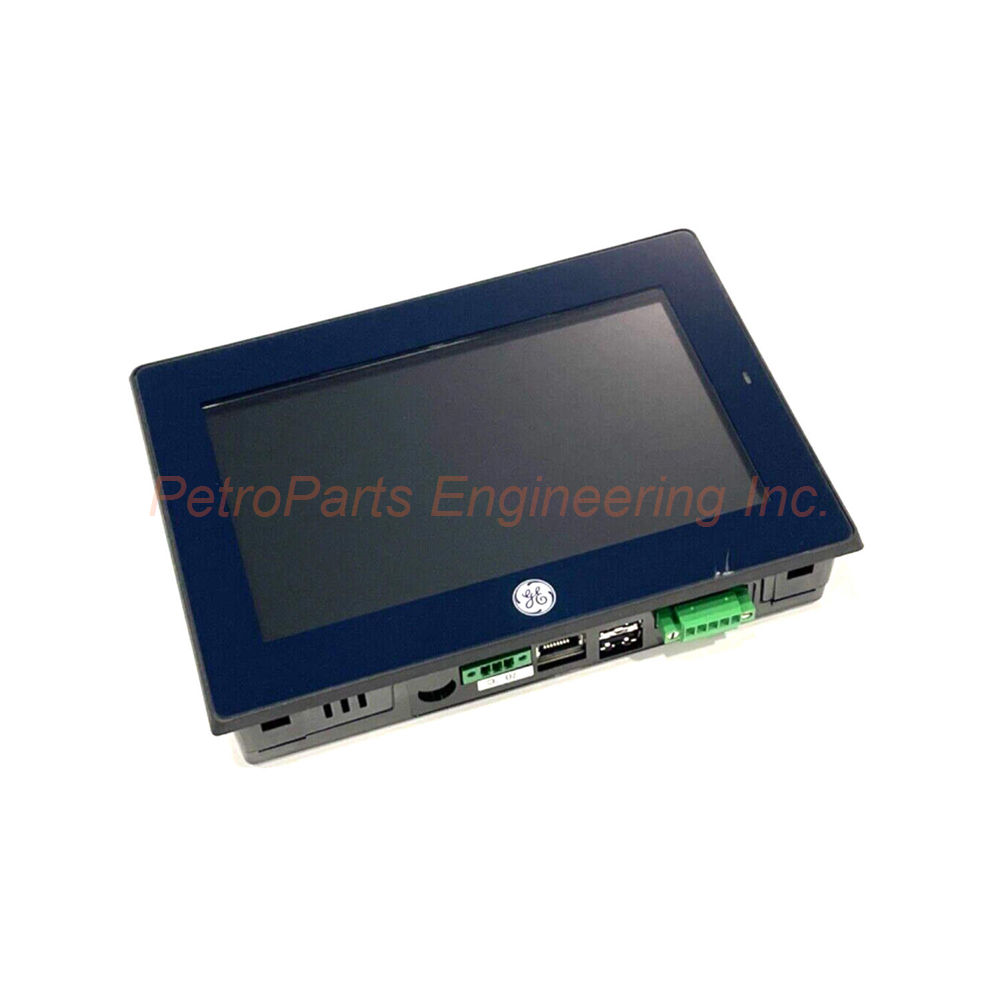

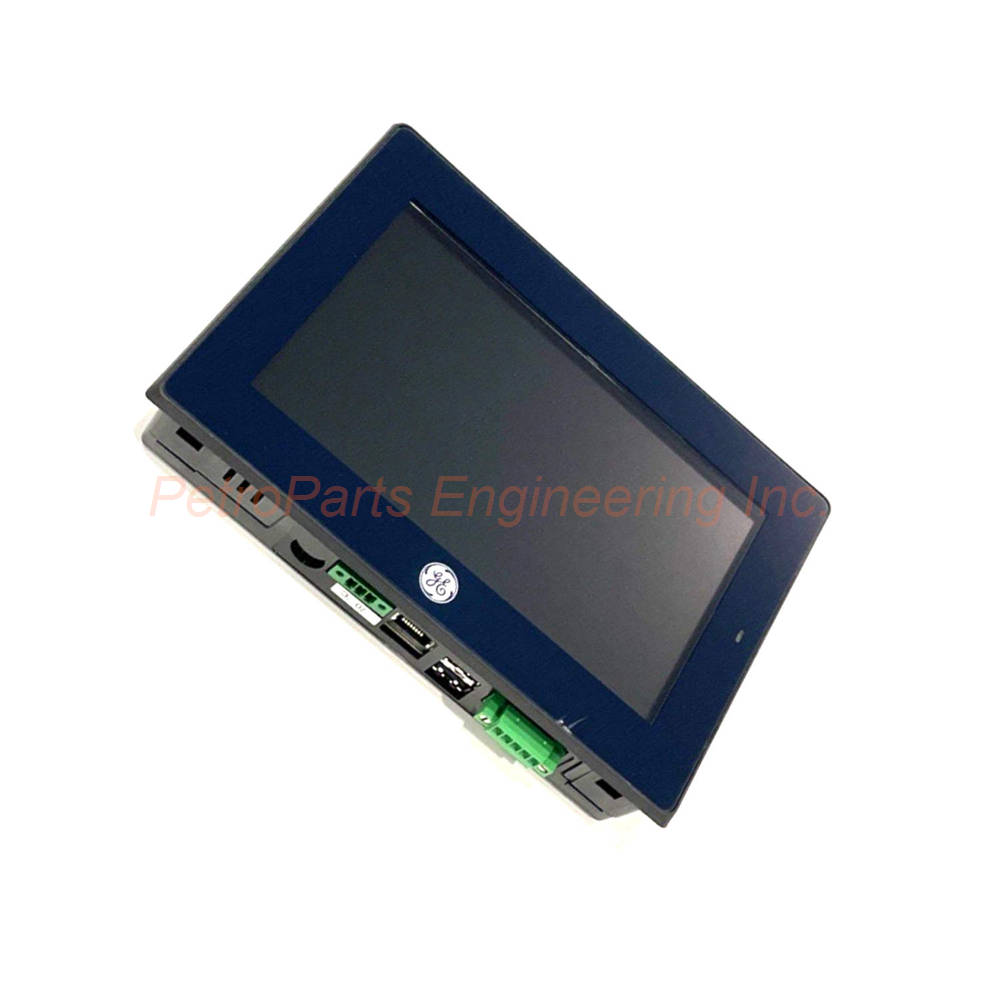

The GE Fanuc IC755CSW07CDACA is a Quickpanel capacitive operator terminal. This unit features a 7-inch TFT capacitive touchscreen. You can use it for industrial human-machine interface applications. The terminal is cost-effective and compatible with third-party tools. It offers high performance with enhanced display capabilities.

Technical Specifications of the IC755CSW07CDACA

The GE Fanuc IC755CSW07CDACA has a 7-inch TFT capacitive screen. The display resolution is 800 x 480 pixels. The screen supports multi-touch control for modern operation. It is fully touch-sensitive for easy operator input. The enhanced display capabilities provide clear visuals.

Processor and Memory

The processor is an MX535 running at 1 GHz. This is based on ARM A8 architecture. The GE Fanuc IC755CSW07CDACA processor supports both media and vector floating point. It can easily display both 2D and 3D graphics. RAM is 512 MB of DDR2 type for smooth operation.

Communications Ports

The GE Fanuc IC755CSW07CDACA includes an RJ-45 10/100 Base T Ethernet port. This provides network connectivity for industrial systems. An RS-232 terminal block is present for serial communication. Two Type-A USB ports are available for peripheral devices. You can connect a mouse, keyboard, or other USB devices.

Power Specifications

The terminal is powered with a 24 Volts DC power source. Power consumption is 15 Watts for efficient operation. The GE Fanuc IC755CSW07CDACA uses natural convection cooling. No fans are required for thermal management.

Expansion and Audio

An SDHC memory expansion slot supports external storage. The GE Fanuc IC755CSW07CDACA allows memory expansion as needed. Min In and Line Out audio ports are present. These enable audio input and output functionality.

Status Indicators and Mounting

LED indicators help alert operators for different events. The GE Fanuc IC755CSW07CDACA uses a mounting gasket for easy installation. The terminal is plug and play compatible for quick setup.

Environmental and Certification

The ambient temperature should not exceed 55°C for regular operation. The GE Fanuc IC755CSW07CDACA meets ATEX, CE, and EN standards. These certifications ensure suitability for various industrial environments.

Installation Guidelines for the IC755CSW07CDACA

Mount the GE Fanuc IC755CSW07CDACA using the included mounting gasket. Ensure the ambient temperature stays below 55°C. Connect 24V DC power with appropriate current rating. Use SDHC cards for memory expansion if needed. Connect peripheral devices via USB ports as required. Allow natural convection cooling with adequate clearance.

Package Contents

• One (1) GE Fanuc IC755CSW07CDACA Quickpanel capacitive terminal

• Mounting gasket and panel mounting hardware

• Power connector and quick start guide

Common FAQs for the IC755CSW07CDACA

1. What is the display size and type?
The GE Fanuc IC755CSW07CDACA has a 7-inch TFT capacitive touchscreen. The resolution is 800 x 480 pixels with multi-touch support.

2. What processor and memory does this terminal have?
The GE Fanuc IC755CSW07CDACA uses an MX535 1 GHz ARM A8 processor. It includes 512 MB of DDR2 RAM for operation.

3. What communication ports are available?
The GE Fanuc IC755CSW07CDACA includes RJ-45 Ethernet and RS-232 ports. Two USB Type-A ports are provided for peripherals.

4. What standards does this terminal meet?
The GE Fanuc IC755CSW07CDACA meets ATEX, CE, and EN standards. This ensures compliance with safety and environmental requirements.

5. What is the power consumption of this unit?
The GE Fanuc IC755CSW07CDACA consumes 15 Watts of power. It operates from a 24V DC power source.

Why Choose the GE Fanuc IC755CSW07CDACA?

This Quickpanel capacitive terminal delivers a cost-effective HMI solution. The 7-inch multi-touch display provides modern operator control. The 1 GHz processor handles 2D and 3D graphics smoothly. ATEX and CE certifications ensure industrial suitability. Order the GE Fanuc IC755CSW07CDACA today for your compact HMI needs.
